Gator-RC

2 sided 4" Offset HD Servo arm 3MM Purple 25 tooth Futaba style

In stock
SKU: GRC-SA-166
(0)
$12.55

2 sided 4" Offset HD Servo arm 3MM Purple 25 tooth Futaba style

Description:

25 Thread Spline & M3 thread.  Suitable for 4 Inch Futaba.

Specifications:

25T

Thread: M3

Material: CNC Aluminum

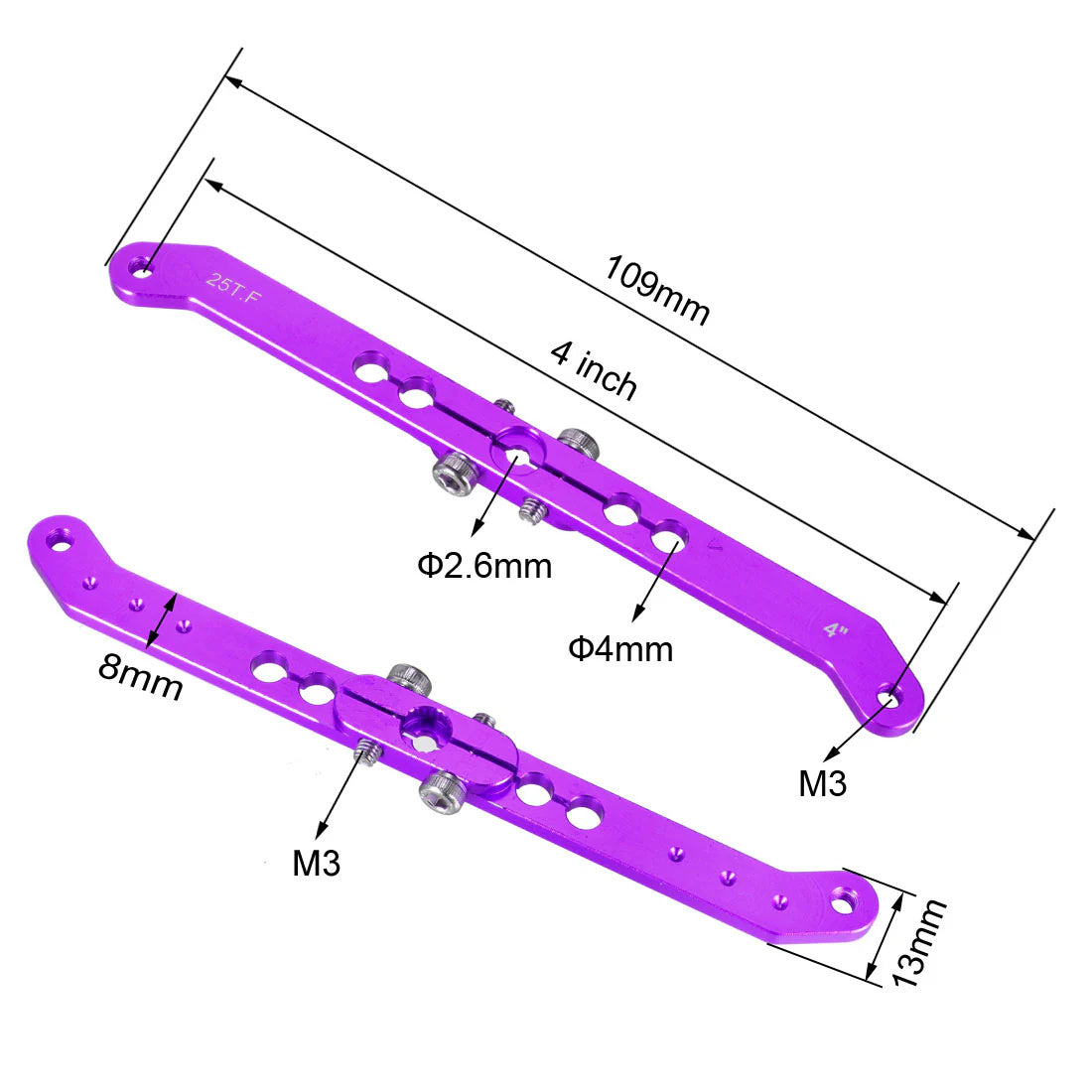

Middle hole inner diameter: approx. 2.6mm

Bigger 4 holes inner diameter: approx. 4mm

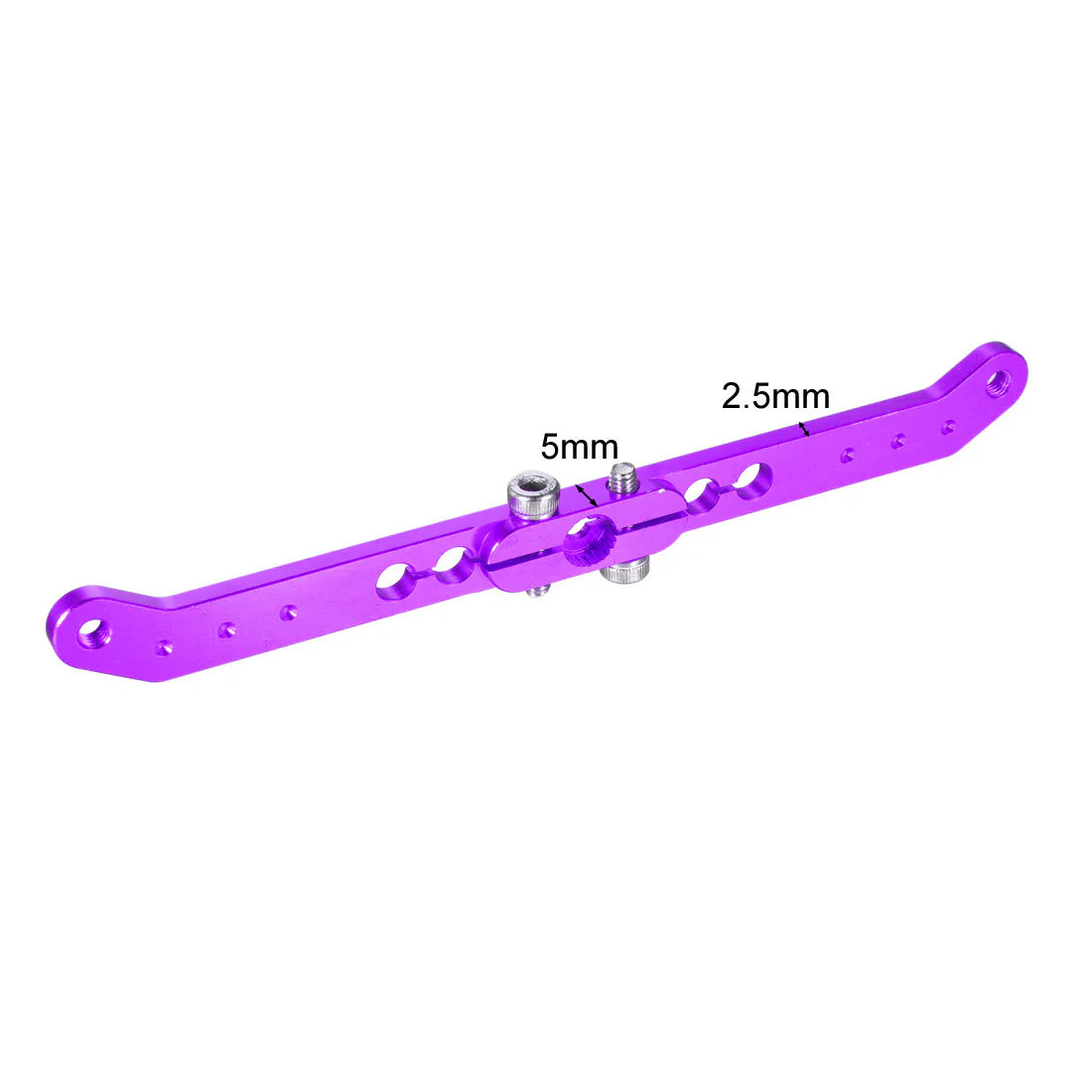

Maximum Thickness: approx. 5mm

Minimum Thickness: approx. 2.5mm

Maximum Width: approx. 13mm

Body Width: approx. 8mm

Total Length: approx. 109mm

Distance from hole center to hole center:4 inch

Color: Purple



Package Content:

1pc x Aluminum Servo Arm
  • SKU GRC-SA-166
