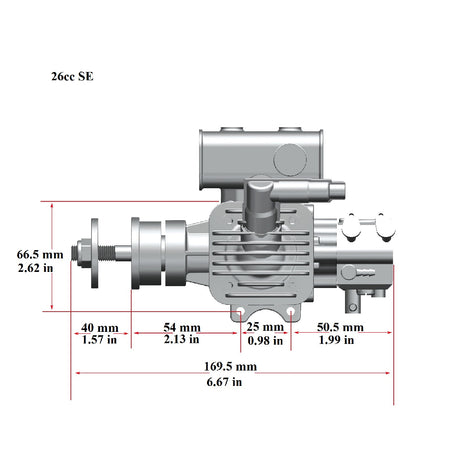

Stinger 26cc Side Exhaust Gas Engine

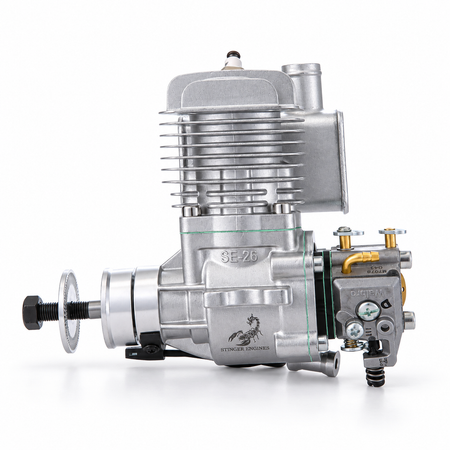

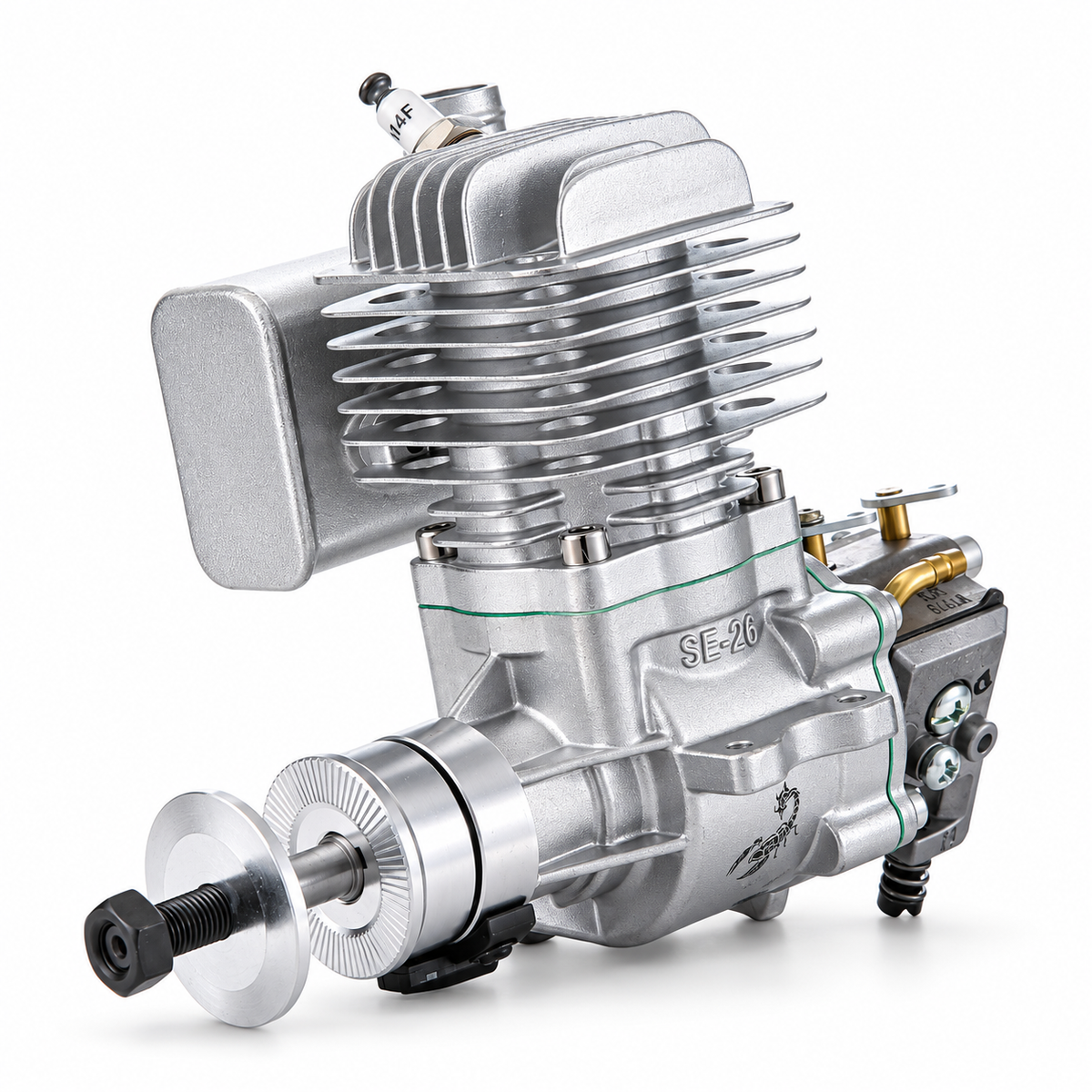

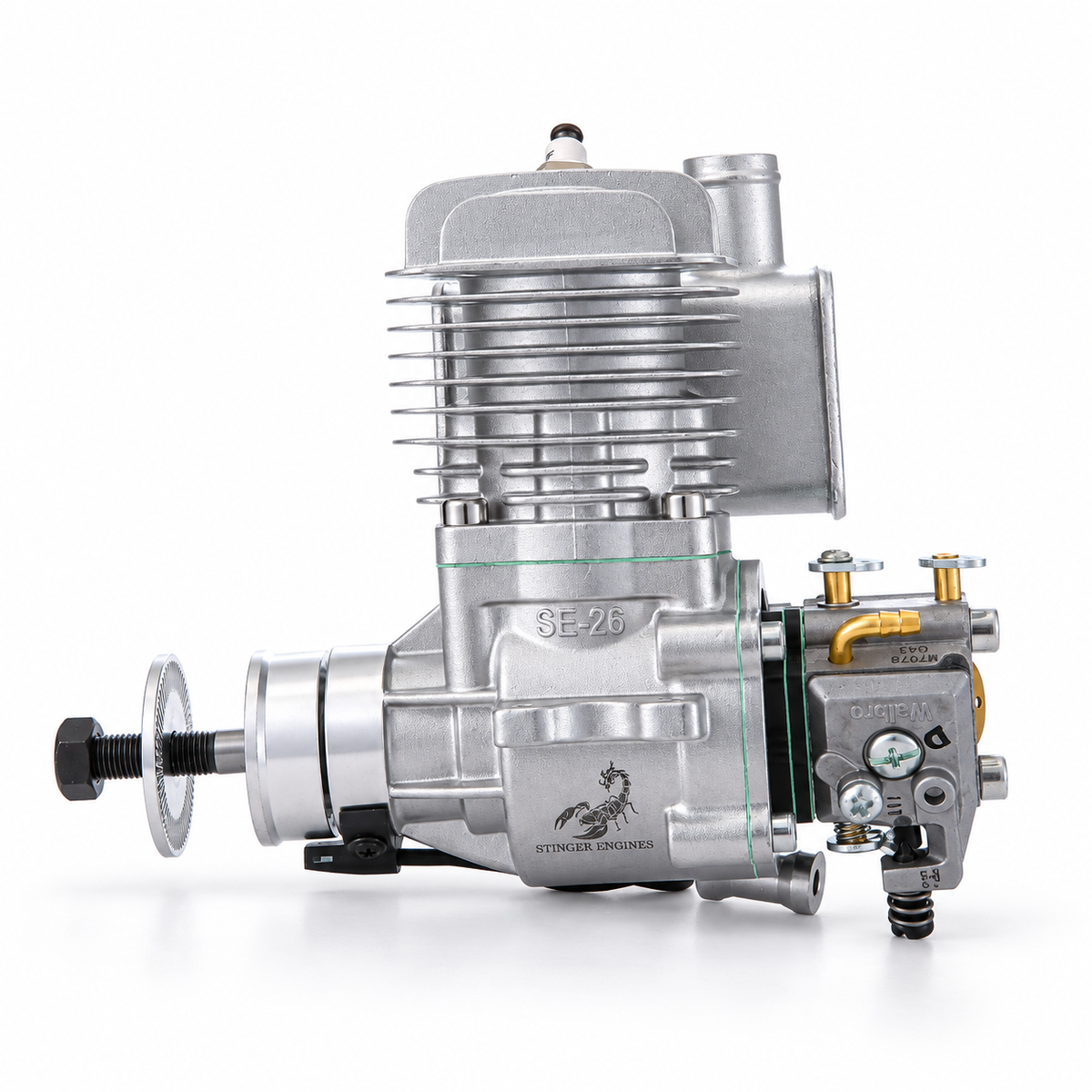

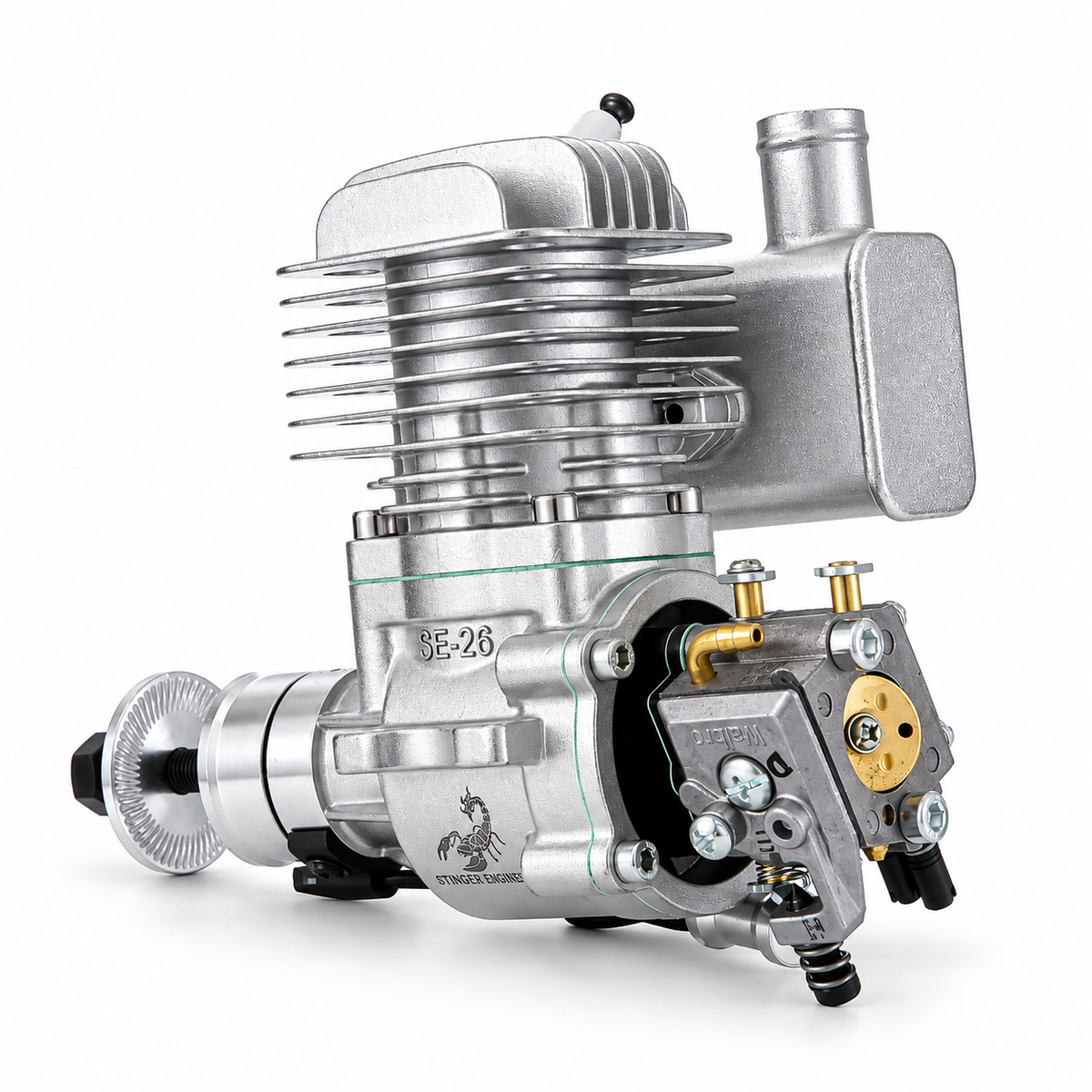

The Stinger 26cc SE is a single-cylinder, two-stroke gasoline engine for RC airplanes. Its side exhaust configuration, Walbro carburetor, and electronic CDI ignition make it an option for sport, scale, and warbird installations where the engine and muffler fit the aircraft's available space. Stinger states a maximum output of 3.1 hp.
Key features
- 26cc (1.59 cu in) displacement
- Side exhaust configuration with included muffler
- Walbro carburetor
- Electronic DC-CDI ignition with automatic advance
- Air-cooled, two-stroke gasoline design
Manufacturer specifications
| Configuration | Single-cylinder, two-stroke gasoline engine; side exhaust |
|---|---|
| Displacement | 1.59 cu in (26cc) |
| Bore × stroke | 1.34 × 1.10 in (34 × 28 mm) |
| Maximum stated output | 3.1 hp (2.28 kW) |
| Stated speed range | 1,800–9,800 rpm |
| Carburetor | Walbro |
| Ignition | Electronic DC-CDI with automatic advance |
| Ignition battery | 7.4–14V in Stinger's technical specifications; confirm the rating on the supplied ignition module before connecting a battery |
| Spark plug | CM6 |
| Fuel | Gasoline premixed with quality two-stroke oil; follow the supplied manual for the oil ratio and break-in procedure |
| Cooling | Air cooled |
| Engine weight | 1.69 lb (766 g) |
| Muffler weight | 2.5 oz (70 g) |
| Ignition-module weight | 4.6 oz (130 g) |
| Total stated weight | 2.42 lb (1,096 g), including engine, muffler, and ignition module |
Propeller guidance
Stinger lists 16×10, 17×8, 17×10, 18×8, and 18×10 propellers for the 26cc SE. Its current product page lists an 18×8 propeller for break-in. Confirm propeller clearance and follow the supplied engine manual when setting up your aircraft.

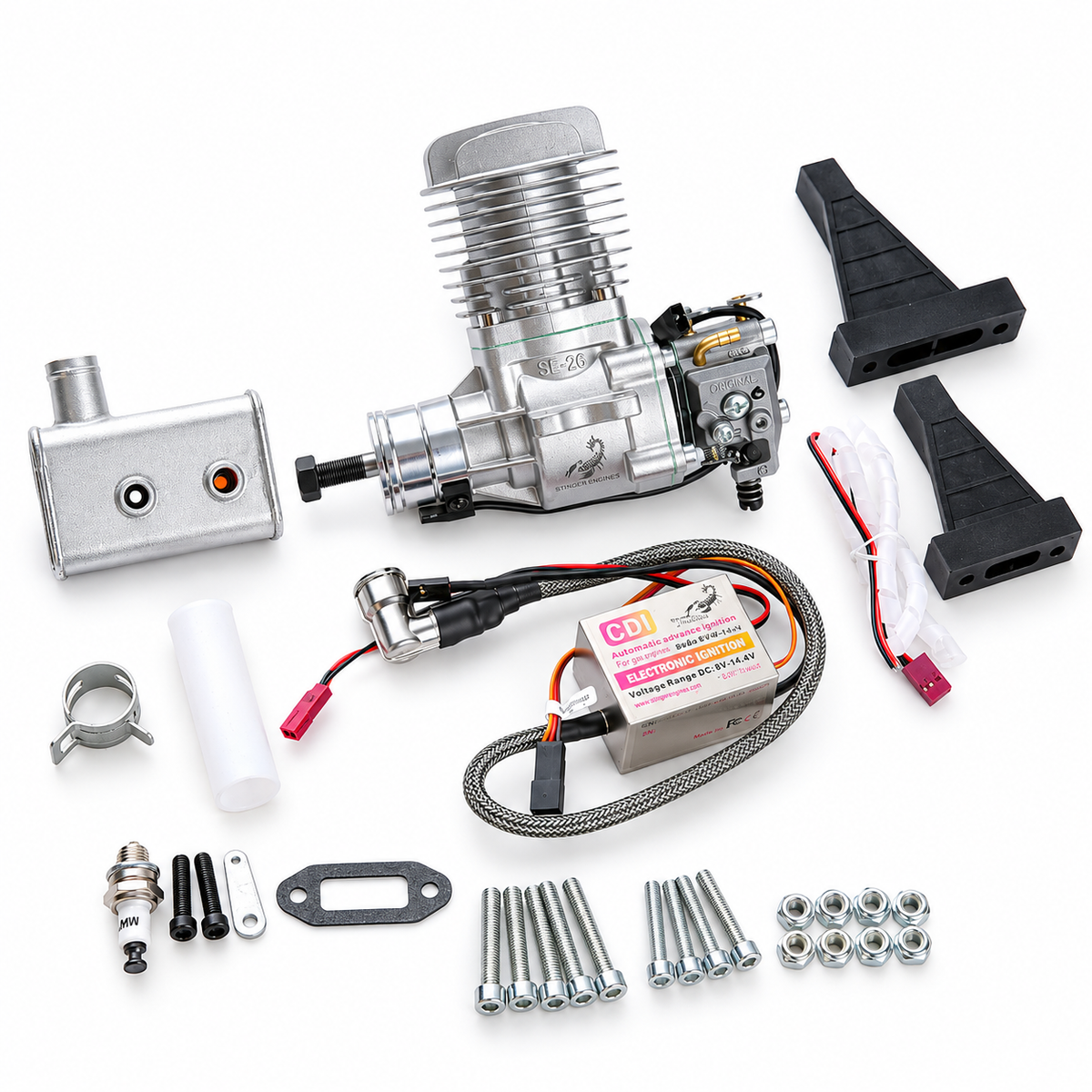

What's included
- Stinger 26cc side exhaust engine
- Electronic CDI ignition module and muffler
- Spark plug, gaskets, bolts, and throttle arm extension
- Instruction manual
Also required: Suitable ignition battery, gasoline, two-stroke oil, and propeller.
Replacement parts
- Shop Stinger 26cc replacement parts — select the needed part on the product page.
- Shop Stinger spark plugs — select the SCM-6 Iridium option, which Gator RC lists as fitting the 26cc SE.
