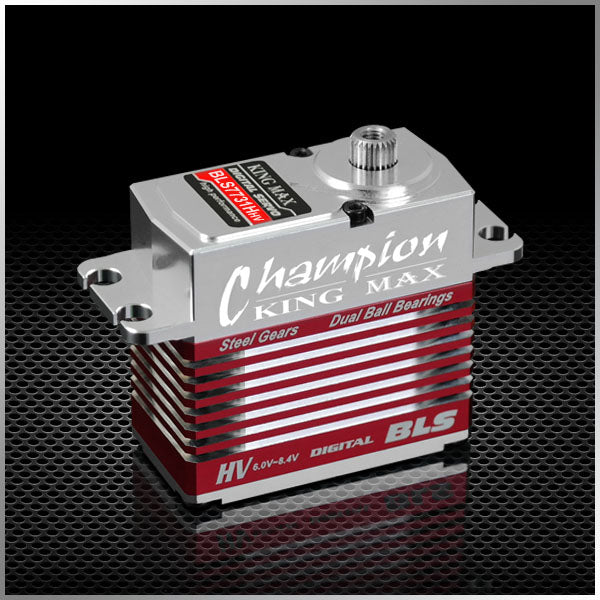

Kingmax Standard Servo, Digital, Metal Gear, Brushless (BLS7731HHV)

KingMax Ultra High Torque, Brushless Motor Servo, High Voltage (BLS7731HHV)

These Servos have been tested and approved by our staff. High-quality servos for your RC planes, helis, boats, and cars.

At 77 grams this servo produces 394 oz-in. of torque at 8.4 volts DC.

Servo Size: Standard

The output shaft on this servo is the same as Futaba 25 tooth and fits all of the 25 tooth servo arms.

FEATURE:

-- High performance programmable digital high voltage standard servo
-- High-precision Taiwan-made steel gears

-- High-quality brushless motor
-- Full CNC aluminum hulls and structure
-- Dual ball bearings
-- Waterproof
-- Ideal for 600-800 class helicopter swashplate

SPECIFICATIONS:
Operating Speed (6.0V): 0.11sec/60 degrees
Operating Speed (7.4V): 0.10sec/60 degrees
Operating Speed (8.4V): 0.09sec/60 degrees
Stall Torque (6.0V): 22.05kg.cm (306.27oz/in)
Stall Torque (7.4V): 26.50kg.cm (368.08oz/in)
Stall Torque (8.4V): 28.42kg.cm (394.75oz/in)

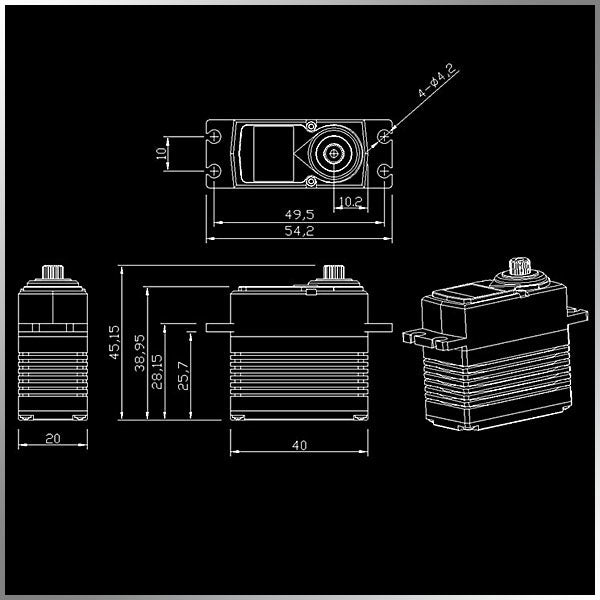

Dimensions: 40X20X39.5mm /1.57X0.79X1.56 in
Weight: 77.5g (2.45oz)
Connector Wire Length: JR / Universal JR320 mm (12.6in)

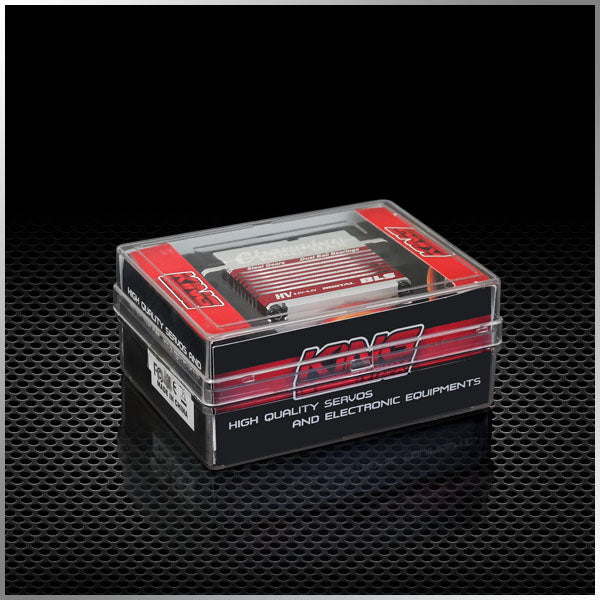

Packing Detail:
Transparency plastic box
