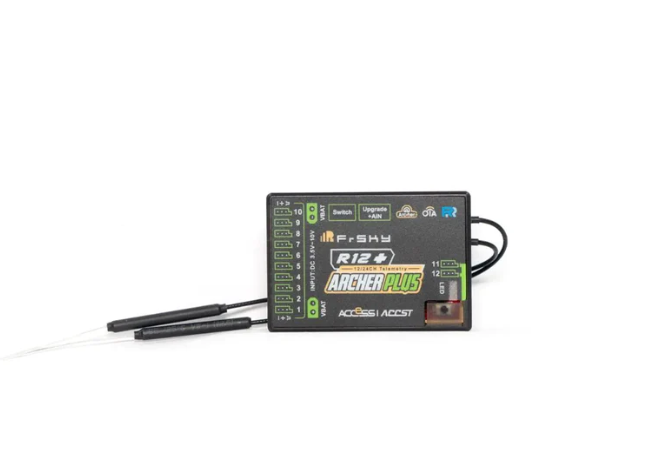

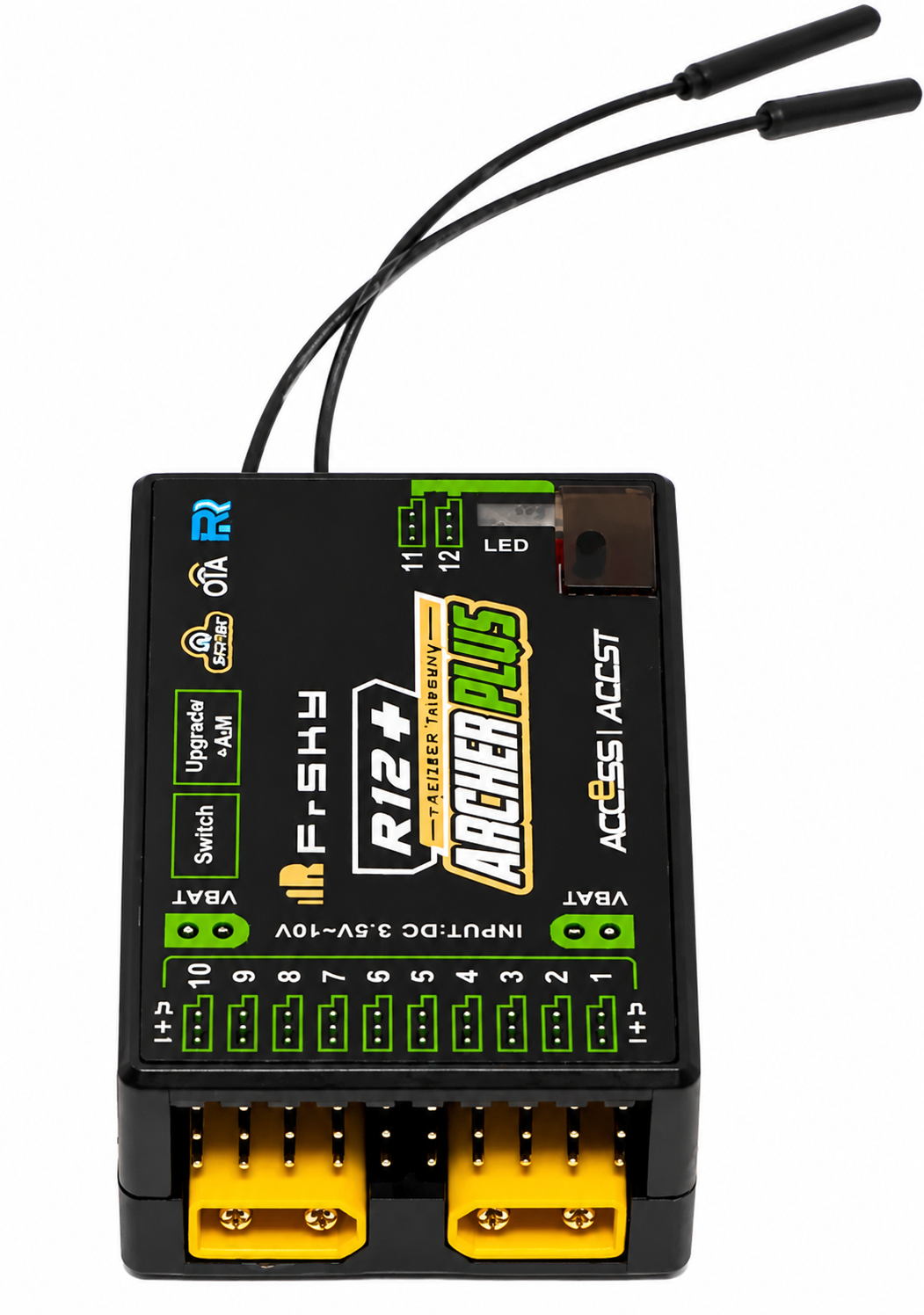

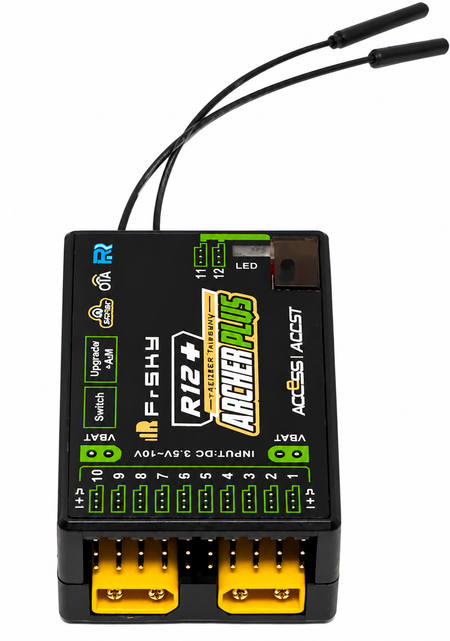

FrSky Archer Plus SR12+ Stabilized Receiver – 12 Channel ACCESS / ACCST FBUS RX

The FrSky Archer Plus SR12+ is a premium 12-channel stabilized receiver designed for giant scale RC airplanes, turbine jets, aerobatic aircraft, and advanced fixed-wing applications. Featuring integrated 3-axis gyro stabilization, configurable channel ports, FBUS support, signal redundancy capability, and compatibility with both ACCESS and ACCST D16 transmitters, the SR12+ delivers exceptional flexibility and control for serious RC pilots.

FrSky Archer Plus SR12+ Stabilized Receiver

The Archer Plus series represents the next evolution of FrSky receiver technology, offering enhanced anti-RF interference capability, improved telemetry integration, flexible channel configuration, and advanced stabilization features in a compact and powerful receiver platform.

The SR12+ features a built-in 3-axis gyroscope and 3-axis accelerometer with multiple flight modes including stabilization, auto-level, and knife-edge support. This makes the receiver ideal for giant scale aircraft, turbine jets, warbirds, and precision aerobatic applications where additional flight stability and confidence are desired.

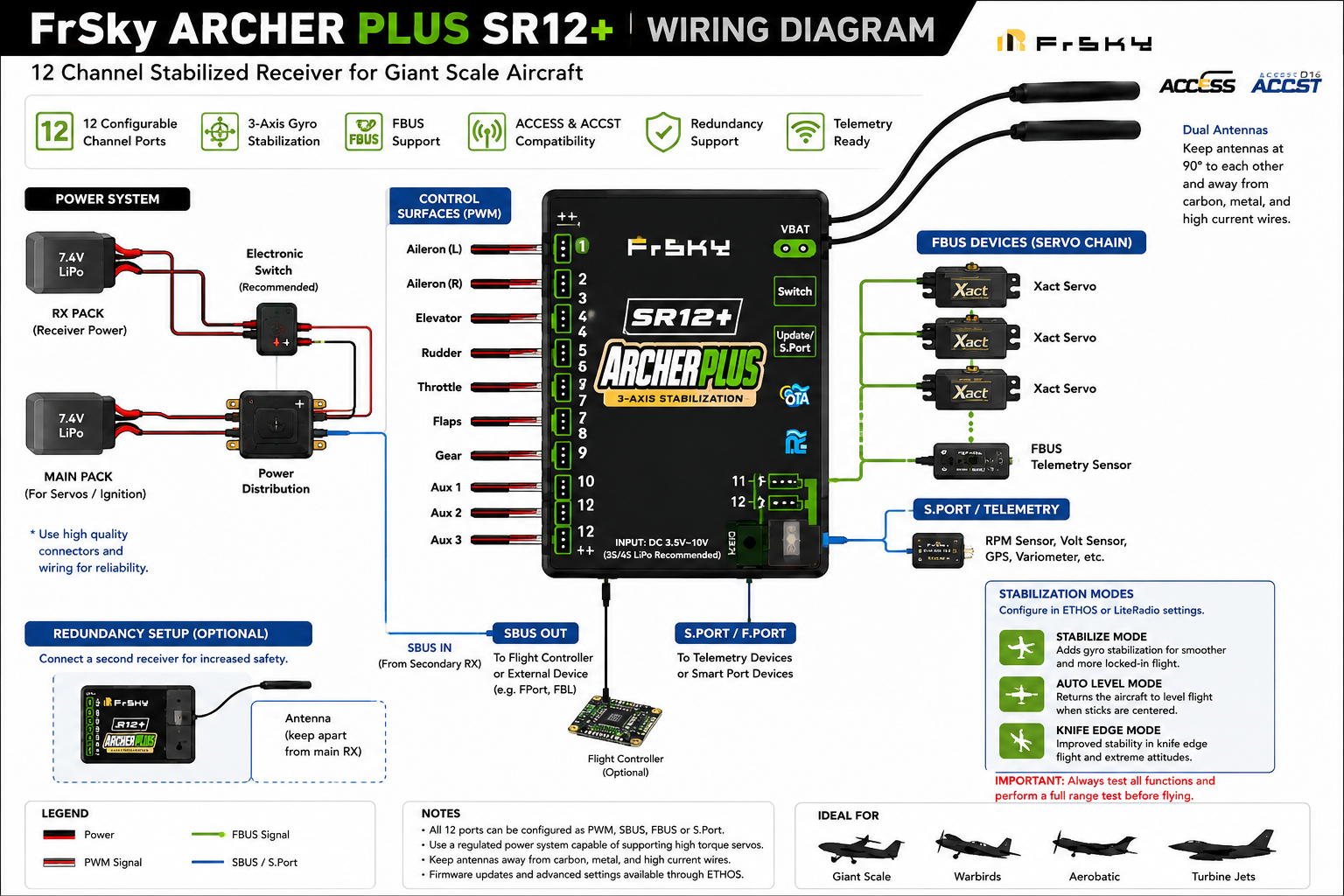

Each of the 12 configurable channel ports can be assigned as PWM, SBUS, FBUS, or S.Port, allowing highly flexible installation options and cleaner radio system layouts.

With FBUS support, the Archer Plus SR12+ integrates seamlessly with FrSky Xact servos, telemetry sensors, and other compatible devices while simplifying wiring and setup.

Recommended Applications

• 50cc–120cc giant scale RC airplanes
• Turbine jets
• Scale warbirds
• IMAC and aerobatic aircraft
• Large gas and electric airplanes
• Aircraft requiring stabilization assistance
• Advanced FBUS and telemetry-equipped builds

Key Features

• 12 configurable channel ports
• Integrated 3-axis gyroscope and 3-axis accelerometer
• Supports stabilization, auto-level, and knife-edge modes
• ACCESS and ACCST D16 smart-matched compatibility
• Supports FBUS, SBUS, PWM, and S.Port protocols
• FBUS telemetry integration support
• Supports signal redundancy through SBUS In
• Enhanced anti-RF interference capability
• Improved spark ignition interference resistance
• Over-The-Air (OTA) firmware update support
• Supports ETHOS and LUA configuration tools
• Full-range telemetry support
• Dual detachable antennas for strong reception
• Supports Black-Box function capability

Integrated Stabilization System

The SR12+ includes a built-in stabilization system utilizing both a 3-axis gyroscope and 3-axis accelerometer. Multiple flight assistance modes allow pilots to improve aircraft stability in challenging conditions while maintaining natural flight feel and precise control response.

Supported stabilization modes include:

• Normal stabilization mode
• Auto-level mode
• Knife-edge support mode
• User-configurable gain settings

FBUS Ecosystem Advantage

The FBUS protocol allows multiple compatible devices such as FrSky Xact servos and telemetry sensors to communicate efficiently while simplifying wiring inside the aircraft. This helps reduce cable clutter while improving telemetry integration and system expandability.

Redundancy Support

The SR12+ can function as a primary receiver in a redundant receiver setup by utilizing SBUS In functionality with another compatible FrSky receiver. This makes it especially attractive for large giant-scale aircraft and turbine jet applications where additional signal reliability is desired.

Specifications

Why Pilots Choose the Archer Plus Series

The Archer Plus series has become popular among advanced RC pilots because it combines modern stabilization features, telemetry integration, flexible configuration, and strong RF performance into a compact receiver platform. The ability to support ACCESS and ACCST radios while also integrating with the FBUS ecosystem makes the SR12+ an excellent choice for both new and existing FrSky users.

Recommended Accessories

• FrSky Xact servos
• FrSky ETHOS transmitters
• FBUS-compatible telemetry sensors
• Power distribution systems
• Heavy-duty servo extensions
• Dual battery systems for giant scale aircraft

Important Setup Notes

• Stabilization functions require proper setup and calibration before flight.
• Some advanced functions require ACCESS protocol and ETHOS support.
• Always perform range testing before first flight.
• For giant scale and turbine applications, proper power system design is recommended.
• SBUS In allows integration into redundant receiver systems.

What’s Included

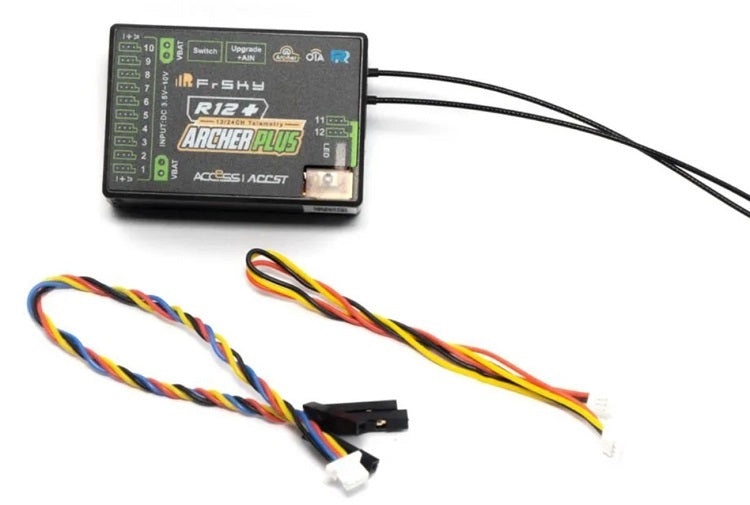

• FrSky Archer Plus SR12+ Stabilized Receiver
• Factory packaging
