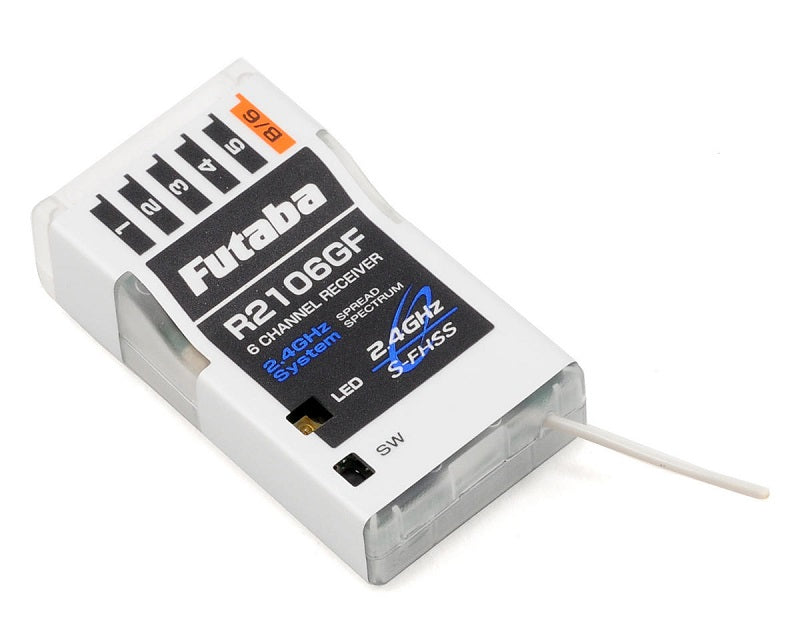

Futaba R2106GF 2.4GHz S-FHSS receiver on a white background

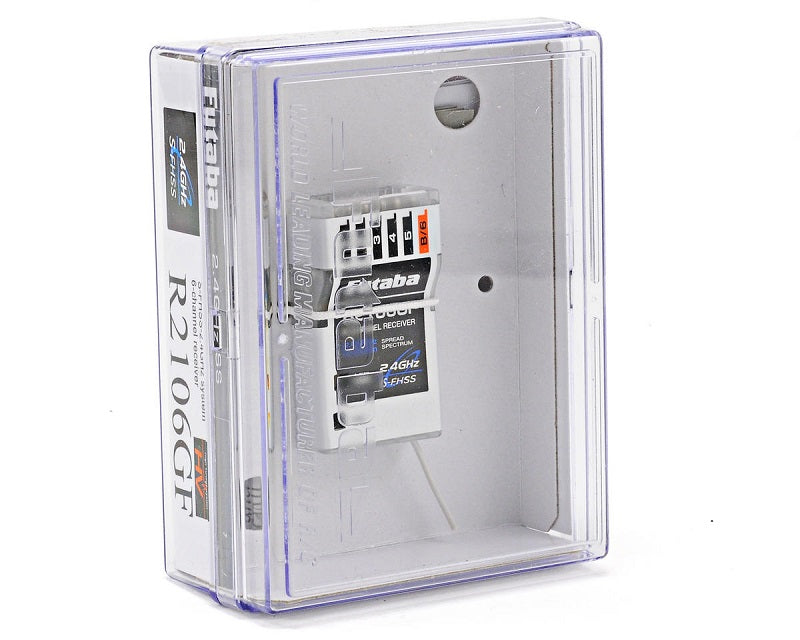

Clear plastic cover over a electrical switch with labels on a white background
Futaba R2106GF 2.4GHz S-FHSS receiver on a white background
Clear plastic cover over a electrical switch with labels on a white background
Futaba

Futaba R2106GF S-FHSS 2.4GHz 6-Channel Air Receiver (01102201-3)

In stock
SKU: 01102201-3
(0)
$49.95

Futaba R2106GF S-FHSS 2.4GHz 6-Channel Air Receiver

The Futaba R2106GF is a compact and lightweight six-channel receiver designed for park flyers, slow-flying electric aircraft, indoor models, and small electric helicopters. It automatically detects compatible Futaba S-FHSS and FHSS signals, making it a practical receiver for lightweight models where space and weight are limited.

Six standard PWM channel outputs allow conventional servos and an electronic speed controller to connect directly to the receiver. Weighing only 0.16 oz. (4.5 g), the R2106GF fits easily into compact electric airframes.

Discontinued—Limited Availability: Futaba has discontinued production of the R2106GF. Remaining inventory is available only while supplies last.
Short-Range Receiver: The R2106GF is designed for park flyers, slow-flying aircraft, indoor models, and small electric helicopters. Futaba specifically advises against using this receiver in medium or large-scale aircraft.

Key Features

  • Six PWM Channels: Provides six conventional channel outputs for servos, an ESC, or a receiver battery connection.
  • S-FHSS and FHSS: Automatically detects compatible Futaba S-FHSS or FHSS transmitter signals.
  • Compact Design: Small dimensions make it suitable for lightweight and space-restricted electric models.
  • Lightweight Construction: Weighs only 0.16 oz. (4.5 g).
  • Fail-Safe Support: Supports fail-safe and battery fail-safe functions when available through the selected transmitter and operating mode.
  • Standard Connectors: Accepts standard receiver-style servo and ESC plugs.
  • Wide Receiver Voltage Range: Operates from 4.8 to 7.4 volts.

Recommended Applications

  • Park flyer aircraft
  • Slow-flying electric airplanes
  • Indoor RC aircraft
  • Small electric helicopters with main rotor diameters up to 39.4 in. (1,000 mm)
Technical Specifications
Manufacturer Part Number: 01102201-3
Receiver Type: Short-range air receiver
Channels: 6 PWM channels
Radio System: Futaba S-FHSS and FHSS with automatic detection
Frequency: 2.4GHz
Operating Voltage: 4.8–7.4V DC
Battery Fail-Safe Voltage: 3.8V
Dimensions: 1.53 × 0.85 × 0.42 in. (38.8 × 21.5 × 10.7 mm)
Weight: 0.16 oz. (4.5 g)
Compatibility Notice: The R2106GF must be used with a compatible Futaba transmitter operating in S-FHSS or FHSS mode. It is not compatible with FASST, FASSTest, T-FHSS, or other 2.4GHz protocols. This receiver does not provide S.BUS, S.BUS2, or telemetry capabilities.
Power Notice: Do not power this receiver with dry-cell batteries. When using an ESC's regulated receiver output, confirm that the BEC has sufficient capacity for every connected servo under operating load.

Package Includes

  • 1 × Futaba R2106GF 6-Channel Air Receiver
