Futaba R7208SB FASSTest 8-Channel S.BUS2 Receiver with Dual Rx Link
The Futaba R7208SB is a compact, high-voltage FASSTest aircraft receiver featuring eight configurable conventional outputs, S.BUS and S.BUS2 connectivity, telemetry support, dual-antenna diversity, and Futaba's Dual Rx Link System.
Its bidirectional FASSTest communication returns receiver and compatible sensor information to the transmitter. Configurable output modes allow the physical ports to operate as conventional PWM channels, S.BUS outputs, or S.BUS2 connections according to the requirements of the aircraft.
Key Features
- FASSTest 2.4GHz System: Provides fast bidirectional communication with compatible Futaba FASSTest transmitters.
- Eight Conventional Outputs: Provides up to eight configurable PWM outputs for standard servo and ESC connections.
- S.BUS Output: Supports multiple channel-assigned S.BUS servos, gyros, and other compatible equipment over a single signal connection.
- S.BUS2 Telemetry: Accepts compatible S.BUS2 telemetry sensors and returns their data to the transmitter.
- Dual Rx Link: Supports an optional secondary Futaba receiver for added receiver redundancy.
- Dual-Antenna Diversity: Uses two antennas to improve signal reception when installed at the proper orientation.

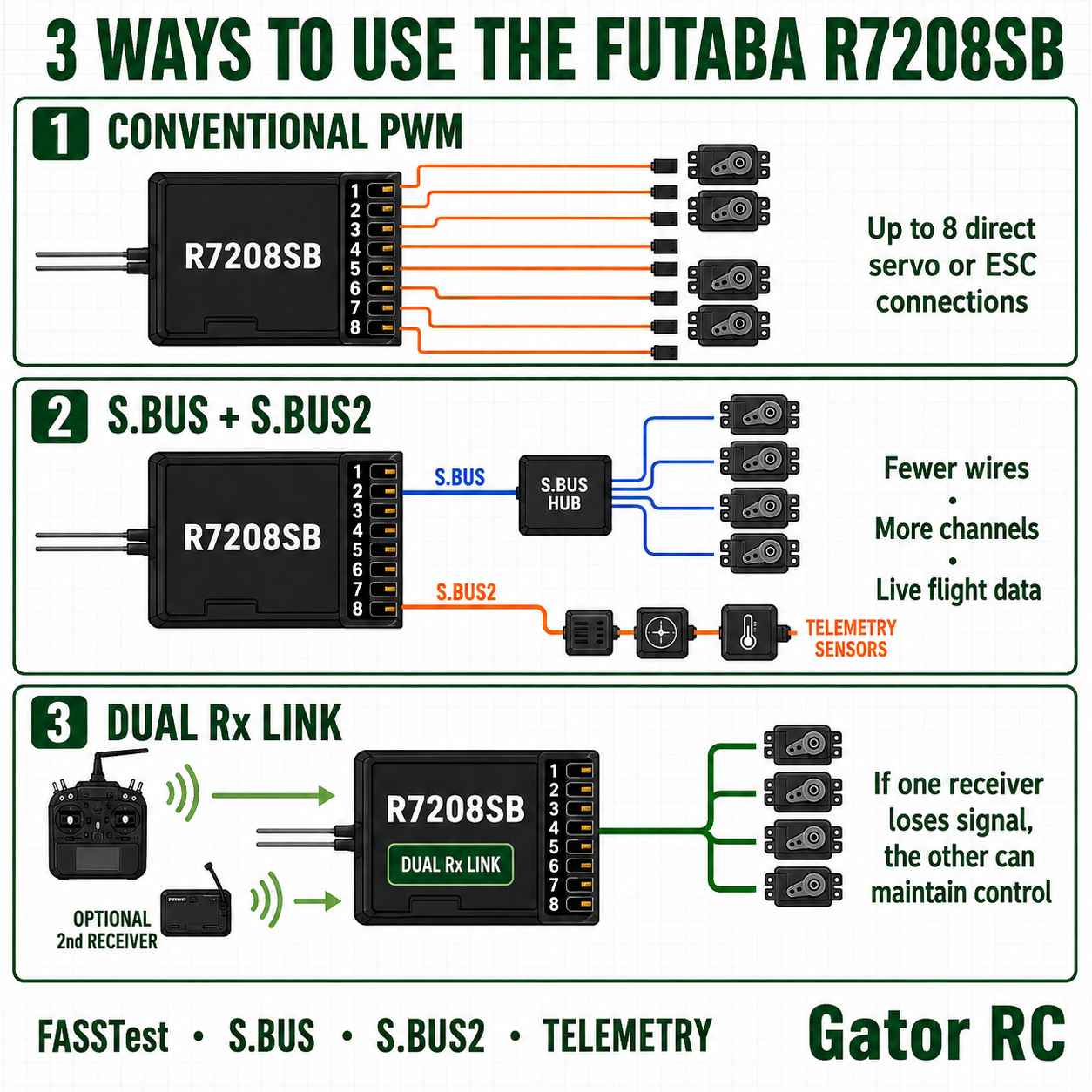

- Configurable Output Modes: Allows the physical ports to serve different PWM, S.BUS, or S.BUS2 functions.
- External Voltage Telemetry: Measures an external battery of up to 70V DC when used with the appropriate optional Futaba voltage-input cable.
- High-Voltage Compatible: Operates with receiver power systems within a usable voltage range of 3.5–8.4 volts.
- Adjustable Battery Fail-Safe: Battery fail-safe voltage can be configured through a compatible Futaba transmitter.
- Firmware Update Support: Receiver firmware can be updated for expanded compatibility and new functions.
Recommended Applications
- Sport, scale, and aerobatic airplanes
- RC helicopters
- Turbine jets and large-scale aircraft
- S.BUS and S.BUS2 installations
- Telemetry-equipped aircraft
- Models using an optional secondary receiver for signal redundancy
Technical Specifications
| Manufacturer Part Number: | 01102381-1 |
| Receiver Type: | FASSTest aircraft receiver |
| Compatible Protocol: | Futaba FASSTest 2.4GHz |
| FASSTest Modes: | 26-channel, 18-channel, and 12-channel with compatible equipment and current firmware |
| Conventional Outputs: | Up to 8 PWM channels, depending on selected output mode |
| Serial Communication: | S.BUS and S.BUS2 |
| Telemetry: | Yes, through compatible FASSTest and S.BUS2 equipment |
| External Voltage Measurement: | 0–70V DC with optional external voltage cable |
| Receiver Redundancy: | Dual Rx Link System |
| Antenna System: | Dual-antenna diversity |
| Power Requirement: | 3.7–7.4V DC |
| Usable Voltage Range: | 3.5–8.4V DC |
| Current Drain: | 75 mA |
| RF Output: | 25 mW EIRP |
| Battery Fail-Safe Voltage: | Adjustable through a compatible transmitter |
| Dimensions: | 1.53 × 0.98 × 0.56 in. (38.8 × 24.9 × 14.3 mm) |
| Weight: | 0.35 oz. (9.9 g) |
Package Includes
- 1 × Futaba R7208SB FASSTest Receiver
Secondary receiver, external voltage cable, telemetry sensors, servos, batteries, switches, connecting leads, S.BUS hubs, and programming equipment are sold separately.
