Gator-RC F3A Battery Tray Kit for 10S LiPo Systems | Lightweight Carbon & Ply
Couldn't load pickup availability
Gator-RC F3A 10S Battery Tray Kit
Secure your power system with what many consider the most effective 10S battery tray ever made. The Gator-RC F3A Battery Tray Kit is a complete installation solution designed for precision aerobatic pilots who demand the ultimate in strength-to-weight performance. This kit combines high-quality laser-cut plywood with rigid carbon fiber cross tubes to provide a rock-solid foundation for your 10S LiPo packs.
⚖️ Ultra-Lightweight Competition Design
In the world of F3A, every gram counts. The complete Gator-RC kit, including straps, weighs in at just 49.8g (1.75oz). The 6-inch carbon fiber cross tubes can be easily cut to length, allowing for a perfectly customized fit in any fuselage.
Key Features

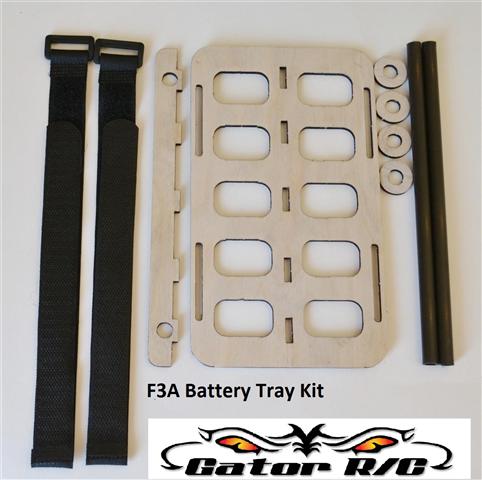

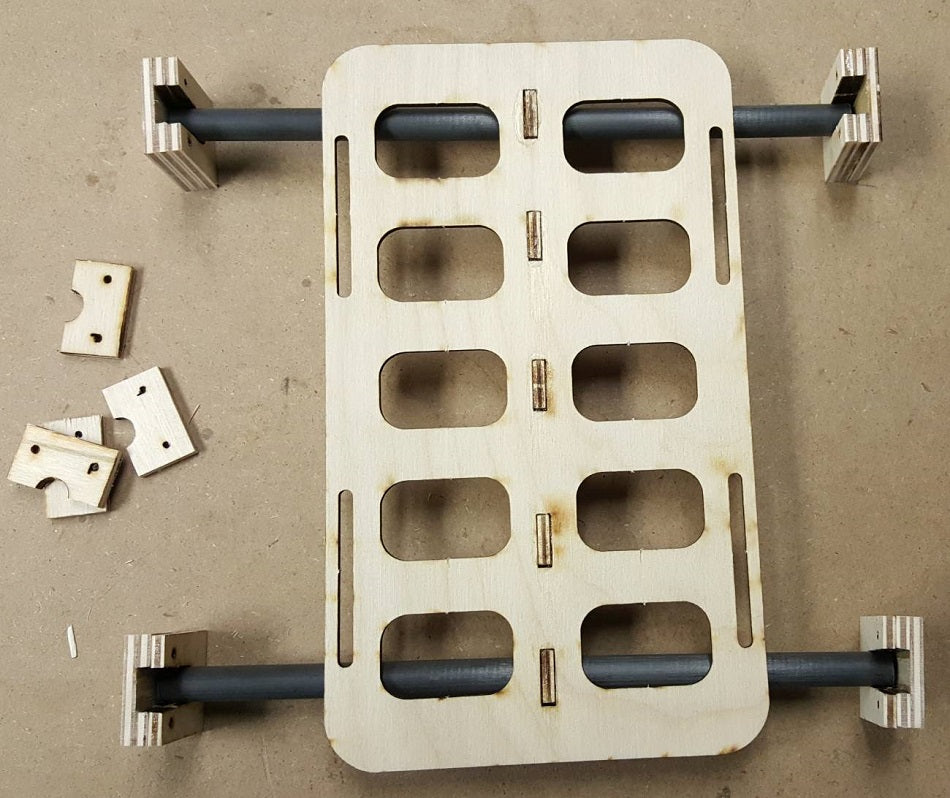

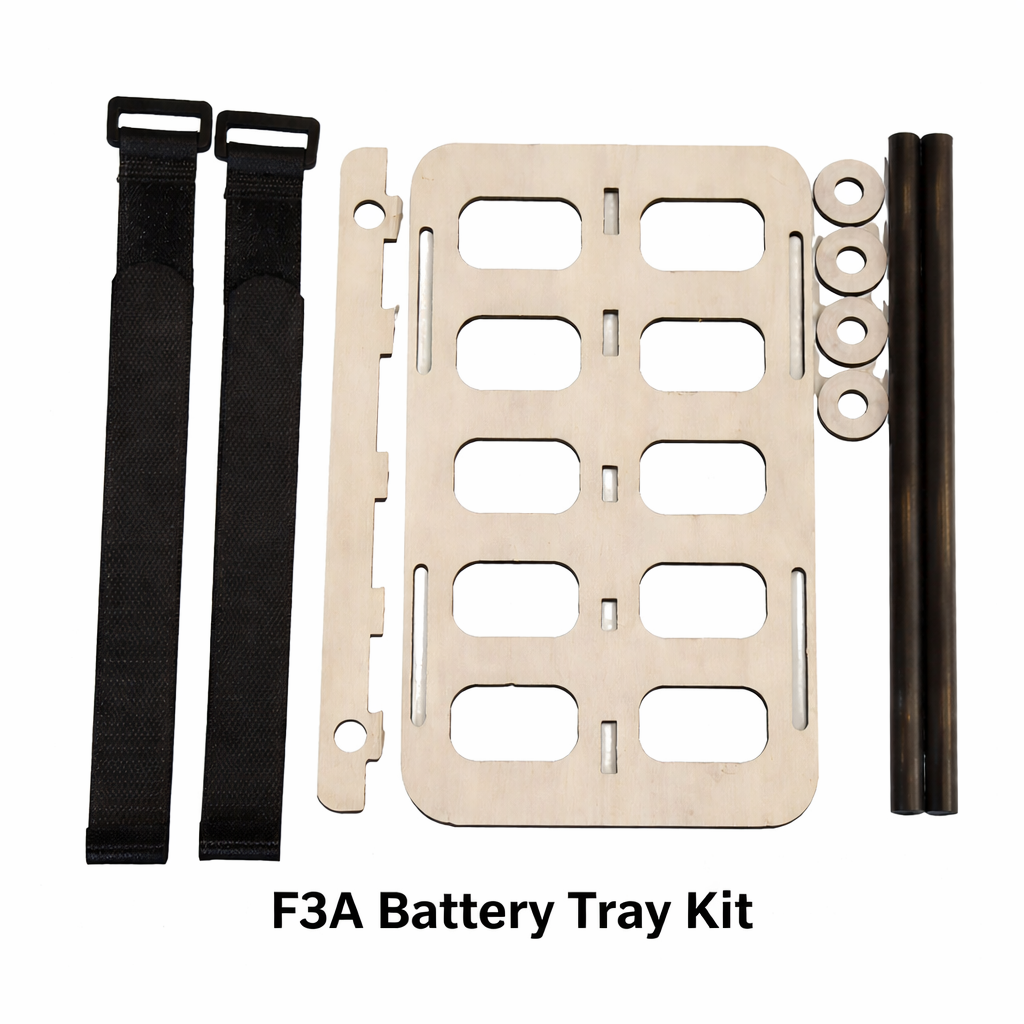

- Complete Installation Kit: Includes laser-cut plywood parts, 8mm carbon fiber cross tubes, and high-quality Velcro buckle straps.
- Optimized for 10S: Tray width (strap slot to strap slot) is 3.46 inches (87.88 mm), specifically designed for 10S battery configurations.
- Modular System: Can be used as a permanent mount or converted into a quick-release system.
- Customizable Fit: Carbon tubes can be trimmed to fit your specific airframe width.
- Gator-RC Quality: Engineered specifically for the rigors of competition aerobatics.
View Technical Specifications
| Weight: | 49.8g (1.75 oz) including straps |
| Tray Width: | 3.46 in (87.88 mm) |
| Cross Tubes: | 8mm x 6" Carbon Fiber |
| Compatibility: | 10S LiPo Setups / F3A Airframes |
| Part Number: | GRCRTB |
🛠️ Optional Upgrade: Removable Configuration
Want to make your tray removable for easier battery swaps? This kit is fully compatible with the Gator-RC Removable "U" Bracket Kit (sold separately).

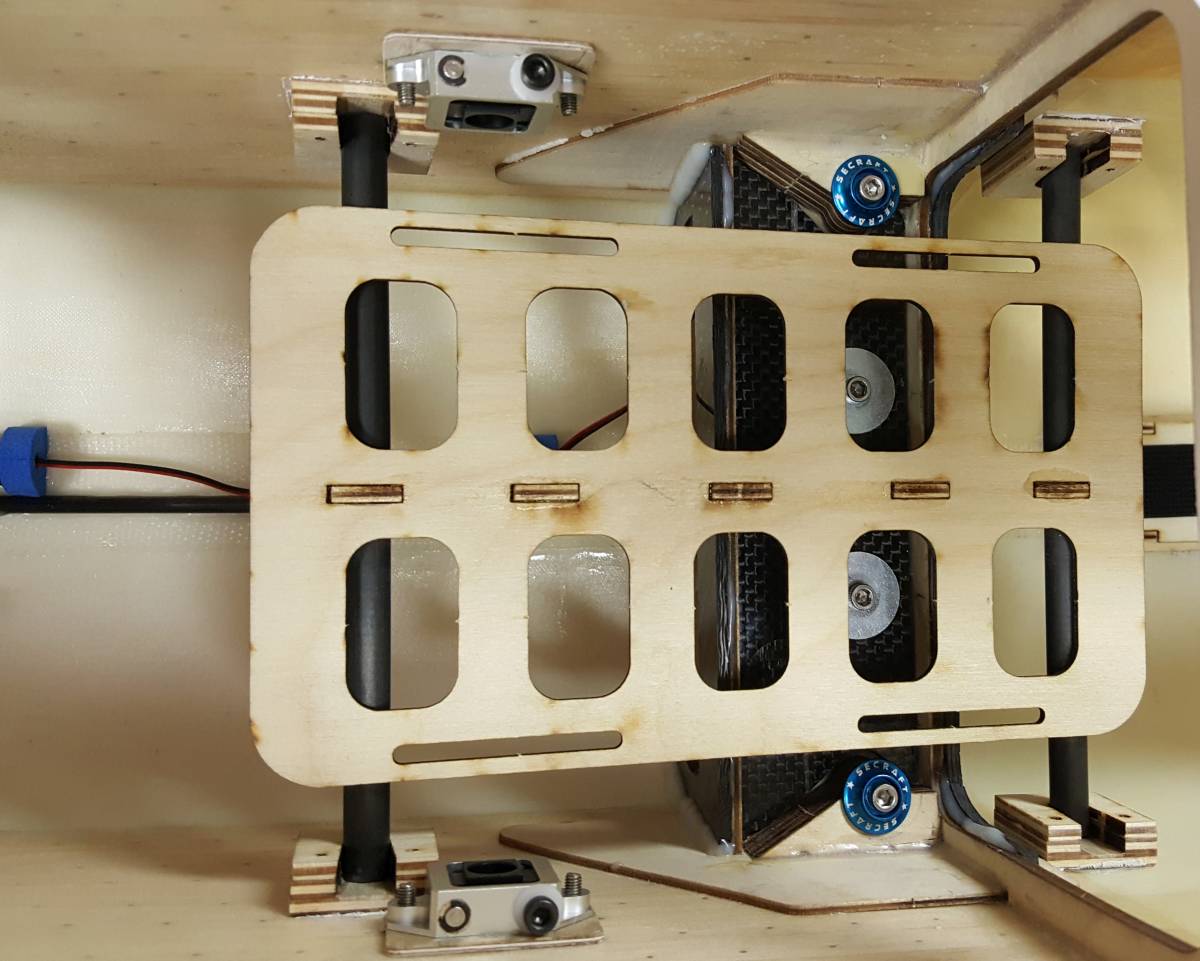

Note: Some product photos show the removable bracket kit for demonstration purposes.
💡 Gator-RC Modeler’s Tip: Precise CG Control

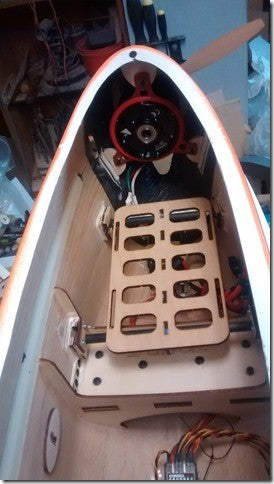

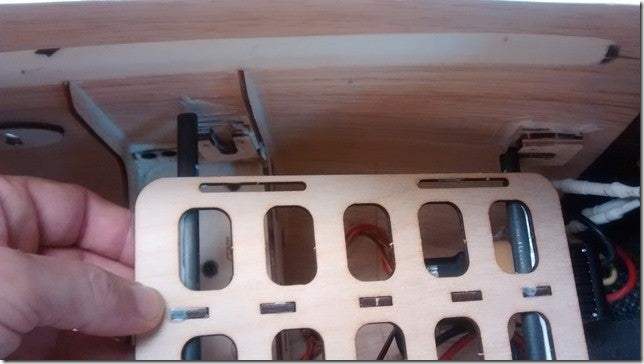

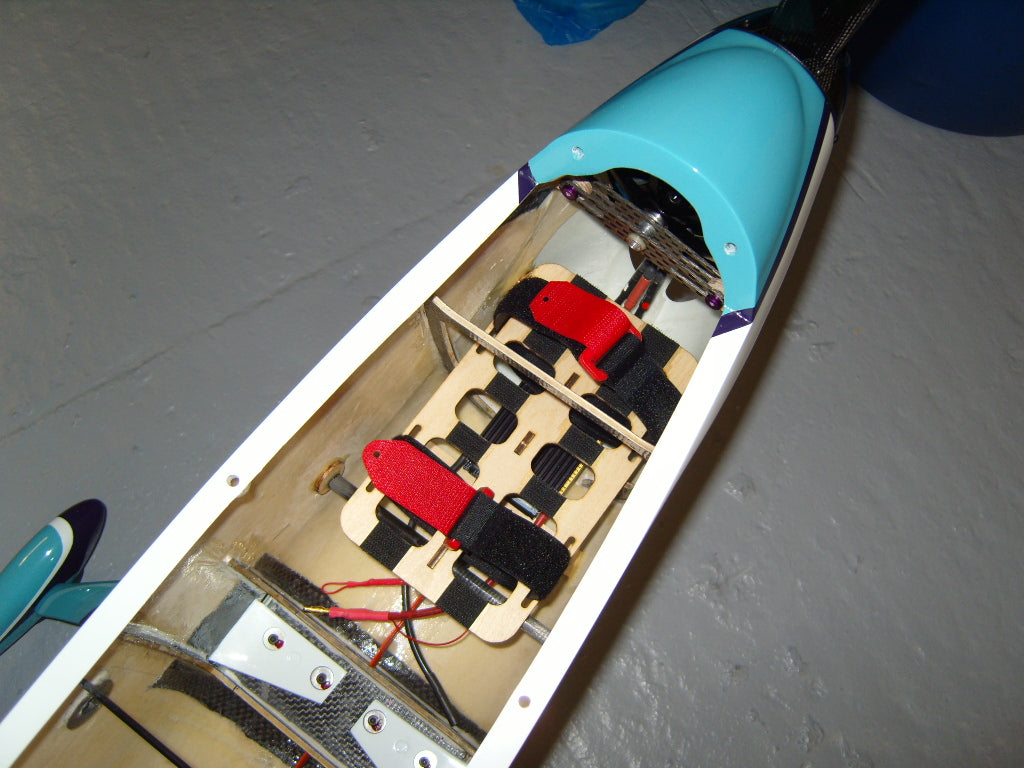

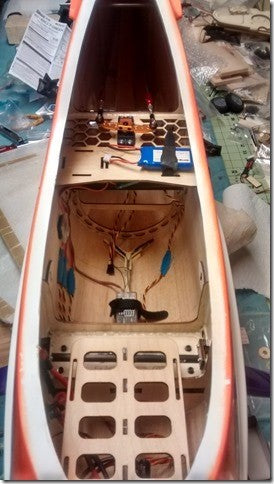

When installing your tray, use the length of the carbon tubes to bridge the fuselage formers. This provides a rigid platform that allows you to slide your 10S packs forward or aft to fine-tune your Center of Gravity (CG) without adding unnecessary weight.
The Gator-RC Advantage
At Gator-RC, we design our accessories to meet the demands of competition-level flight. Our battery trays are lightweight, durable, and engineered for pilots who value efficiency. Shop with confidence and enjoy fast shipping from our US-based warehouse.
