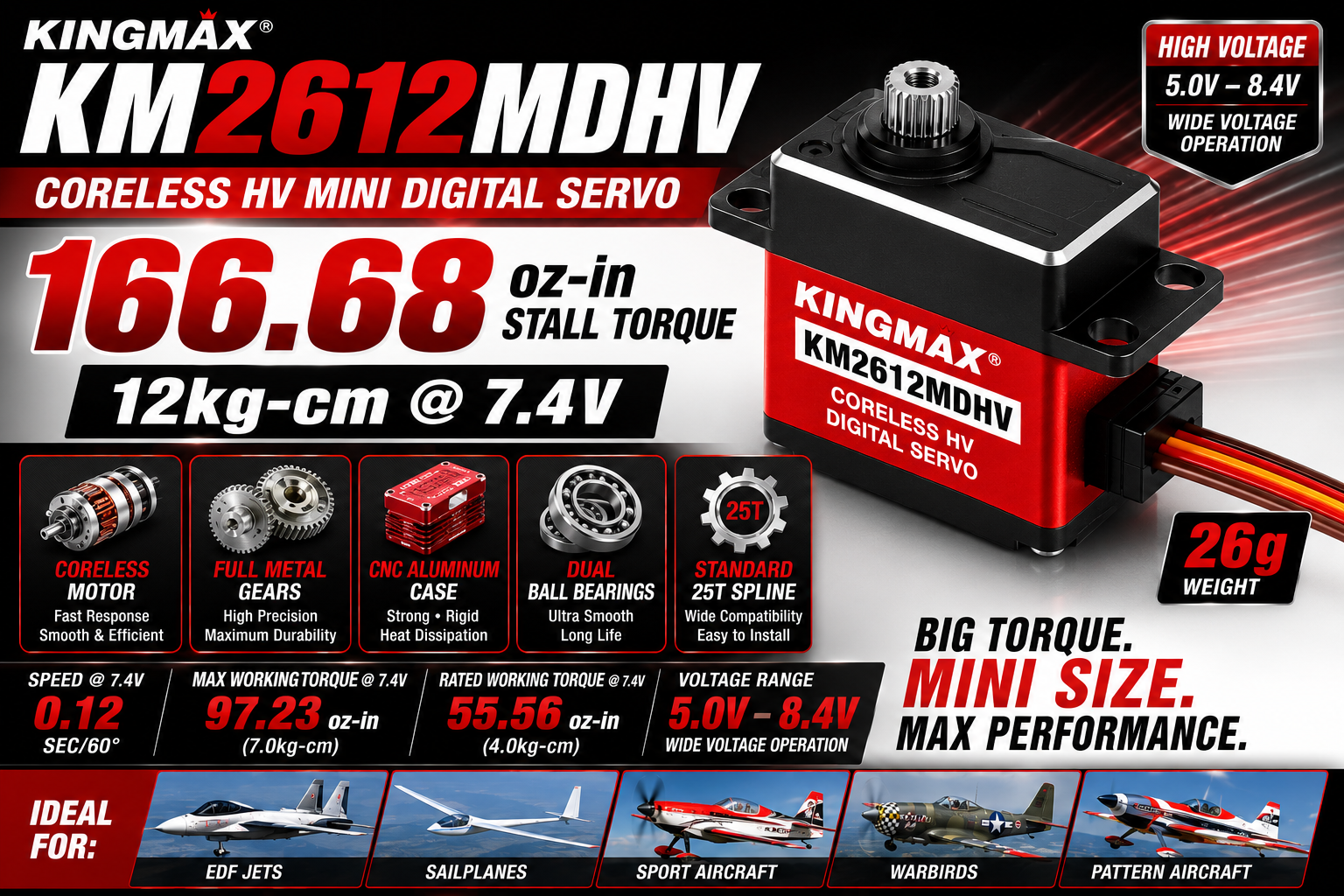

KingMax KM2612MDHV Coreless HV Mini Digital Servo
The KingMax KM2612MDHV is a high-performance digital mini servo designed for RC aircraft and compact RC applications requiring strong torque, precise control, and a lightweight servo package.
Featuring a high-quality coreless motor, full metal gears, full CNC aluminum case construction, and dual ball bearings, the KM2612MDHV delivers up to 12kg-cm (166.68 oz-in) stall torque at 7.4V while weighing only 26g (0.91 oz).
Its compact mini-servo size, HV capability, and standard 25T spline make it a strong choice for EDF jets, sailplanes, sport aircraft, smaller warbirds, and other installations where space and weight matter.
Features
- High-performance digital mini servo
- High-precision full metal gears
- High-quality coreless motor
- Full CNC aluminum hull and structure
- Dual ball bearings (2BB)
- Standard 25T spline
- Wide voltage operation from 5.0V to 8.4V
- Compact 26g mini-servo design

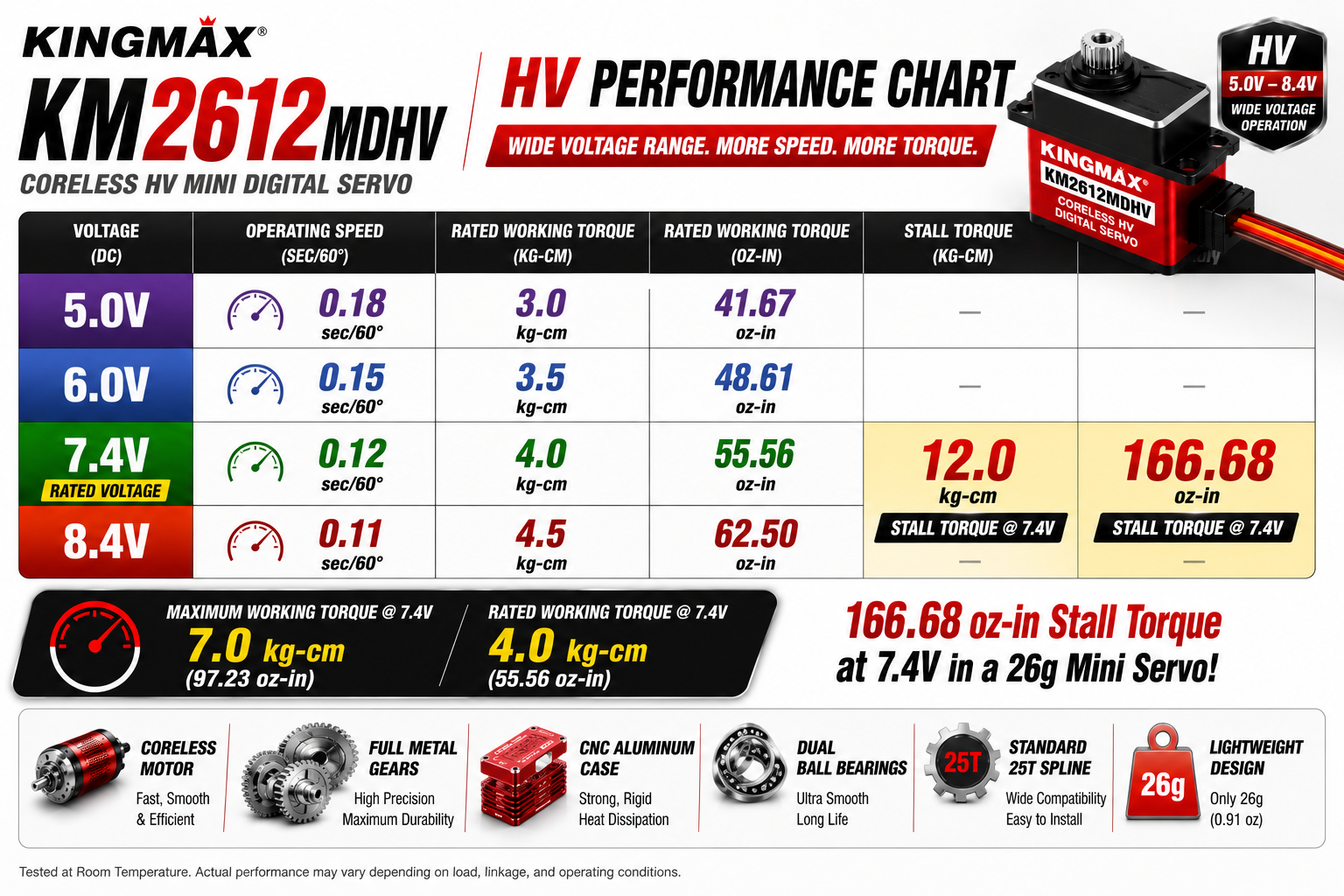

Speed Performance
| Voltage | Operating Speed |
|---|---|
| 5.0V | 0.18 sec/60° |
| 6.0V | 0.15 sec/60° |
| 7.4V | 0.12 sec/60° |
| 8.4V | 0.11 sec/60° |
Torque Ratings
| Torque Type | Voltage | Torque |
|---|---|---|
| Stall Torque | 7.4V | 12.0kg-cm (166.68 oz-in) |
| Maximum Working Torque | 7.4V | 7.0kg-cm (97.23 oz-in) |
| Rated Working Torque | 5.0V | 3.0kg-cm (41.67 oz-in) |
| Rated Working Torque | 6.0V | 3.5kg-cm (48.61 oz-in) |
| Rated Working Torque | 7.4V | 4.0kg-cm (55.56 oz-in) |
| Rated Working Torque | 8.4V | 4.5kg-cm (62.50 oz-in) |
Specifications
| Model | KM2612MDHV |
| Servo Type | Digital Mini Servo |
| Gear Train | Full Metal Gears |
| Motor | Coreless Motor |
| Case Construction | Full CNC Aluminum Hull and Structure |
| Bearings | Dual Ball Bearings (2BB) |
| Spline | Standard 25T |
| Dead Band | 2μs Default |
| Waterproof | No |
| Operating Voltage | DC 5.0V–8.4V |
| Rated Working Voltage | DC 7.4V |
| Working Frequency | 1520μs / 330Hz |
| Working Angle | ±63° @ 800μs–2200μs |
| Dimensions | 28 × 12.6 × 27mm (1.09 × 0.49 × 1.05 in) |
| Weight | 26g (0.91 oz) |
| Connector | JR Connector |
| Wire Length | 310mm (12.09 in) |
| Working Temperature | -10°C to +50°C (14°F to 122°F) |
| Storage Temperature | -20°C to +60°C (-4°F to 140°F) |
Recommended Applications
- Sport aircraft requiring mini servos
- EDF jets
- Sailplanes and gliders
- Smaller warbirds
- Pattern and sport aerobatic aircraft
- Flaps and ailerons on medium-sized aircraft
- Compact rudder and elevator installations
- Applications requiring high torque in a lightweight mini-servo package
-
Perfect for the Mini Jet Series by Sebart
Why Choose the KM2612MDHV?
- 12kg-cm (166.68 oz-in) stall torque at 7.4V
- 7kg-cm (97.23 oz-in) maximum working torque at 7.4V
- Only 26g while using full metal gears and CNC aluminum construction
- Coreless motor for smooth response and precise control
- Wide voltage operation from 5.0V to 8.4V
- Compact mini-servo dimensions for tight aircraft installations
- Standard 25T spline for broad servo arm compatibility
Includes
- KingMax KM2612MDHV Coreless HV Mini Digital Servo
- Manufacturer-supplied servo accessories
