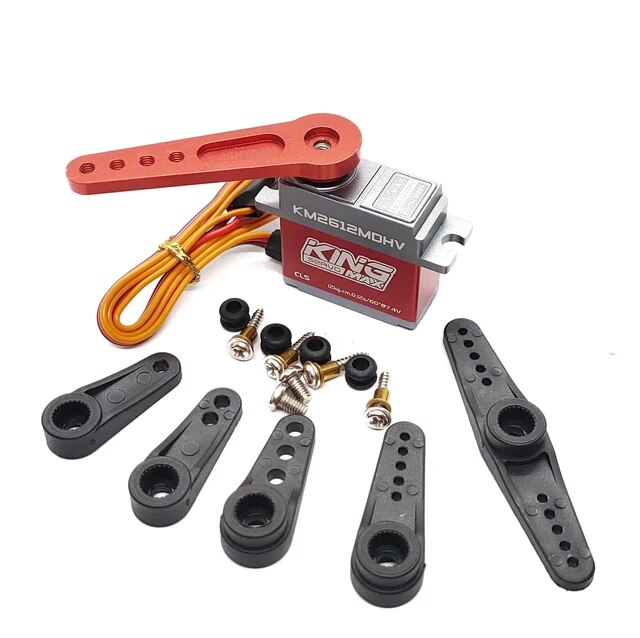

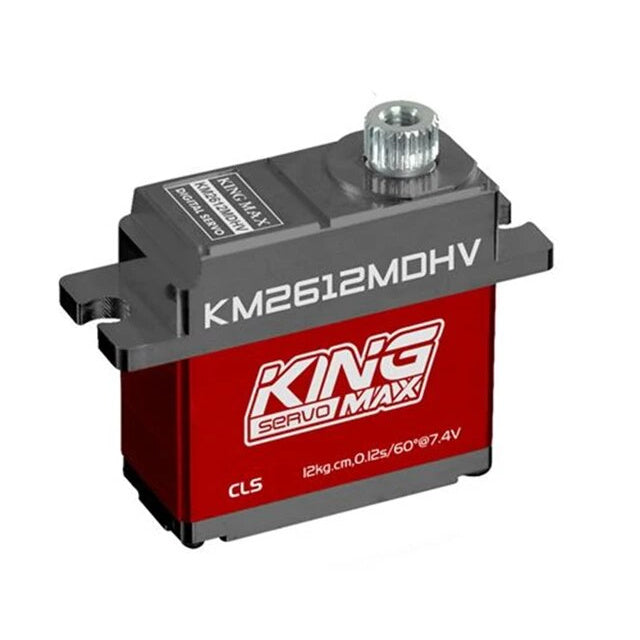

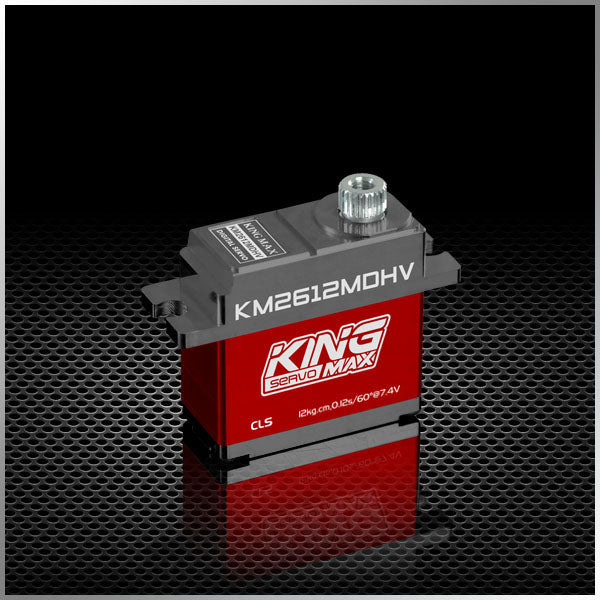

KingMax Coreless Micro Servo, KM2612MDHV-26g 12kg.cm torque mini digital servo
Couldn't load pickup availability
KINGMAX KM2612MDHV 17g 12kg.cm Digital Metal Gear Mini Servo For RC Cars Boats Helicopter
Perfect for the Mini Jet Series by Sebart

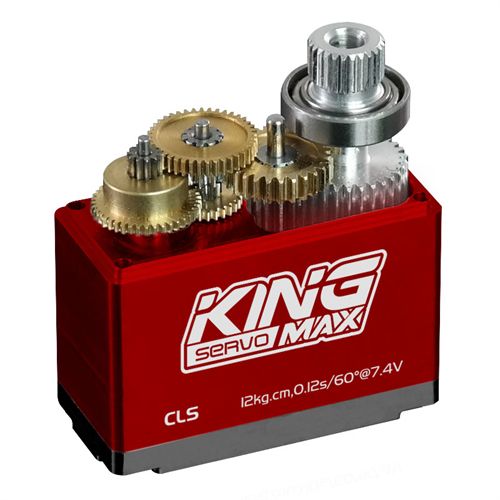

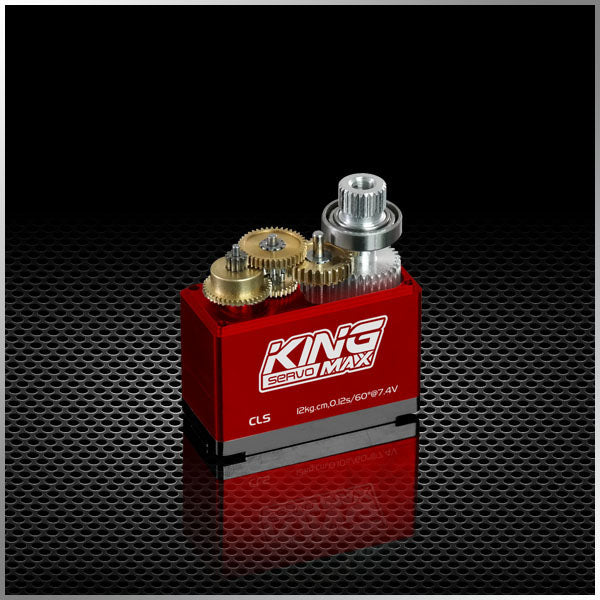

-- High-precision metal gears
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- Dual ball bearings
Item：KM2612MDHV
Gear：Full metal
Spline：25T
Motor：Coreless motor
Bearing：2BB
Dead band：2μs default
Waterproof：No
Operating Voltage：DC5.0~8.4V
Rated working voltage：DC 7.4V
Working frequence：1520μs/330hz
Working angle：±63°@800us-2200us
Working temperature：-10℃~+50℃
Storage temperature：-20℃~+60℃
SPECIFICATIONS:
Operating Speed(5.0V):0.18sec/60degrees
Operating Speed(6.0V):0.15sec/60degrees
Operating Speed(7.4V):0.12sec/60degrees
Operating Speed(8.4V):0.11sec/60degrees
Stall torque(7.4V):12.0kg.cm(166.68oz/in)
Maximum working torque(7.4V):7.0kg.cm(97.23oz/in)
Rated working torque(5.0V):3.0kg.cm(41.67oz/in)
Rated working torque(6.0V):3.5kg.cm(48.61oz/in)
Rated working torque(7.4V):4.0kg.cm(55.56oz/in)
Rated working torque(8.4V):4.5kg.cm(62.50oz/in)

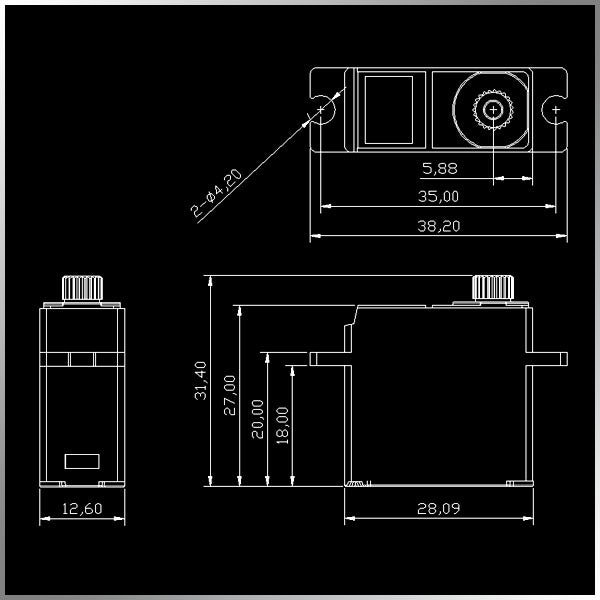

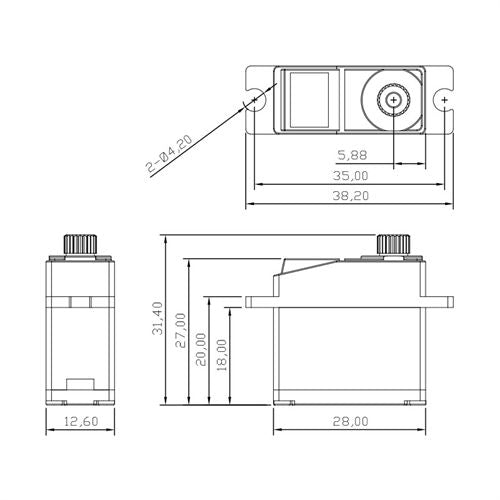

Dimensions:28*12.6*27mm/1.09X0.49X1.05in
Weight:26g(0.91oz)
Connector Wire Length:JR310mm(12.09in)
- SKU KM2612MDHV
