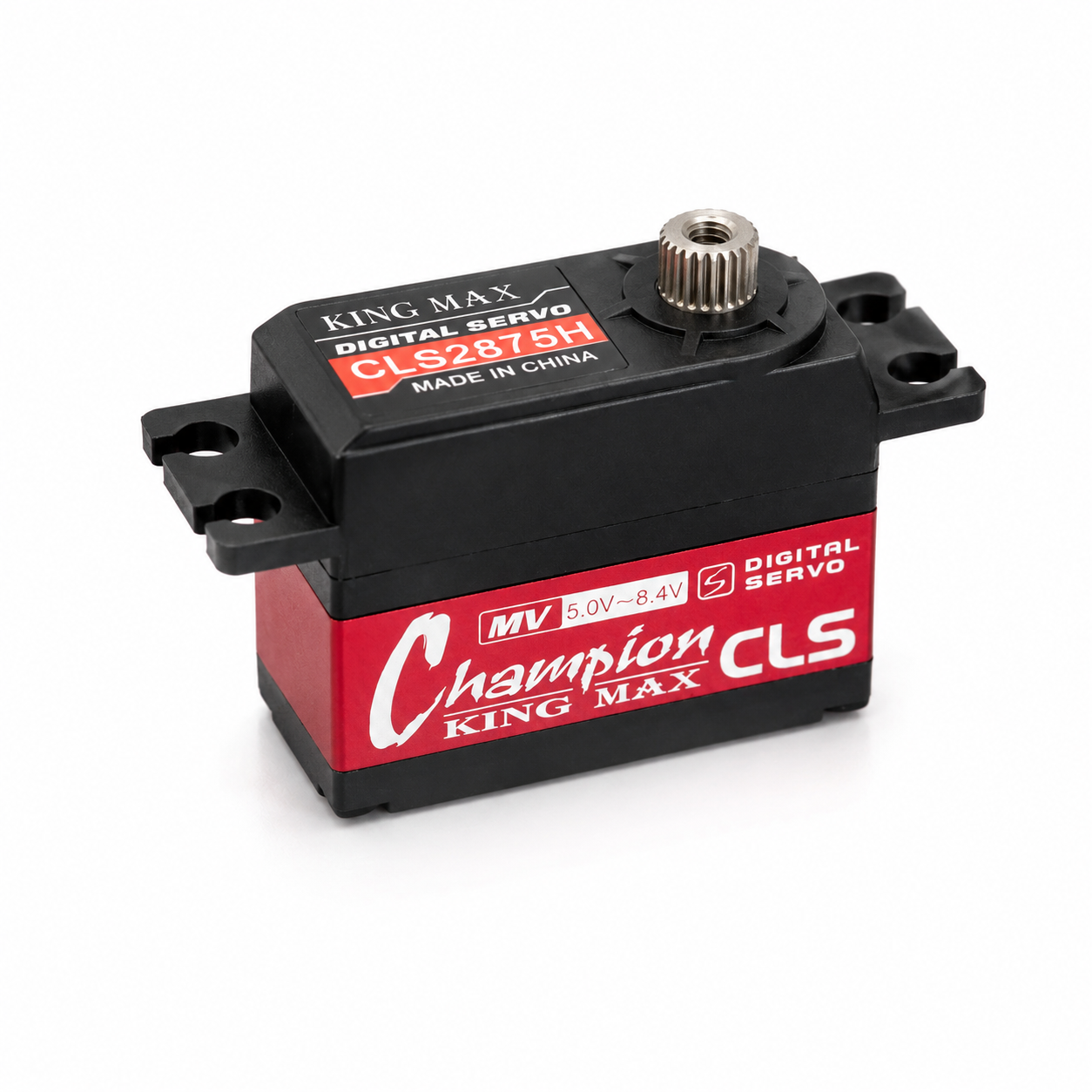

KingMax CLS2875H Mini HV Digital Metal Gear Servo

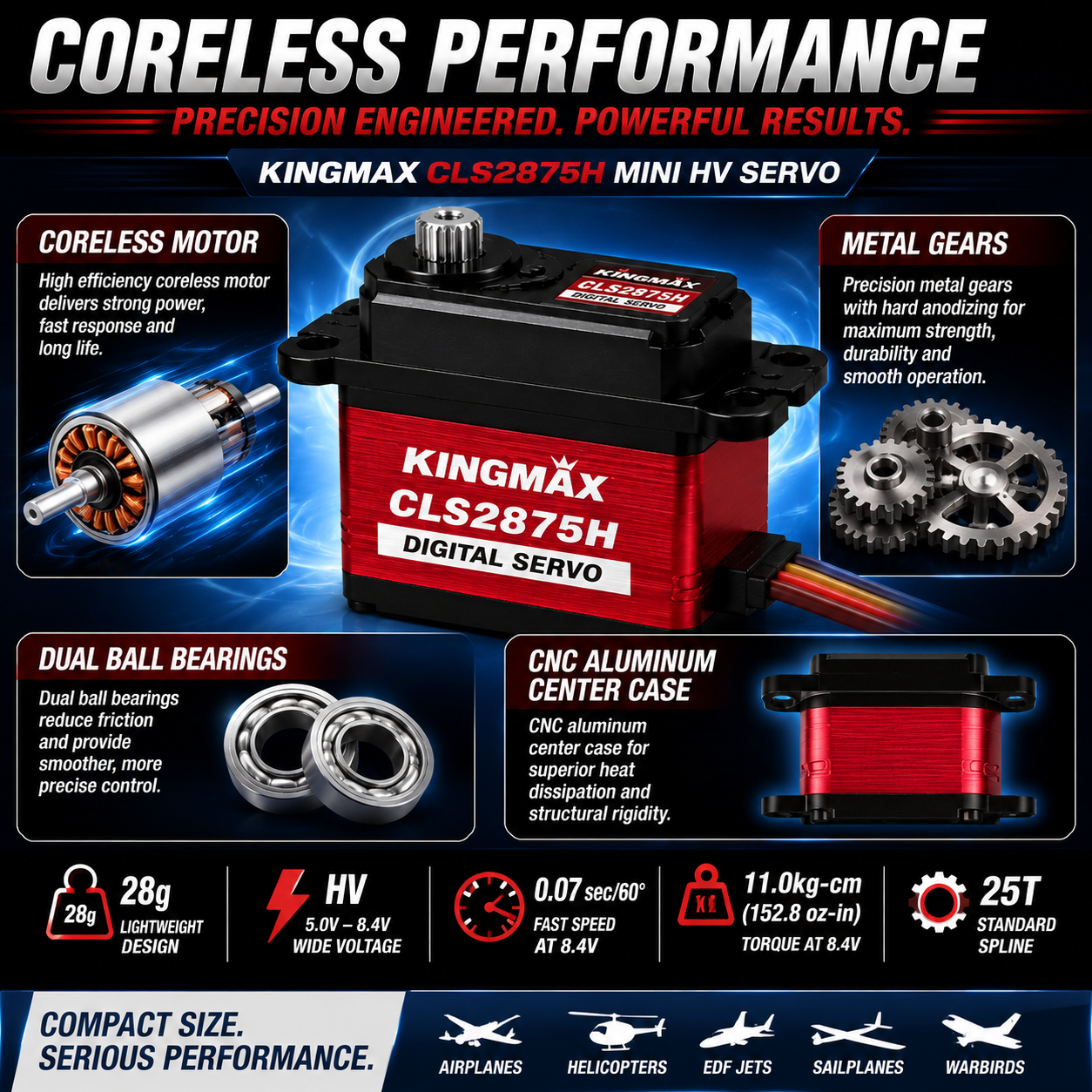

The KingMax CLS2875H is a compact high-voltage digital mini servo designed for applications requiring excellent torque, fast response, and precise control in a lightweight package. Featuring a high-quality coreless motor, precision metal gears, dual ball bearings, and a CNC aluminum center case, the CLS2875H delivers impressive performance while weighing only 28 grams.
Operating on 5.0V to 8.4V, this programmable digital servo produces up to 11.0kg-cm (152.8 oz-in) of torque and speeds as fast as 0.07 sec/60° at 8.4V. Its compact 15mm-wide design makes it an excellent choice for RC airplanes, EDF jets, sailplanes, helicopters, and other applications where installation space is limited.
Features
- Programmable high-performance digital servo
- Precision metal gears with hard anodized finish
- High-quality coreless motor
- CNC aluminum center case
- Dual ball bearings (2BB)
- Wide voltage operation from 5.0V to 8.4V
- Compact 15mm mini servo design
- Standard 25T spline
- Ideal for 450–500 class helicopter swashplates

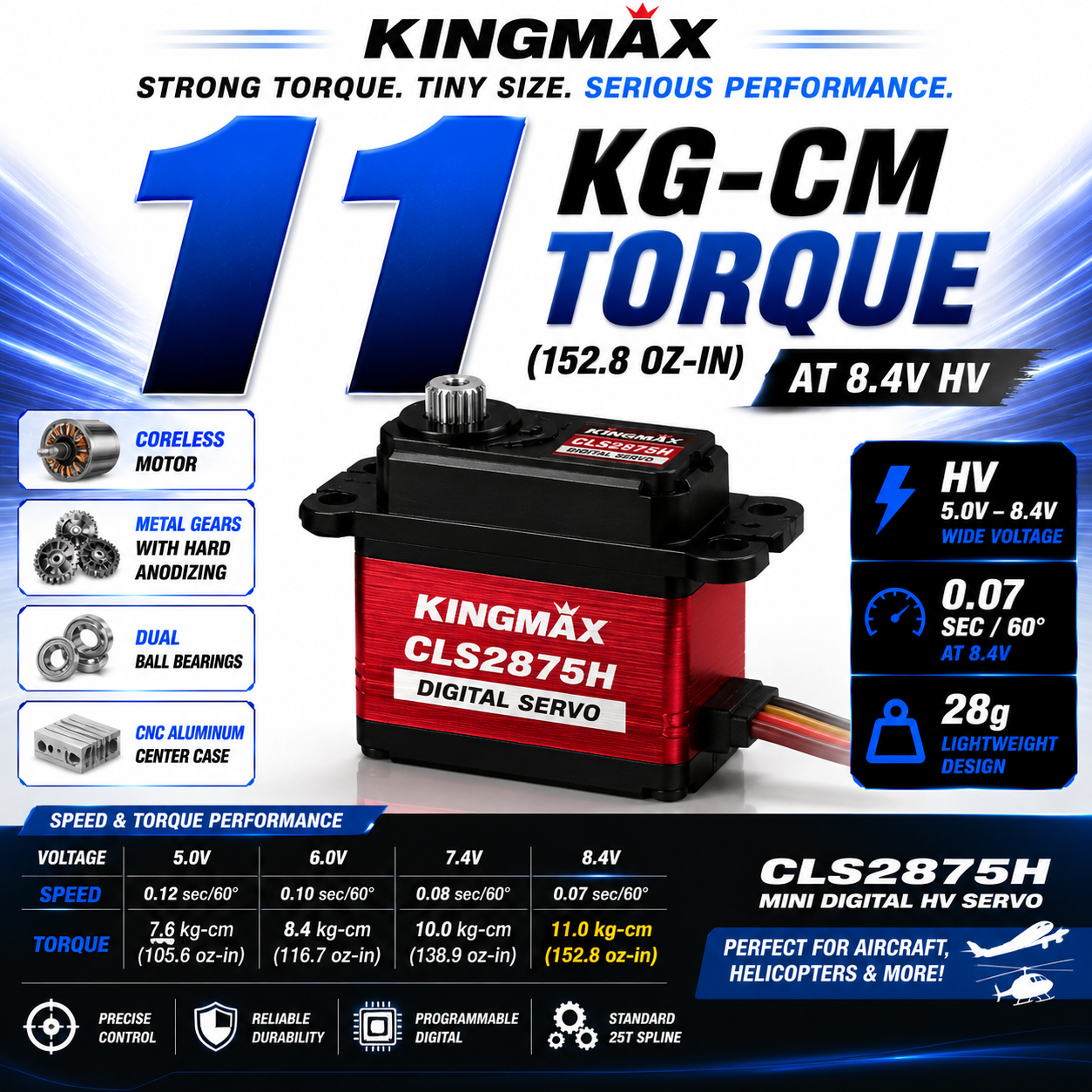

Speed & Torque
| Voltage | Speed | Torque |
|---|---|---|
| 5.0V | 0.12 sec/60° | 7.6kg-cm (105.6 oz-in) |
| 6.0V | 0.10 sec/60° | 8.4kg-cm (116.7 oz-in) |
| 7.4V | 0.08 sec/60° | 10.0kg-cm (138.9 oz-in) |
| 8.4V | 0.07 sec/60° | 11.0kg-cm (152.8 oz-in) |
Specifications
| Model | CLS2875H |
| Servo Type | Digital Mini HV Servo |
| Motor | Coreless Motor |
| Gear Train | Precision Metal Gears |
| Spline | Standard 25T |
| Bearings | Dual Ball Bearings (2BB) |
| Operating Voltage | DC 5.0V–8.4V |
| Rated Voltage | DC 7.4V |
| Working Frequency | 1520μs / 330Hz |
| Dead Band | 2μs |
| Working Angle | ±63° @ 800μs–2200μs |
| Waterproof | No |

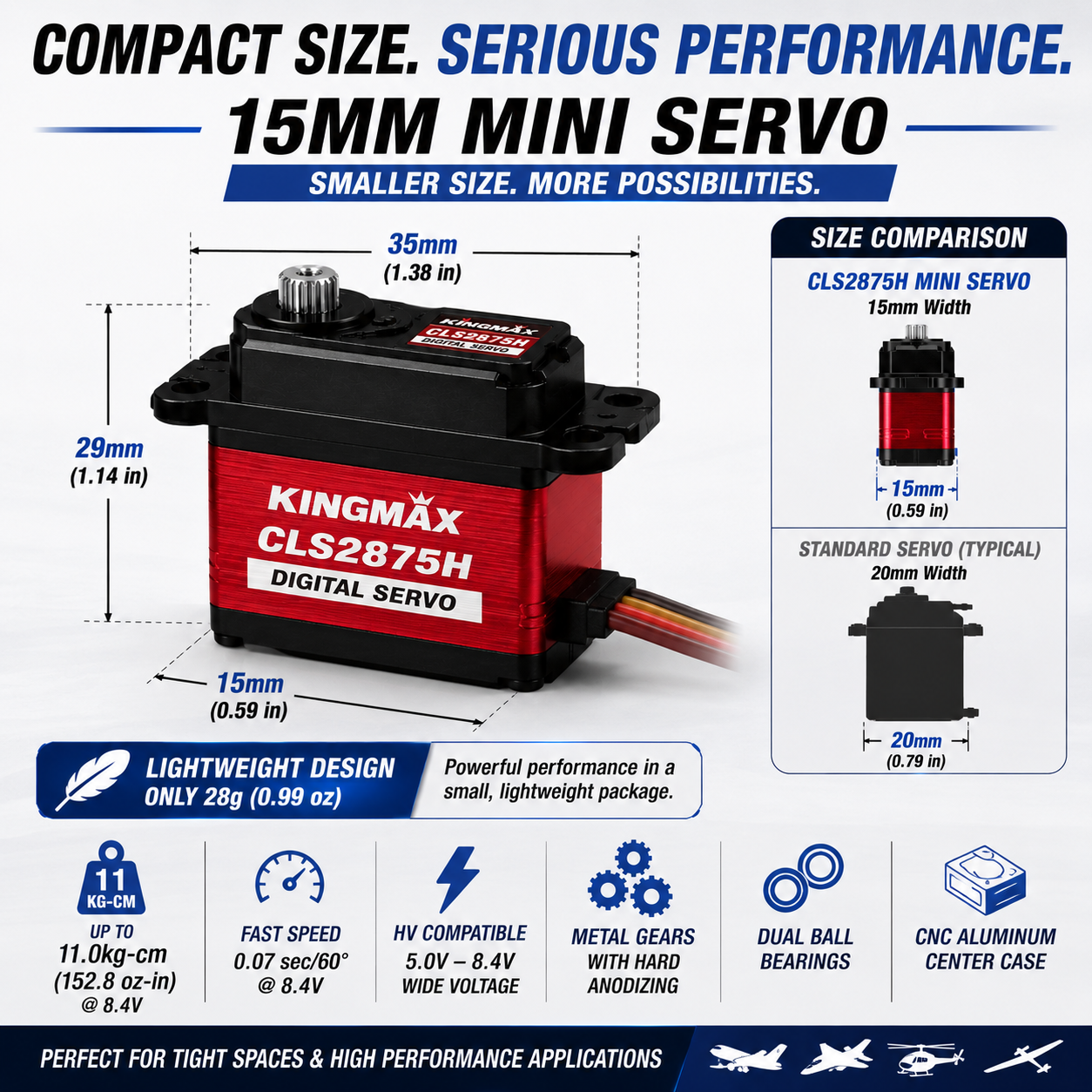

| Dimensions | 35 × 15 × 29mm (1.38 × 0.59 × 1.14 in) |
| Weight | 28g (0.99 oz) |
| Lead Length | 260mm (10.2 in) |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +60°C |
Recommended Applications
- 450–500 class helicopter swashplates
- Sport aircraft
- EDF jets
- Sailplanes and gliders
- Warbirds
- Aircraft requiring a compact 15mm servo
- Robotics and specialty projects
Includes
- KingMax CLS2875H Servo

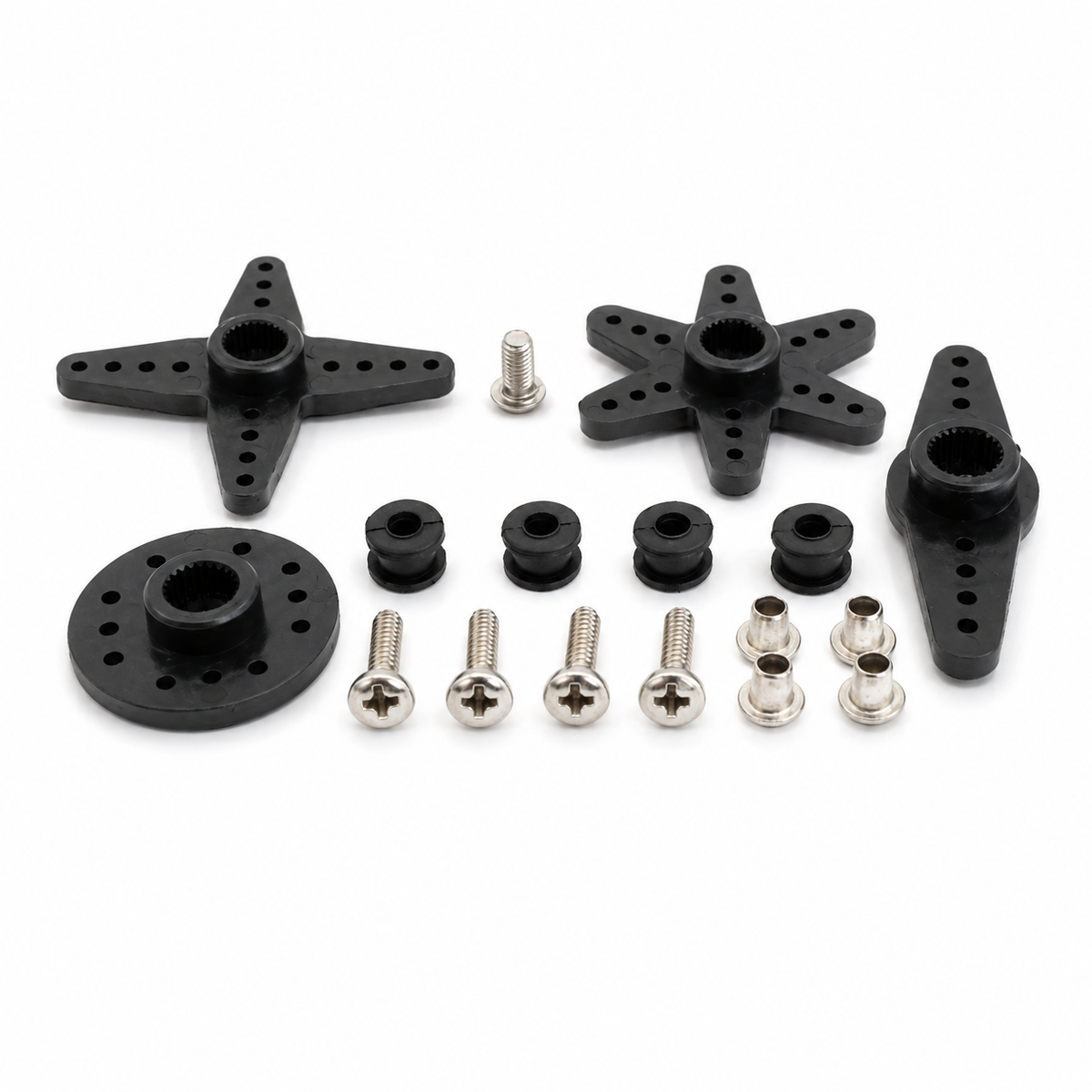

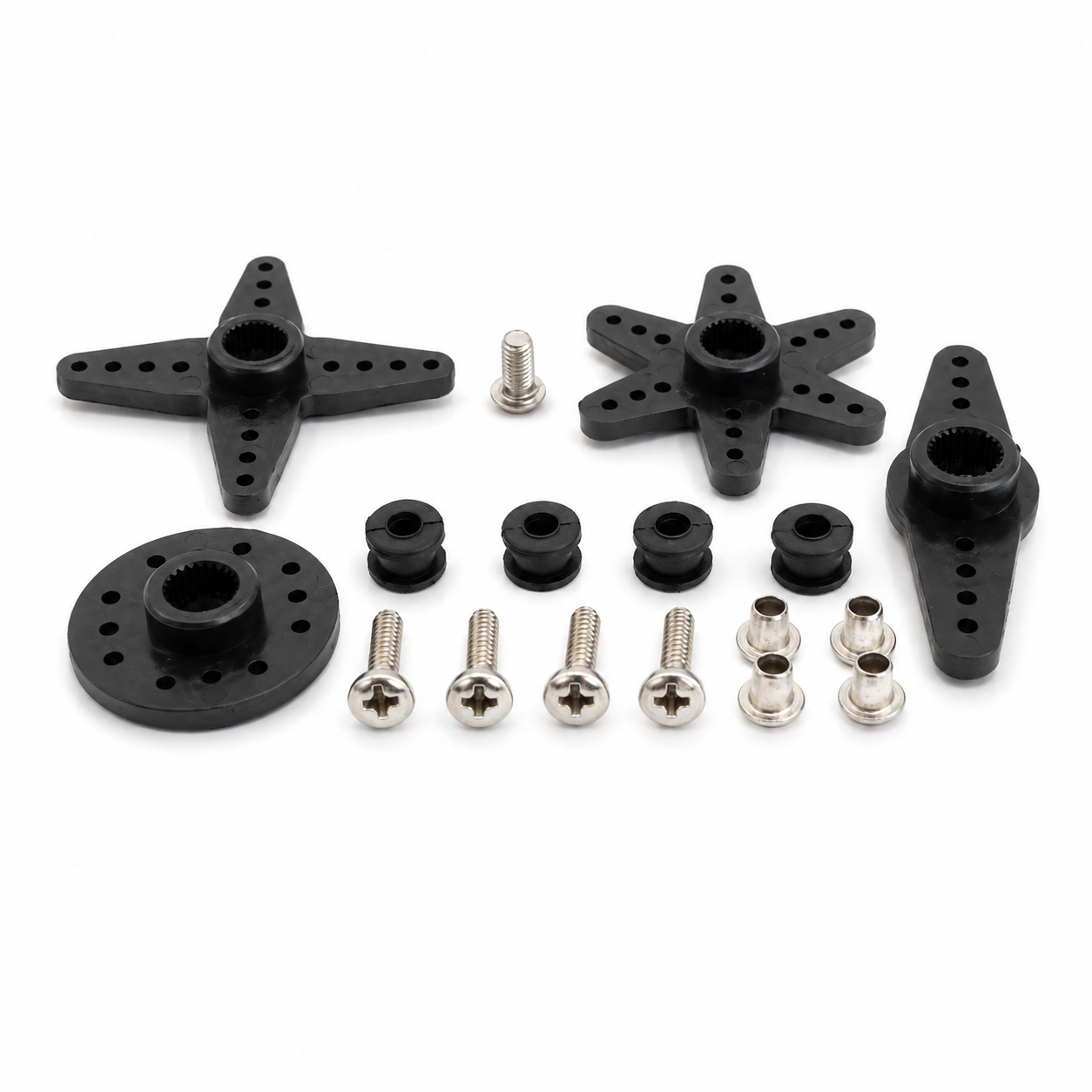

- Servo arm hardware set
- Mounting hardware
- SKU CLS2875H
