Secraft Pull-Pull Wire Tensioner Set – 2 Pack (Choice of 4 Colors)
Couldn't load pickup availability
Secraft M3 Wire Tensioner Set – Pull-Pull Rudder System
Fine-Tune Your Pull-Pull System with Precision
The Secraft M3 Wire Tensioner Set makes installing and adjusting pull-pull rudder systems faster, cleaner, and more precise. Instead of repeatedly removing cables to achieve proper tension, simply adjust the stainless steel turnbuckle until both cables are perfectly balanced.

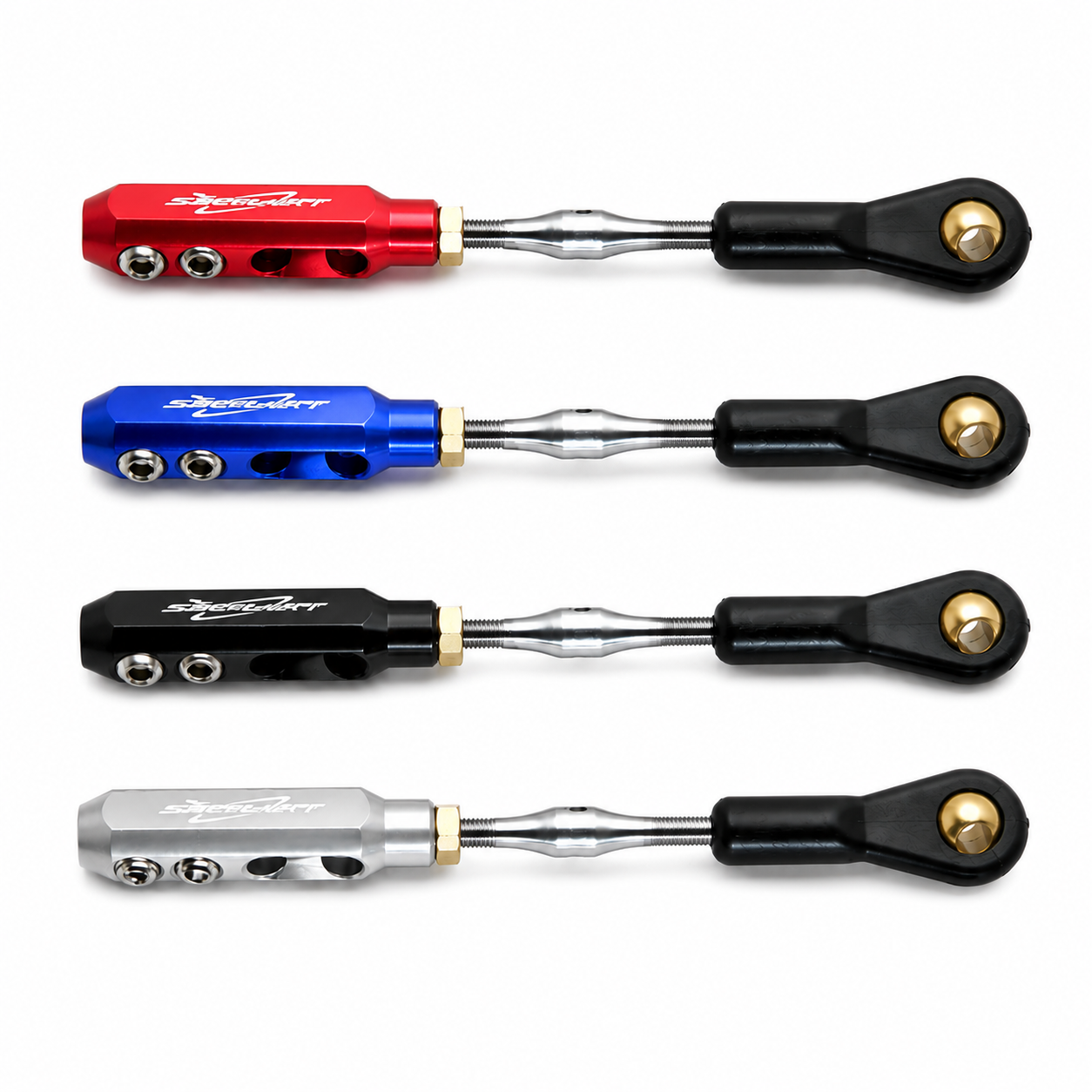

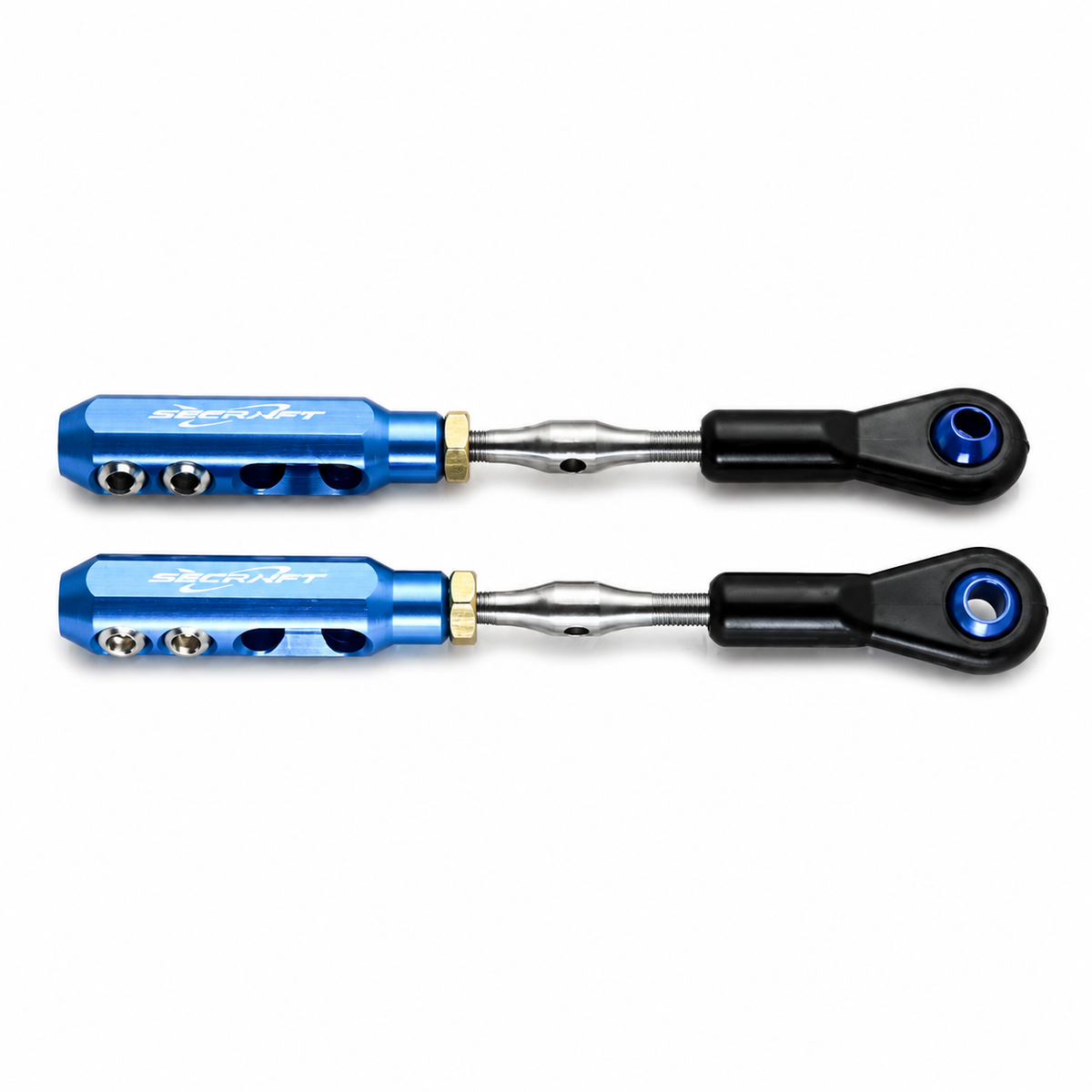

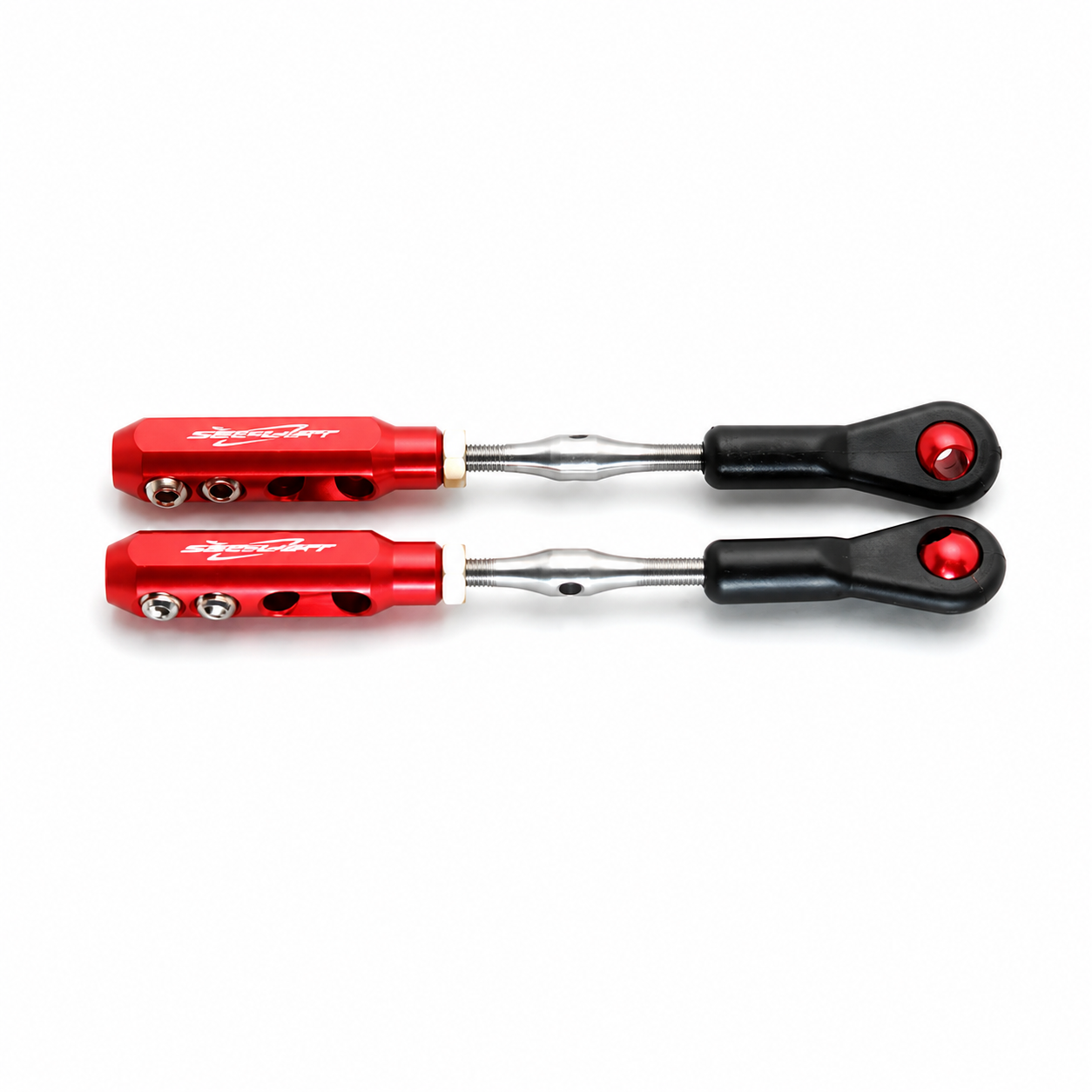

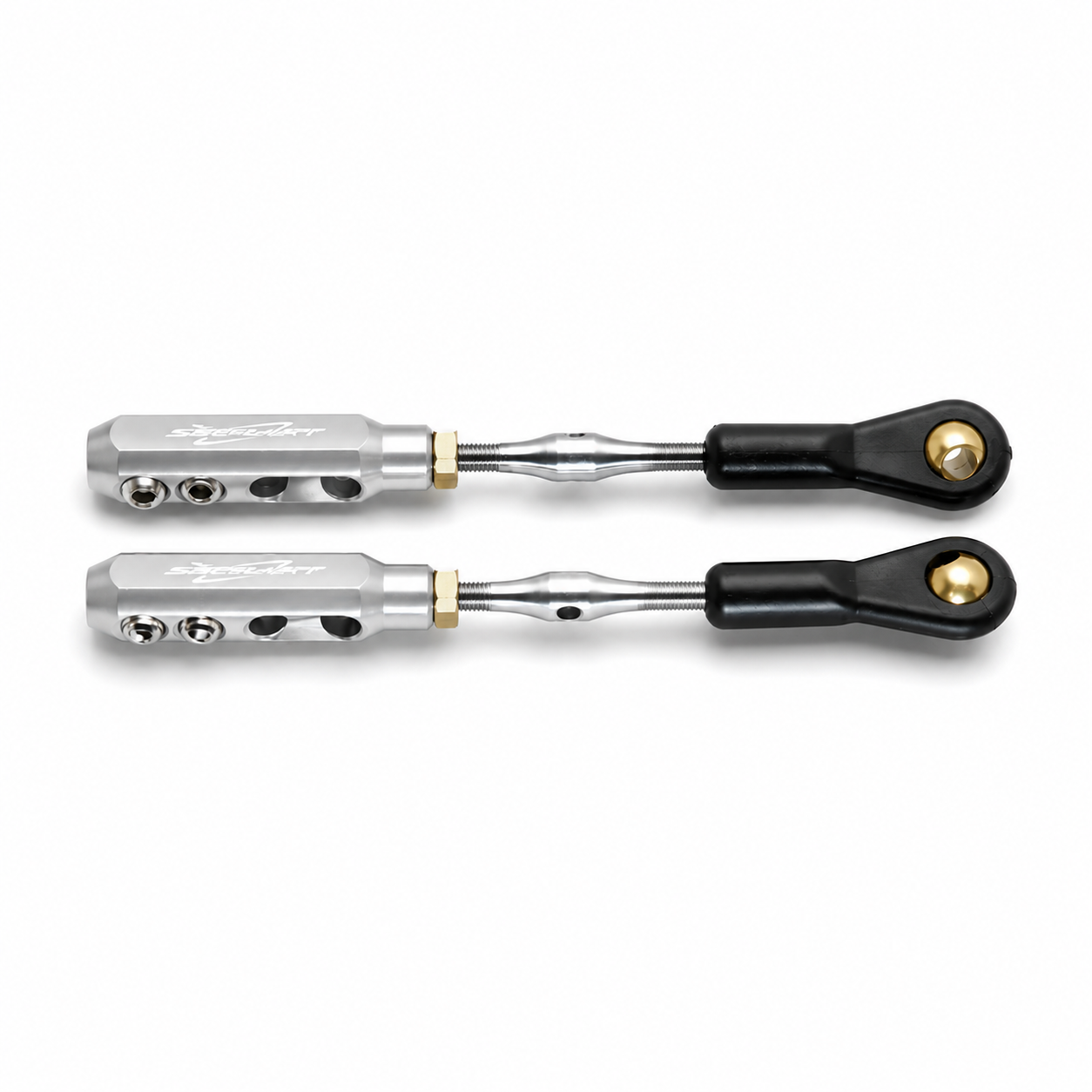

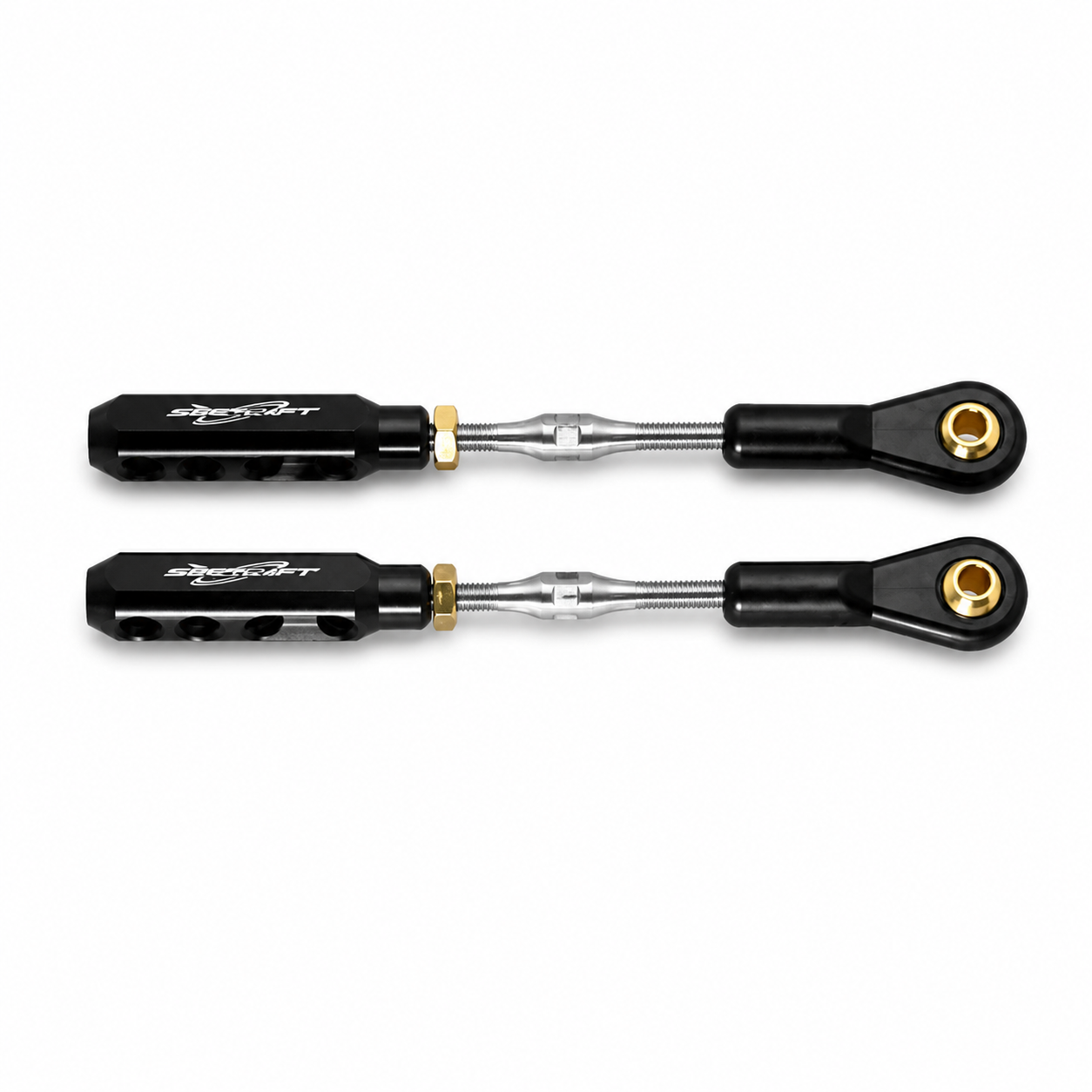

Designed specifically for giant scale RC airplanes, these premium aluminum tensioners provide smooth adjustment while adding a professional appearance to your aircraft. They are available in four anodized finishes: Red, Blue, Black, and Silver.
🚀 Target Applications:
- Giant Scale Gas Aircraft and high-load control setups
- IMAC Airplanes and aggressive 3D Aerobatic aircraft

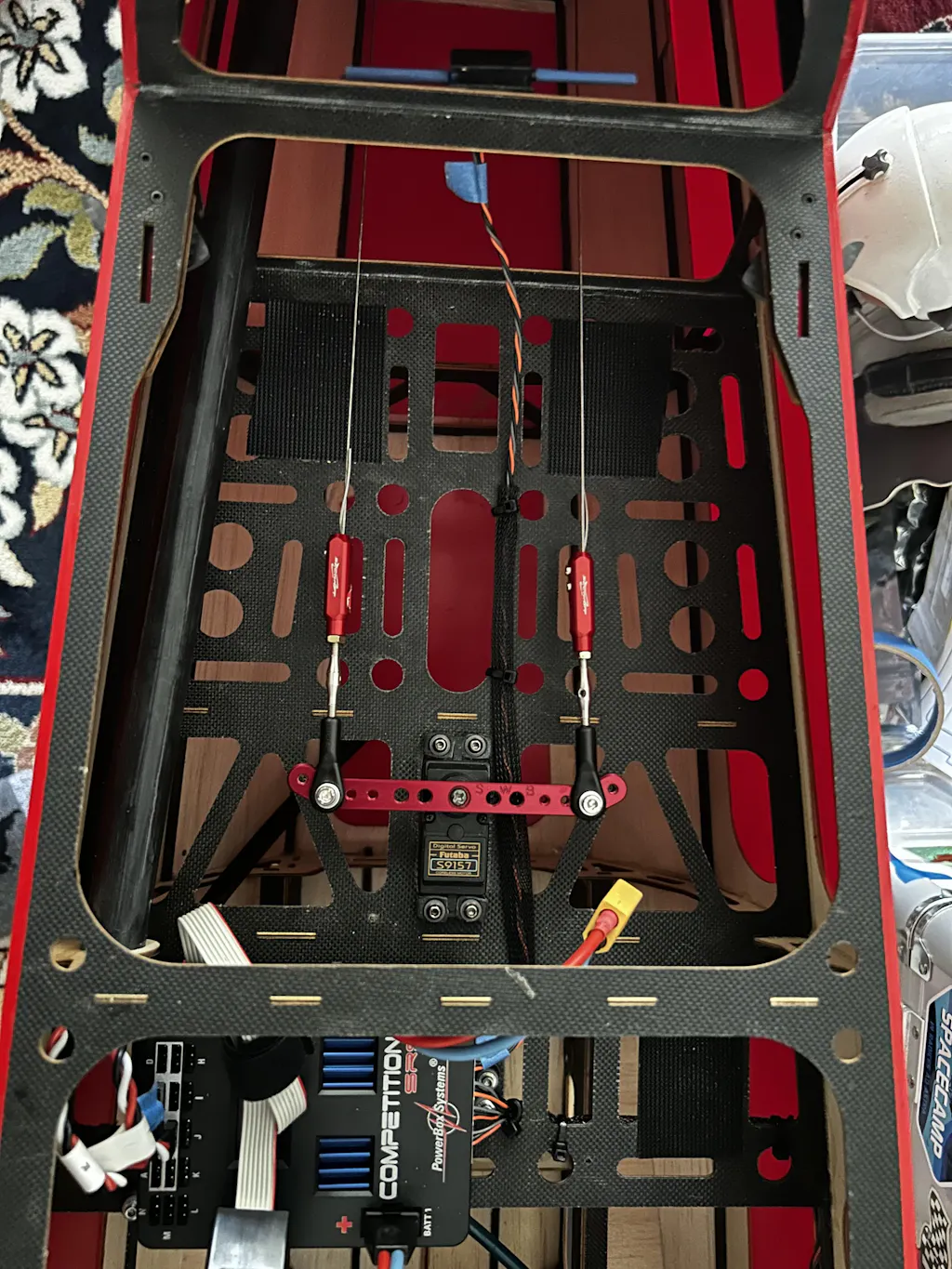

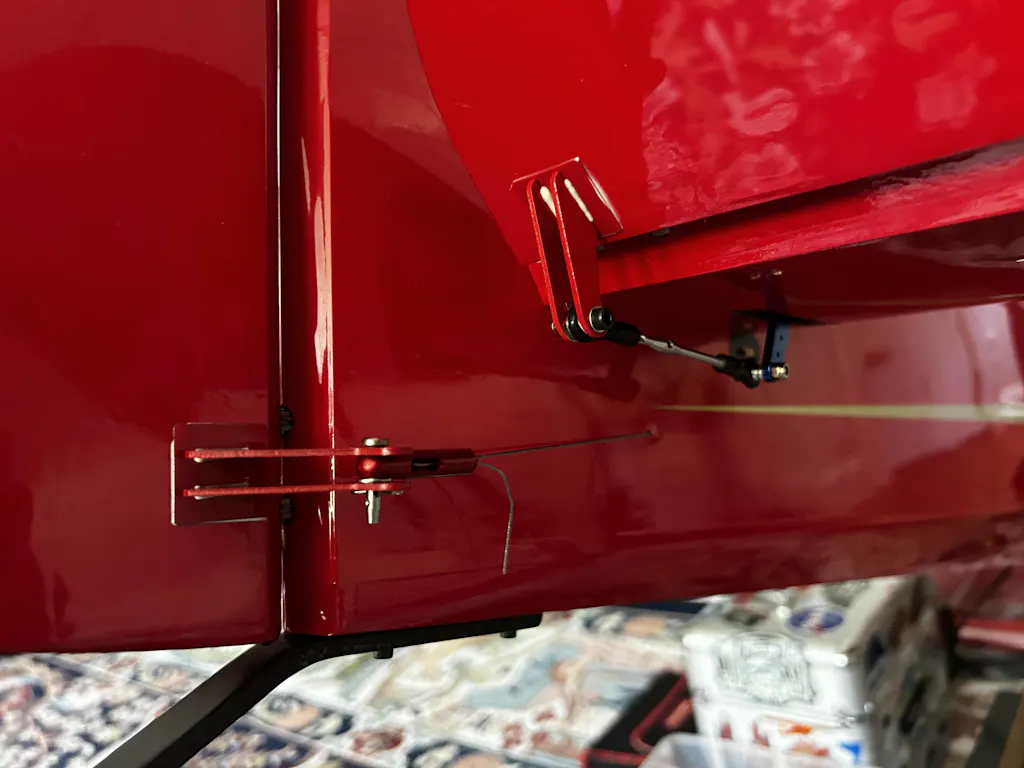

- Scale RC Aircraft and any pull-pull rudder linkage requiring precise cable adjustment
Key Features
- On-Airframe Tension Adjustments: Allows pilots to quickly trim and balance cable lines simply by rotating the turnbuckles on the workbench without stripping down the wires.
- CNC Machined Anodized Bodies: Tensioner chassis segments are machine-milled from aluminum alloy and anodized to provide a tough, corrosion-proof, professional appearance.
- Stainless Steel M3 Turnbuckles: Built with high-tensile 34mm stainless steel hardware to safely counter the constant pulling forces encountered in heavy flight envelopes.
- Integrated M3 Ball Links: Includes pre-matched 3mm ball joint links to facilitate smooth multi-axis movement and completely drop mechanical binding.

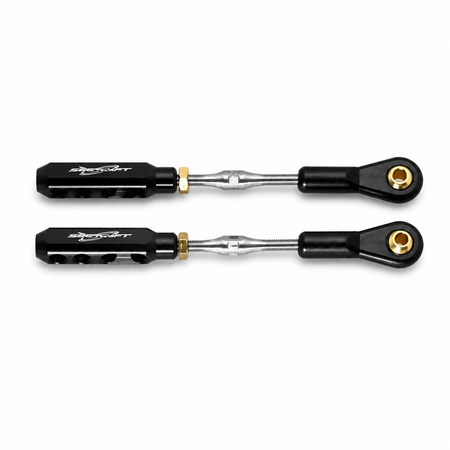

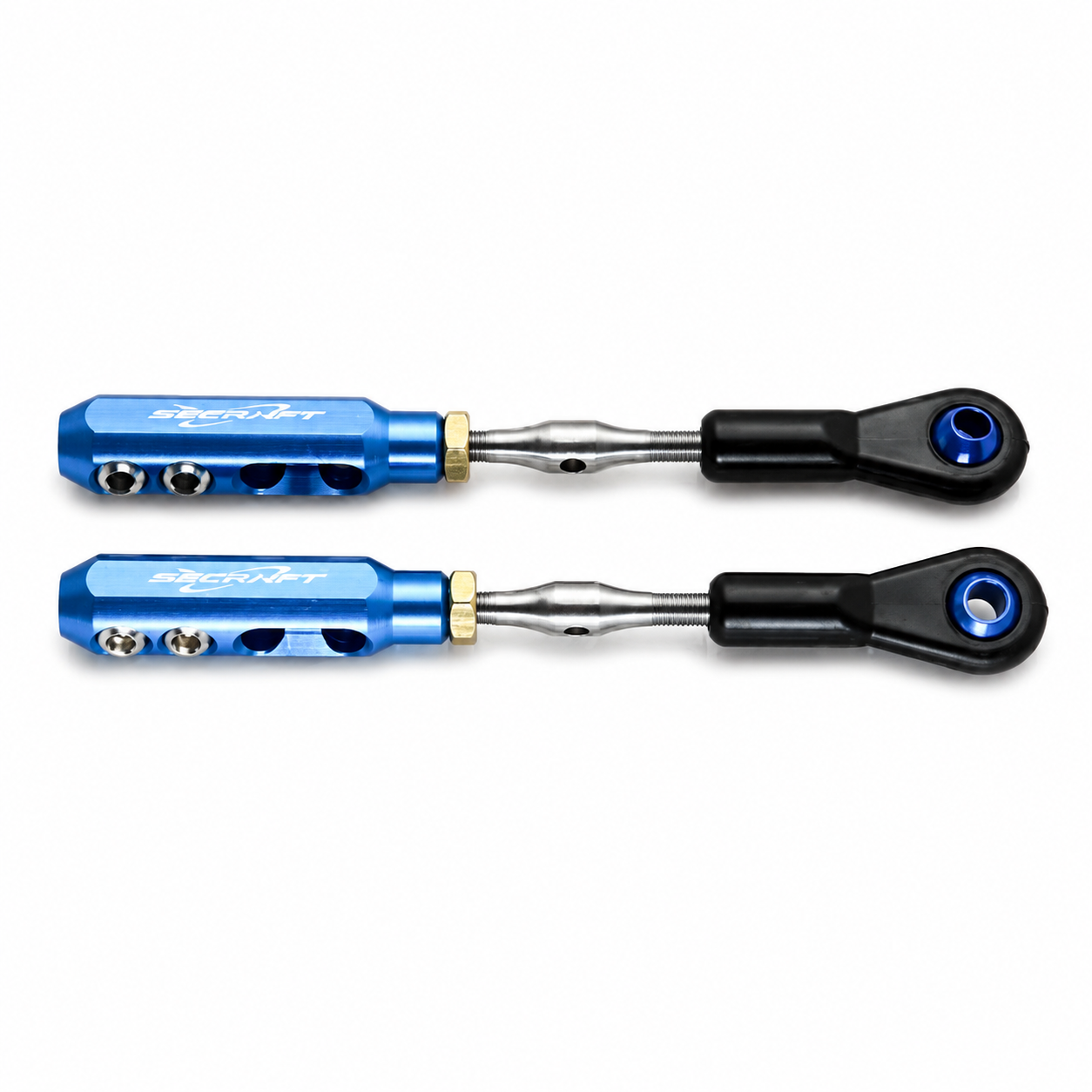

- Redundant Multi-Color Range: Offered across four distinct anodized color casings (Red, Blue, Black, Silver) to cleanly match your interior radio tray detailing.
- Complete Dual Assembly: Single pack ships with two complete, independent wire tensioners, providing everything required to fully overhaul a single pull-pull tracking track.
🔧 Pull-Pull System Installation Pro-Tips:

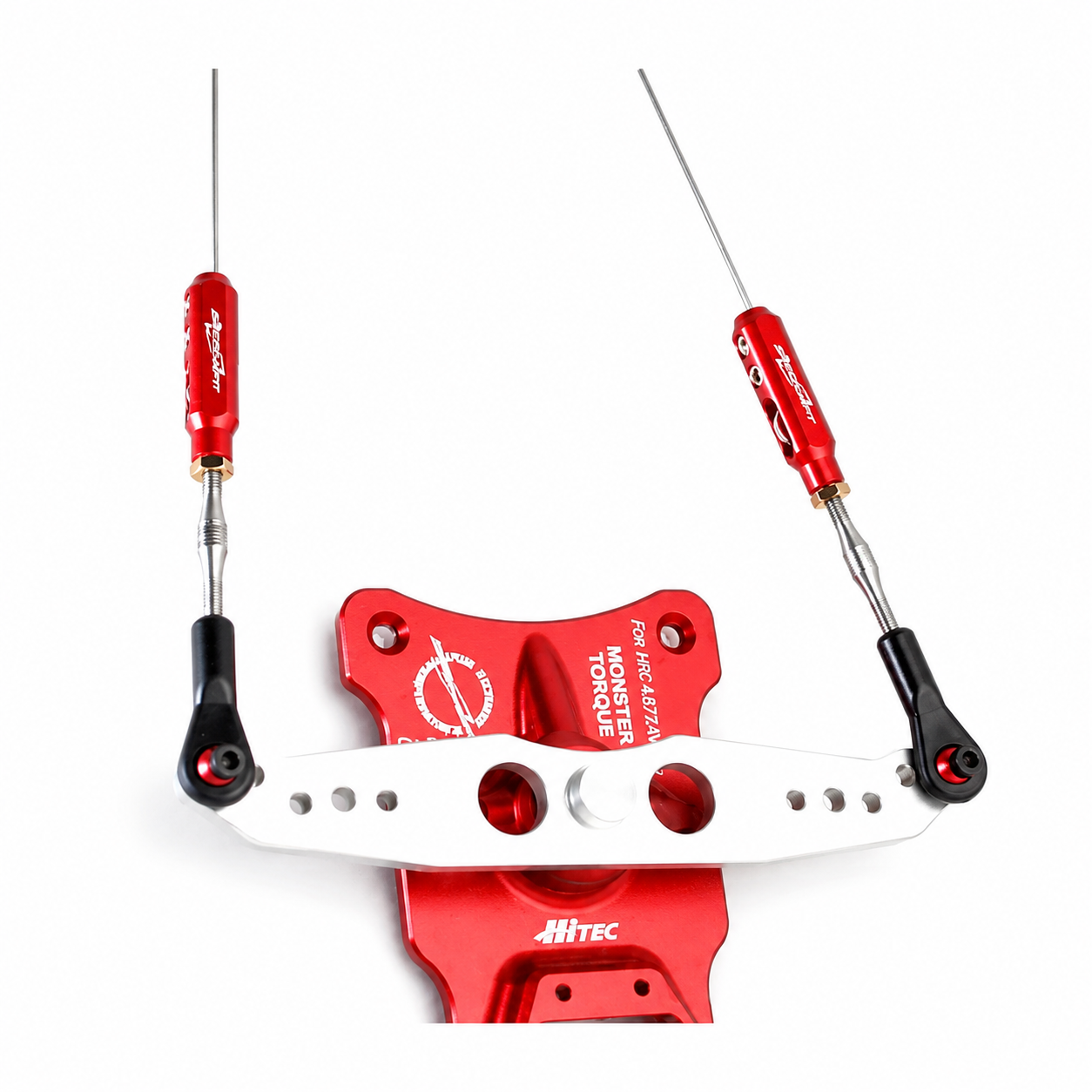

Using high-grade adjustable turnbuckles is critical for keeping your rudder tracking true and eliminating dead-bands around center stick:

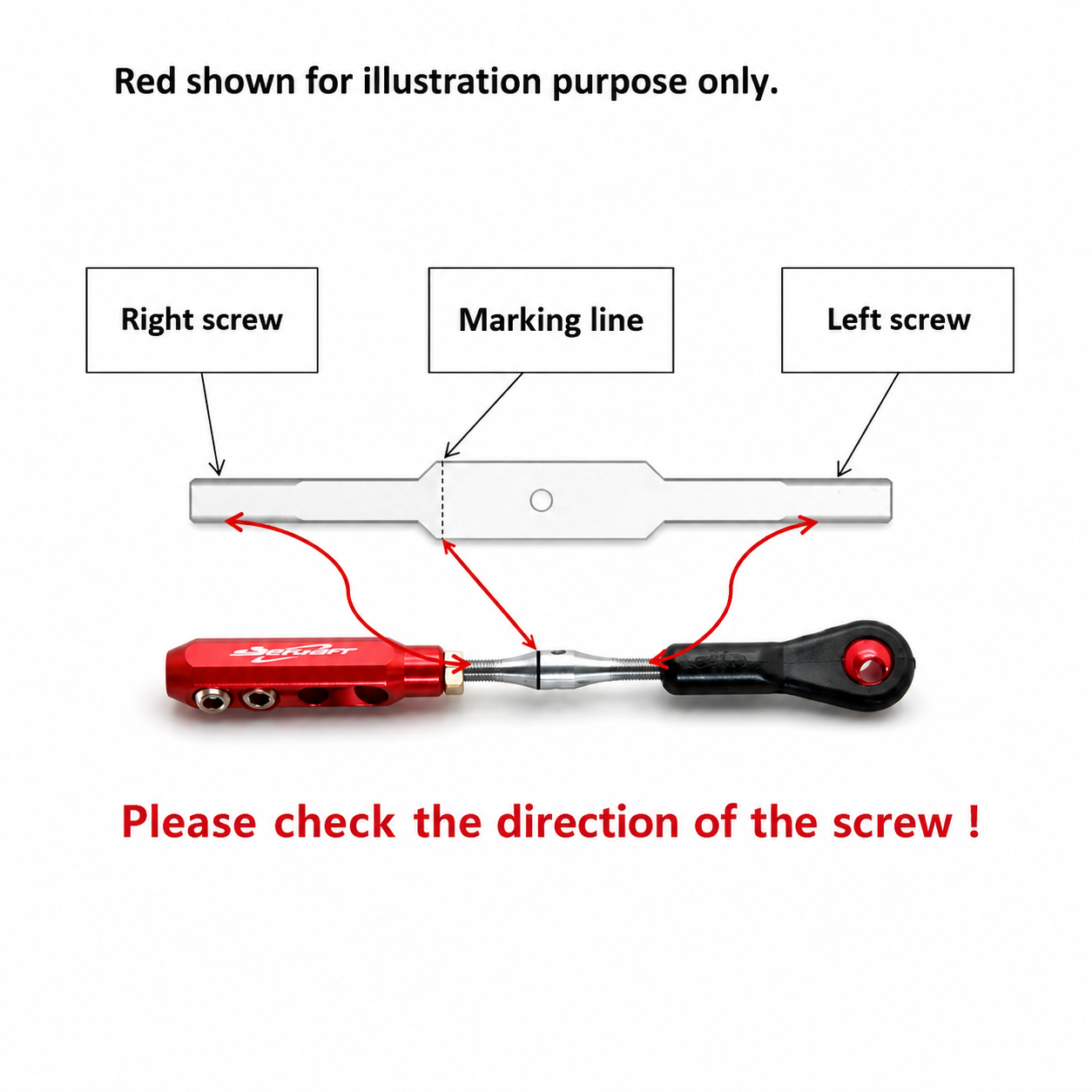

- Perfect Geometry Matching: Adjust both turnbuckles evenly so your braided lines have zero droop, but are not overly tight to prevent servo bearing bind.

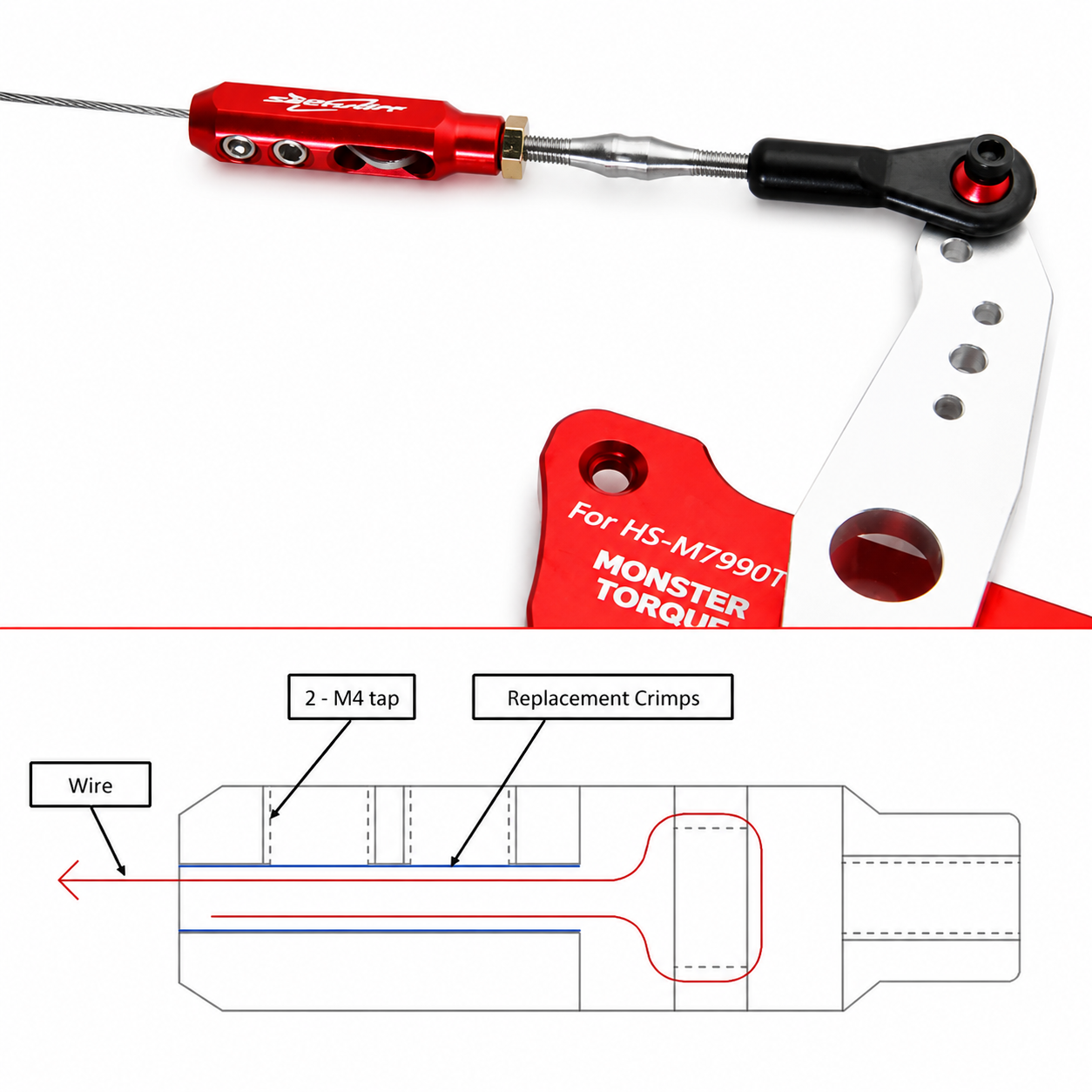

- Crimp Security: Thread your braided cable through the replacement copper sleeve, wrap it twice through the tensioner body eyelet, and loop it back through before applying firm crimp pressure.
View Technical Specifications
| Primary Application: | Pull-Pull Rudder Linkage Systems / Cable Balancing |
| Hardware Thread Size: | M3 Metric Threading |
| Turnbuckle Core Length: | 34mm (1.34 in) |
| Ball Link Joint Size: | M3 Ball Links Included |
| Material Composition: | CNC Aluminum Bodies with Stainless Steel Turnbuckles |
| Available Colors: | Red, Blue, Black, Silver (Select variant above) |
| Retail Pack Quantity: | 2 Complete Wire Tensioners per package |
| Total Assembled Weight: | 13g (0.46 oz) Combined Set Mass |

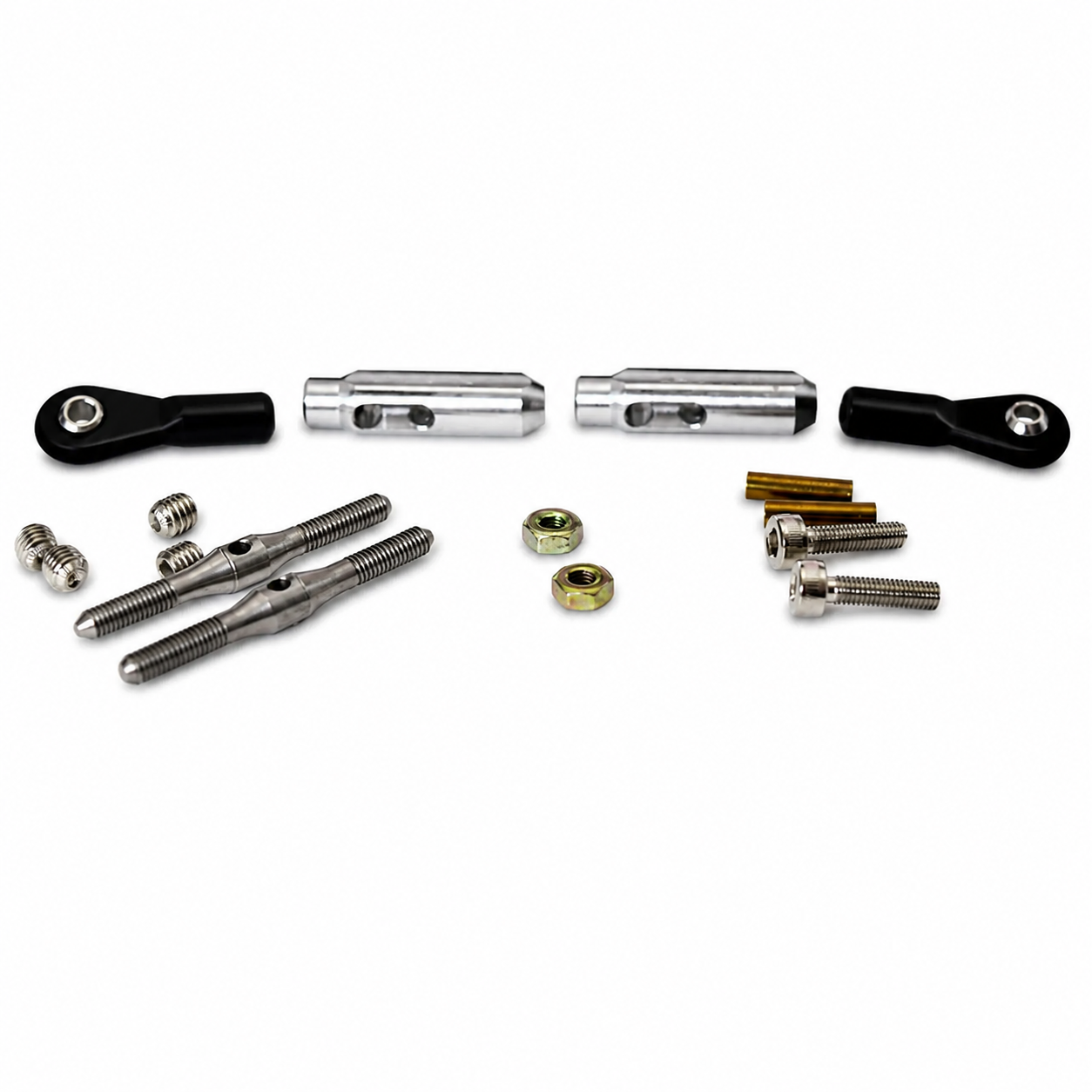

📦 Package Includes:
- 2 x Aluminum Wire Tensioner Bodies
- 2 x Stainless Steel M3 Turnbuckles (34mm)
- 2 x M3 Precision Ball Links
- 2 x Replacement Cable Crimps
- 2 x M3 Hex Lock Nuts
- 4 x Mounting Retainer Bolts
💡 Modeler’s Pro-Tip
New steel-braided pull-pull cables will naturally stretch and settle slightly during their first 5 to 10 flights. With the Secraft system installed, you won't have to cut or re-crimp anything later—simply back off your M3 locking nuts slightly, apply an equal half-turn to each stainless steel turnbuckle barrel to pull out the flight slack, and lock them back down for rock-solid tracking maneuvers.
