Secraft Smoke Nipple Adapter Nut M5 for RC Airplane Smoke Systems (2 Pack)

In stock
SKU: SE-F-1085
(1)
$6.50

Secraft M5 Smoke Nipple Adapter Nut for RC Airplane Smoke Systems (2-Pack)

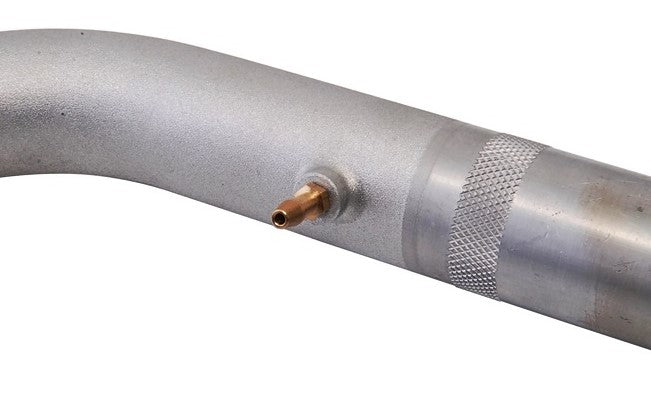

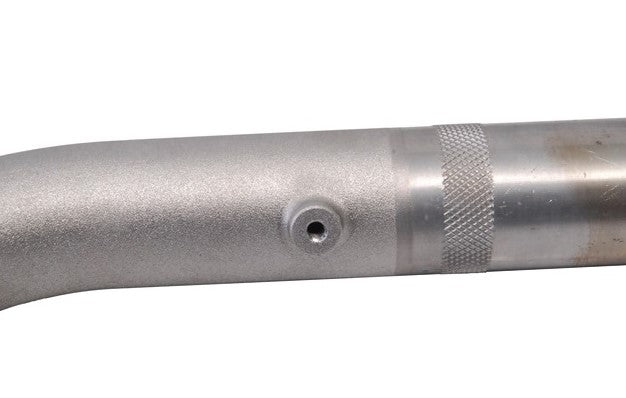

The Secraft M5 Smoke Nipple Adapter Nut provides a clean and secure way to install an M5 smoke nipple into your RC airplane muffler. The lightweight aluminum adapter is designed to be welded or brazed into an aluminum exhaust header, creating durable M5 threads for your smoke injection fitting.

Ideal for custom smoke system installations on giant scale gas airplanes, these adapters make servicing or replacing smoke nipples simple while providing a professional installation.

🚀 Target Applications:

  • Custom smoke system installations and fluid injection modifications
  • Aluminum exhaust headers, tuned pipes, canisters, and scale mufflers
  • Giant scale aerobatic airplanes, precision IMAC models, and warbirds running active smoke pumps
⚠ Important Installation Metallurgy Note: These adapters are machined from raw aluminum. They must be welded or brazed exclusively into aluminum exhaust components using appropriate aluminum filler rods or specialized low-temperature aluminum welding rods. They cannot be welded to stainless steel or steel mufflers. Always remove all internal electronics from the fuselage before welding anywhere near the airframe.

Key Features

  • Permanent Thread Reinforcement: Creates a heavy-duty, clean M5 threaded anchor point that prevents thin-walled muffler aluminum from stripping or pulling out under continuous pressure.
  • Raw Welding Metallurgy: Un-anodized machined aluminum composition ensures seamless puddle mixing and absolute material bonding during professional welding or brazing cycles.
  • Removable Hardware Access: Threaded interior design means you can easily unthread, clean, or change out clogged smoke nipples without ruining the muffler shell.
  • Featherweight Mass: Trims additional airframe tail weight down to a negligible 1.8 grams for the complete pair, avoiding any structural balance penalties.
  • Two-Piece Package: Supplied as a pair of matching metric adapter bungs to accommodate twin-cylinder engine exhaust tracks.

⚙ Engine Class & Brand Compatibility:

Perfectly sized to receive standard M3-to-M5 smoke nipples across single and multi-cylinder gas platforms:

  • Desert Aircraft (DA) and DLE Gas Engines
  • GP, MVVS, and ZDZ Power Plants
  • Any custom scale exhaust stack fitted with standard M5 threaded hardware rails
View Technical Specifications
Material Core: Machine-Milled Un-Anodized Aluminum
Internal Thread Size: M5 Metric (Standard Smoke Nipple Pitch)
Outside Diameter (OD): 10 mm (0.39")
Inside Opening Diameter: 5 mm (0.20")
Total Component Height: 17 mm (0.67")
Primary Domain: RC Airplane Smoke System Installations / Muffler Fabrication
Quantity & Total Weight: 2 Pieces Per Package | 1.8 g Combined Pack Mass

📦 Package Includes:

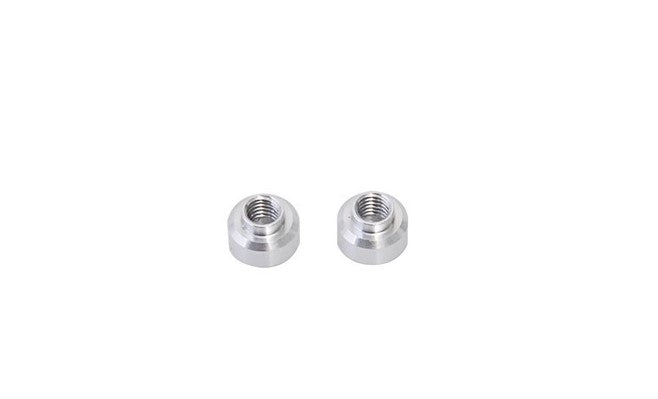

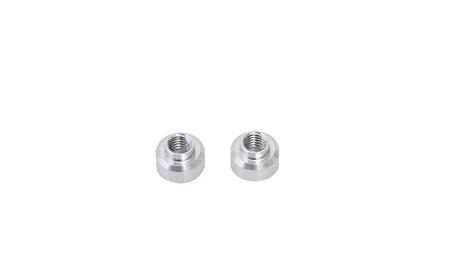

  • 2 × Secraft M5 Aluminum Smoke Nipple Adapter Nuts

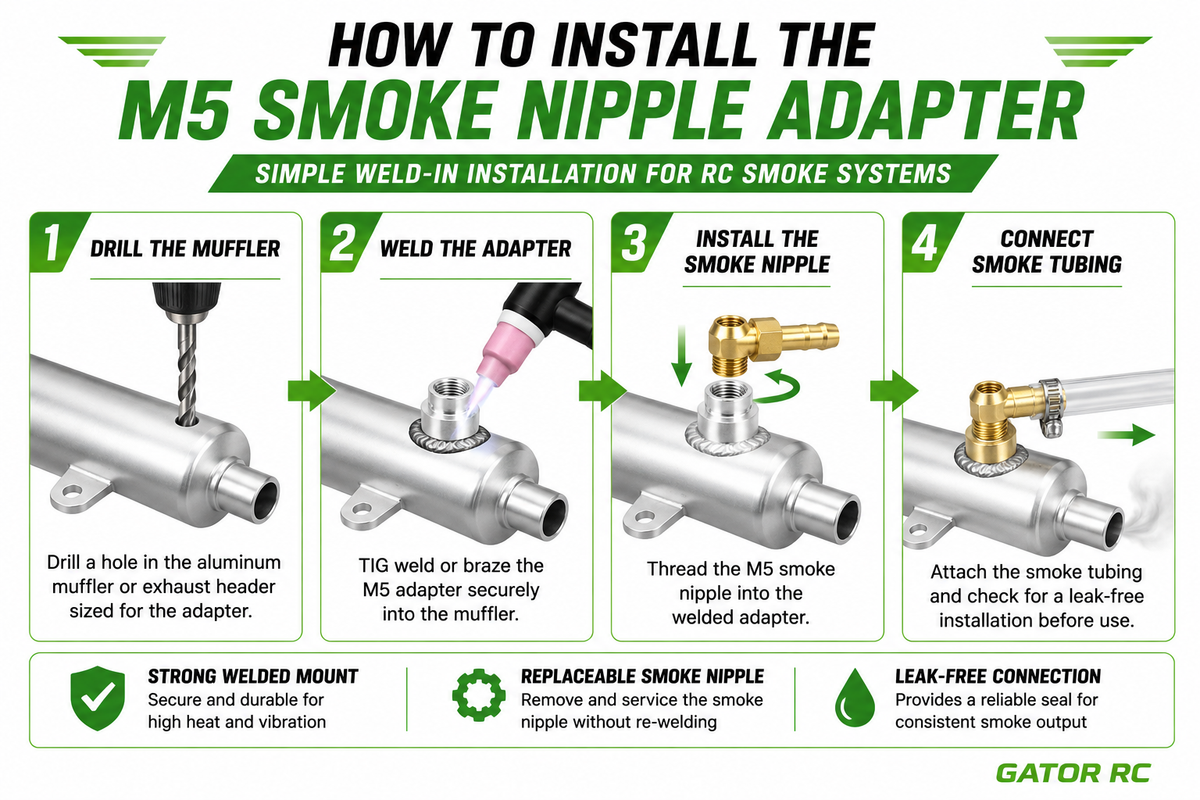

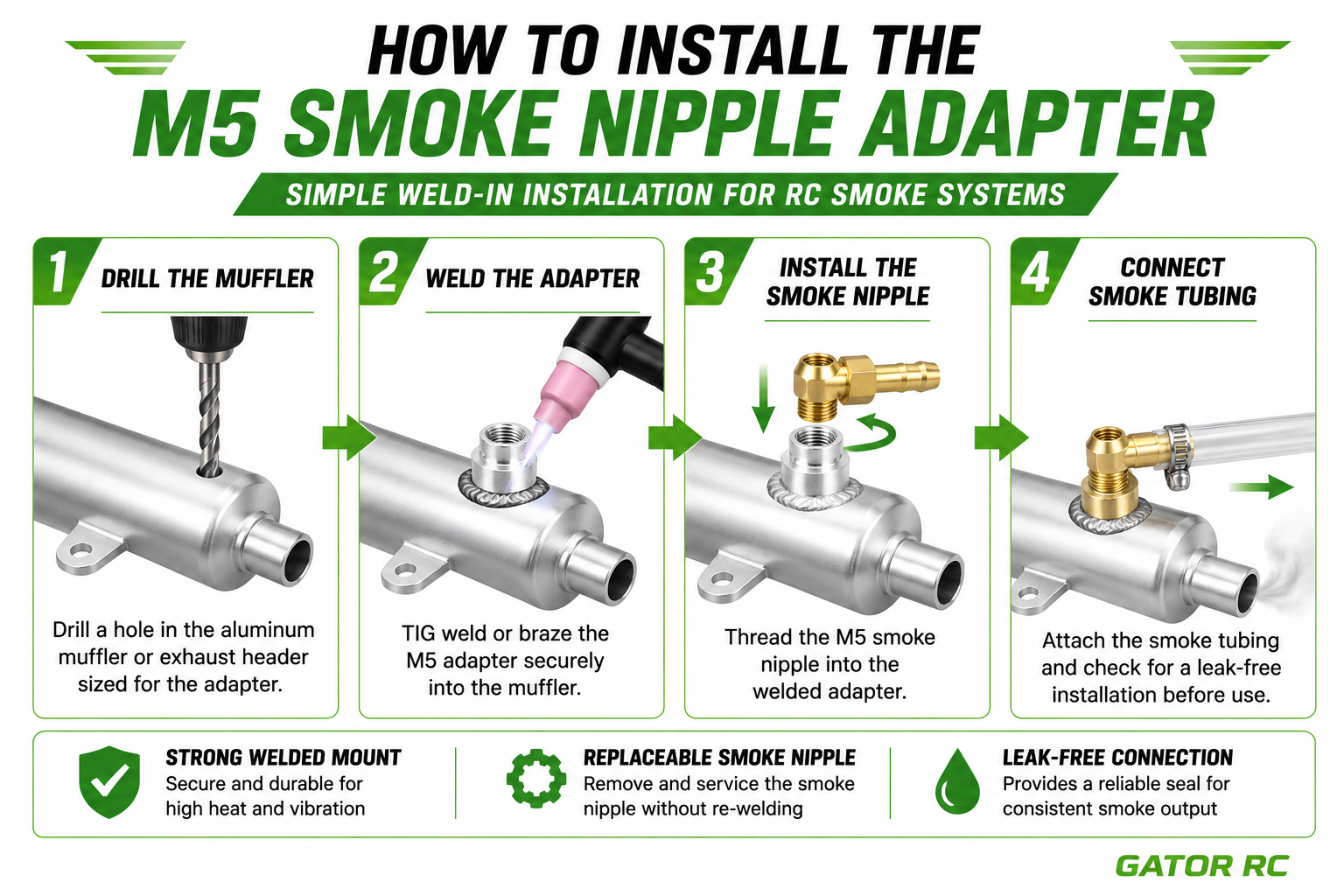

🔧 Installation Guide

  1. Select the desired injection location on your aluminum muffler or exhaust header pipe.
  2. Drill the appropriate opening sizing to cleanly drop the 10mm OD adapter bung into place.
  3. Weld or braze the aluminum adapter nut securely into the exhaust metal using aluminum filler.
  4. Allow the hot metal assembly to air-cool completely on your workbench (do not quench in water).
  5. Chase the internal threads if necessary, then install your M5 smoke nipple using high-temp thread sealant.
  6. Connect your silicone or neoprene smoke oil tubing and verify there are zero fluid leaks before initial engine operation.

The Gator RC Advantage: We source a complete selection of matching high-quality hardware parts so you can stock your workspace from one reliable point. In stock and ready to ship out of our domestic Illinois warehouse.
