SWIWIN Turbines

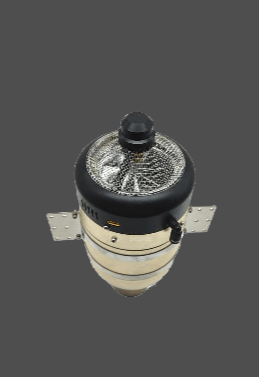

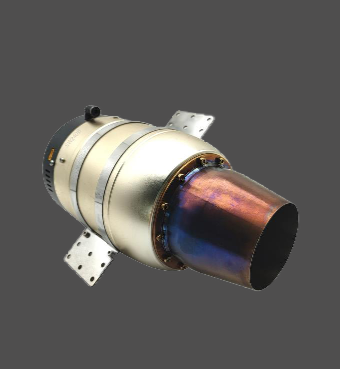

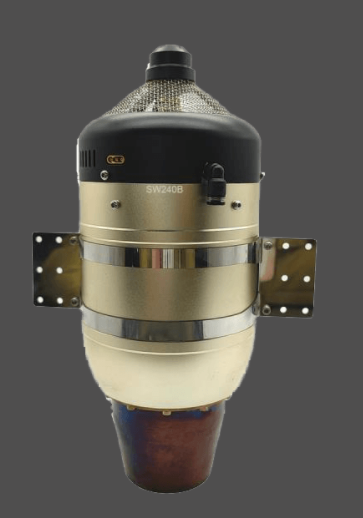

Swiwin Turbines SW220B - 48.5lb/22kg output (Special Order)

Out of stock
SKU: SW220B
(0)
$2,995.00

Note: These are custom-ordered items. We bring them in and they are bench-tested by Swiwin USA. The normal turnaround time for delivery is 2 to 3 weeks.

 We find this is the best way to provide the motors so you get the very newest upgrades all the time.

 If you have questions about availability please inquire first.



Swiwin Turbines SW220B - 48.5lb/22kg output (Special Order)


Product Description

Swiwin Turbines SW220B - 48.5lb/22kg output w/ Brushless Pump

  • Compact and Lightweight

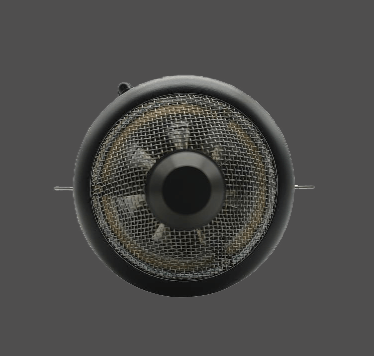

  • Built-in FOD Screen
  • Brushless Starter
  • Color Screen GSU
  • 32Bit Auto Restart ECU
  • Brushless Fuel Pump

Product Details for Swiwin SW220B

  • Compact design
  • 32Bit auto restart ECU
  • Brushless starter
  • Brushless pump
  • Telemetry functions
  • Color screen data terminal
  • CNC compressor wheel
  • very fast throttle response
  • Best cost/performance 220N turbine
  • Silver/Rose Gold color can
Thrust                                                   220N
RPM Range                                          38,000 - 115,000
EGT                                                       650C
Fuel Consumption                               660g/min
Fuel                                                       kero or diesel
Lubrication                                            5% kero/3% diesel
Start                                                       full autostart
Restart                                                   auto restart
Weight                                                   1700g

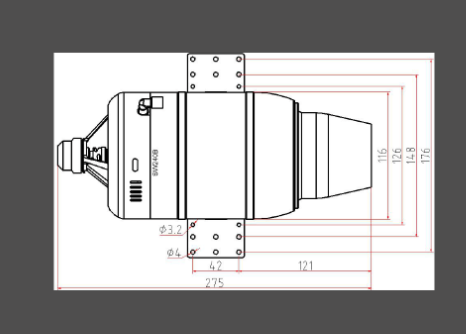

Diameter                                               116mm
Length                                                    275mm
Maintenance Interval                            25 hours
  • SKU SW220B
