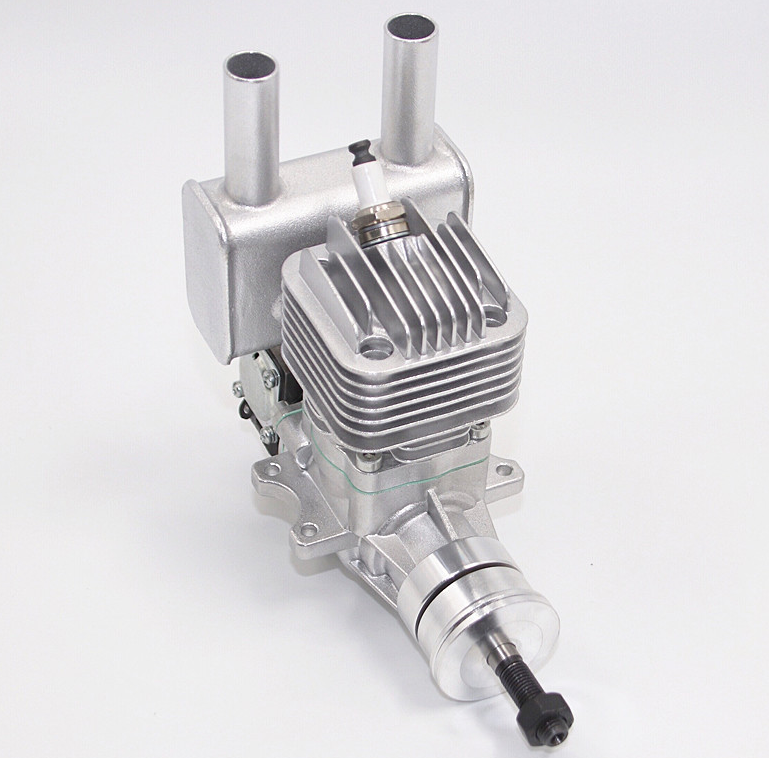

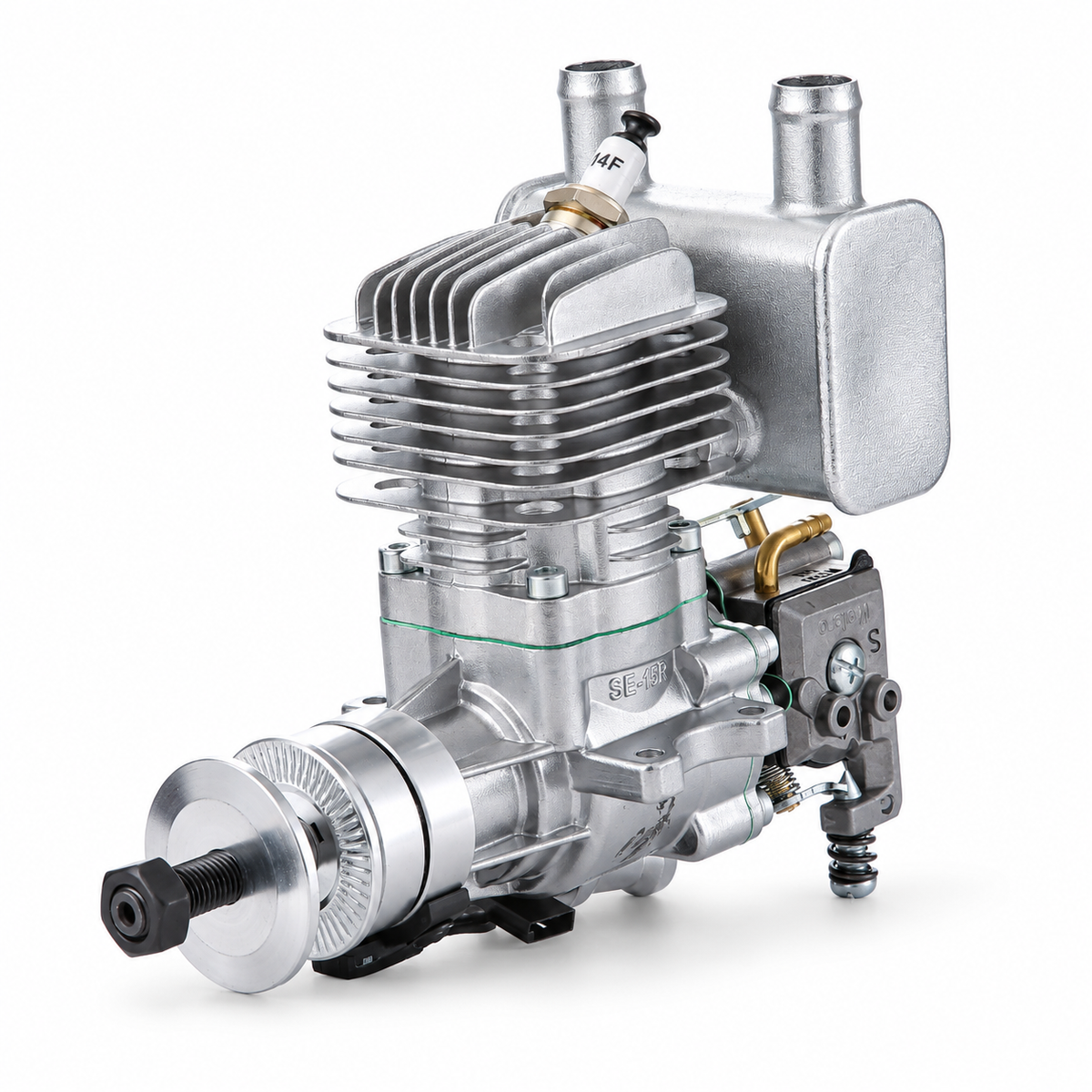

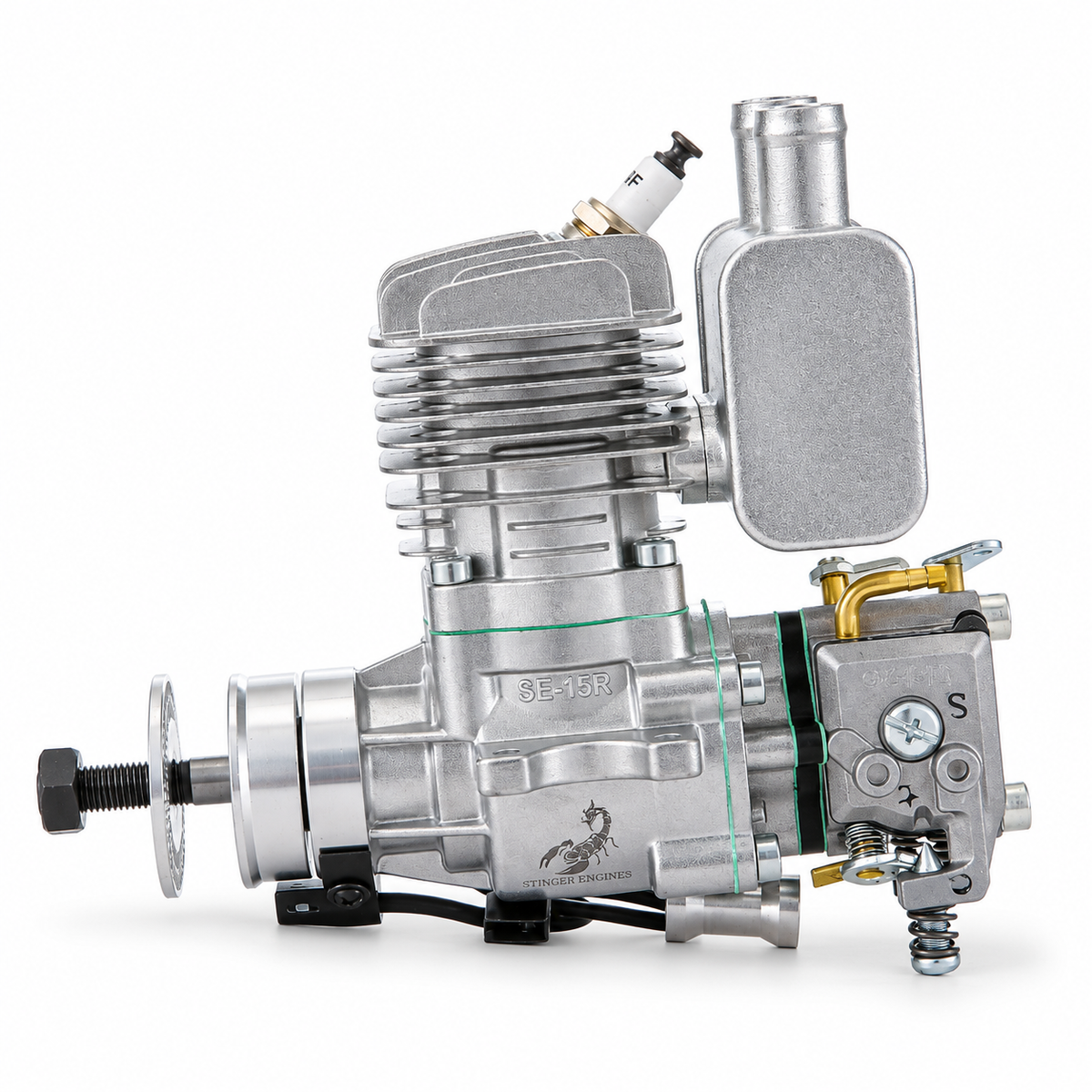

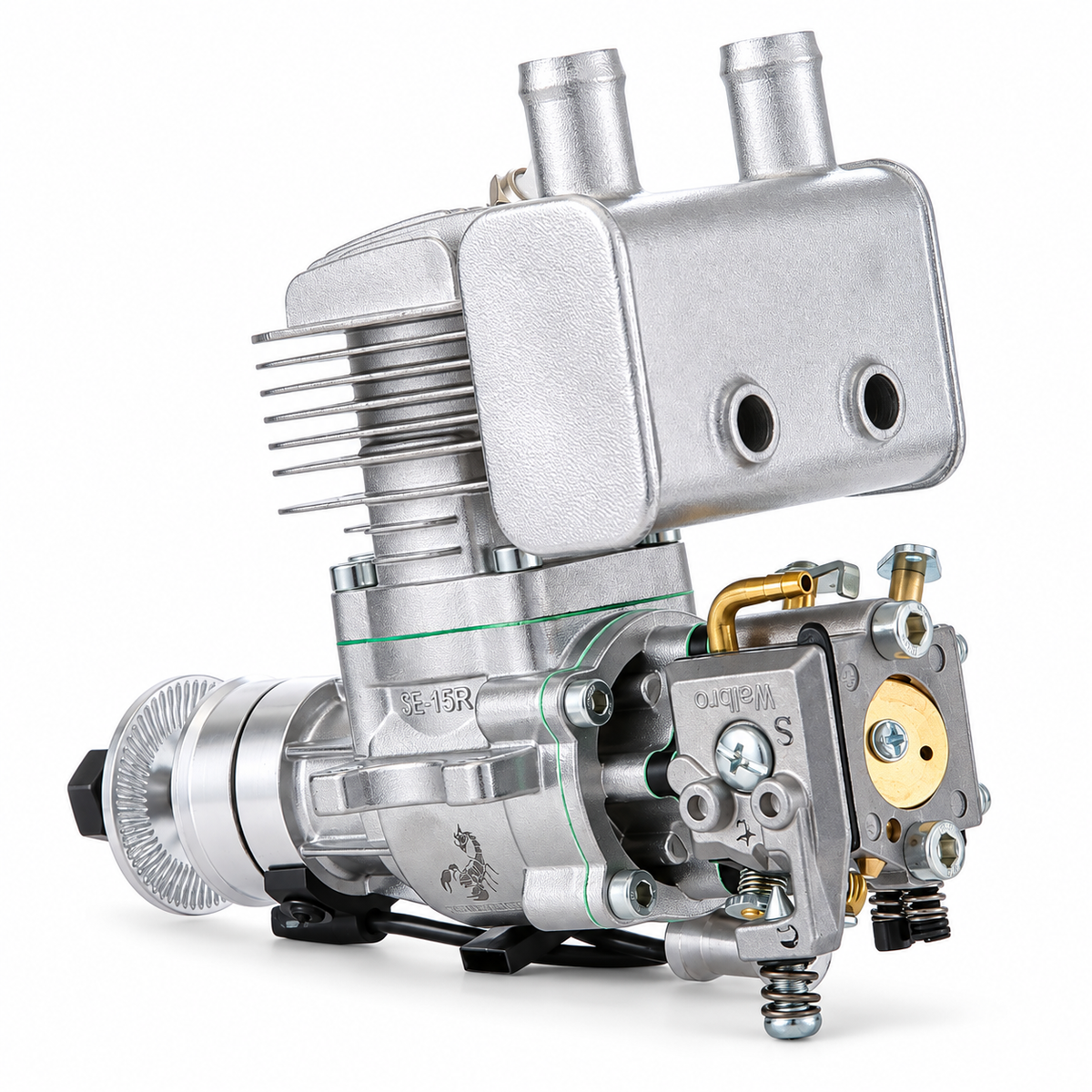

Stinger 15cc RE Rear Exhaust Gas Engine
The RCGF Stinger 15cc RE brings gasoline power to compatible sport and scale RC airplanes in a compact, single-cylinder design. Its rear-exhaust configuration is useful for installations where a side-mounted exhaust would interfere with a narrow cowling, particularly on warbirds.
A Walbro carburetor and electronic ignition with automatic timing advance provide adjustable fuel metering and ignition control. The engine includes a muffler, ignition module, spark plug, and installation accessories.
Key Features
- Rear exhaust: An installation option for aircraft with limited clearance beside the engine.
- 15cc gasoline engine: Single-cylinder, two-stroke design.
- Walbro carburetor: Adjustable mixture settings for engine tuning.
- Electronic ignition: DC-CDI system with computer-controlled automatic advance.
- NGK CM6 spark plug: Uses a readily identifiable replacement plug specification.
- Air-cooled cylinder: Requires adequate airflow through the cowling.
Specifications
| Model | RCGF Stinger 15cc RE |
|---|---|
| Gator RC SKU | STNG-15-RE |
| Engine Type | Single-cylinder, two-stroke gasoline engine |
| Displacement | 0.92 cu in (15cc) |
| Bore × Stroke | 1.26 × 0.77 in (32 × 19.6 mm) |
| Exhaust Configuration | Rear exhaust |
| Maximum Output | 2.4 hp / 1.76 kW, manufacturer rated |
| Listed Operating Speed Range | 1,500–15,000 rpm |
| Listed Idle Speed | 1,800 rpm |
| Carburetor | Walbro |
| Ignition | DC-CDI electronic ignition with automatic advance |
| Spark Plug | NGK CM6 or equivalent |
| Recommended Propellers | 14 × 8, 15 × 6, 15 × 7, or 15 × 8 in |
| Listed Break-In Propeller | 15 × 6 in, two-blade |
| Cooling | Air cooled |
| Engine Weight | Approximately 21.0 oz (594 g) |
| Muffler Weight | Approximately 1.8 oz (51 g) |
| Ignition Module Weight | Approximately 4.4 oz (125 g) |
| Combined Listed Weight | Approximately 27.2 oz (770 g), engine, muffler, and ignition |

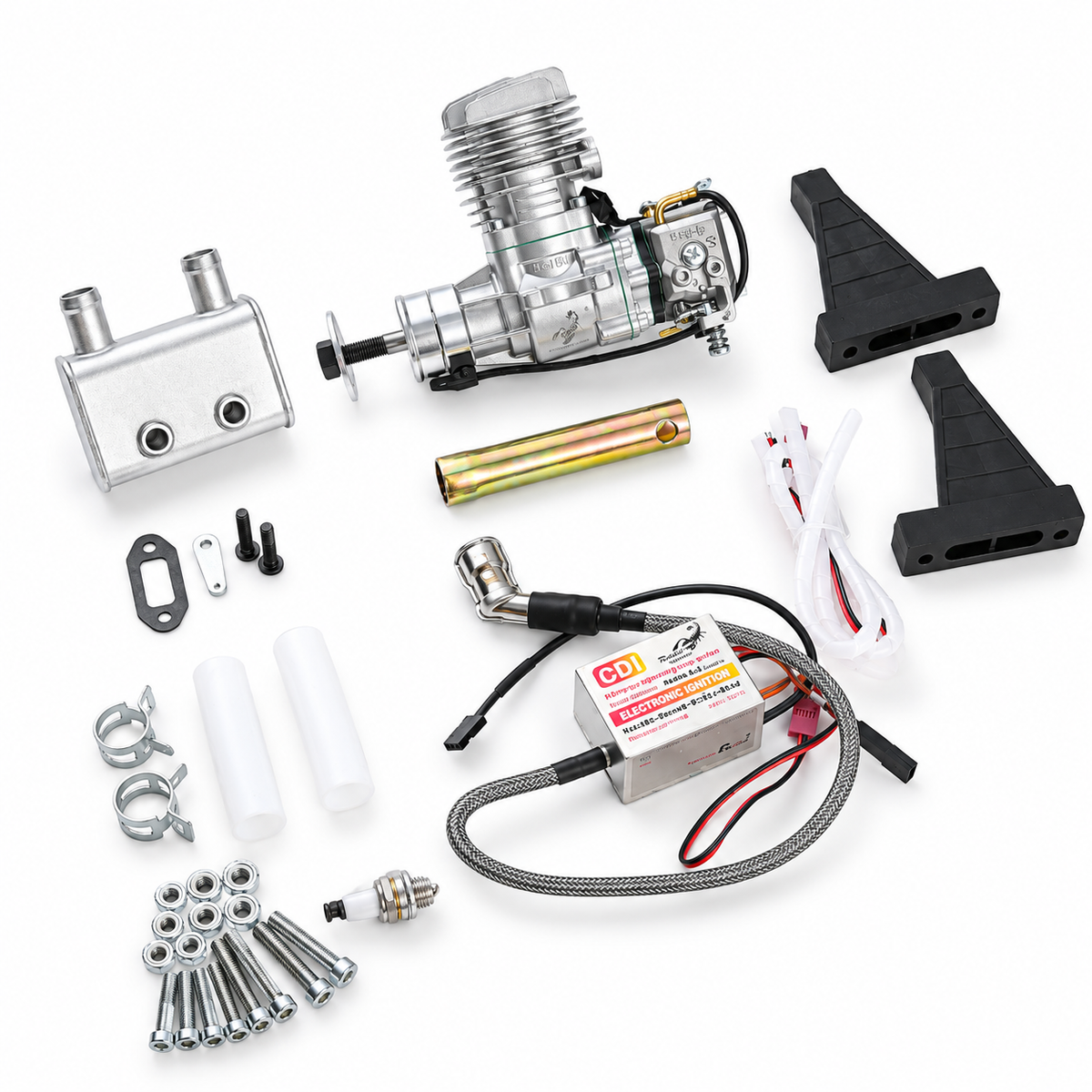

What's Included
- Stinger 15cc RE engine
- Muffler
- Electronic CDI ignition module
- Spark plug
- Gaskets and bolts
- Throttle arm extension
- Instruction manual
Required to Operate
- Gasoline mixed with suitable two-stroke engine oil
- Dedicated ignition battery compatible with the supplied ignition module
- Suitable gasoline-engine propeller
- Gasoline-compatible fuel tank, tubing, and installation equipment
Aircraft Compatibility

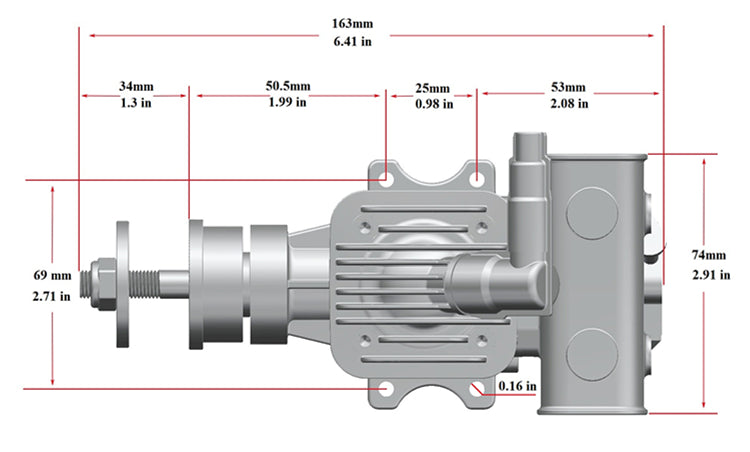

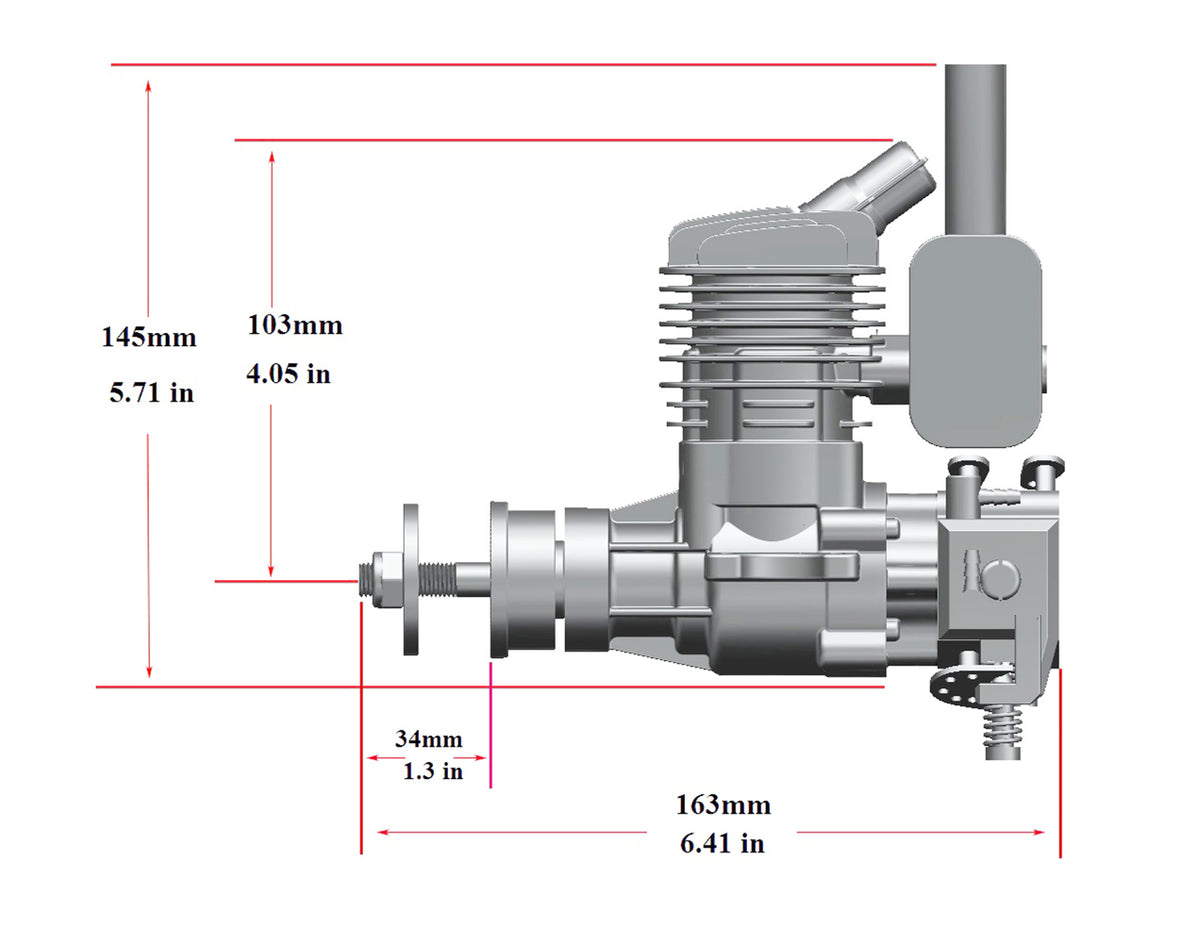

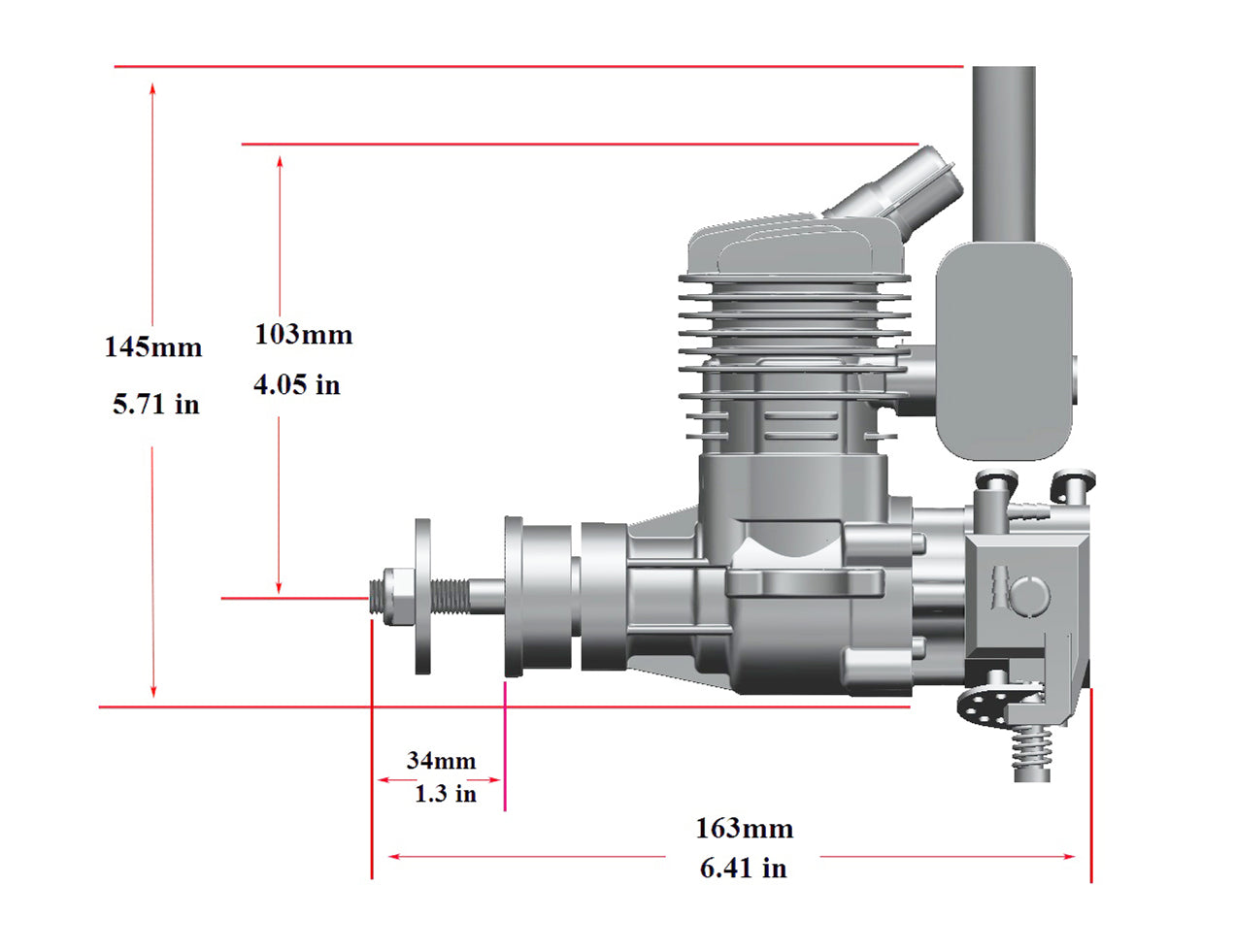

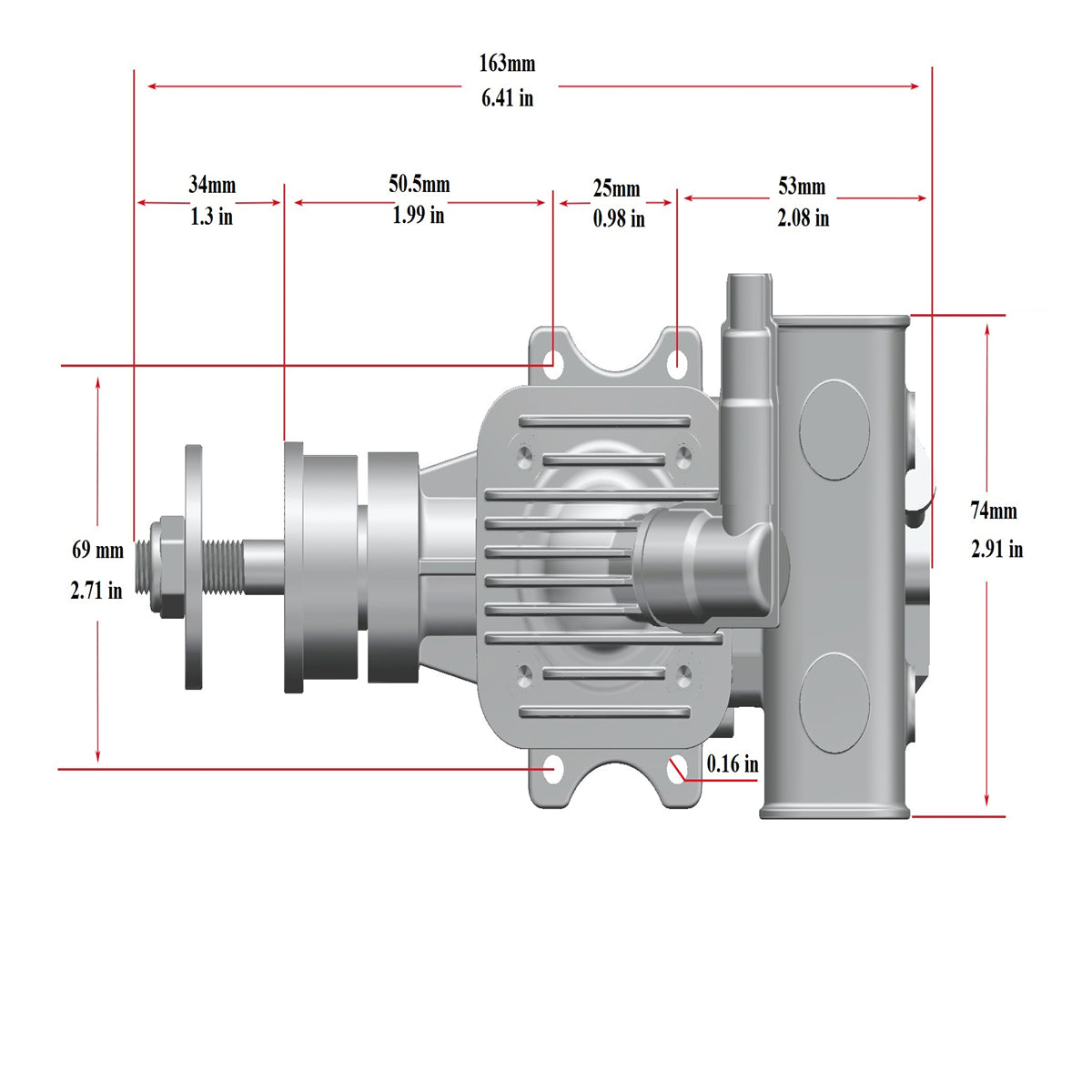

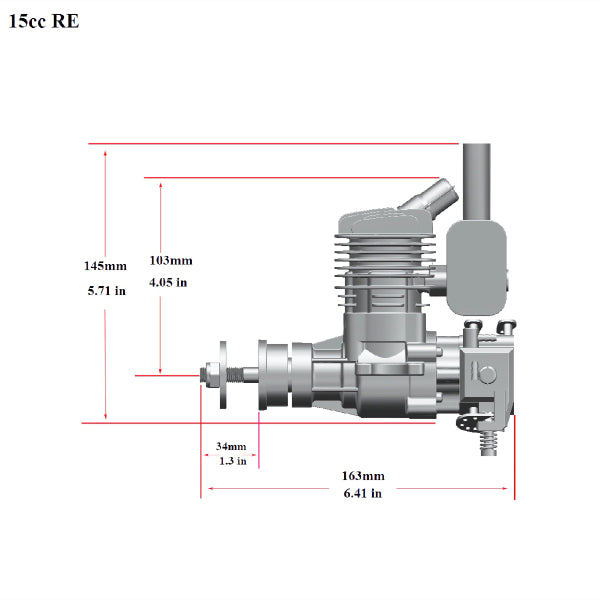

Choose this engine for aircraft whose manufacturer approves a 15cc gasoline installation. Check engine mounting dimensions, total installed weight, propeller clearance, rear muffler clearance, and center of gravity before purchasing. A rear-exhaust design can help with side clearance, but still requires adequate space behind the cylinder.
Fuel, Ignition, and Break-In
Follow the manual supplied with your engine for fuel-to-oil ratio, break-in procedure, carburetor adjustment, and ignition battery requirements. Check the voltage rating on the supplied ignition module before connecting power.
RCGF's current product page advises using a dedicated ignition battery rather than a BEC, iBEC, or uBEC. Provide adequate cooling airflow and follow the manufacturer's propeller and operating instructions.
