Stinger 20cc SE Side Exhaust Gas Engine.
Couldn't load pickup availability
Stinger 20cc SE Side Exhaust Gas Engine

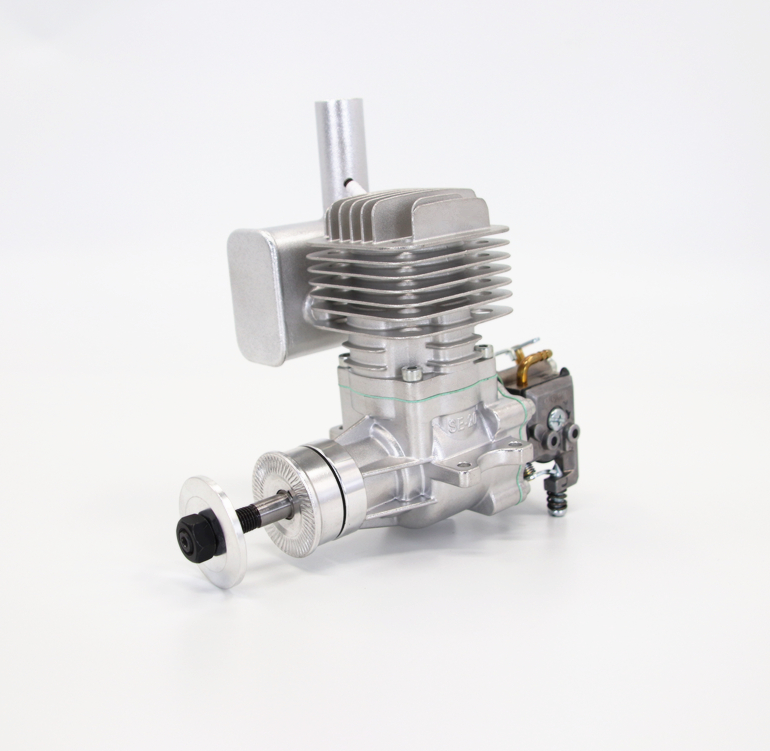

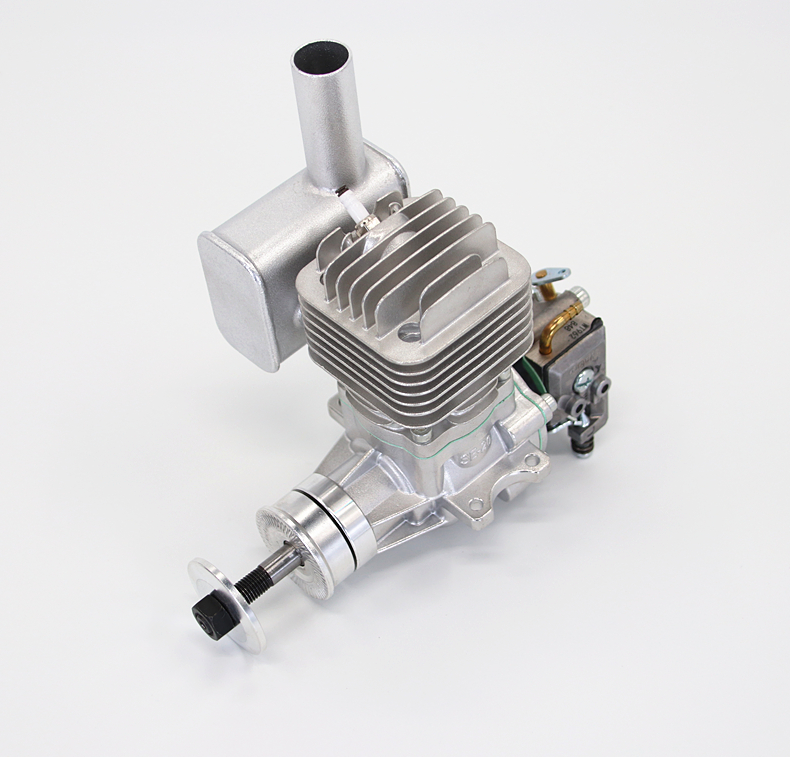

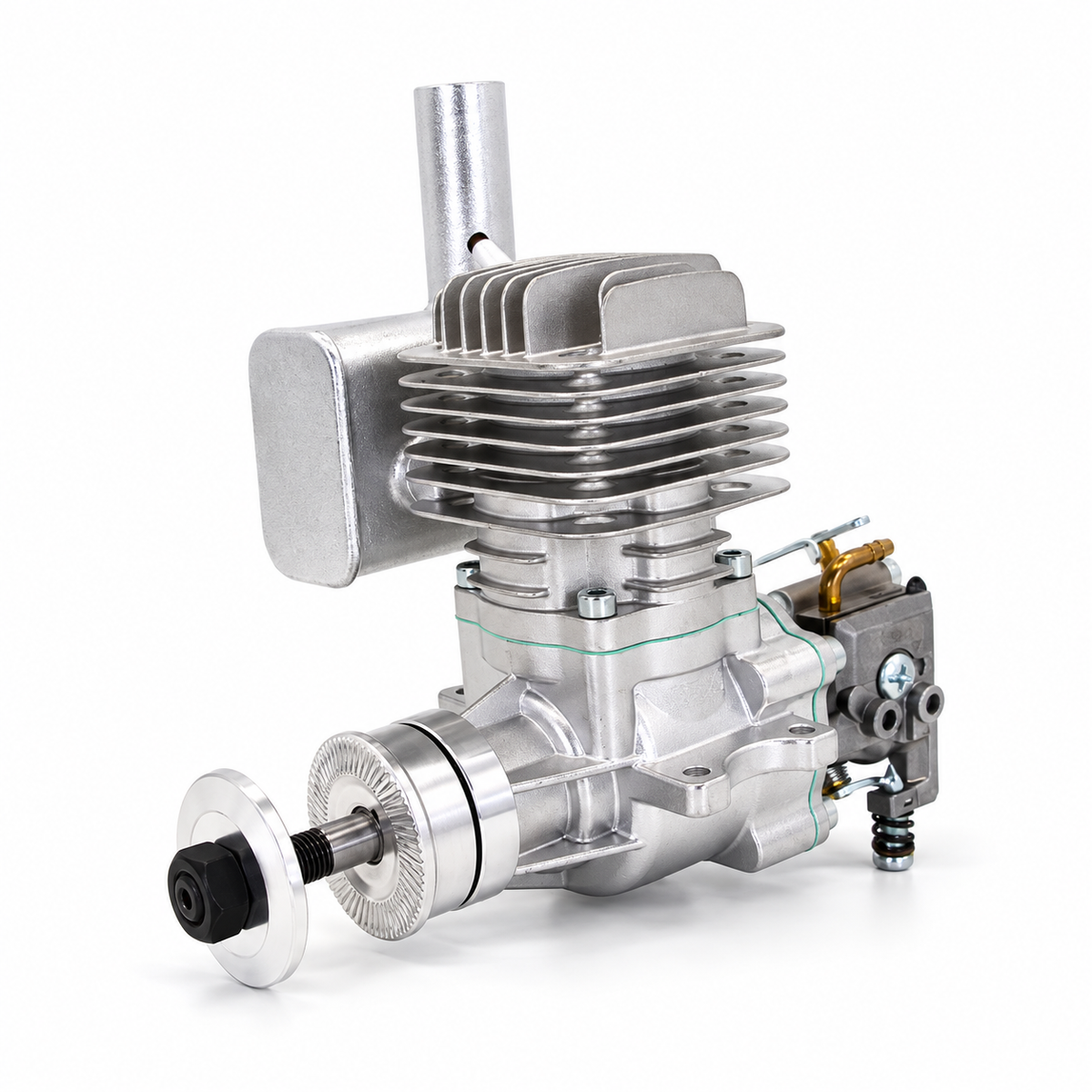

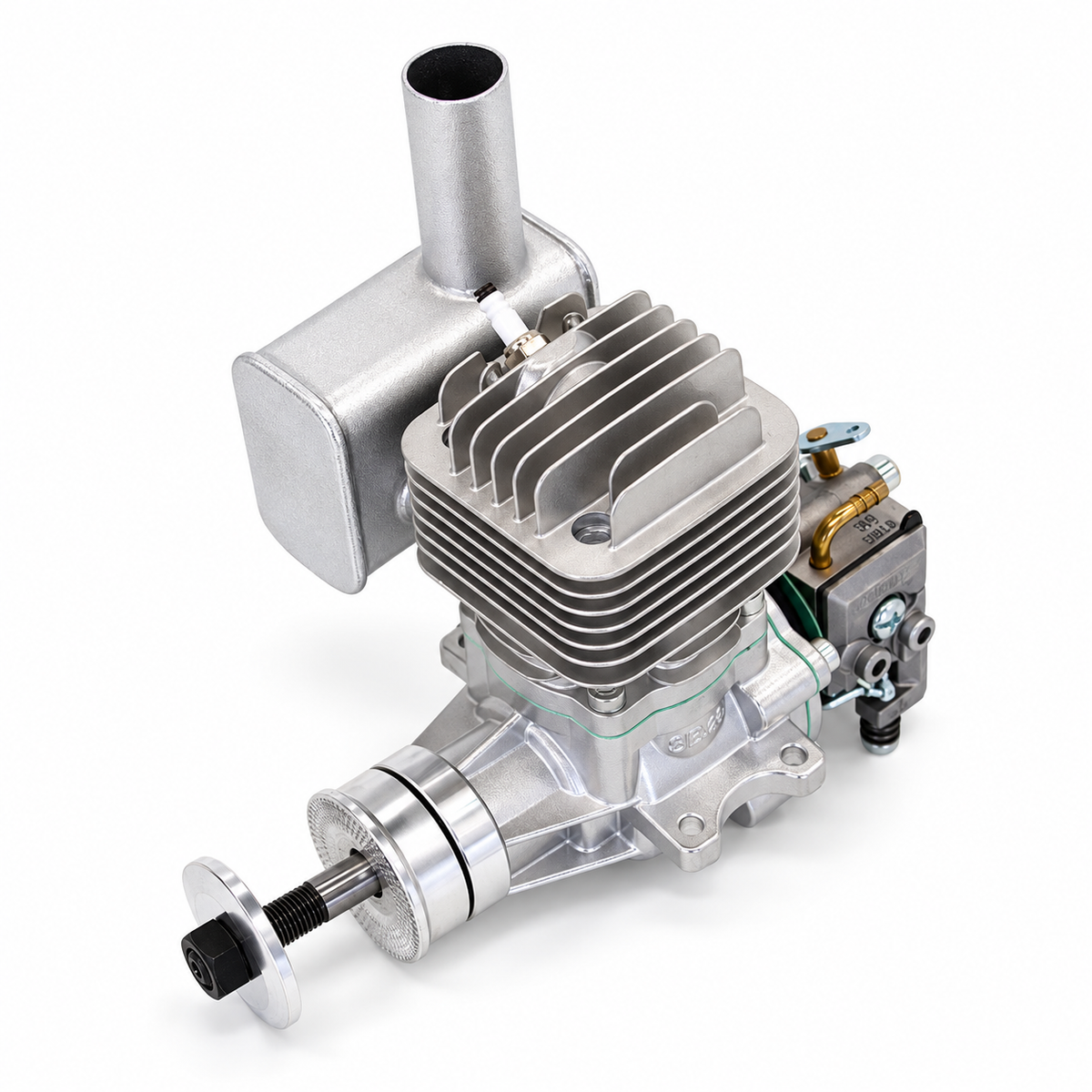

The Stinger 20cc SE is a single-cylinder, two-stroke gasoline engine for RC airplanes. Its side exhaust arrangement and beam mount make it an option for compatible aircraft, including some conversions from glow power. Check your airplane’s firewall, cowl, muffler clearance, and propeller requirements before installation.
Stinger equips the 20cc SE with a rear-mounted Walbro pumper carburetor and electronic CDI ignition with automatic timing advance. The manufacturer rates the engine at up to 2.8 hp (2.1 kW) and recommends a selection of two-blade propellers from 14 × 10 to 17 × 6.
Key Features
- 20cc (1.22 cu in) single-cylinder gasoline RC airplane engine
- Side exhaust configuration with included muffler
- Beam mount for compatible aircraft installations
- Rear-mounted Walbro pumper carburetor
- Electronic DC-CDI ignition with automatic timing advance
- Air-cooled, two-stroke design
Manufacturer Specifications
| Model | Stinger 20cc SE |
|---|---|
| Gator RC SKU | STNG-20-SE |
| Engine type | Single-cylinder, two-stroke gasoline RC airplane engine |
| Displacement | 1.22 cu in (20cc) |
| Bore × stroke | Approx. 1.26 × 0.94 in (32 × 24 mm) |
| Maximum rated output | 2.8 hp (2.1 kW) |
| Manufacturer-listed speed range | 1,500–10,500 rpm |
| Manufacturer-listed idle speed | 1,800 rpm |
| Carburetor | Walbro pumper carburetor |
| Ignition | Stinger electronic DC-CDI with automatic timing advance |
| Current manufacturer-listed ignition power supply | 7.4–14V; confirm the rating printed on the ignition module supplied with your engine |
| Spark plug | 1/4-32 size or equivalent; verify against the supplied plug |
| Recommended two-blade propellers | 14 × 10, 15 × 8, 16 × 6, 16 × 8, or 17 × 6 |
| Manufacturer-listed break-in propeller | 16 × 8 two-blade |
| Engine weight | Approx. 1.35 lb (614 g) |
| Muffler weight | Approx. 2.1 oz (59 g) |
| Ignition module weight | Approx. 4.4 oz (125 g) |
| Cooling | Air-cooled |
Fuel and Ignition
This engine uses premixed gasoline and suitable two-stroke oil. Stinger’s current product page recommends a 32:1 gasoline-to-oil mixture for conventional oil or 40:1 for synthetic oil. Follow the manual supplied with your particular engine for fuel mixture and break-in instructions.
Stinger’s current listing specifies a 7.4–14V ignition power supply and advises against powering the ignition through a BEC, iBEC, or uBEC. Before connecting a battery, check the voltage rating on the ignition module actually included with your engine, as earlier packages may differ.
What’s Included
- Stinger 20cc SE engine
- Electronic CDI ignition module
- Side exhaust muffler
- Spark plug
- Gaskets and bolts
- Throttle arm extension
- Engine manual
Additional Items Required
Gasoline, suitable two-stroke oil, an ignition battery, and a compatible propeller are required to operate the engine. Verify fit and cooling airflow in your aircraft before installation.
Replacement Parts
Shop our Stinger 20cc engine parts and select the appropriate Gasket Set, Reed Valve Assembly with Insulator, Prop Hub Accessories, or Side Exhaust Muffler option. For a replacement plug, see our Stinger spark plugs and select the 1/4-32 M8 Iridium variant, which the listing identifies for the 20cc SE. A Walbro replacement carburetor is also available. Confirm the selected part against your engine before ordering.
