Power Unlimited 2S 2200mAh 7.4V 30C LiPo Receiver Battery with T-Plug
Couldn't load pickup availability

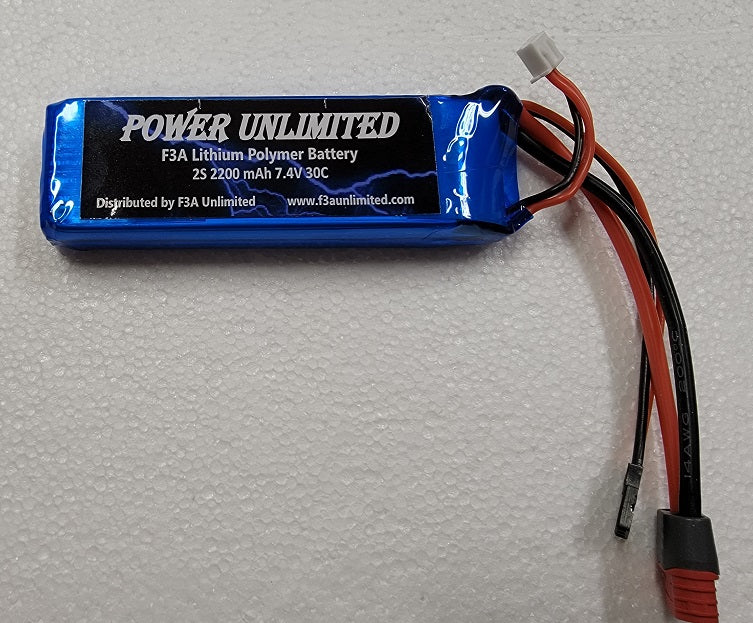

Power Unlimited 2S 2200mAh 7.4V 30C LiPo Receiver Battery
The Power Unlimited 2S 2200mAh LiPo Receiver Battery offers a compact power option for compatible RC aircraft radio systems. Equipped with a Deans-style T-plug main power connector, a universal JR receiver power lead, and a separate JST-XH balance connector, this pack provides convenient connections for installation and balance charging.
🚀 Target Applications
- Compatible sport and scale aircraft receiver systems
- Pattern airplanes using a separate radio-system battery
- Gasoline and glow-powered models requiring receiver and servo power
- Installations with limited battery compartment space
Select the battery and power connections to match your equipment's voltage, current, and capacity requirements.
Key Features
- 2200mAh Capacity: A compact battery option for compatible on-board radio systems.
- 2S LiPo Configuration: 7.4V nominal voltage with a 30C discharge rating.
- Main Power Lead: Deans-style T-plug with 14 AWG wire.
- Receiver Power Lead: Universal JR plug with 22 AWG wire.
- Balance Connection: Separate JST-XH connector for compatible balance chargers.
- Compact Profile: Weighs 4.16 oz (118 g) and measures approximately 4.13 × 1.25 × 0.56 in (105 × 32 × 14 mm).
⚠ Voltage & Current Compatibility
- Direct 2S LiPo Power: A fully charged pack reaches 8.4V. Before connecting directly, verify that the receiver, all connected servos, switches, and other powered accessories support this voltage.
- Regulated Systems: Equipment that does not support direct 2S LiPo power requires a compatible regulator or external BEC set within its specified voltage range.
- Current Limits: The battery's discharge rating does not determine the current capacity of the smaller receiver lead. Observe the ratings of all wiring, connectors, switches, and receiver power inputs.
🔧 Installation Guidelines
- Check battery compartment dimensions before purchase.
- Connect the main T-plug to a compatible switch, regulator, or power distribution system as required by your installation.
- Use the universal receiver lead only where its wiring and connector ratings meet the system's current requirements.
- Follow the receiver manual when selecting a power input and checking connector polarity.
- Secure the battery and leads away from moving linkages and insulate unused connectors.
Both power leads connect to the same battery pack; they are not independent power supplies.
📋 Technical Specifications
| Brand | Power Unlimited |
|---|---|
| SKU | PU-2200-2s-LipoV2 |
| Battery Type | Lithium polymer (LiPo) |
| Cell Configuration | 2S / 2 cells |
| Nominal Voltage | 7.4V |
| Fully Charged Voltage | 8.4V |
| Capacity | 2200mAh |
| Discharge Rating | 30C |
| Dimensions | Approximately 4.13 × 1.25 × 0.56 in (105 × 32 × 14 mm) |
| Weight | 4.16 oz (118 g) |
| Main Power Connection | Deans-style T-plug, 14 AWG wire |
| Receiver Connection | Universal JR receiver plug, 22 AWG wire |
| Balance Connector | JST-XH for 2S |
📦 Package Includes
- 1 × Power Unlimited 2S 2200mAh 7.4V 30C LiPo receiver battery with T-plug main power lead, universal JR receiver lead, and JST-XH balance lead
🔌 Charging & Care
Use a compatible LiPo balance charger set for a 2S battery. Follow the charger instructions for connecting the main T-plug through a matching charge cable and the JST-XH balance lead to the appropriate balance connection.
Follow the battery manufacturer's charging limits. Never charge unattended, and do not use or charge a damaged or swollen battery.
