Power Unlimited 3000mAh 2S 6.6V 20C LiFe Receiver Battery
Couldn't load pickup availability

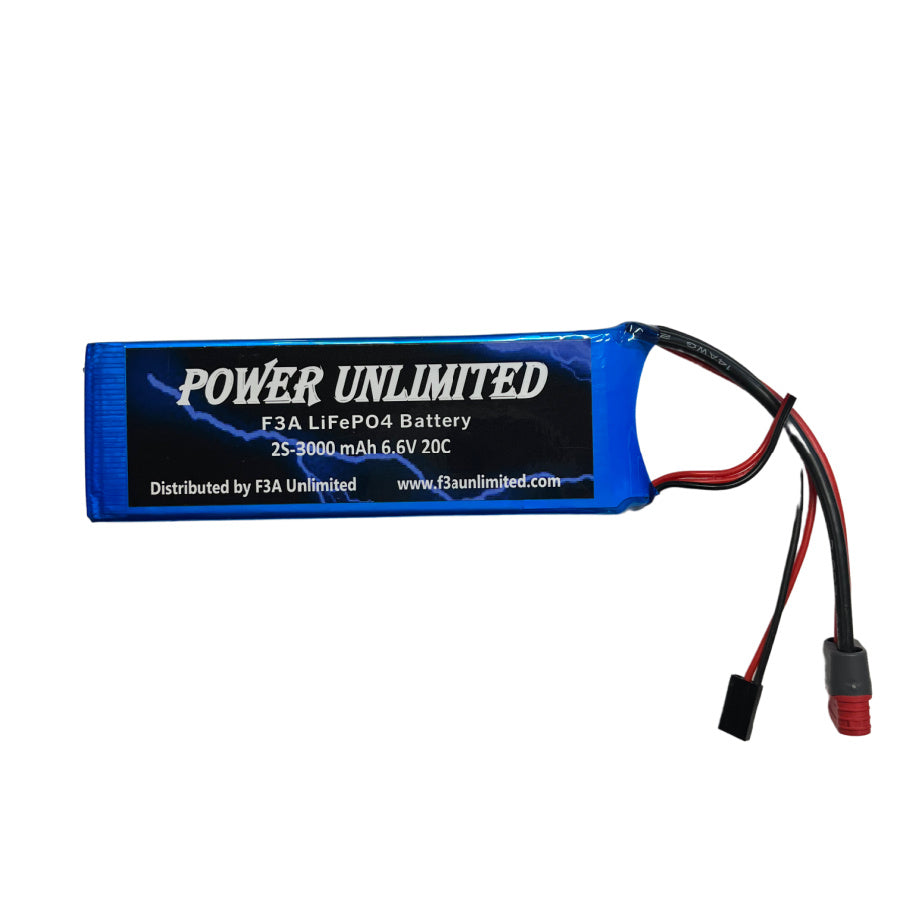

Power Unlimited 2S 3000mAh 6.6V 20C LiFe Receiver Battery
The Power Unlimited 3000mAh 2S LiFe receiver battery supplies dedicated power for compatible RC airplane receiver and servo systems. Its 6.6V nominal voltage and 3000mAh capacity make it an option for models using a separate receiver battery, wrapped with an Ultra T-plug connection, a JR universal connection, and a JST-XH balance connector.
🚀 Target Applications:
- Onboard radio system power for compatible RC airplanes and giant-scale models
- Dedicated receiver battery configuration for setups requiring an alternative to LiPo voltage parameters
- Airframes with battery bays built to accommodate a 5.5-inch flat profile pack layout
⚠ Compatibility and Charging Warning:
- Voltage Compatibility: Confirm that your receiver, servos, switches, and power distribution equipment support a fully charged 2S LiFe battery. Nominal voltage alone does not establish compatibility.
- Program Selection: Use a LiFe-compatible balance charger with the correct cell count and manufacturer-specified charge settings. Do not select a LiPo charging program. Never charge unattended, and discontinue use if the pack is damaged or swollen.
Key Features
- 3000mAh Capacity: Robust onboard power capacity for multi-servo radio equipment installations.
- 2S LiFe Chemistry: 6.6V nominal voltage baseline delivering an alternative discharge curve to standard chemistries.
- 20C Discharge Rating: Formulated to maintain stable power tracking under common servo loads.
- Ultra T-Plug Output: Finished on a 14 AWG heavy-gauge wire lead to minimize bottleneck restrictions.
- JR Universal Lead: Secondary 22 AWG wire output designed for common receiver power bus slots.
- JST-XH Balance Tab: Built with a dedicated balance lead to match conventional computerized balance charge arrays.
📋 Technical Specifications
| Brand | Power Unlimited |
|---|---|
| SKU | PU-3000-2s-Life |
| Battery Chemistry | LiFe (LiFePO4) |
| Cell Configuration | 2S |
| Capacity | 3000mAh |
| Nominal Voltage | 6.6V |
| Discharge Rating | 20C |
| Main Power Connector | Ultra T-plug with 14 AWG wire |
| Receiver Connector | JR universal connection with 22 AWG wire |
| Balance Connector | JST-XH |
| Dimensions | 5.5 × 1.75 × 0.5 in (approximately 140 × 44 × 13 mm) |
📦 What's Included:
- 1 × Power Unlimited 2S 3000mAh 6.6V 20C LiFe Receiver Battery
💡 Modeler's Installation and Setup Guide
Measure your model's physical battery compartment before concluding installation layout tracks. Connect your output lead—either the thick 14 AWG T-plug line or the 22 AWG universal JR plug—to matching switches or power distribution interfaces. Secure the battery firmly inside the frame away from structural edges and ensure leads clear all physical throw lines of moving servo horns.
