Power Unlimited 2S 3300mAh 7.4V 30C LiPo Receiver Battery with T-Plug
Couldn't load pickup availability

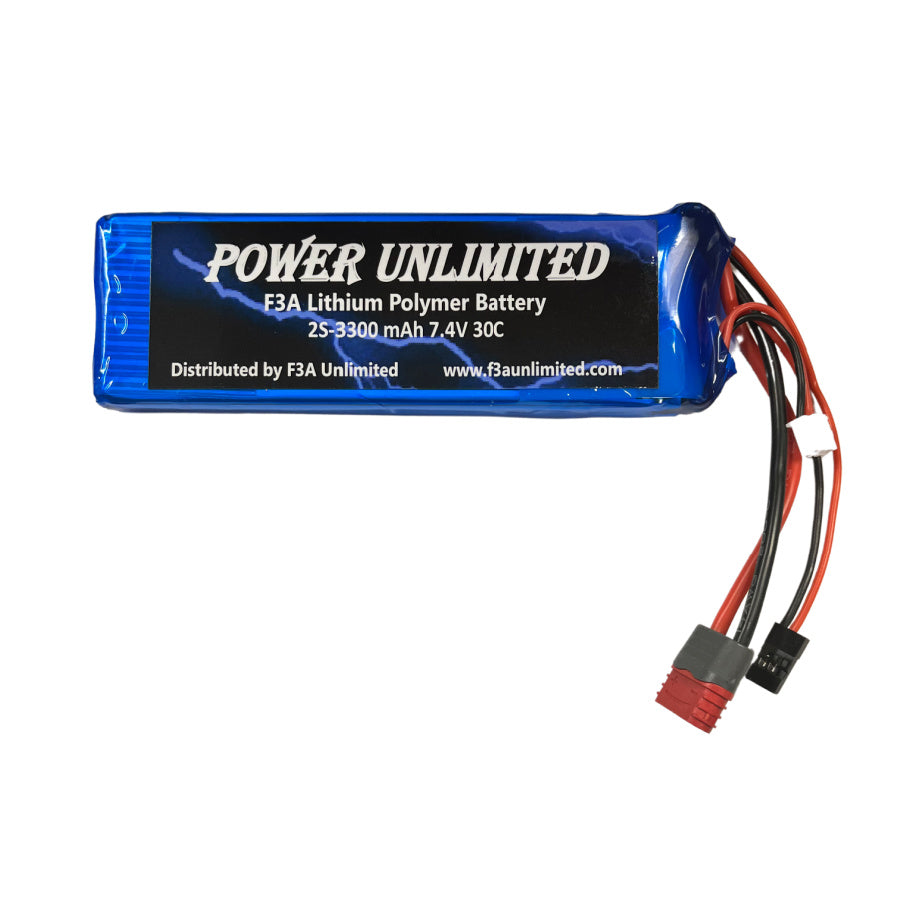

Power Unlimited 2S 3300mAh 7.4V 30C LiPo Receiver Battery
The Power Unlimited 2S 3300mAh LiPo Receiver Battery provides a slim battery option for compatible RC aircraft radio systems. A Deans-style T-plug main power connector, universal JR receiver power lead, and separate JST-XH balance connector offer convenient connections for installation and balance charging.
🚀 Target Applications:
- Compatible sport and scale aircraft receiver systems
- Pattern airplanes using a separate radio-system battery
- Gasoline and glow-powered models requiring receiver and servo power
Select power connections and any required regulator to match your equipment's voltage and current requirements.
⚠ Voltage & Current Compatibility:
- Direct 2S LiPo Power: Before connecting directly, verify that the receiver, servos, switches, and other powered accessories support the battery's fully charged voltage of 8.4V.
- Regulated Systems: Equipment that does not support direct 2S LiPo power requires a compatible regulator or external BEC set within its specified voltage range.
- Current Limits: The battery's discharge rating does not determine the current capacity of the receiver lead. Observe the ratings of all wiring, connectors, switches, and receiver power inputs.
Key Features
- 3300mAh Capacity: Dedicated battery capacity for compatible on-board radio systems.
- 2S LiPo Configuration: 7.4V nominal voltage with a 30C discharge rating.
- Main Power Lead: Deans-style T-plug with 14 AWG wire.
- Receiver Power Lead: Universal JR plug with 22 AWG wire.
- Balance Connection: Separate JST-XH connector for compatible balance chargers.
- Slim Profile: Fits battery spaces that accommodate its listed dimensions.
🔧 Installation Guidelines
- Check battery compartment dimensions before purchase.
- Use the main T-plug with a compatible switch, regulator, or power distribution system as required by your installation.
- Use the universal receiver lead only where its wiring and connector ratings meet the system's current requirements.
- Follow the receiver manual when selecting a power input and checking connector polarity.
- Secure the battery and leads away from moving linkages. Insulate unused connectors.
Both power leads connect to the same battery; they are not independent power supplies.
📋 Technical Specifications
| Brand | Power Unlimited |
|---|---|
| SKU | PU-3300-2s-Lipo |
| Battery Type | Lithium polymer (LiPo) |
| Cell Configuration | 2S / 2 cells |
| Nominal Voltage | 7.4V |
| Capacity | 3300mAh |
| Discharge Rating | 30C |
| Dimensions | 5.5 × 1.75 × 0.5 in (approximately 140 × 44 × 13 mm) |
| Weight | 5.8 oz (164 g) |
| Main Power Connection | Deans-style T-plug, 14 AWG wire |
| Receiver Connection | Universal JR receiver plug, 22 AWG wire |
| Balance Connector | JST-XH for 2S |
📦 Package Includes:
- 1 × Power Unlimited 2S 3300mAh 7.4V 30C LiPo receiver battery with T-plug main power lead, universal JR receiver lead, and JST-XH balance lead
💡 Charging & Care Guide
Use a compatible LiPo balance charger set for a 2S battery. Follow the charger instructions for connecting the main T-plug through a matching charge cable and the JST-XH balance lead to the appropriate balance connection.
Follow the battery manufacturer's charging limits. Never charge unattended, and do not use or charge a damaged or swollen battery.
