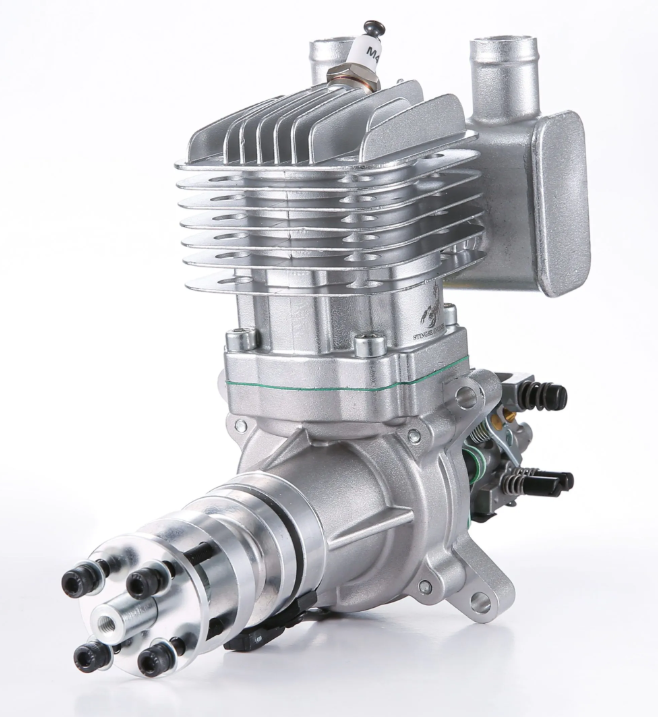

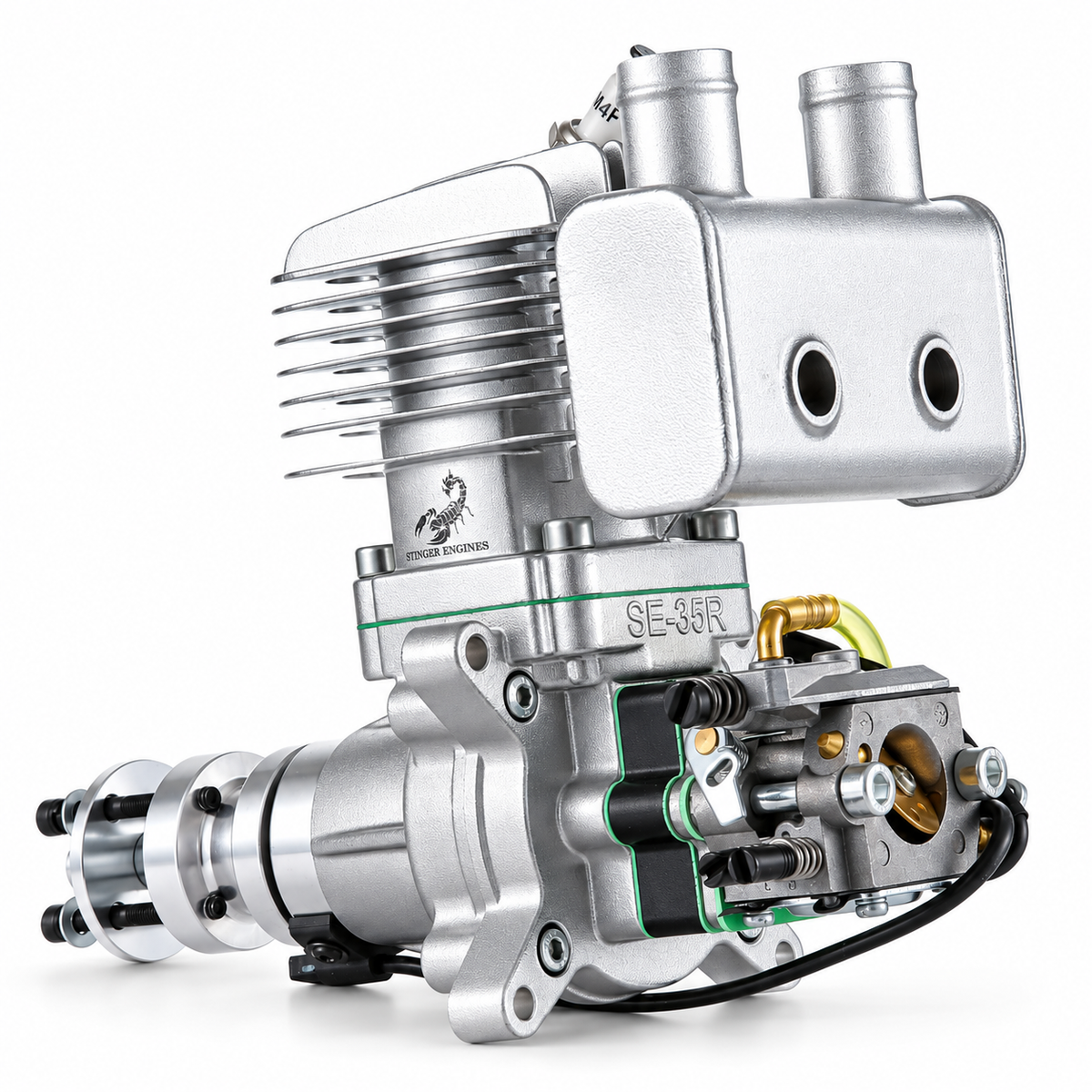

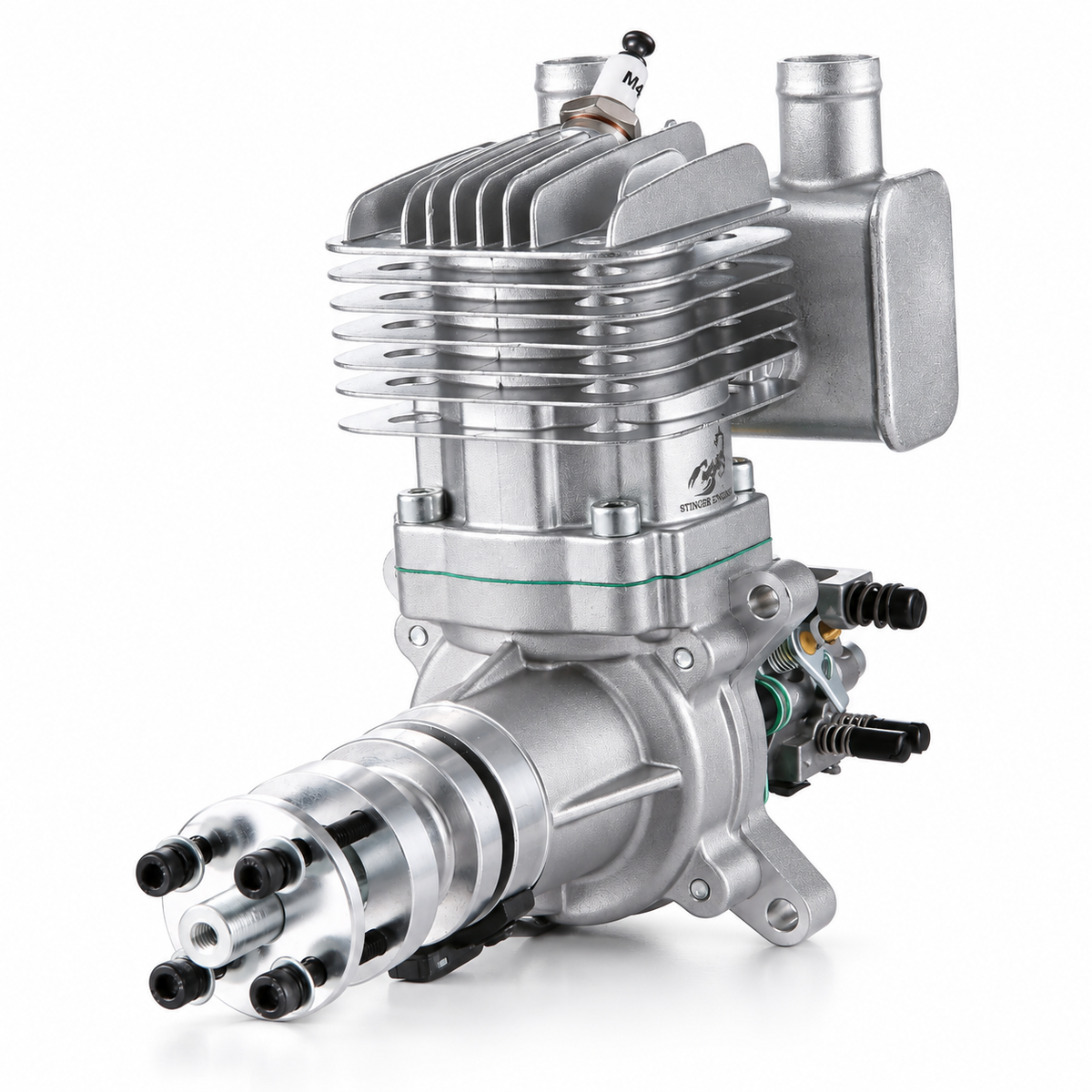

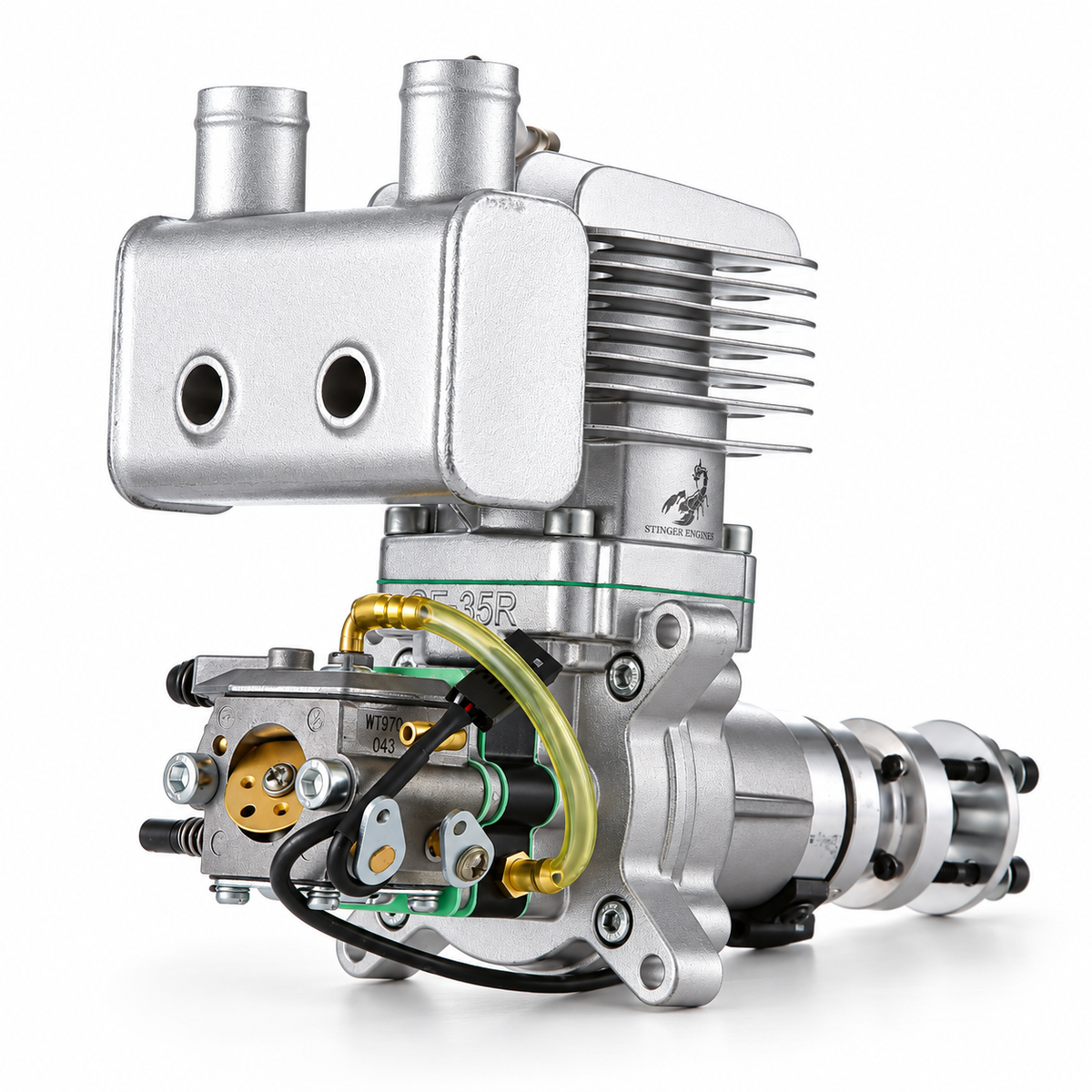

RCGF Stinger 35cc RE Rear Exhaust Gas Engine
The RCGF Stinger 35cc RE is a single-cylinder, two-stroke gasoline engine for RC airplanes designed around a 35cc powerplant. Its rear exhaust layout, Walbro carburetor, and electronic ignition provide a practical power system for compatible sport, scale, and aerobatic aircraft.
Rated at 4.1 horsepower at 9,000 RPM, the RCGF Stinger 35cc RE includes a muffler, CDI ignition, spark plug, and installation hardware. RE means rear exhaust, distinguishing this engine from the side exhaust SE version.
🚀 Target Applications:
- RC sport airplanes, scale models, and aerobatic aircraft designed for a 35cc gas power plant
- Aircraft installations designed for a rear exhaust engine, with suitable engine and muffler clearance
Key Features
- 35cc Gasoline Power: Single-cylinder, air-cooled, two-stroke design.
- Rear Exhaust Configuration: Engineered for installations requiring an exhaust outlet at the rear of the cylinder.
- Walbro Carburetor: Features an adjustable fuel delivery system for straightforward engine setup and tuning.
- Electronic Ignition: DC-CDI system with computer-controlled automatic timing advance.
- NGK CM6 Spark Plug: Included with the engine package to support dependable operation.
- Included Muffler and Hardware: Supplies the main engine accessories, standoffs, and components needed for installation.
📋 Technical Specifications
| Engine Type | Single-cylinder, two-stroke gasoline airplane engine |
| Displacement | 2.13 cu in (35cc) |
| Exhaust Configuration | Rear exhaust (RE) |
| Bore × Stroke | 1.54 × 1.18 in (39 × 30 mm) |
| Rated Maximum Output | 4.1 hp at 9,000 RPM |
| Operating Speed Range | 1,500–9,000 RPM |
| Listed Idle Speed | 1,800 RPM |
| Carburetor | Walbro |
| Ignition | DC-CDI electronic ignition with automatic timing advance |
| Spark Plug | NGK CM6 or equivalent |
| Cooling | Air cooled |
| Recommended Propellers | 19 × 8, 20 × 8, or 20 × 10 in |
| Suggested Break-In Propeller | 19 × 8 in, two-blade |
| Engine Weight | 2.03 lb (923 g) |
| Muffler Weight | 3.4 oz (97 g) |
| Ignition Module Weight | 4.4 oz (125 g) |
| Combined Listed Weight | 2.52 lb (1,145 g) (Engine, muffler, and ignition) |
| Gator RC SKU | STNG-35-RE |

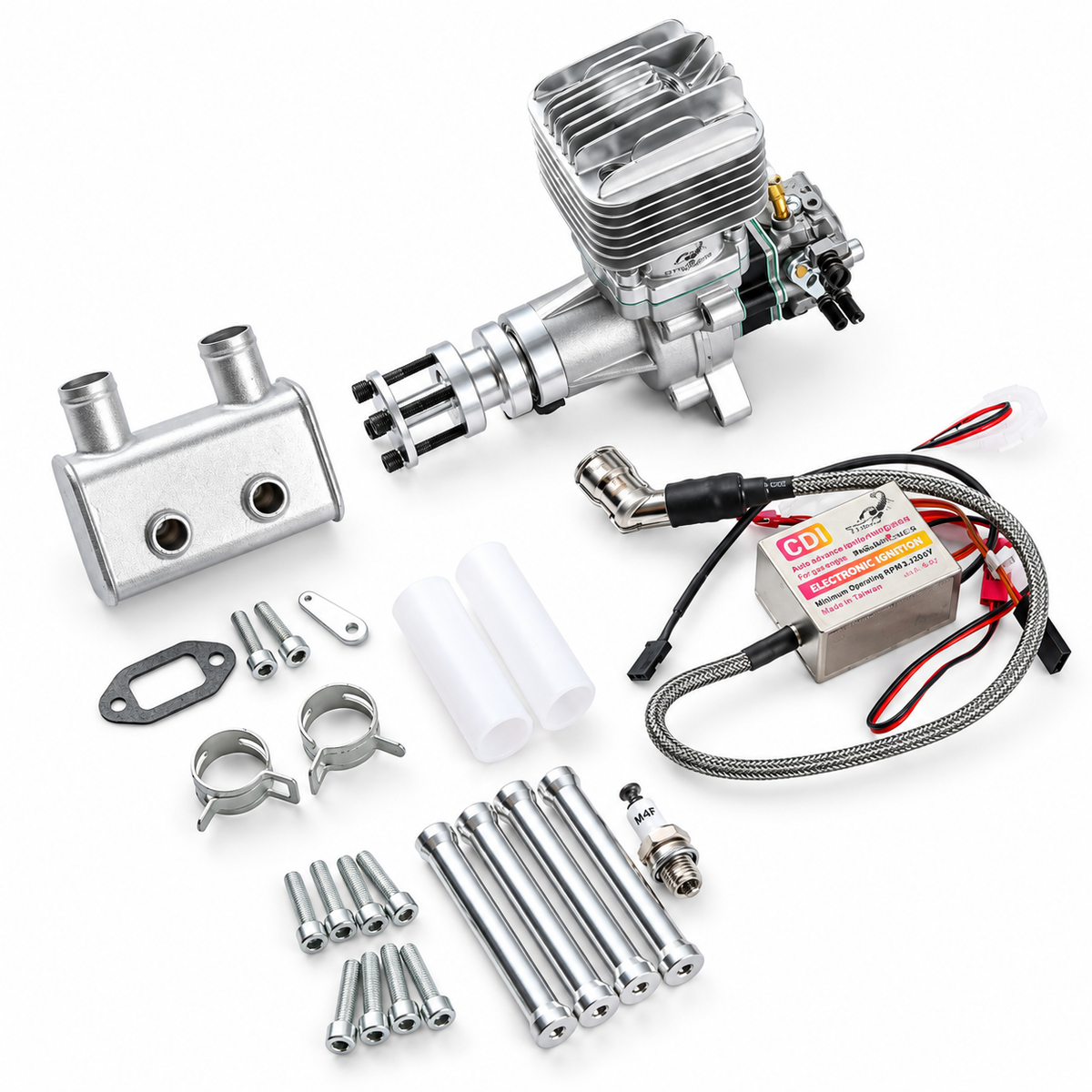

📦 What's Included:
- 1 × RCGF Stinger 35cc RE engine
- 1 × Electronic CDI ignition module
- 1 × Muffler
- 1 × Spark plug
- Gaskets and bolts
- Mounting standoffs
- 1 × Throttle arm extension
- 1 × Instruction manual
Note: Gasoline, two-stroke oil, a compatible ignition battery, an appropriate propeller, and a gasoline-compatible fuel system (tank, tubing, installation gear) are required separately and sold separately.
🛠 Aircraft Compatibility & Setup

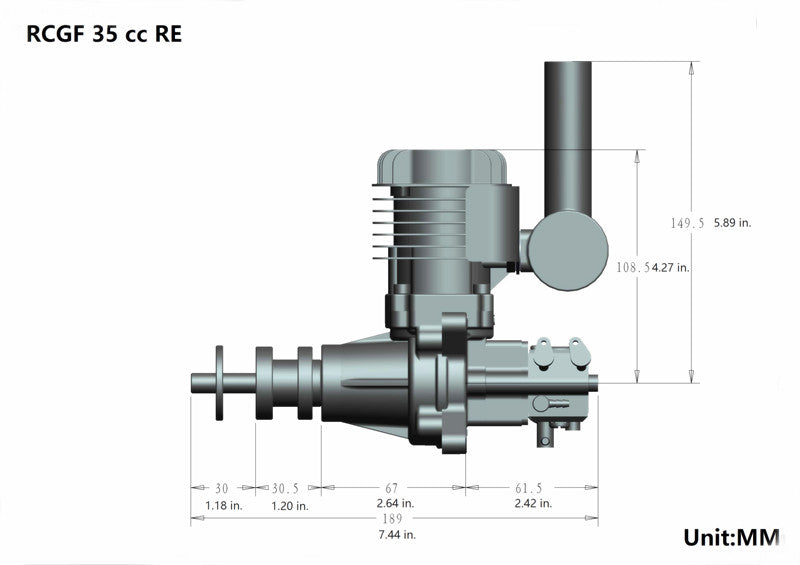

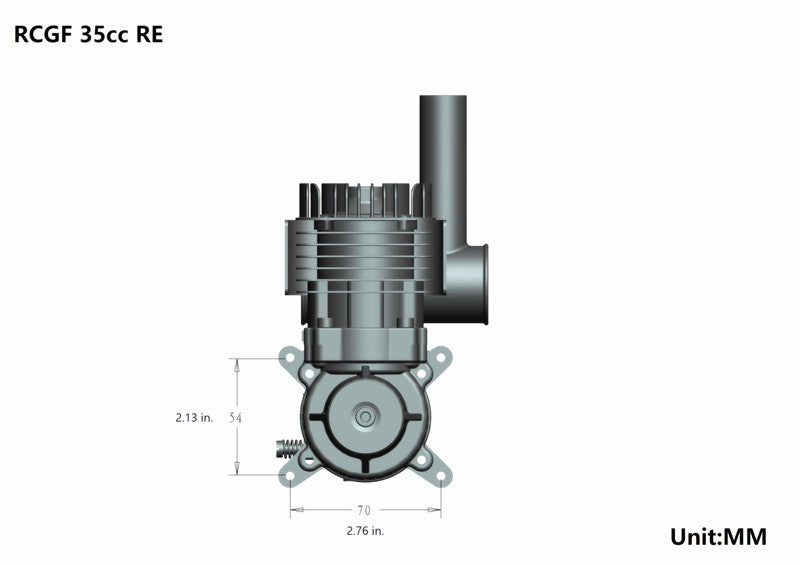

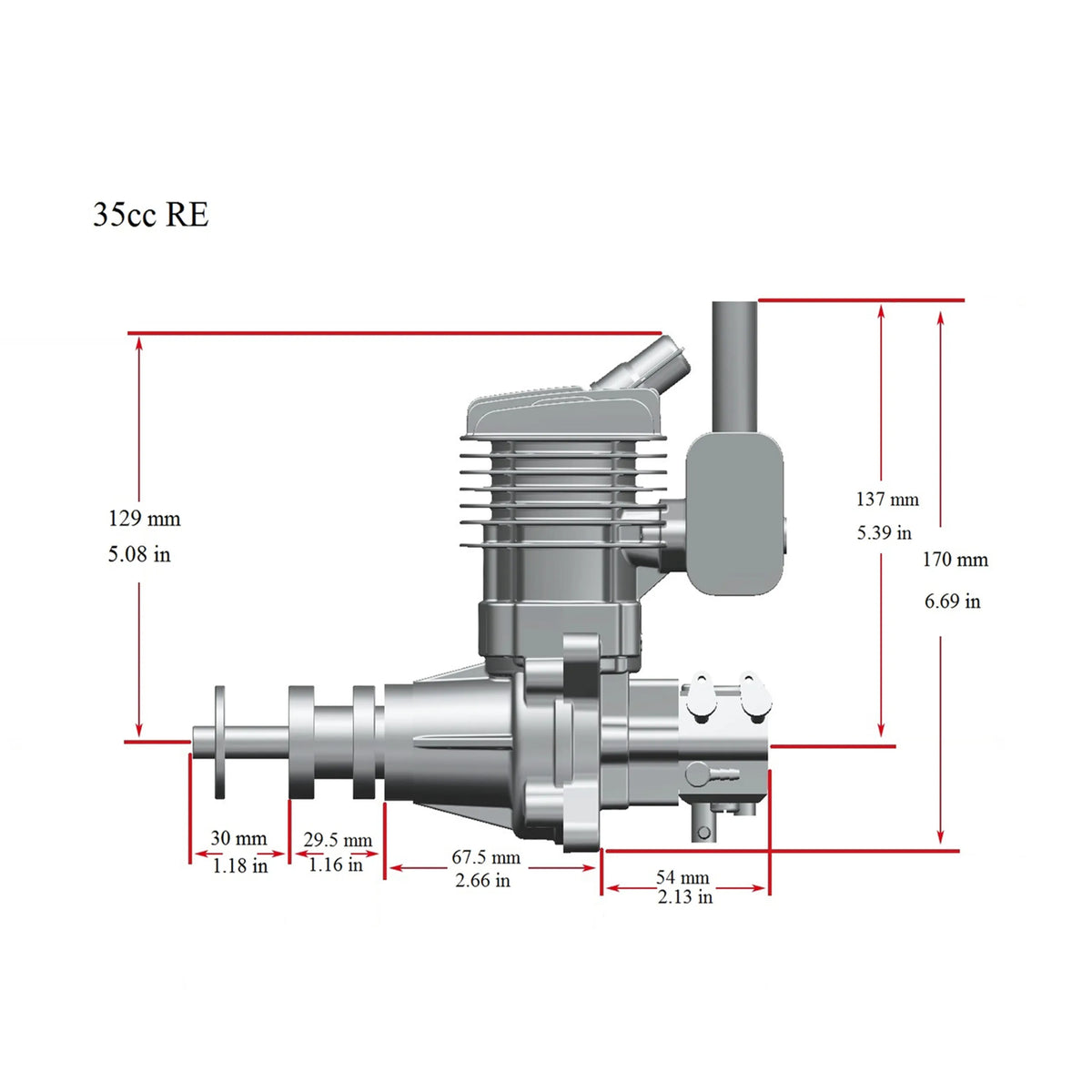

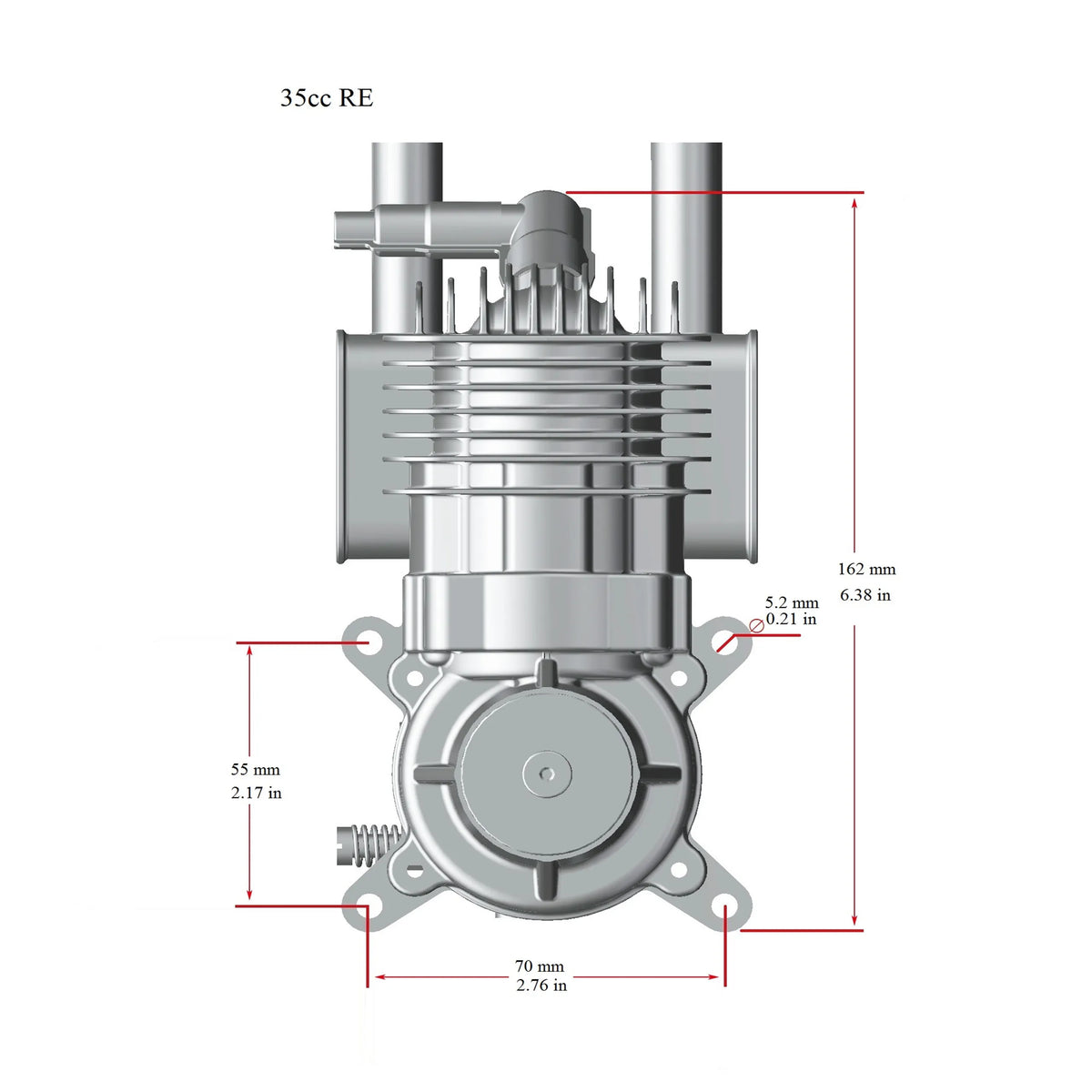

Use the RCGF Stinger 35cc RE in aircraft whose manufacturer recommends a compatible 35cc gasoline engine. Confirm engine mounting dimensions, cowl clearance, muffler clearance, propeller clearance, and aircraft balance before final installation.
Replacement parts: Browse our RCGF Stinger 35cc Engine Parts and confirm compatibility with the rear exhaust version before ordering.
