Power Unlimited 6S 4500mAh 35C HV LiPo Battery

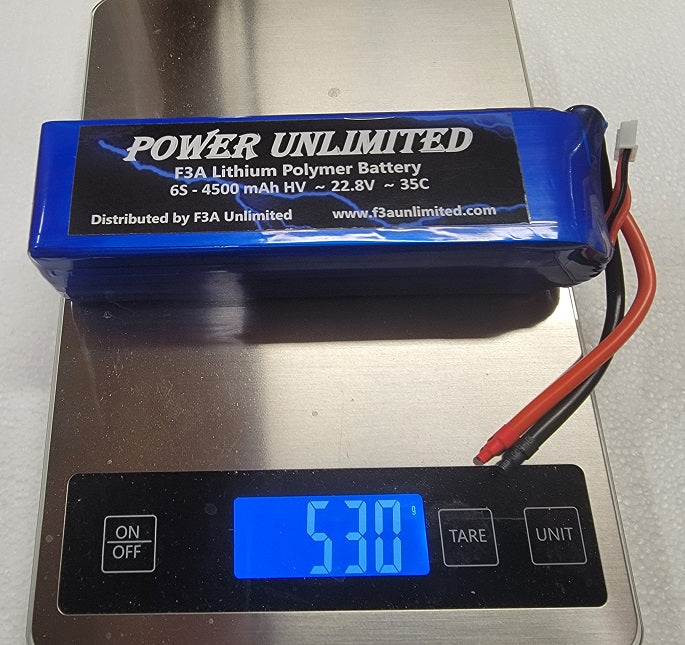

The Power Unlimited 6S 4500mAh 35C HV LiPo Battery weighs just 18.7 oz. (530 g), making it an option for Pattern pilots watching aircraft weight. Its lightweight design and 35C discharge capabilities provide clean power delivery tracks for specialized fixed-wing competition formats.
🚀 Target Applications:
- Precision F3A pattern flying and aerobatic sequence aircraft demanding strict weight savings
- High-performance electric models built to accommodate lightweight, compact 6S blocks
- Competition installations requiring adjustable charge setups up to high-voltage (HV) parameters
⚠ HV Charging & Competition Rules Warning:
- Charge Voltage Limits: Maximum charge voltage is 4.35V per cell (26.1V total), using a compatible HV balance charger. This pack may also be charged to standard 4.20V per cell (25.2V total). Total available operating capacity depends strictly on your charge voltage selection.
- Eligibility Check: Check current rules for your specific class and sanctioned event before selecting your final charge voltage. The battery’s maximum charging specification does not establish competition eligibility by itself.
- System Constraints: Confirm battery fit, your selected main connector compatibility, and power-system voltage limits before use.
Key Features
- Lightweight Footprint: Carries a specified low mass of 18.7 oz. (530 g) to streamline F3A weight tracking loops.
- 6S Series Configuration: Supports standard or high-voltage (HV) electric propulsion architectures.
- 35C Discharge Rating: Engineered to hold structural current stability during demanding up-line aerobatic pulls.
- 12 AWG Power Leads: Heavy-gauge output wires provide clean transfer pathways; a main discharge connector is not included.
- JST-XH Balance Tab: Built with a conventional balance lead to interface cleanly with computerized balancing arrays.
📋 Technical Specifications
| Brand | Power Unlimited |
|---|---|
| Part Number / SKU | PU4500HV6S |
| Cell Configuration | 6S |
| Capacity | 4500mAh |
| Discharge Rating | 35C |
| HV Charge Limit | 4.35V per cell (26.1V total maximum) |
| Standard Charge Limit | 4.20V per cell (25.2V total) |
| Power Leads | 12 AWG open wires (Main connector not included) |
| Balance Connector | JST-XH |
| Weight | 18.7 oz. (530 g) |
| Dimensions (L × W × H) | 6.0 × 1.46 × 1.73 in. (152 × 37 × 44 mm) |
📦 What's Included:
- 1 × Power Unlimited 6S 4500mAh 35C HV LiPo Battery
💡 Installation and Safety Guide
Solder a high-current main connector matching your ESC hardware setup to the 12 AWG power leads, taking strict care to cut and insulate one wire at a time to prevent short circuits. Verify full tray dimensions and structural battery strap location holds inside your model before final securement. Always follow the battery and charger safety instructions, and monitor your cells balance cycles during charging tasks.
