Gator RC Aluminum Center Pull Canopy Latch

The Gator RC Aluminum Center Pull Canopy Latch is a lightweight, compact latch designed for securing canopies, battery hatches, access panels, and service doors on RC aircraft. The center-pull design provides quick access while maintaining a secure, positive lock during flight.

Unlike simple friction-style latches, the actuator pin passes directly through the sliding lock mechanism, creating a positive no-slip engagement that helps prevent accidental opening caused by vibration or flight loads. Precision-machined from lightweight aluminum, this latch adds minimal weight while providing reliable operation and long service life.

🚀 Target Applications:

  • Main RC airplane canopies and quick-entry electric battery hatches
  • Scale aircraft detailing panels, maintenance doors, and service hatches
  • High-speed jet equipment bays and turbine electronic deck covers
  • Compact layout profiles optimized across both scale and sport airframe types
⚠ Sizing & Structural Note: Formed to clean mechanical dimensions of 26mm x 16mm x 8mm. This variation uses a centralized actuator slider track. Always confirm your finger-clearance workspace along the top center of your fuselage turtle-deck before gluing your structural framing plywood blocks down.

Key Features

  • Center-Pull Actuation: Balanced middle slider configuration allows for rapid, tool-free access to flight cells or fuel plugs right out on the field.
  • Mechanical No-Slip Engagement: Heavy internal compression spring locks the sliding track pin dead-center to prevent accidental disengagement during violent maneuvers.
  • Machined Aluminum Shell: Aircraft-grade aluminum base plate reduces weight while ensuring rigid retention threads that will not slip or strip like plastic variants.
  • Ultra-Lightweight Footprint: Micro physical chassis trims down the scale to a featherweight 4.7g (0.17 oz) to guarantee zero unnecessary tail or nose weight penalties.
  • Flush Aerodynamic Concealment: Can be beautifully countersunk beneath outer coverings to maintain clean lines, matching perfectly alongside our hidden Concealed Pivot Hinges.
View Technical Specifications
Latch Mechanism Style: Positive-Lock Center Pull Plunger / Spring-Loaded Sliding Lock
Material Core: Precision-Machined Aluminum Alloy
Housing Length: 26 mm (1.02 in)
Housing Width: 16 mm (0.63 in)
Housing Height: 8 mm (0.31 in)
Physical Unit Weight: 4.7 g (0.17 oz)

📦 Package Includes:

  • 1 × Gator RC Aluminum Center Pull Canopy Latch

💡 Modeler’s Tips & Installation

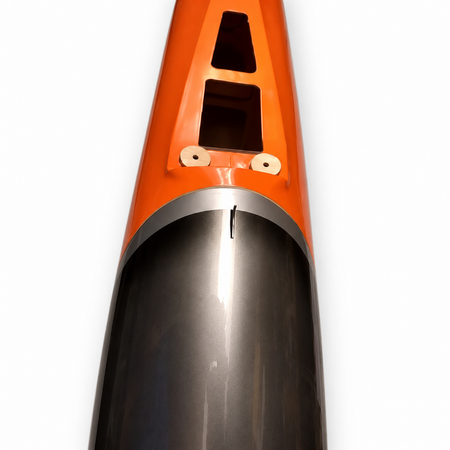

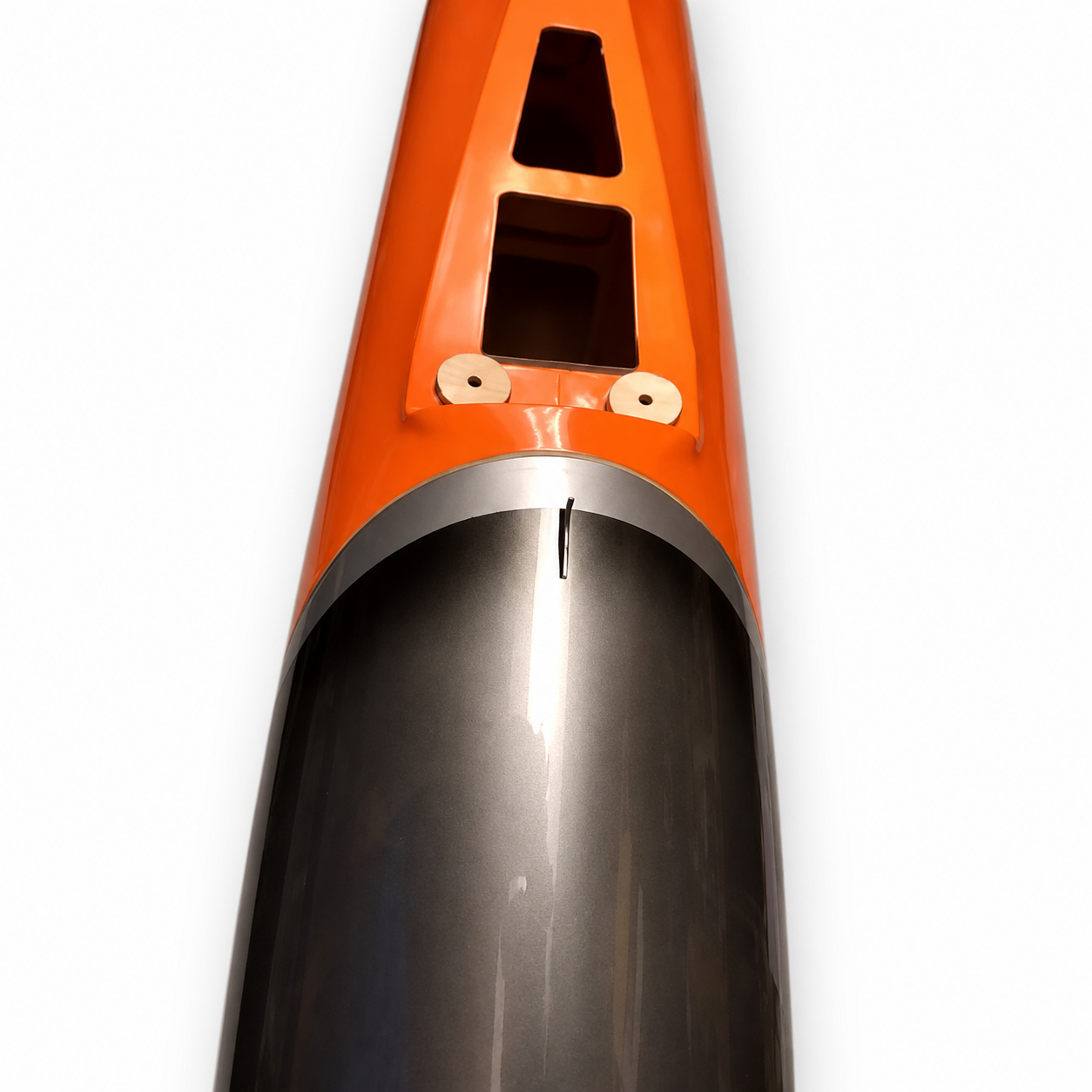

This center-pull variant is designed to mount flat against the top or side centerline sub-frame of your fuselage wood layout. Cut a small slot for the center slider toggle pin to stand proud of your model's skin. To ensure long flying seasons without the locking pin wearing away or widening your canopy hatch's indexing hole due to engine vibrations, line the receiving hole inside the hatch framing using a short segment of thin-walled brass or carbon fiber tubing as a sleeve.
