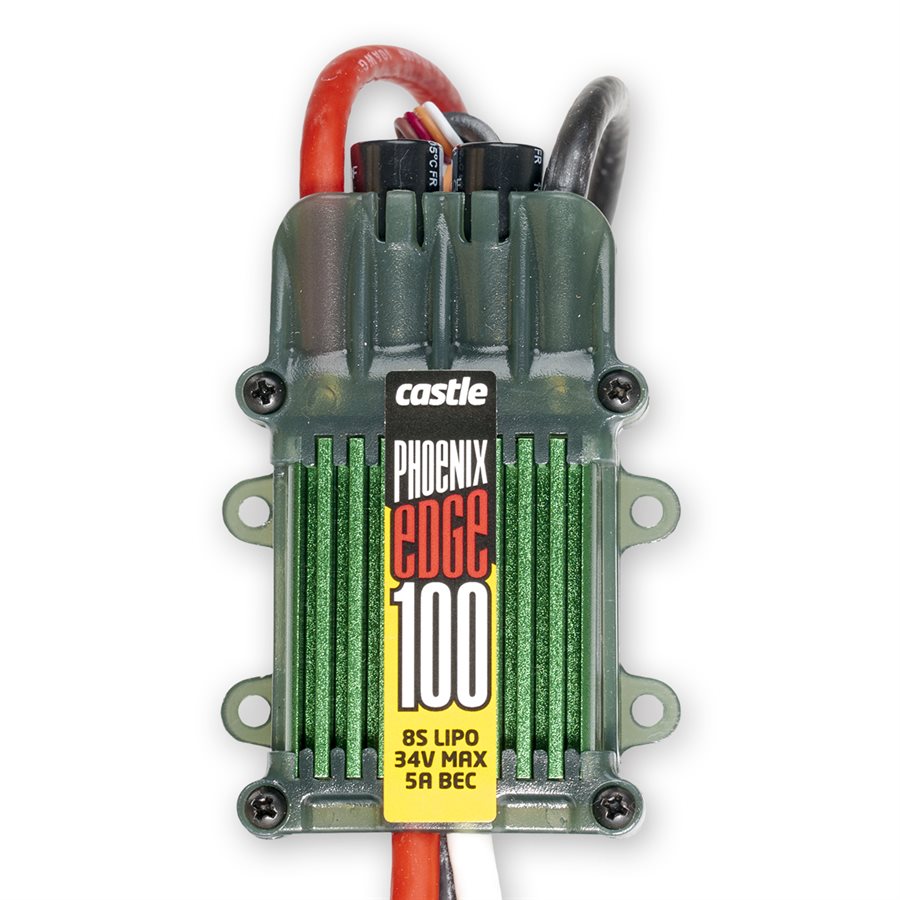

Castle Phoenix Edge 100 ESC – 100A Brushless with Adjustable 5A BEC
Get the Edge Over the Competition!
The Castle Phoenix Edge 100 combines proven Castle performance, advanced telemetry capabilities, integrated data logging, and a powerful adjustable BEC into a compact and reliable electronic speed controller. Designed for electric aircraft and helicopters, the Edge 100 supports 2S–8S LiPo batteries and delivers up to 100 amps of continuous current capability.
The Phoenix Edge series introduced Castle's innovative AUX wire functionality, providing advanced features such as governor gain adjustments, audible beacon capability, RPM output, and electronic arming lock functions. Combined with Castle Link programmability and free firmware updates, the Edge 100 remains one of the most versatile ESCs available for high-performance electric models.
🚀 Target Applications:
- 500, 550, and 600 Class Electric Performance Helicopters
- .40–.90 Size Electric Fixed-Wing Aircraft
- High-Power Sport Aircraft, Aerobatic Planes, and Electric Warbirds
Key Features
- Airflow-Dependent Power: Heavy-duty finned aluminum heatsink housing delivers 100A continuous current capability under standard 2S–8S LiPo configurations (33.6V Max).
- Built-In Adjustable BEC: Integrated switching BEC circuit provides user-selectable output voltage from 5.0V up to 8.4V with a 5A peak threshold to handle demanding digital servo installations.
- Advanced Auxiliary Wire: Features Castle's signature white AUX line for in-flight helicopter governor gain adjustments, emergency receiver arming locks, or audible search beacons.
- High-Resolution Data Memory: Onboard logging system records real-time flight metrics including battery voltage, temperature profiles, current draw, and RPM values.
- Multi-Interface Programming: Fully programmable via a Windows PC or through the Castle Link iOS App when paired with the B-LINK Bluetooth Adapter (sold separately).
⚙ Complete Castle Link Software Adjustments:
Bypass stick programming configurations and tune your power plant properties directly using the desktop interface suite:
- Throttle & Brake Control: Custom linear curves, drag braking forces, or folding propeller parameters.
- Motor Timing Configurations: Adjust electronic timing advances to optimize outrunner efficiency.
- Governor Calibration: Program rock-solid direct-entry RPM values for smooth helicopter rotor tracking.
View Technical Specifications
| Continuous Current Rating: | 100A* |
| Input Voltage Range: | 2S–8S LiPo |
| Maximum Input Voltage: | 33.6V DC |
| BEC Output Voltage: | Adjustable 5.0V–8.4V (Configurable via software) |
| BEC Output Capacity: | 5A Peak Burst Limit |
| Telemetry / Data Logging: | Yes / Yes (Fully Supported) |
| Auxiliary Wire Interface: | Yes (Programmable Auxiliary Channel) |
| Receiver Voltage Input Range: | 4.8V–9V |
| Dimensions (W x L x D): | 2.0 x 2.8 x 0.9 in (50.8 x 71.9 x 23.2 mm) |
| Weight (With Wires): | 4.5 oz (126.6 g) |
| Weight (Without Wires): | 2.6 oz (72.9 g) |
| Factory Warranty: | 1-Year manufacturing defect coverage |
*100 amps continuous current rating is achieved with approximately 5 mph airflow and controller temperatures not exceeding 100°C (212°F).
📦 Package Includes:
- 1 x Castle Phoenix Edge 100 ESC
- 1 x Castle Link USB Adapter Coupon
- 1 x Arm Lockout Key and Harness Coupon
- 1 x Factory Instruction Documentation
💡 Modeler’s Tips
To safely program the integrated BEC voltage or access your onboard data logging metrics, navigate over to the Official Castle Creations Software Center to download the recommended setup platform. Unlike the Edge Lite series, this standard Edge 100 utilizes a solid metal finned heatsink assembly, providing greater thermal overhead when mounted directly in line with a model's forward air scoops or cowls.
