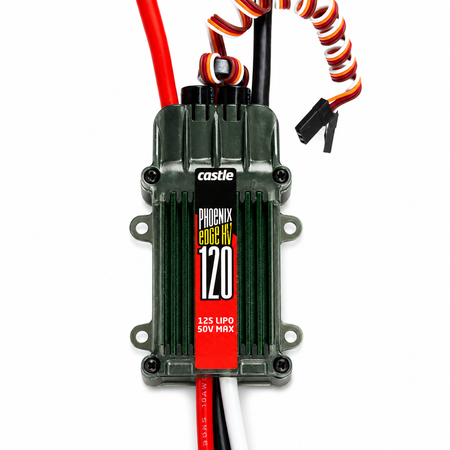

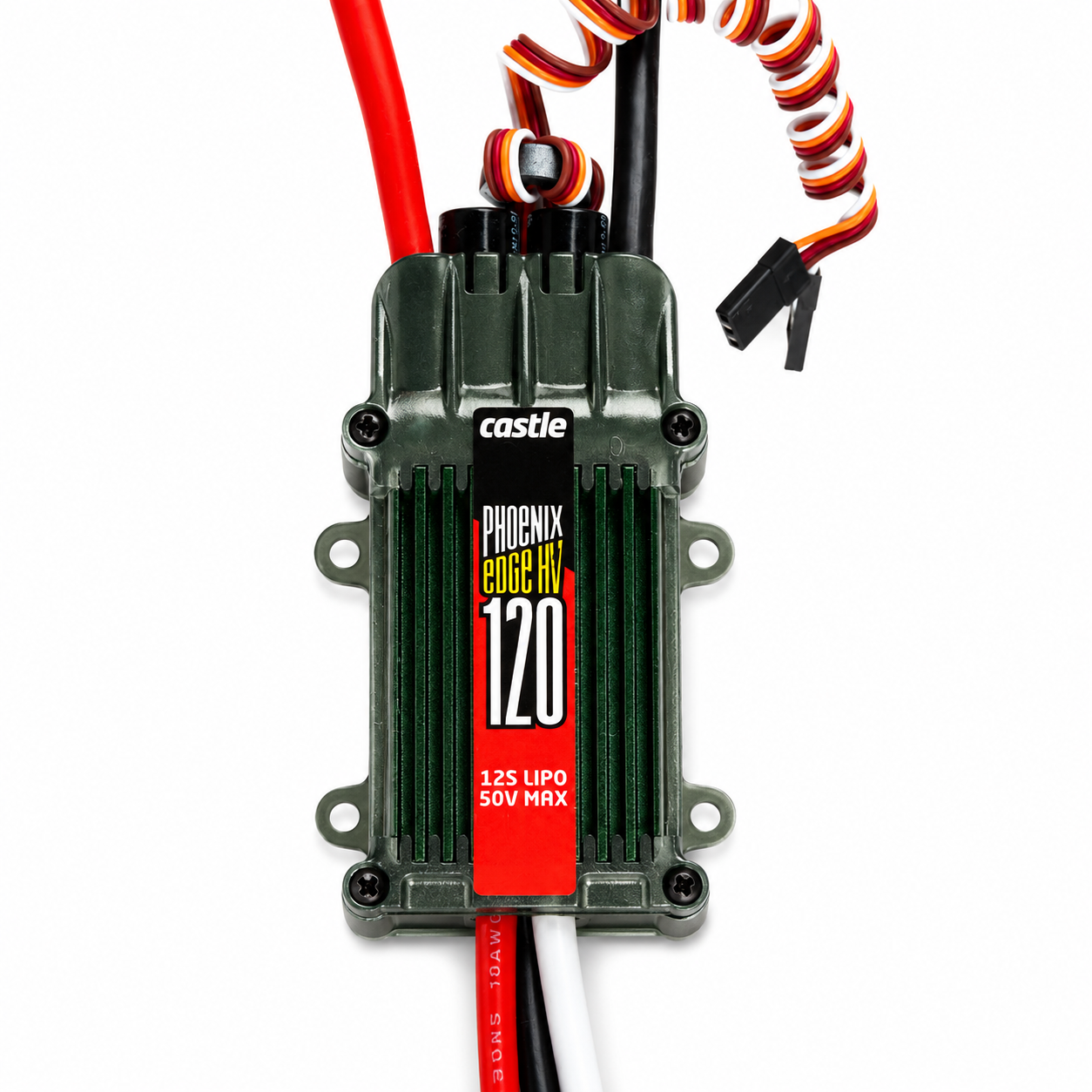

Castle Creations Phoenix Edge HV 120 ESC – 120A High Voltage
The Castle Creations Phoenix Edge HV 120 is a high-performance electronic speed controller designed for large electric helicopters, giant-scale aircraft, and high-power electric applications. Supporting input voltages from 3S to 12S LiPo and delivering up to 120 amps of continuous current, the Edge HV 120 combines advanced telemetry, onboard data logging, Castle Link programmability, and Castle's unique AUX wire functionality.
The Phoenix Edge series introduced Castle's versatile AUX wire system, allowing pilots to access advanced features such as governor gain adjustments, RPM output, audible beacon functionality, and electronic arming lock capabilities.
🚀 Target Applications:
- 550, 600, and 700 Class Electric Helicopters
- Giant Scale Fixed-Wing Airframes
- Large Electric Aerobatic Aircraft
- High-Power Electric Models requiring maximum high-voltage flexibility
Key Features
- Airflow-Optimized Power: Rated for a solid 120A continuous profile across 3S–12S LiPo configurations up to a 50.4V maximum input limit.
- Integrated Data Logging: Internal tracking memory captures real-time battery voltage, current draw, ESC operating temperatures, and motor RPM parameters for bench analysis.
- Live Telemetry Output: Telemetry-capable engineering allows real-time flight feedback through compatible radios (telemetry link accessories sold separately).
- Castle Link Tuning: Fully programmable via a Windows PC for custom motor timing, brake adjustments, and free future firmware updates (free coupon for a Castle Link USB Adapter included).
- Ultra-Light Bare Weight: Slim mechanical casing keeps the bare controller footprint down to a minimal 2.4 oz (69.4g) without wiring leads.
⚙ Castle AUX Wire Advantage:
The programmable auxiliary channel unlocks advanced tuning functionality far beyond traditional speed controller operation. The AUX line can be custom configured for:
- In-flight governor gain adjustments
- Audible beacon tracking sirens following unexpected off-field landings
- Direct RPM signal output for compatible 3-axis FBL gyros and flight systems
- Hardware receiver-controlled electronic arming lock security functionality
View Technical Specifications
| Continuous Current: | 120A* |
| 自由Input Voltage Range: | 3S–12S LiPo |
| Maximum Input Voltage: | 50.4V |
| BEC Output: | None (Opto Isolated) |
| Telemetry Capable: | Yes |
| Data Logging: | Yes |
| Receiver Voltage Input Range: | 4.8V–9.0V |
| Dimensions (W x L x D): | 2.0 x 3.3 x 0.9 in (50.8 x 83.6 x 23.2 mm) |
| Weight (With Wires): | 5.2 oz (148.8 g) |
| Weight (Without Wires): | 2.4 oz (69.4 g) |
| Factory Warranty: | 1-Year manufacturing defect coverage |
*120 amps rating is certified for the duration of a single 10,000mAh battery pack, provided the ESC is placed in contact with an active, approximate 5 mph (8 km/h) cooling airflow profile of 25°C (77°F) or cooler. Internal controller temperatures must never exceed 100°C (212°F).
📦 Package Includes:
- 1 x Castle Creations Phoenix Edge HV 120 ESC
- 1 x Castle Link USB Adapter Coupon
- 1 x Detailed Instruction Documentation
💡 Modeler’s Tips
Because high-voltage helicopter builds draw serious power spikes during collective pitch pumps, ensure that the ESC cooling fins are aligned parallel to the cooling path down-wash of the main rotor blades. To download the setup interface for this speed controller, make sure to install the updated software utility by visiting the Official Castle Link Download Center.
