Castle Creations Phoenix Edge HVF 160 ESC 160A 12S w/ Cooling Fan CSE010-0127-00
Couldn't load pickup availability

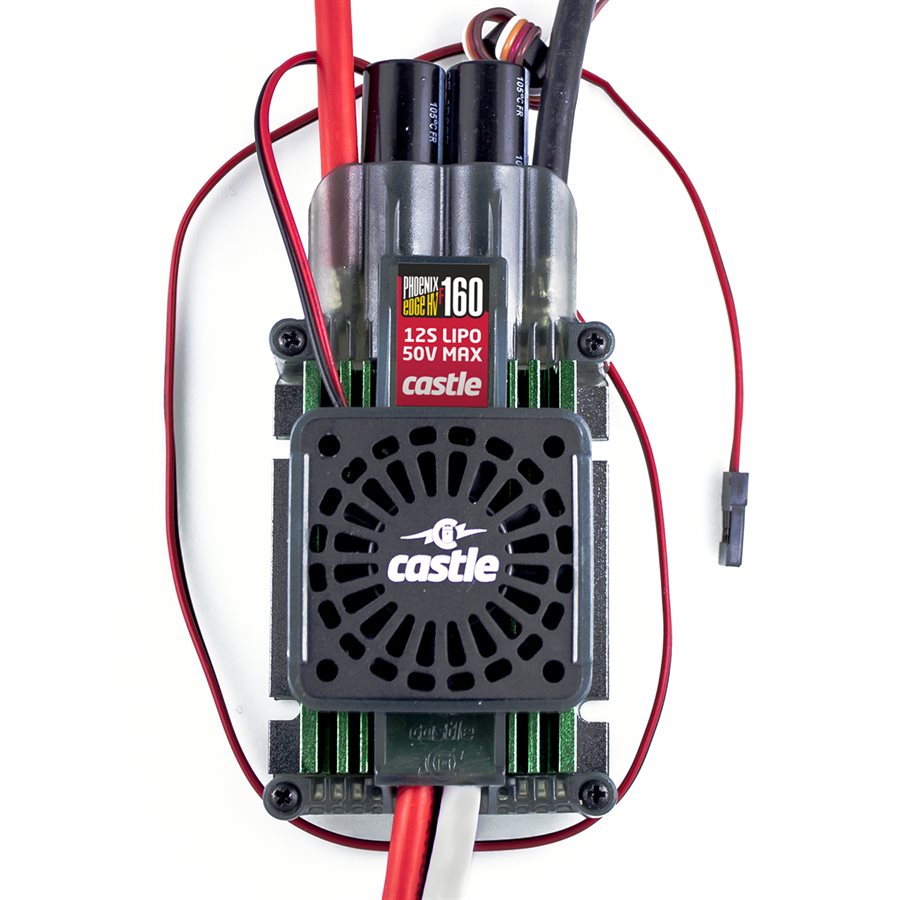

Castle Creations Phoenix Edge HVF 160 ESC – 160A High Voltage with Fan
The Castle Creations Phoenix Edge HVF 160 combines the proven performance of the Phoenix Edge HV 160 with a factory-installed cooling fan for enhanced airflow and cooling performance in demanding applications. Designed for large helicopters, giant-scale aircraft, and high-power electric models, the HVF 160 supports 3S to 12S LiPo batteries and delivers 160 amps of continuous current capability.
The Phoenix Edge series features integrated data logging, telemetry capability, Castle Link programmability, and Castle's innovative AUX wire functionality, providing advanced control, monitoring, and safety features beyond traditional ESC operation.
🚀 Target Applications:
- 700 and 800 Class Professional Helicopters
- Giant Scale Fixed-Wing Aircraft
- Large Electric Aerobatic Models
- Large EDF Jets & High-Power Scale Electric Models
Key Features
- Factory-Installed Fan Assembly: Equipped with a top-mounted Castle cooling fan rated for 4.8V–7.4V operation to lower heat soak during long, high-load cycles.
- Airflow-Certified Capacity: Sustains up to 120A continuous load for the duration of a single 10,000mAh battery pack when backed by an active 5 mph breeze.
- Integrated Data Memory: High-resolution telemetry data logging records continuous metrics for battery voltage, motor RPM, amp draw, and internal board temperatures.
- Advanced Auxiliary Protocol: Programmable white AUX line enables in-flight helicopter governor gain changes, lost-model tracking beacons, or emergency arm locks.
- Multi-Platform Programming: Fully tune settings or flash firmware using a Windows PC or via the Castle Link iOS App paired with a B-LINK Bluetooth Adapter (sold separately).
🛡 Built-In Diagnostic Protection Features:
- Over-Temperature Cutoff: Safety power dampening steps prevent critical thermal overload conditions.
- Excessive Load Prevention: Safeguards your ESC power board from destructive current spikes.
- Locked Rotor Sensing: Shuts down immediate power cycles if a gear train binds or main blades crash.
View Technical Specifications
| ESC Current Rating: | 160A Continuous* |
| Input Voltage Range: | 3S–12S LiPo |
| Maximum Input Voltage: | 50.4V |
| Internal BEC Output: | None (Opto Isolated) |
| Cooling Fan Voltage Range: | 4.8V–7.4V Operation |
| Telemetry / Data Logging: | Yes / Yes (Link capable) |
| Auxiliary Wire Interface: | Yes (User Programmable) |
| Receiver Voltage Range: | 4.8V–9.0V Input Threshold |
| Dimensions (W x L x H): | 2.0 x 4.3 x 1.7 in (50.8 x 108.4 x 43.2 mm) |
| Weight (With Wires): | 8.5 oz (241 g) |
| Weight (Without Wires): | 5.6 oz (159 g) |
| Factory Warranty: | 1-Year manufacturing defect coverage |
*160 amps continuous rating is certified for the duration of a single 10,000mAh battery pack, provided the ESC is placed in contact with an active, approximate 5 mph (8 km/h) cooling airflow footprint of 25°C (77°F) or cooler air. Controller operating temperature must never exceed 100°C (212°F).
📦 Package Includes:
- 1 x Castle Creations Phoenix Edge HVF 160 ESC
- 1 x Factory-installed Heatsink Cooling Fan
- 1 x Castle Link USB Adapter Coupon
- 1 x Arm Lockout Key and Harness Coupon
- 1 x Detailed Instruction Documentation
💡 Modeler’s Tips
To update or configure your data logging profiles, remember to access the Official Castle Creations Software Center to grab the updated Castle Link utility app. When routing your wiring, run the fan power lead into an auxiliary slot on your receiver or a separate power source matching the fan's 4.8V–7.4V input frame.
