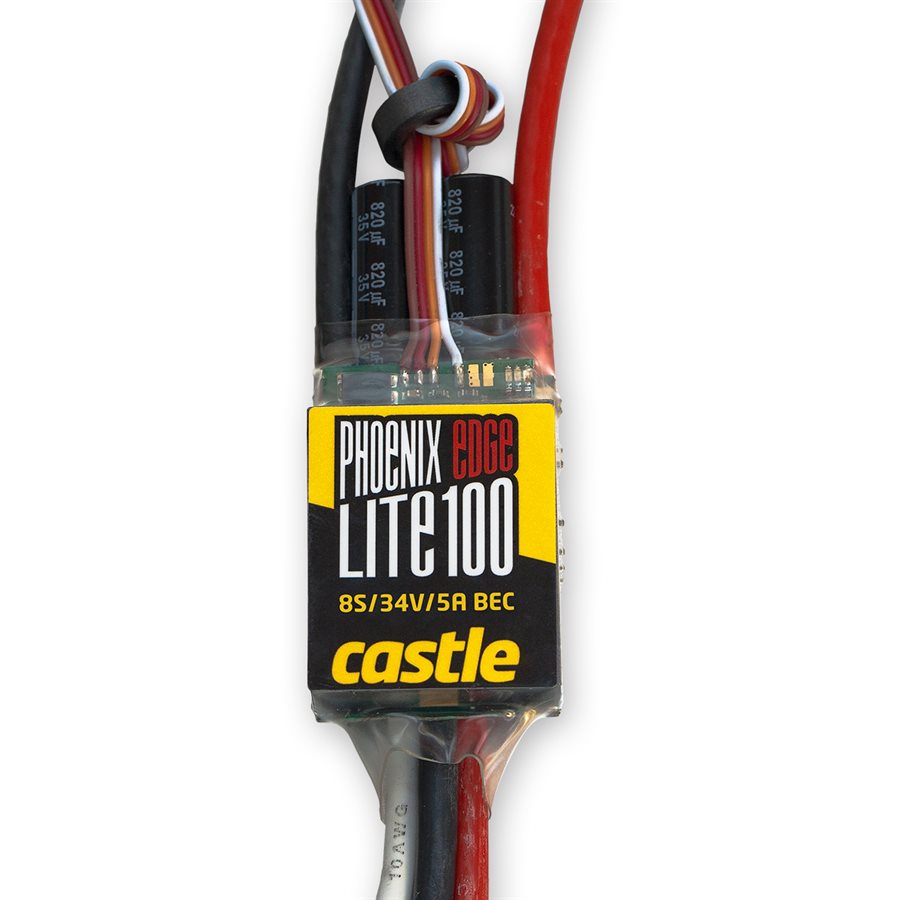

Castle Phoenix Edge Lite 100 ESC – 100A Brushless with Adjustable 5A BEC
Lose the Weight. Gain the Edge.

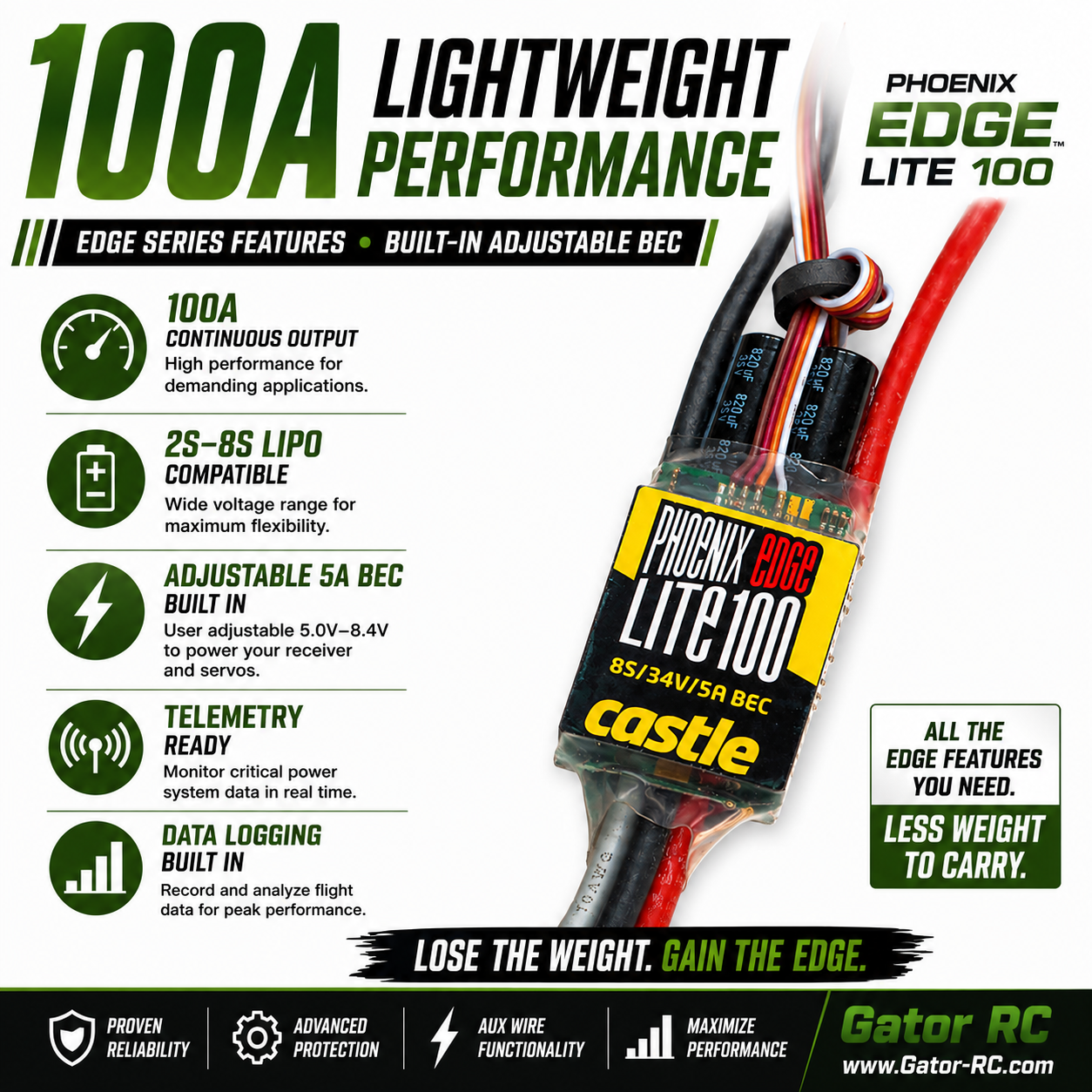

The Castle Phoenix Edge Lite 100 delivers the advanced features and performance of the Phoenix Edge series in a lighter and more compact package. Designed for electric aircraft and helicopters where space and weight matter, the Edge Lite 100 supports 2S–8S LiPo batteries, delivers up to 100 amps of continuous current, and includes a built-in adjustable BEC.
Featuring telemetry capability, integrated data logging, Castle Link programmability, and Castle's innovative AUX wire functionality, the Phoenix Edge Lite 100 provides exceptional flexibility for demanding pilots.
🚀 Target Applications:
- .50–1.20 Size Electric Aircraft & Performance Fixed-Wing Airframes
- 450 to 600-Class Electric Helicopters demanding high power-to-weight ratios
- Electric Warbirds, Sport Models, and High-Speed EDF Jets
Key Features
- Featherweight Form Factor: Trims bare weight down to a mere 1.4 oz (41g) to vastly optimize center-of-gravity parameters in narrow model bays.

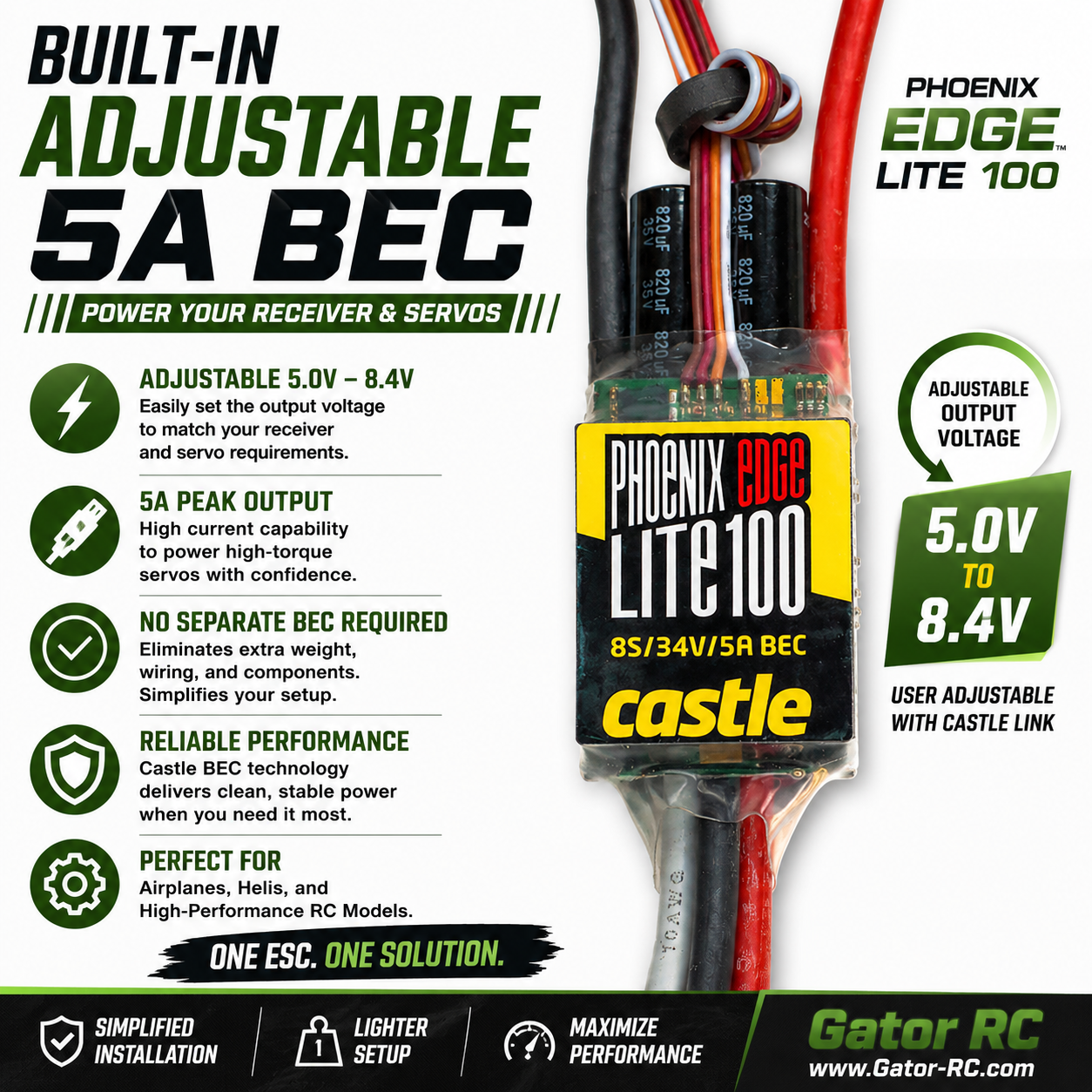

- Programmable Switching BEC: Built-in internal circuit yields user-selectable voltage outputs from 5.0V to 8.4V with a robust 5A peak threshold.
- Advanced Auxiliary Protocol: Single white AUX line empowers pilots to manage helicopter governor gains mid-flight, command audible search beacons, or deploy emergency arming locks.
- High-Resolution Data Logs: Onboard memory tracks, compresses, and saves real-time metrics (volt levels, amp draws, operating heat, motor RPM) for subsequent workbench diagnostics.
- Wireless Interface Ready: Fully optimized for desktop tuning or remote tarmac configuration when combined with a B-LINK Bluetooth Adapter and the Castle Link iOS App (sold separately).
⚙ Complete Castle Link Customization:
Tailor the electronic properties of your power system by tweaking core parameters via the software platform (coupons included):
- Throttle & Timing Matrix: Adjust linear curves and motor timing profiles for maximum stator efficiency.
- Braking Configurations: Program proportional stopping forces for precision folding glider props.
- Governor Calibration: Input exact target head-speeds for smooth heli flight performance.
View Technical Specifications
| ESC Current Rating: | 100A Continuous* |
| Input Voltage Range: | 2S–8S LiPo |
| Maximum Input Voltage: | 33.6V DC |
| BEC Output Voltage: | User Adjustable 5.0V – 8.4V (Tuned via software interface) |
| BEC Output Rating: | 5A Peak Burst Limit |
| Telemetry / Data Logging: | Yes / Yes (Fully Link Supported) |
| Auxiliary Wire Interface: | Yes (Programmable Auxiliary Input) |
| Dimensions (W x L x D): | 1.2 x 2.6 x 0.8 in (30.5 x 66 x 21.4 mm) |
| Weight (With Wires): | 3.2 oz (91.5 g) |
| Weight (Without Wires): | 1.4 oz (41 g) |
| Factory Warranty: | 1-Year manufacturing defect coverage |
*Note: Certified continuous amp limits require active cooling air displacement across the main shrink jacket shroud. Controller temperatures must be monitored to ensure they never exceed 100°C (212°F).
📦 Package Includes:
- 1 x Castle Phoenix Edge Lite 100 ESC
- 1 x Castle Link USB Adapter Coupon
- 1 x Arm Lockout Key Coupon
- 1 x Factory Instruction Documentation
💡 Modeler’s Tips
To safely update the firmware or tweak the default 5.1V BEC output up to an aggressive 8.4V for high-voltage servos, download the configuration tool directly from the Official Castle Creations Software Download Center. If your setup features heavy digital high-torque cyclic servos pulling continuous high-amp loads, we always recommend pairing this light ESC with an auxiliary standalone CC BEC Pro regulator to guarantee absolute bus isolation.
