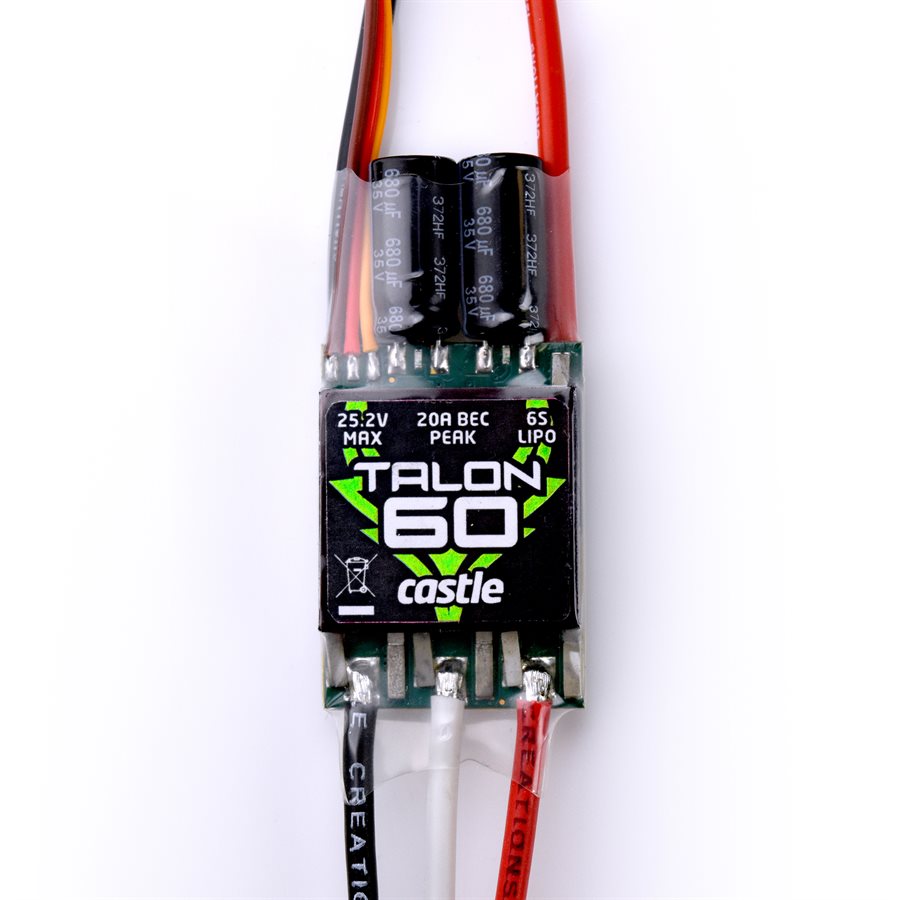

Castle Creations Talon 60 ESC – 60A Brushless with Heavy-Duty 20A BEC

The Castle Creations Talon 60 is a compact, high-performance electronic speed controller designed for electric airplanes and helicopters requiring up to 60 amps of continuous power. Supporting 2S to 6S LiPo batteries and delivering up to 1,400 watts on 6S systems, the Talon 60 combines proven Castle reliability with a powerful integrated BEC capable of powering today's demanding digital servos.

The standout feature of the Talon 60 is its heavy-duty BEC, providing up to 20 amps peak output and 8 amps continuous output with selectable 6V or 8V operation. This allows many aircraft to eliminate a separate receiver battery while maintaining dependable servo power.

🚀 Target Applications:

  • Sport, Aerobatic, Warbird, and Scale Aircraft
  • .32–.60 Size Electric Fixed-Wing Models
  • 360–450 Class Performance Helicopters
  • Power Systems Up To 1,400 Watts on 6S LiPo configurations
⚠ Installation & Software Update Note: Battery/motor connectors and the Castle Link USB Adapter are sold separately (soldering required). Important Compatibility: Talon 60 units manufactured on or after October 2025 require the updated Castle Link 2 software platform for interface tuning.

Key Features

  • Airflow-Dependent Output: Delivers 60A continuous current under a 2S–6S LiPo footprint when paired with a clean 5 mph cooling path.
  • High-Amp Integrated BEC: Industry-leading circuit yields 20A peak / 8A continuous output to protect against voltage brownouts on complex digital servo strings.
  • Dual BEC Voltage Logic: Selectable 6V or 8V operation offers direct plug-and-play matching with modern high-voltage (HV) servos.
  • Real-Time Telemetry: Supports live tracking of battery voltage, ESC operating temperatures, and amp draw when paired with compatible telemetry accessories (sold separately).
  • Built-In Audio & LED Safeties: Emits explicit motor warning tones and flash codes for over-temperature alerts, excessive system loads, and locked-rotor detection.

⚙ Castle Link Tuning Parameters:

Fine-tune your aircraft's performance envelope by adjusting advanced software settings (Castle Link interface sold separately):

  • Precision Governor: Direct entry target head-speeds for 360-450 size helicopters.
  • Dynamic Brake Control: Custom stopping force adjustments for folding propeller systems.
  • Throttle & Timing Curves: Tailor linear motor timing and rapid throttle acceleration responses.
View Technical Specifications
Continuous Current: 60A*
Input Voltage Range: 2S–6S LiPo
Maximum Input Voltage: 25.2V
Maximum Rated Power: 1,400 Watts
BEC Voltage Output: Selectable 6V or 8V (Configure to servo capability)
BEC Amp Rating: 20A Peak / 8A Continuous
Telemetry Capable: Yes (Accessories required)
Data Logging: No
Dimensions: 2.56 x 1.19 x 0.41 in (65 x 30.2 x 10.6 mm)
Weight (With Wires): 2.01 oz (57 g)
Weight (Without Wires): 1.09 oz (30.9 g)
Factory Warranty: 1-Year manufacturing defect coverage

*60A continuous rating achieved with approximately 5 mph (8 km/h) airflow across the ESC at 25°C (77°F) ambient temperature.

📦 Package Includes:

  • 1 x Castle Creations Talon 60 ESC
  • 1 x Factory Instruction Documentation

💡 Modeler’s Tips

Because the Talon 60 features a powerful 20A peak internal BEC circuit, ensure your servo extension leads are of high quality and heavy gauge (22AWG preferred). When setting up high-voltage servos on 8V, double-check that your receiver or flybarless gyro is rated for high-voltage input before making the final battery connection.
