Gator RC 70mm Adjustable Control Horn Assembly – Aluminum Red (w/ 3mm Pushrod)
Couldn't load pickup availability
Gator RC Adjustable Control Horn Assembly – Complete Linkage System
This adjustable control horn assembly is a complete linkage solution designed for larger RC aircraft. Featuring anodized aluminum components, a steel main rod, and a dual-threaded pushrod, this system provides a strong, precise, and fully adjustable connection between your servo and control surface.
Key Features
- Complete Linkage System: Includes rods, ball link, horn components, and mounting hardware
- Fully Adjustable Geometry: Fine-tune control throw and linkage alignment
- Gap-Free Installation: Tapered washers conform to the control surface angle for tight contact
- Heavy-Duty Construction: Built for high-load applications and large aircraft
- Anodized Aluminum Components: Lightweight, durable, and corrosion-resistant (red finish)

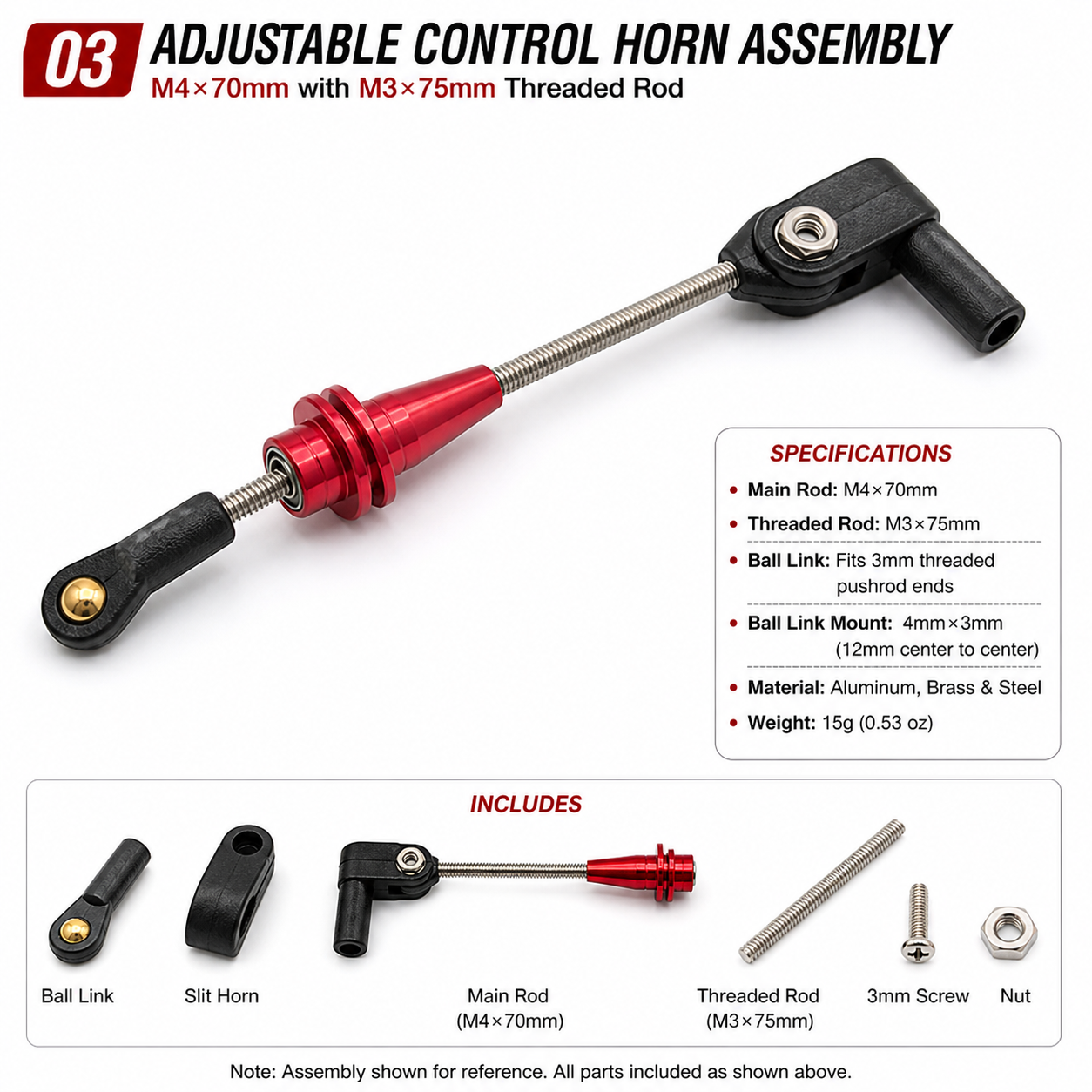

Specifications
- Main Rod: M4 x 70mm (2.75 inches) steel threaded rod
- Pushrod: 3mm x 75mm dual-threaded steel pushrod
- Ball Link Mount: 4mm x 3mm (12mm center-to-center)
- Ball Link: Brass, fits 3mm threaded pushrod ends
- Mounting Hardware: 3mm screw and nut included
- Material: Aluminum (red anodized), steel, and brass
- Total Weight: 15 grams (0.53 oz)

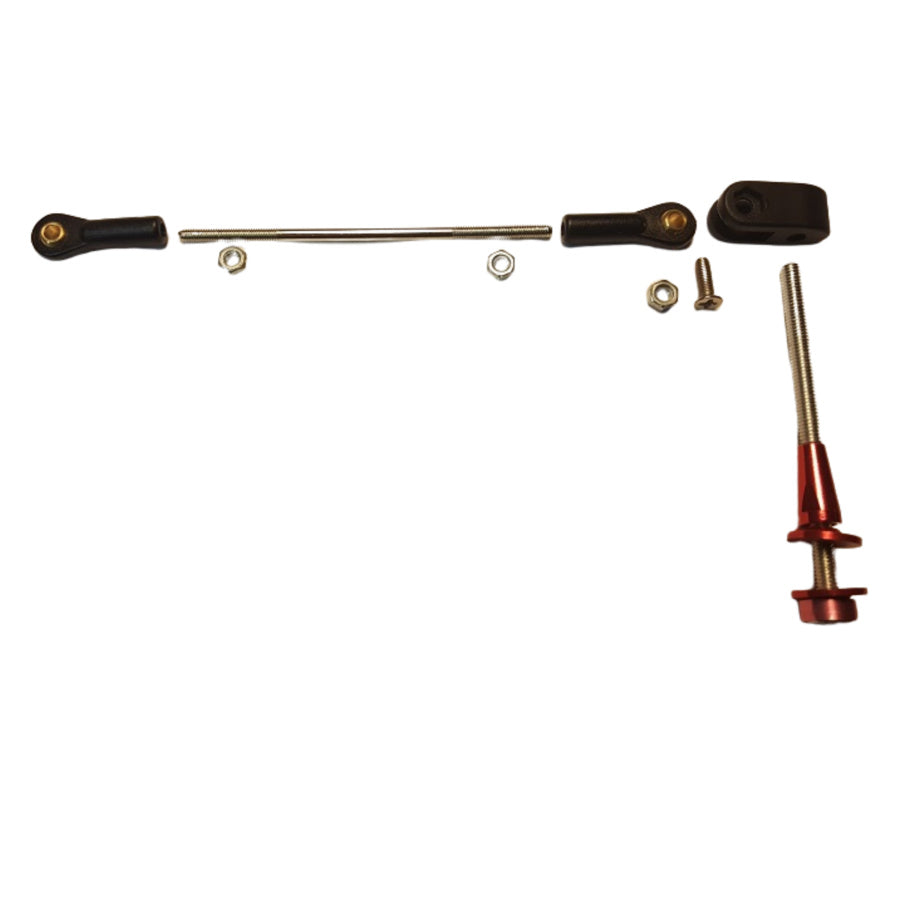

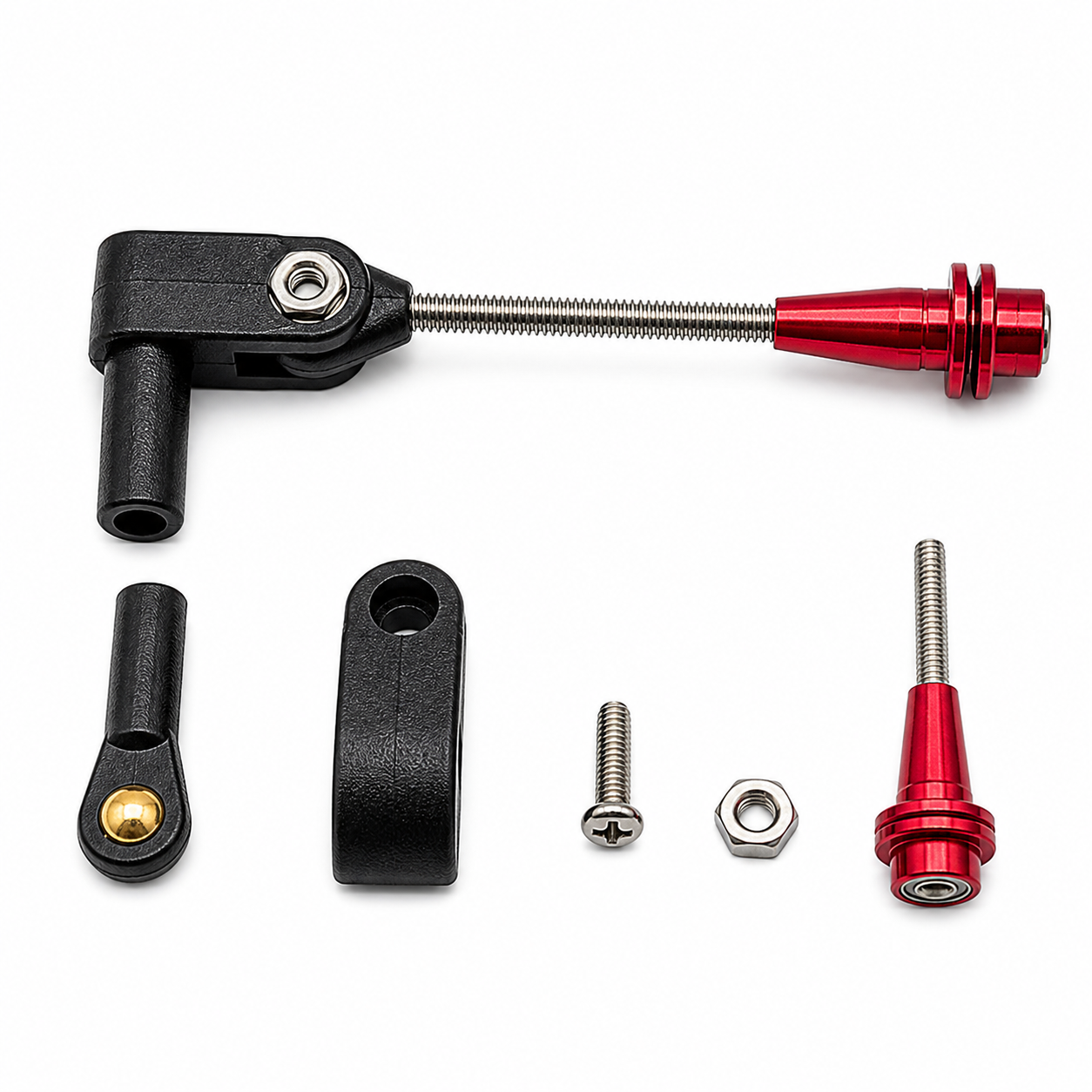

What’s Included
- M4 x 70mm steel threaded rod
- 3mm x 75mm dual-threaded pushrod
- Adjustable aluminum horn components (red anodized)
- Tapered mounting washers
- Brass ball link (3mm)
- 3mm mounting screw and nut
- Quantity: 1 complete set
Typical Applications
- 35cc to 100cc RC airplanes
- Gas and large electric aircraft
- Elevator and rudder control systems
- High-load or precision linkage setups
Installation Notes
- Align pivot point with hinge line for proper control geometry
- Use tapered washers to eliminate gaps on angled control surfaces
- Ensure ball link moves freely without binding
- Apply thread locker to all metal fasteners
Modeler’s Tip
The included dual-threaded pushrod allows adjustment from either end without disassembly, making setup faster and more precise—especially on large aircraft where fine tuning is critical.

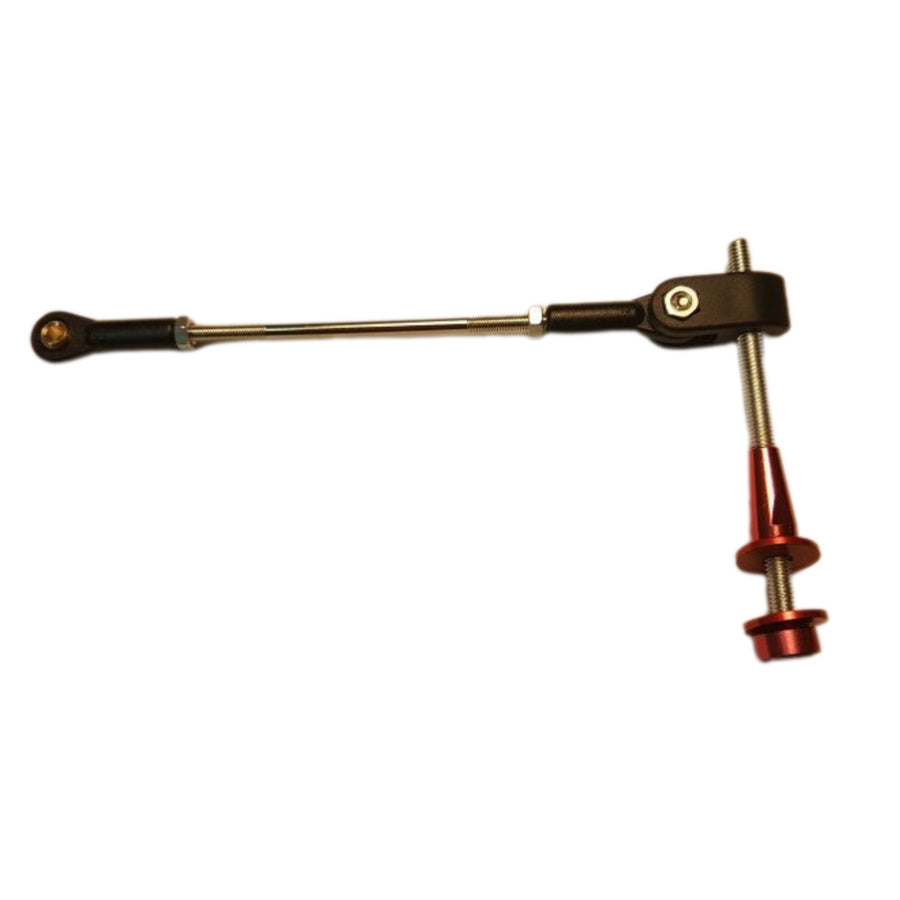

Note: Product includes a 3mm threaded pushrod as shown in included components image. Main product image may show assembled configuration for reference.
