Du-Bro Dura-Collar Wheel & Shaft Collars – 4 Pack

In stock
SKU: DUB137
(0)
$2.95
Inside Diameter

Du-Bro Dura-Collar Wheel Collars

Secure wheels, axles and other rotating components with Du-Bro Dura-Collar wheel and shaft collars. These nickel-plated brass collars use steel set screws to provide secure positioning on RC aircraft landing gear and other compatible shafts.

Choose the inside diameter that matches your axle or shaft. Each package includes four Dura-Collars, four matching set screws and the appropriate hex wrench.

Features

  • Nickel-plated brass construction
  • Designed for RC aircraft wheels, axles and landing gear
  • Also suitable for linkages, robotics and general hobby applications
  • Steel set screws provide secure shaft positioning
  • Available in five inside-diameter sizes
  • Four collars per package
  • Set screws and matching hex wrench included
  • Made in the USA

Available Sizes

SKU Inside Diameter Exact Metric Equivalent Outside Diameter Width Approx. Weight Each
DUB137 1/16 in. (0.0625 in. / 1.5 mm designation) 1.5875 mm 0.205 in. (5.2 mm) 0.190 in. (4.8 mm) 1 g (0.04 oz.)
DUB138 3/32 in. (0.09375 in. / 2.3 mm designation) 2.38125 mm 0.255 in. (6.5 mm) 0.186 in. (4.7 mm) 1 g (0.04 oz.)
DUB139 1/8 in. (0.125 in. / 3 mm designation) 3.175 mm 0.280 in. (7.1 mm) 0.190 in. (4.8 mm) 1.25 g (0.04 oz.)
DUB140 5/32 in. (0.15625 in. / 4 mm designation) 3.96875 mm 0.348 in. (8.8 mm) 0.222 in. (5.6 mm) 2.25 g (0.08 oz.)
DUB141 3/16 in. (0.1875 in. / 4.7 mm designation) 4.7625 mm 0.376 in. (9.6 mm) 0.219 in. (5.6 mm) 2.75 g (0.10 oz.)

The millimeter values used in Du-Bro’s size designations are rounded product-size labels. Exact mathematical conversions are provided separately in the table.

Set Screw and Wrench Sizes

  • DUB137, DUB138 and DUB139: 4-40 x 1/8 in. set screws with a 0.050 in. hex wrench
  • DUB140 and DUB141: 6-32 x 1/8 in. set screws with a 1/16 in. hex wrench

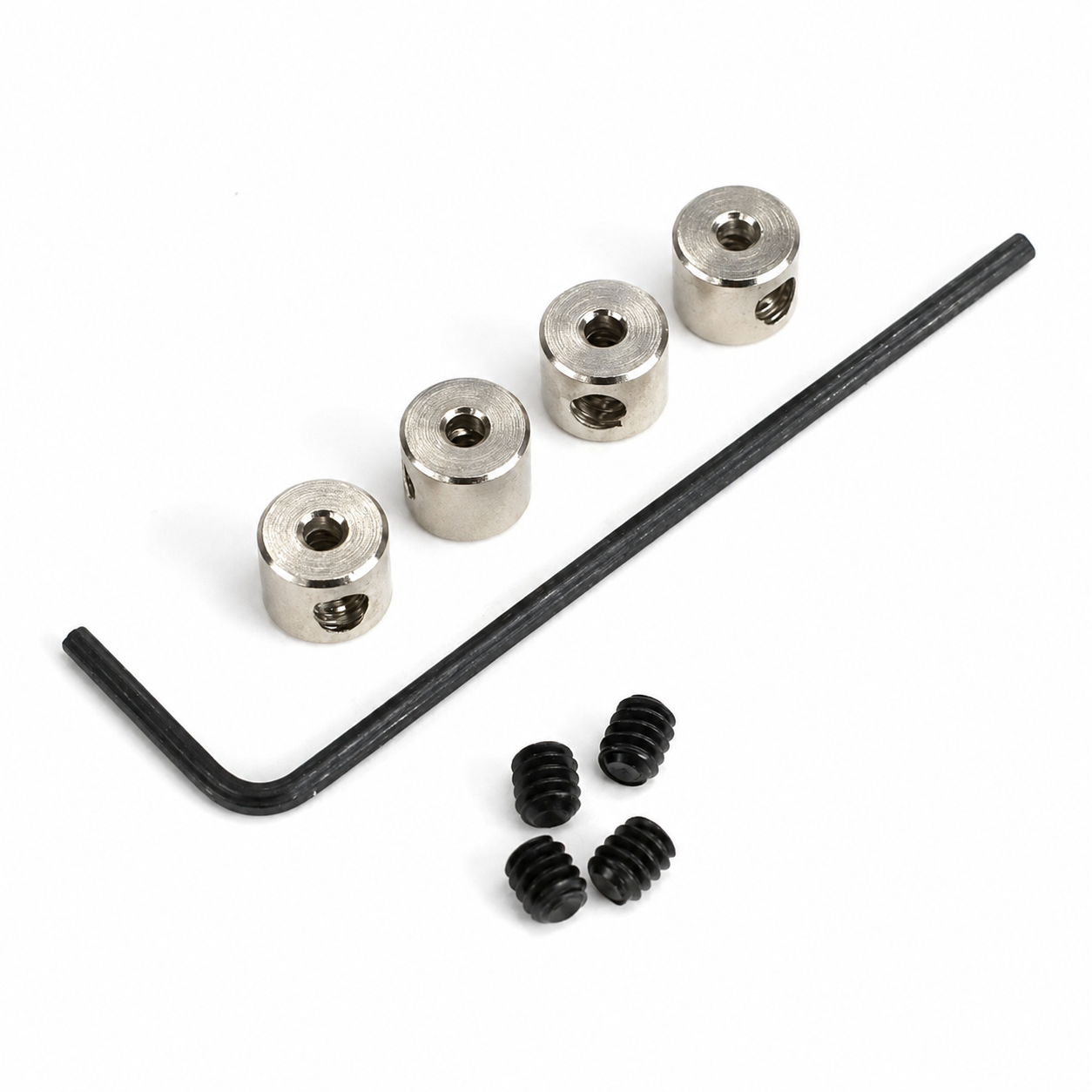

Package Includes

  • 4 Du-Bro Dura-Collars in the selected size
  • 4 matching steel set screws
  • 1 matching hex wrench

Choosing the Correct Size

The listed size is the collar’s inside diameter. Select a collar with an inside diameter that matches the diameter of your axle or shaft. For example, select the 1/8 in. collar for a 1/8 in. axle.

Installation

  1. Slide the collar onto the axle or shaft.
  2. Position the wheel or component as needed.
  3. Tighten the set screw using the included hex wrench.
  4. Confirm that the collar is secure while allowing the wheel or component to move freely where required.

Note: Do not overtighten the set screw. Periodically check collar security as part of normal preflight and equipment maintenance.
