Dualsky DP1000 Brushless RC Smoke Pump with Driver
Regular price
$124.95
Couldn't load pickup availability
Dualsky DP1000 Brushless RC Smoke Pump with Driver

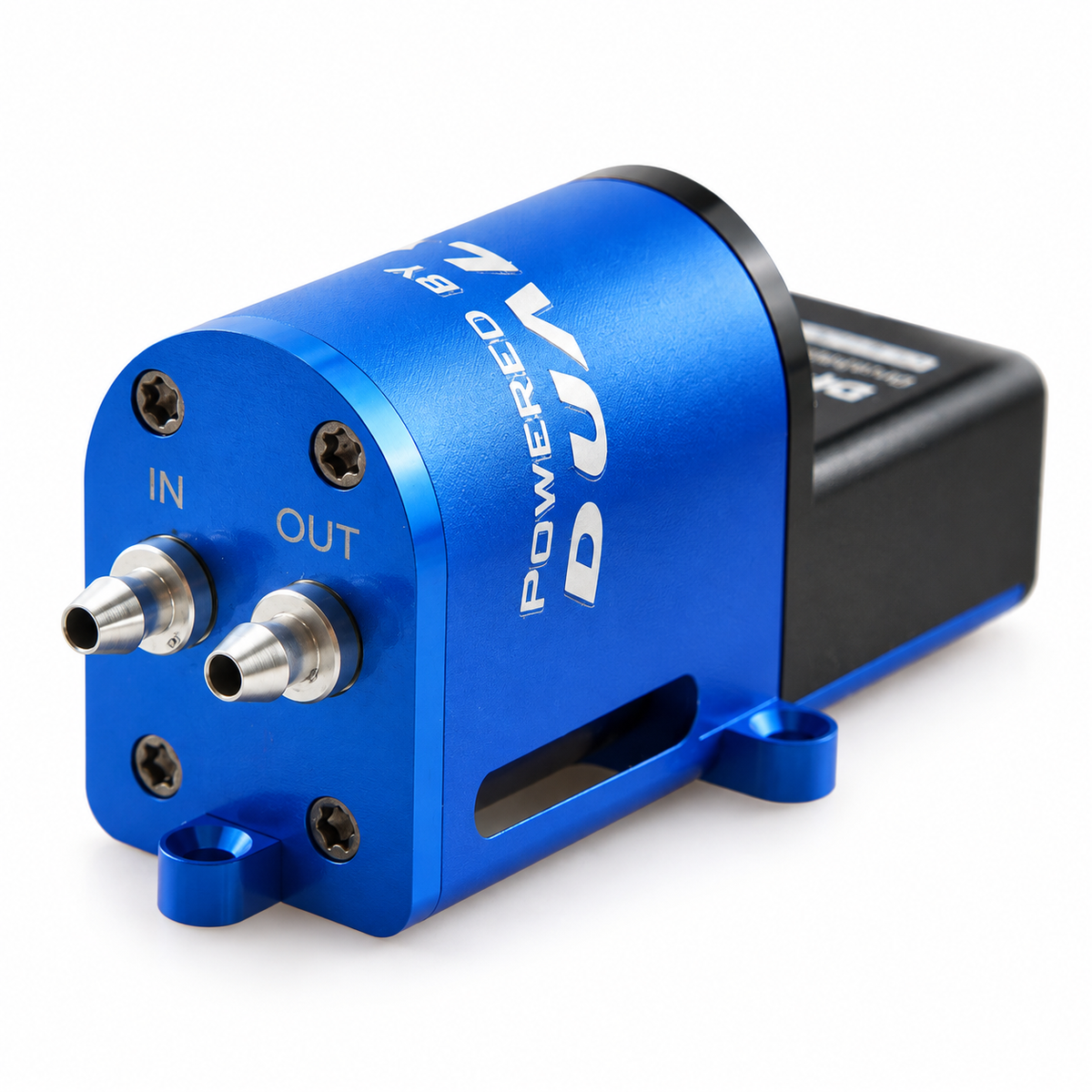

The Dualsky DP1000 is a compact brushless smoke pump designed for smoke systems in giant-scale RC airplanes and turbine-powered model jets. Its integrated brushless driver allows the pump to be controlled through an available receiver channel, providing convenient on/off operation and adjustable smoke-fluid flow from the transmitter.
The pump uses a durable carbon-composite gear-pump mechanism housed inside a CNC-machined aluminum case. It operates from a nominal 7.4V 2S LiPo battery and includes the filter, check valve, tubing connections and mounting hardware needed for installation.
Recommended For: Giant-scale RC airplanes and turbine-model smoke systems requiring an electronically controlled, adjustable-flow smoke pump.
Key Features
- Brushless pump motor for dependable operation
- Integrated brushless sensorless driver
- Receiver-channel control for pump activation and flow adjustment
- Designed for giant-scale airplanes and turbine-powered model jets
- Compatible with a nominal 7.4V 2S LiPo battery
- CNC-machined aluminum housing
- Carbon-composite gear-pump mechanism
- Compact installation footprint
- Filter, check valve, tubing and mounting accessories included
Specifications
| Brand | Dualsky |
| Model | DP1000 |
| Manufacturer SKU | 42050 |
| Dimensions | 2.76 × 1.02 × 1.42 in. (70 × 26 × 36 mm) |

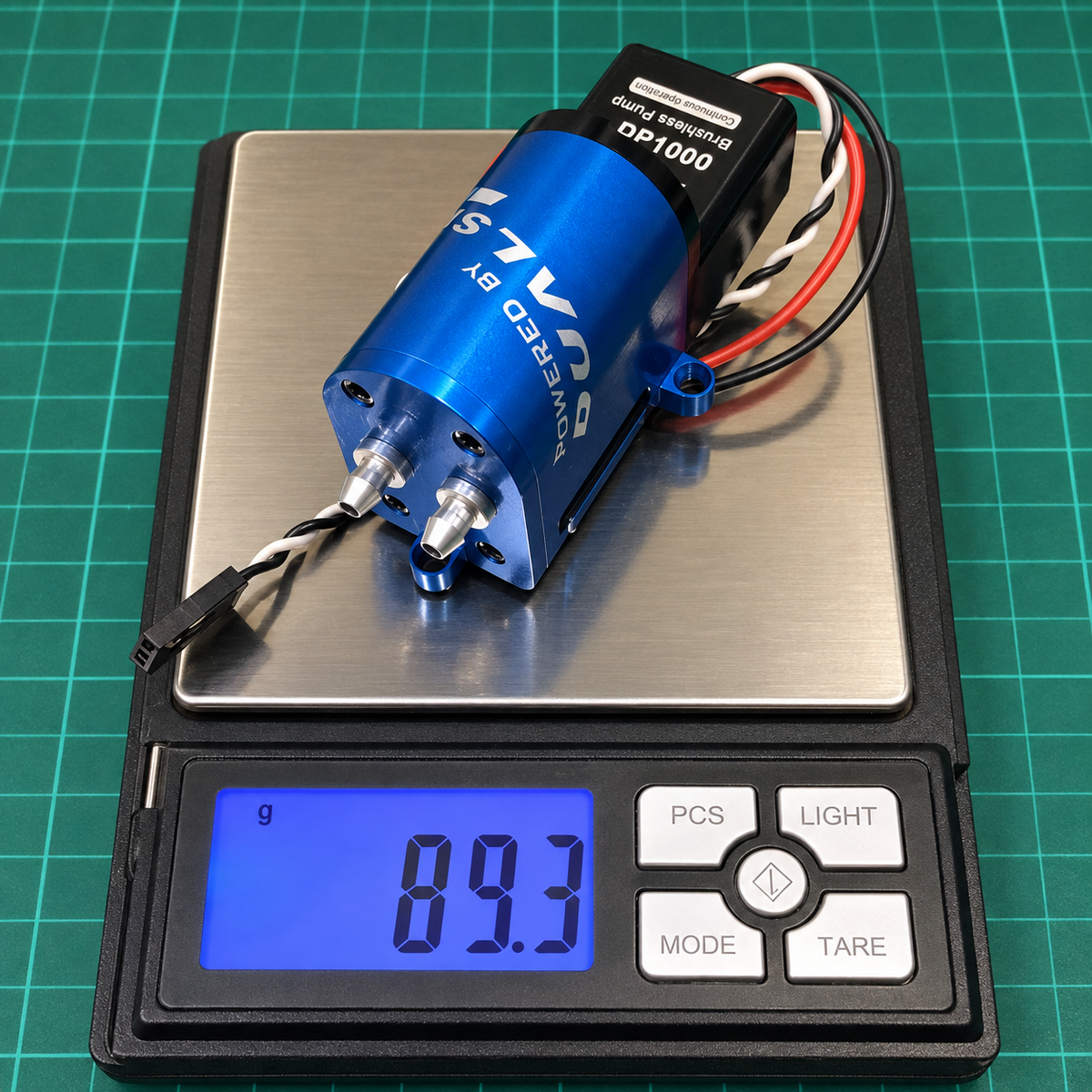

| Weight | 3.14 oz. (89 g) |
| Nominal Voltage | 7.4V / 2S LiPo |
| Working Current | 0.9A at 7.4V |
| Motor | XM1806PU brushless outrunner |
| Drive Module | HM-ESC brushless sensorless driver |
| Control Signal | PWM, 1150–1850µs |
| Flow Rate | 1000 CCM at 7.4V; 1330 CCM at 8.0V |
| Housing | CNC-machined aluminum |
| Gear-Pump Material | Carbon composite |
| Application | Smoke systems for giant-scale airplanes and model jets |
Package Includes
- 1 × Dualsky DP1000 brushless smoke pump with integrated driver
- 1 × Festo PK-4 filter
- 1 × Check valve
- 1 × T-connector
- 1 × Oil/smoke-fluid tube
- 3 × Mounting screws
- 2 × Sponge mounting-tape pieces
Required to Complete
- Compatible smoke-fluid tank
- Smoke fluid suitable for the aircraft’s smoke system
- Nominal 7.4V 2S LiPo power source
- Available receiver channel and compatible radio programming
- Additional fuel- or heat-resistant tubing when required by the installation

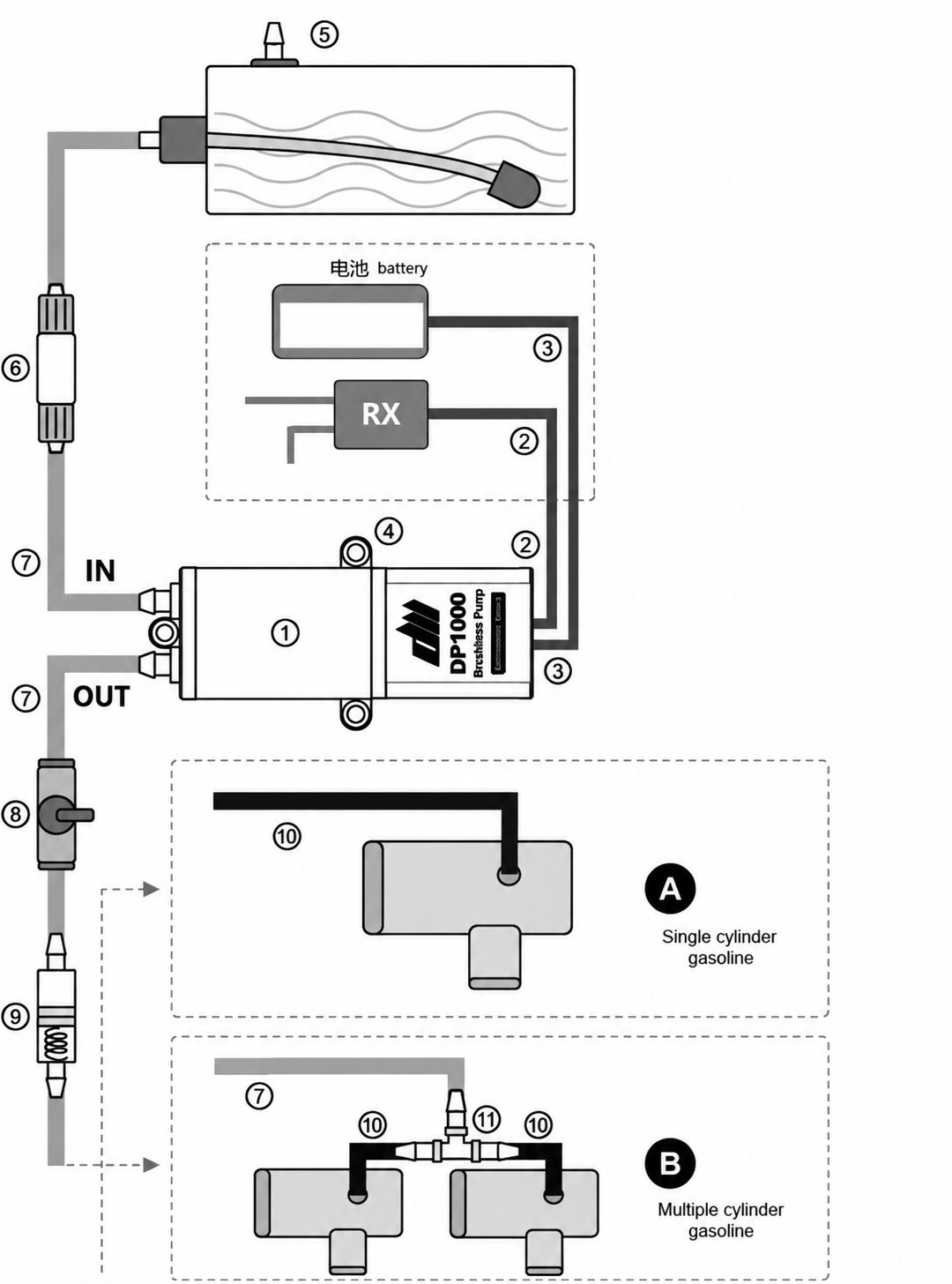

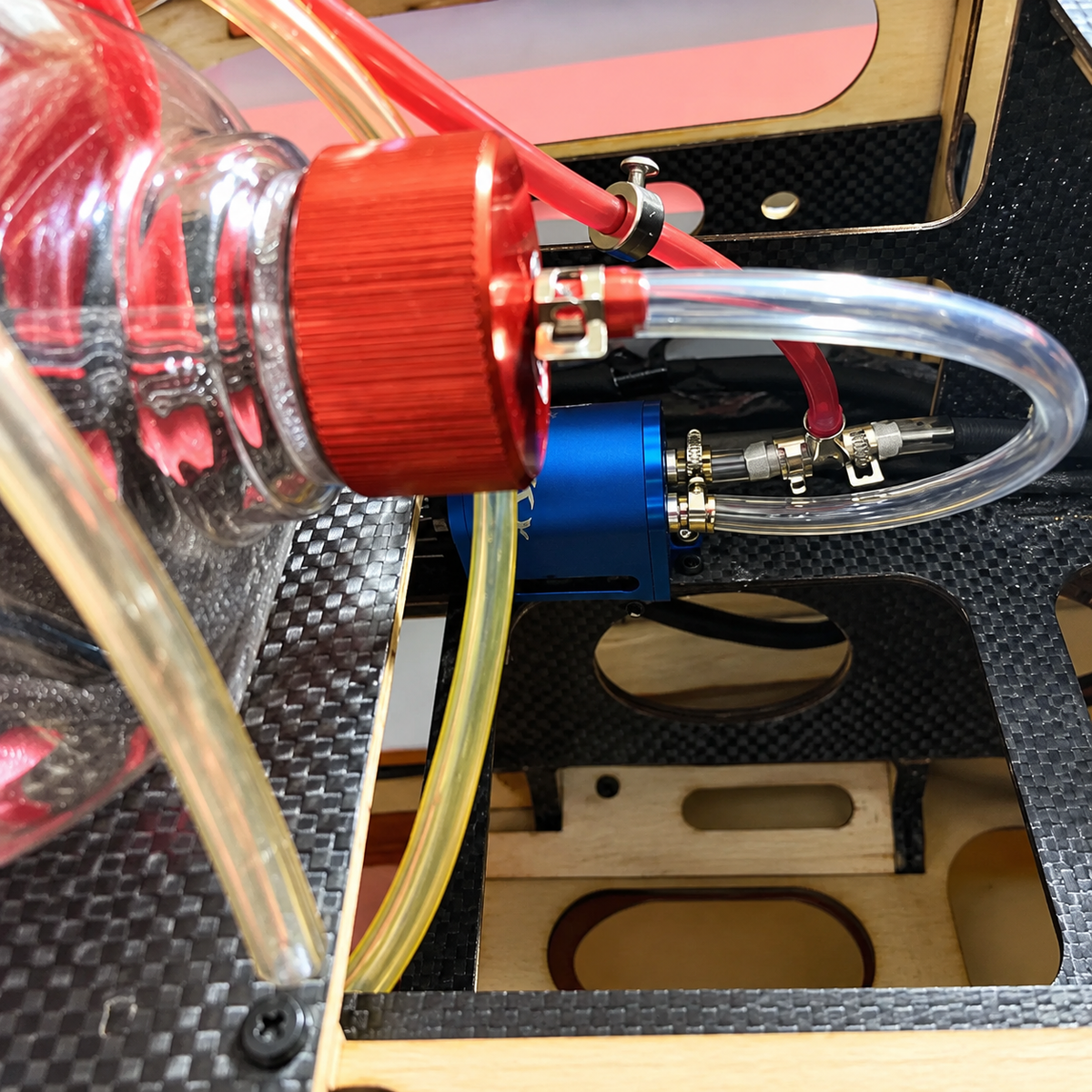

Installation Notes
- Follow the Dualsky DP1000 manual when connecting power, receiver control and smoke-fluid tubing.
- Confirm the correct direction of fluid flow before operating the pump.
- Keep the pump and tubing away from exhaust heat and moving components.
- Secure all tubing connections and check for leaks before flight.
- Program the pump channel so the pump remains off when the smoke system is not in use.
Important: The DP1000 is intended for an RC aircraft smoke system. Do not use it as an engine fuel-delivery pump. Always follow the smoke-fluid, engine and aircraft manufacturers’ installation and safety instructions.
```
- Manual Download
