Dualsky GA6000.8 Brushless Motor, 180KV, 6800W, 10S–12S
Couldn't load pickup availability
Dualsky GA6000.8 180KV Brushless Motor
The Dualsky GA6000.8 is a powerful second-generation brushless outrunner motor developed for giant-scale RC airplanes in the 55–60cc class. Its 180KV winding is designed for high-voltage 10S–12S LiPo power systems and delivers the output required for large sport, 3D, aerobatic, and UAV applications.
Unlike the extended single-shaft GA6000.8S, the GA6000.8 uses Dualsky’s standard bolt-on propeller hub configuration. This makes it suitable for conventional giant-scale electric installations and gas-to-electric conversions that use the standard GA6000 propeller mounting arrangement.
Designed for Giant-Scale Aircraft
- 55–60cc class electric aircraft and gas-to-electric conversions
- Giant-scale sport and precision aerobatic airplanes
- 3D aircraft weighing up to 10 kg (22.0 lb)
- Sport aircraft weighing up to 17 kg (37.5 lb)
- Large UAV and specialty aircraft applications
Key Features
- 55–60cc Class Performance: Designed to provide electric power for aircraft traditionally powered by 55–60cc gasoline engines.
- 180KV Winding: Optimized for high-voltage 10S–12S LiPo power systems and large-diameter propellers.
- 6,800W Peak Power: Rated for up to 6,800 watts (9.2 hp) of peak output for 15 seconds under the manufacturer’s specified operating conditions.
- 3,500W Cruising Power: Rated for up to 3,500 watts (4.8 hp) of cruising power for up to eight minutes.
- Standard Propeller Hub: Uses the standard GA6000 bolt-on propeller-driver configuration rather than the extended single shaft used on the GA6000.8S.
- Large Propeller Capability: Designed for gas-style propellers from approximately 22 × 10 through 25 × 10, depending on battery voltage and aircraft setup.
- High-Efficiency Outrunner Design: Dualsky testing reports motor efficiency exceeding 90% under optimized operating conditions.
- Heavy-Duty Construction: Large 90.2 mm (3.55 in) motor diameter, 24-slot stator, and 28-pole rotor configuration for giant-scale power delivery.
Recommended Power-System Range
- Battery: 10S–12S LiPo
- Operating Voltage: 30–51V
- ESC: 130A–160A high-voltage brushless ESC
- Propeller Range: 22 × 10 through 25 × 10, depending on the complete power-system setup
View Technical Specifications
| Brand: | Dualsky |
| Series: | Second-Generation GA Series |
| Model: | GA6000.8 |
| Dualsky Item Number: | 51295 |
| Motor Type: | Brushless outrunner |
| Propeller Mounting Style: | Standard bolt-on GA6000 propeller hub |
| KV Rating: | 180 RPM/V |
| Operating Voltage: | 30–51V |
| Recommended Battery: | 10S–12S LiPo |
| Peak Power: | 6,800W (9.2 hp) for 15 seconds at 8,000 RPM |
| Burst Current: | 140A for 15 seconds |
| Cruising Power: | 3,500W (4.8 hp) for up to 8 minutes |
| Recommended ESC: | 130A–160A high-voltage brushless ESC |
| Idle Current: | 2.1A at 10V |
| Internal Resistance: | 13.1 mΩ |
| Slots / Poles: | 24 slots / 28 poles |
| Motor Weight: | 1,020 g (36.0 oz), motor body only |
| Weight with Accessories: | 1,180 g (41.6 oz) |
| Outside Diameter: | 90.2 mm (3.55 in) |
| Motor Body Length: | 101 mm (3.98 in) |
| Overall Length: | 141 mm (5.55 in) |
| Shaft Diameter: | 12 mm (0.47 in) internal; 10 mm (0.39 in) output |
| Mounting-Hole Pitch: | 100 mm (3.94 in) |
| Recommended Sport-Aircraft Weight: | Up to 17 kg (37.5 lb) |
| Recommended 3D-Aircraft Weight: | Up to 10 kg (22.0 lb) |
Recommended Propeller Range
Dualsky lists the following propeller sizes for the GA6000.8:
- 22 × 10
- 23 × 8
- 23 × 10 — maximum listed speed of 7,650 RPM
- 24 × 8
- 24 × 9
- 24 × 10
- 25 × 10
Dualsky also reports a test setup using a XOAR 24 × 10 carbon-fiber propeller on 12S, producing approximately 18 kg (39.7 lb) of thrust at 125A under the manufacturer’s test conditions.
GA6000.8 vs. GA6000.8S
| Specification | GA6000.8 | GA6000.8S |
|---|---|---|
| Item Number | 51295 | 51556 |
| KV Rating | 180KV | 180KV |
| Battery Range | 10S–12S LiPo | 10S–12S LiPo |
| Propeller Mount | Standard bolt-on propeller hub | Extended single output shaft |
| Overall Length | 141 mm (5.55 in) | 151 mm (5.94 in) |
Typical Applications
- 55–60cc class electric aircraft
- Gas-to-electric giant-scale conversions
- Giant-scale sport airplanes
- 3D and precision aerobatic aircraft
- Large scale and semi-scale aircraft
- UAV and specialty aircraft systems

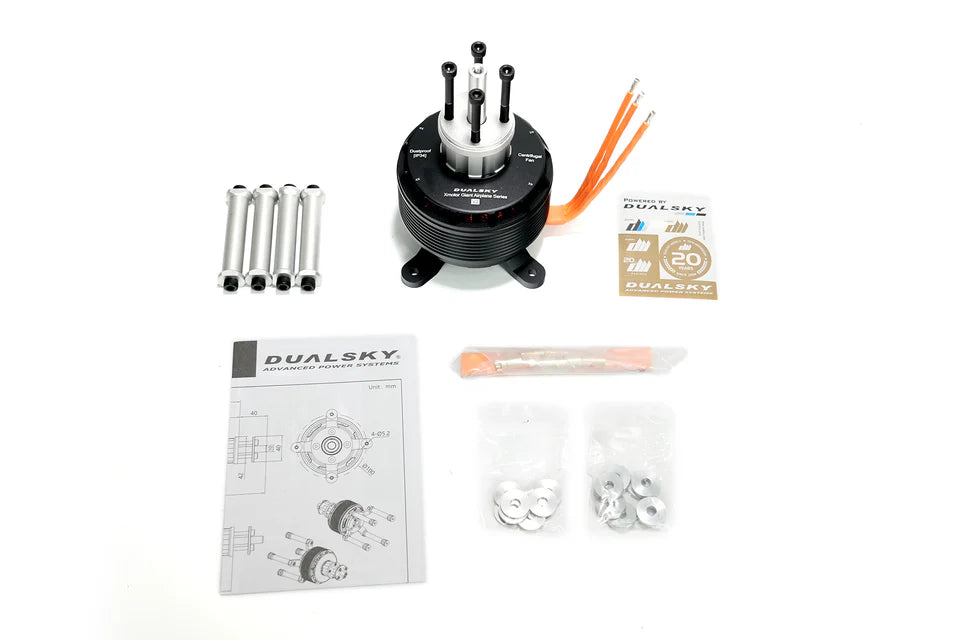

Package Includes
- 1 × Dualsky GA6000.8 180KV brushless motor
- Standard GA6000 bolt-on propeller hub assembly
- Factory-supplied motor hardware and accessories
ESC, batteries, propeller, motor mount, connectors, wiring, and aircraft-specific installation hardware are sold separately unless specifically stated otherwise.
Installation and Setup Notes
- Verify that the GA6000.8 standard propeller-hub configuration matches your aircraft and motor-mount arrangement.
- Confirm adequate firewall strength and reinforce the airframe as required for the motor’s torque, power, and weight.
- Use a 130A–160A HV ESC rated for the selected battery voltage and expected current.
- Use batteries capable of safely supplying the required current without excessive voltage sag.
- Begin testing with a conservative propeller and verify current using a wattmeter or telemetry system.
- Do not exceed the 140A burst-current rating or the propeller manufacturer’s maximum RPM limit.
- Provide unobstructed cooling airflow to the motor, ESC, and batteries.
- Balance the propeller before installation.
- Check propeller hardware, motor mounting, rotation direction, and throttle calibration before flight.
Actual current, power, RPM, thrust, and flight performance vary with battery voltage, propeller selection, ESC timing, elevation, temperature, airframe weight, and installation conditions.
