Dualsky ME2DA70 CNC Motor Mount Kit for GA6000 & GA8000 Motors
Couldn't load pickup availability
Dualsky ME2DA70 CNC Motor Mount Kit for GA6000 & GA8000 Motors

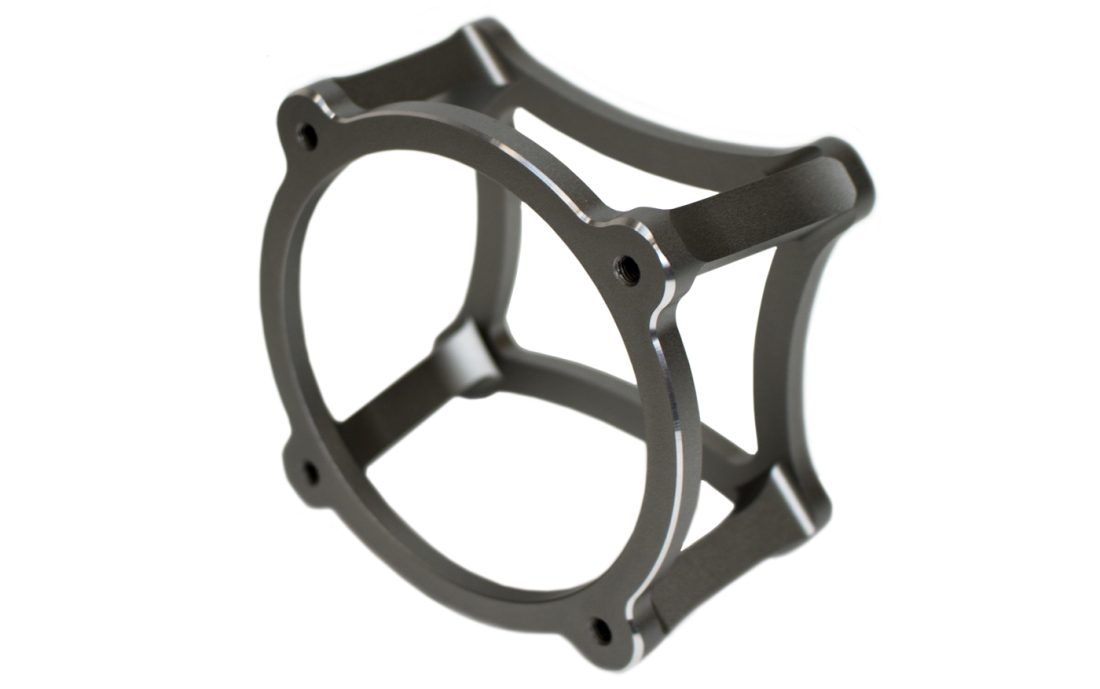

The Dualsky ME2DA70 Motor Mount Kit is a precision CNC aluminum mounting system designed for Dualsky GA6000 and GA8000 series motors. It is made to simplify giant-scale gas-to-electric conversions by allowing a Dualsky electric motor to be installed in DA70-style aircraft applications with proper spacing, alignment, and support.
This mount is an important part of a complete electric conversion package when pairing the Dualsky GA6000.9S motor with the Dualsky Summit 160XHV ESC. It helps builders replace a gas engine setup with clean, powerful electric performance while reducing the need for custom fabrication.
🚀 Target Applications:
- DA70 gas engine to large electric brushless motor conversions
- 55cc–70cc class giant-scale aerobatic and IMAC airplanes
- Large-scale civilian aircraft, utility models, and giant warbirds
- Brand-new electric giant-scale builds requiring fixed DA70 dimensional stand-offs
Key Features
- DA70-Style Conversion Geometry: Matches the standard mounting hole footprint and depth clearance profiles of popular DA70 twin-cylinder gas engines.
- Rigid Four-Point Architecture: Heavy-duty four-point mounting structure anchors securely to isolate lateral motor flex under extreme torque loading paths.

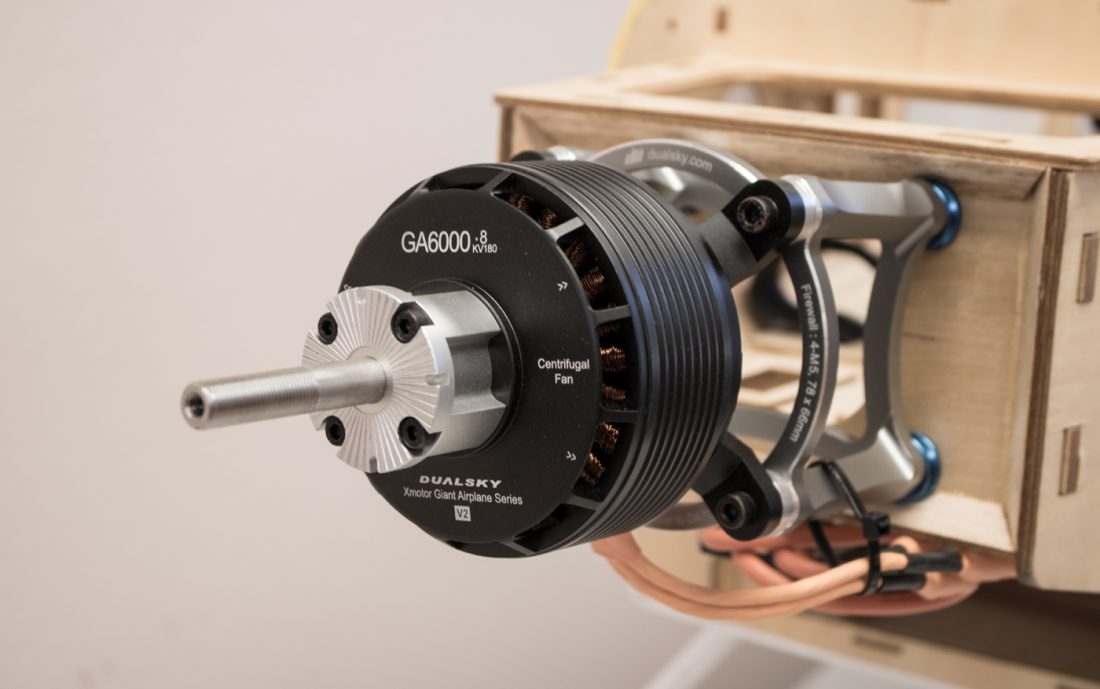

- Broad Motor Support: Built specifically to mount the high-torque Dualsky GA6000 outrunner series, while retaining full mechanical compatibility with the larger GA8000 motor family.
- Maintains Cowl Alignment: Eliminates spinner gap offset errors by dropping the electric motor exactly into the model's engineered gas thrust line.
- Reduces Fabrication Overhead: Eliminates the guesswork, drilling errors, and extended workbench hours associated with engineering custom spacing collars or plywood mounting boxes.
- Professional Fit and Finish: Precision CNC-machined aluminum construction delivers a clean, rigid, lightweight mechanical connection.

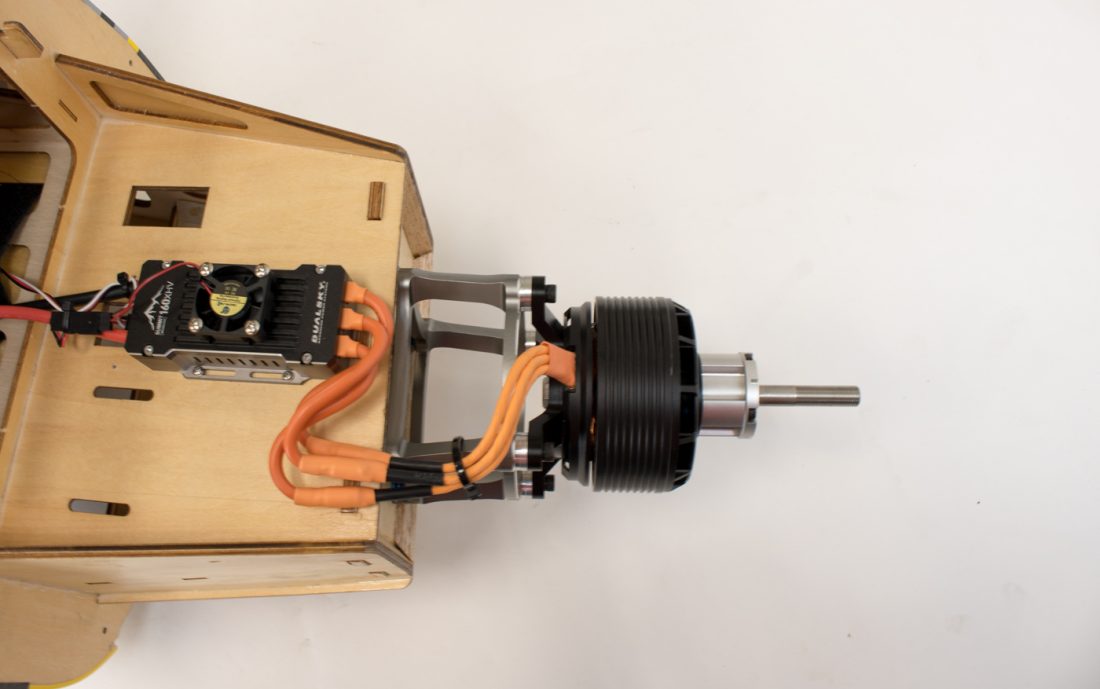

⚡ The Ultimate Giant-Scale Electric Conversion Pack:
Bypass gas fuel mixing, ignition battery browning out, exhaust slime cleanup, and constant high-frequency vibration strain by linking a complete system block:
- Motor: Dualsky GA6000.9S Brushless Outrunner
- Speed Controller: Dualsky Summit 160XHV 160A OPTO ESC
- Mounting Hardware: Dualsky ME2DA70 Mount Kit (This Package)
- Power Storage System: High-Capacity 10S to 12S LiPo Battery Configurations
💡 Gas-to-Electric Conversion Benefits:
- No gasoline or complex two-stroke fuel mixing cycles
- No secondary ignition module or heavy ignition batteries needed
- Drastically reduced vibration tracking wear through the balsa airframe structure
- Perfectly clean cowling internal areas with zero exhaust oil pooling
- Instant, linear electric throttle response across the complete flight path
- Significantly lowered routine workbench maintenance schedules
View Technical Specifications
| Brand Model: | Dualsky ME2DA70 |
| Product Classification: | CNC Heavy-Duty Motor Mount Kit |
| Compatible Motors: | Dualsky GA6000 Series & Dualsky GA8000 Series |
| Reference Engine Blueprint: | DA70-Style Gas Mounting Geometry Applications |
| Primary Application: | Gas-to-Electric Aircraft Conversions / Clean Firewall Spacing |
| Material Composition: | Precision CNC Machined Aluminum Alloy |
*Note: Brushless outrunner motors, electronic speed controllers, flight battery packs, and the physical model aircraft structures are not included and are sold separately.
📦 Package Includes:
- 1 × Dualsky ME2DA70 CNC Motor Mount Kit Assembly Base
- Heavy-Duty Structural Engine-To-Mount Bolt Hardware Set
- Airframe Firewall Installation Components
💡 Modeler’s Tips
When bolting this aluminum stand-off mount down against your model's wooden firewall, use large fender backing washers inside the fuselage to distribute the clamping force evenly across the wood fibers. Because massive outrunner motors generate instant torque spikes during aggressive 3D acceleration, ensure you use a generous drop of blue thread locker on all metal-to-metal machine threads during final workbench assembly.
The Gator-RC Advantage: We source a complete selection of matching high-quality hardware parts so you can stock your workspace from one reliable point. In stock and ready to ship out of our domestic warehouse.
