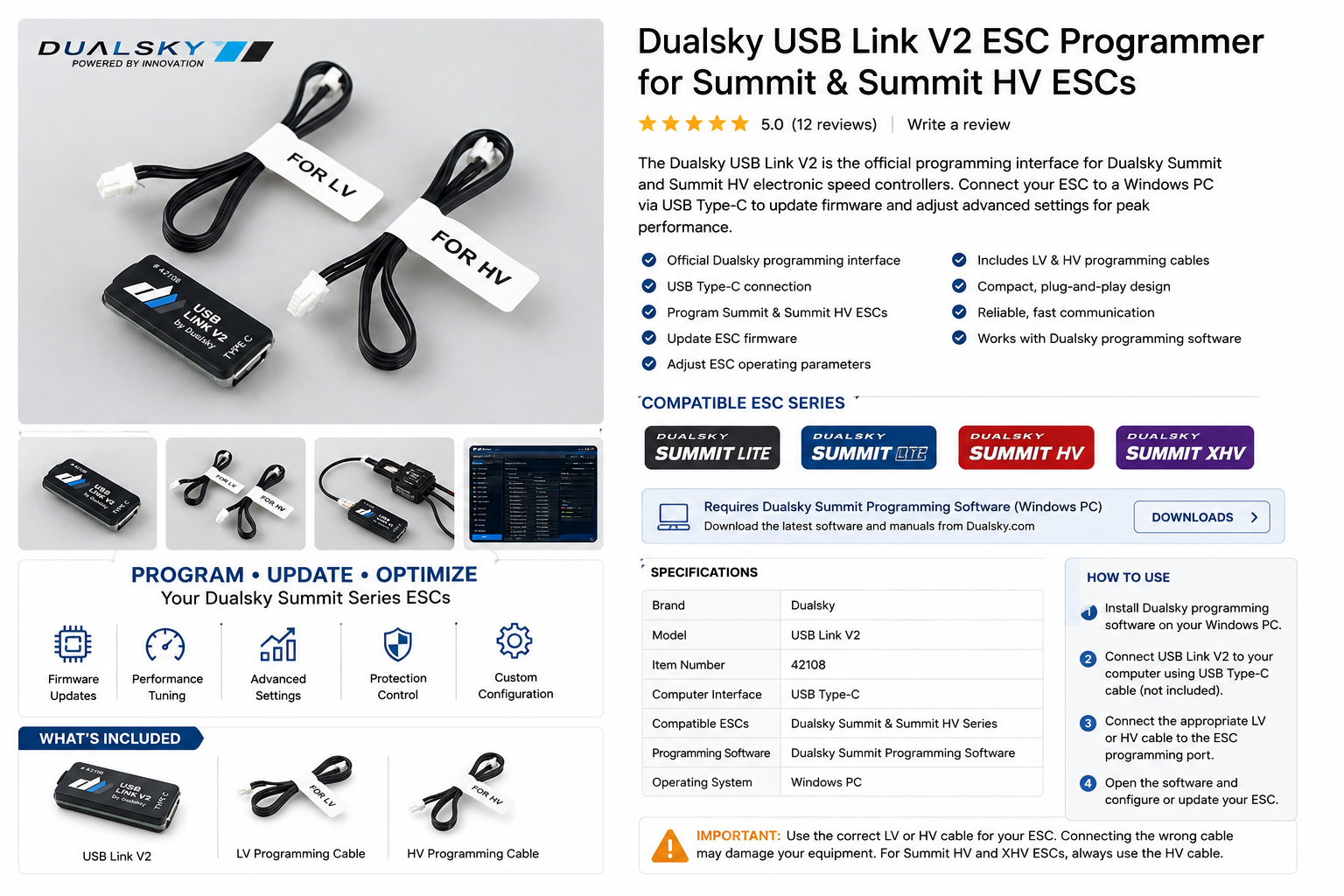

A product information page for the Dualsky USB Link V2 ESC Programmer, showing the black and white handheld device, several cables, software boxes, and compatibility badges for Summit and HV Series ESCs.

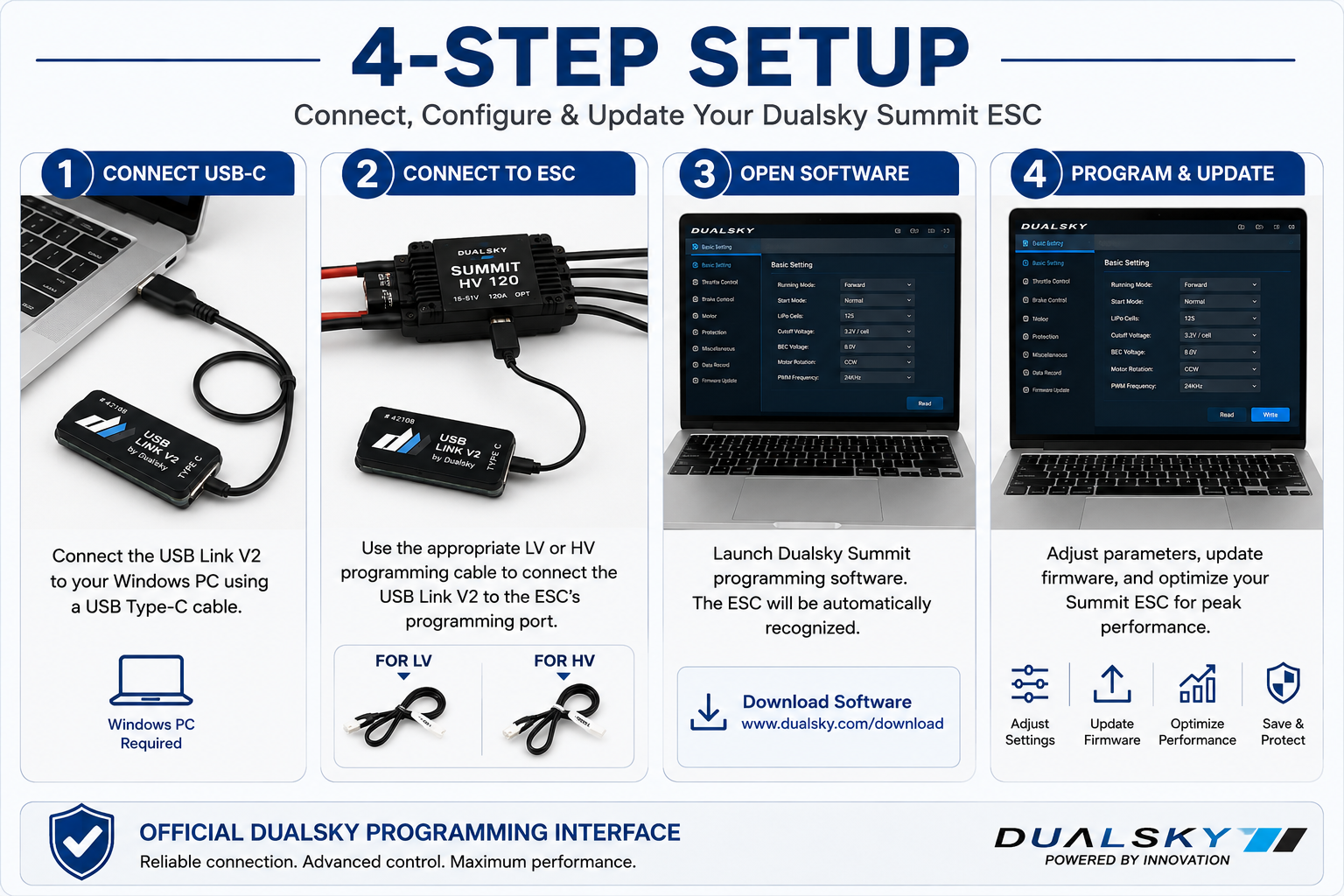

An infographic titled '4-STEP SETUP' showing how to connect, configure, and update a Dualsky Summit ESC programmable controller. The four steps feature numbered panels with photos of a laptop, a handheld controller, cables, and software interface screenshots, accompanied by text and icons on a white background with blue headers.
Dualsky USB Link V2
A product information page for the Dualsky USB Link V2 ESC Programmer, showing the black and white handheld device, several cables, software boxes, and compatibility badges for Summit and HV Series ESCs.
An infographic titled '4-STEP SETUP' showing how to connect, configure, and update a Dualsky Summit ESC programmable controller. The four steps feature numbered panels with photos of a laptop, a handheld controller, cables, and software interface screenshots, accompanied by text and icons on a white background with blue headers.
Dualsky

Dualsky USB Link V2 ESC Programmer for Summit & Summit HV ESCs

In stock
SKU: 42108
(0)
$18.99

Dualsky USB Link V2 ESC Programmer

The Dualsky USB Link V2 is the official programming interface for Dualsky Summit and Summit HV electronic speed controllers. It connects compatible ESCs to a Windows computer through a modern USB Type-C connection, allowing firmware updates and advanced parameter adjustment using Dualsky programming software.

Whether you're updating firmware, fine-tuning throttle response, adjusting braking, or configuring ESC operating parameters, the USB Link V2 provides fast, reliable communication between your computer and compatible Dualsky ESCs.

Compatible ESC Series

  • Dualsky Summit Series ESCs
  • Dualsky Summit HV Series ESCs
  • Compatible Summit XHV controllers

Features

  • Official Dualsky programming interface
  • USB Type-C connection to your computer
  • Program Summit and Summit HV ESCs
  • Update ESC firmware
  • Adjust ESC operating parameters
  • Supports both Low Voltage (LV) and High Voltage (HV) Summit ESCs
  • Compact plug-and-play design
  • Works with Dualsky ESC programming software

What Can Be Programmed?

  • Firmware updates
  • Throttle calibration
  • Brake settings
  • Timing
  • Acceleration
  • Protection settings
  • Additional ESC parameters supported by the connected Summit ESC
Technical Specifications
Brand Dualsky
Model USB Link V2
Item Number 42108
Computer Interface USB Type-C
Compatible ESCs Dualsky Summit & Summit HV Series
Programming Software Official Dualsky Summit Programming Software
Operating System Windows PC

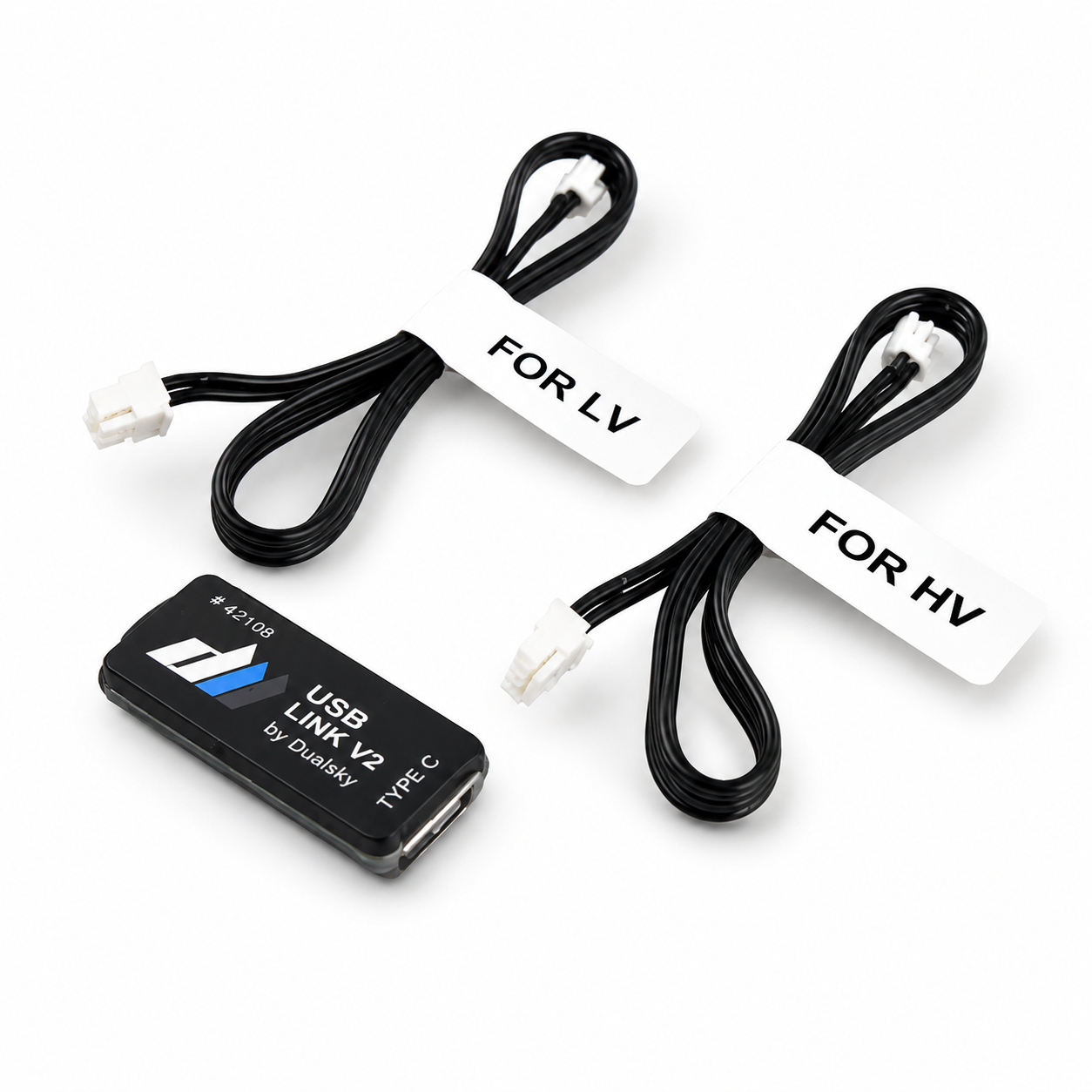

Package Includes

  • 1 × Dualsky USB Link V2 programmer
  • 1 × Low Voltage (LV) programming cable
  • 1 × High Voltage (HV) programming cable

How to Use

  1. Install the latest Dualsky Summit programming software.
  2. Connect the USB Link V2 to your computer using a USB Type-C cable (not included).
  3. Select the appropriate LV or HV programming cable.
  4. Connect the cable to the ESC programming port.
  5. Launch the software and configure or update your ESC.

The Gator RC Advantage: We stock Dualsky motors, Summit ESCs, programming accessories, and replacement parts so you can configure and maintain your entire Dualsky power system from one trusted source.
