Dualsky XM5060EA-10 V3 Brushless Outrunner Motor – 490KV 5–6S (2280W)
Couldn't load pickup availability

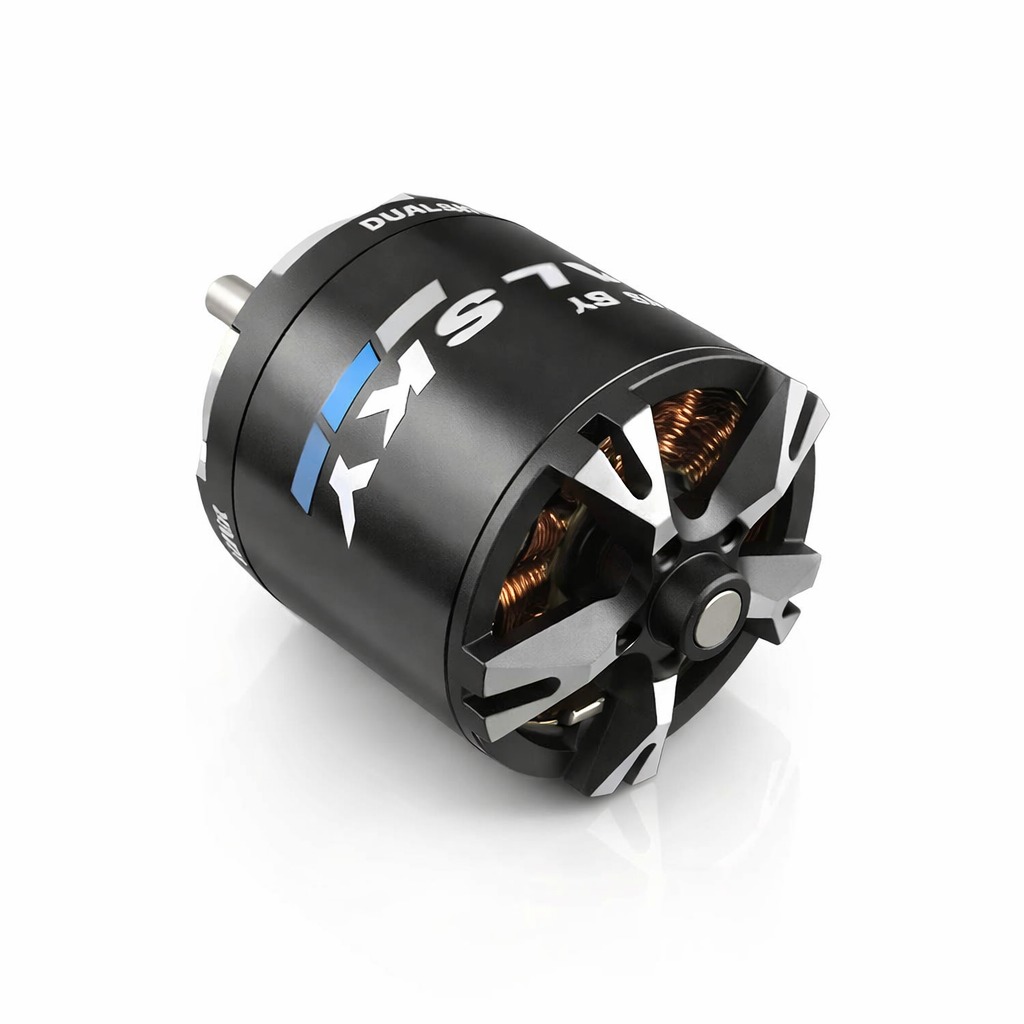

Dualsky XM5060EA-10 V3 Brushless Outrunner Motor (490KV)
High-performance brushless power for 90E-class aerobatic and sport aircraft.
The Dualsky XM5060EA-10 V3 is a precision-engineered brushless outrunner designed for serious RC pilots who demand power, efficiency, and reliability. Optimized for 5S–6S LiPo setups, this third-generation EA series motor delivers up to 2280W of peak power, providing the strong torque and smooth throttle response required for demanding flight conditions.
✅ Applications & Equivalency:
- Aircraft Class: Ideal for 90E electric aircraft and precision sport/pattern planes.
- Glow Equivalent: .75–.90 2-stroke or up to .110 4-stroke equivalent.
- Flight Style: Optimized for Sport, Pattern, and Aerobatic RC airplanes.
⚙️ Performance Features
- High Efficiency: Optimized internal design for longer flight times and reduced heat.
- V3 Engineering: Enhanced heat dissipation and durable construction for high-load use.
- Smooth Acceleration: High-precision bearings and balancing for vibration-free operation.
- Peak Power: Capable of 2280W (15s burst) to power through vertical maneuvers.
View Technical Specifications
| KV Rating: | 490 KV |
| Weight: | 392 g |
| Dimensions: | 49.5 × 58.2 mm |
| Shaft Diameter: | 6.0 mm |
| LiPo Compatibility: | 5S–6S (18.5V–22.2V) |
| Max Power (15s): | 2280W |
| Burst Current: | 95A |
| Efficiency Current: | 47.5A |
| Resistance (Ri): | 14 mΩ |
| No-load Current: | 1.8A @ 10V |
🚀 Recommended Setup
• 5S: 17x8E, 18x10E
• 6S: 15x8, 16x10E, 17x10E
• Recommended ESC: 100A (e.g., Summit 100 Light)
💡 Gator-RC Tip: For 3D pilots using the 6S setup, we recommend the 16x10E propeller for the best balance of vertical pull and flight time. Always ensure your 100A ESC has proper cooling to handle the 95A peak bursts during aggressive freestyle maneuvers.
The Dualsky Advantage: Upgrade your RC aircraft with the proven performance of Dualsky power systems—trusted by pilots worldwide for precision manufacturing and consistent power delivery.
- SKU 51866
