Du-Bro Universal Kwik Switch Mount (DUB203)
Couldn't load pickup availability
Du-Bro Universal Kwik Switch Mount (DUB203)
The Du-Bro Universal Kwik Switch Mount provides a clean, adjustable way to install a battery switch in RC airplanes, helicopters, boats, and cars. It is designed to fit both small and large radio switches and allows the switch to be operated through the model’s wall or fuselage side.
According to Du-Bro, installation requires only a single 3/16" hole, and the mount adjusts for wall thicknesses up to 3/8" (9.5mm). It can also be used with the Du-Bro Kwik Switch & Charging Jack system.
Features
- Universal battery switch mounting system
- Fits both small and large radio switches
- Requires only one 3/16" hole for installation
- Adjustable for wall thicknesses up to 3/8" (9.5mm)
- Works with airplanes, helicopters, boats, and cars
- Can be used with the Du-Bro Kwik Switch & Charging Jack system
- Helps create a clean, low-profile switch installation
- Includes mounting hardware and installation wrench
Specifications
| Brand | Du-Bro |
| Part Number | DUB203 |
| Product Type | Universal Switch Mount |
| Switch Compatibility | Small and large radio switches |
| Installation Hole | 3/16" |
| Maximum Wall Thickness | 3/8" (9.5mm) |
| Applications | Airplanes, helicopters, boats, and cars |

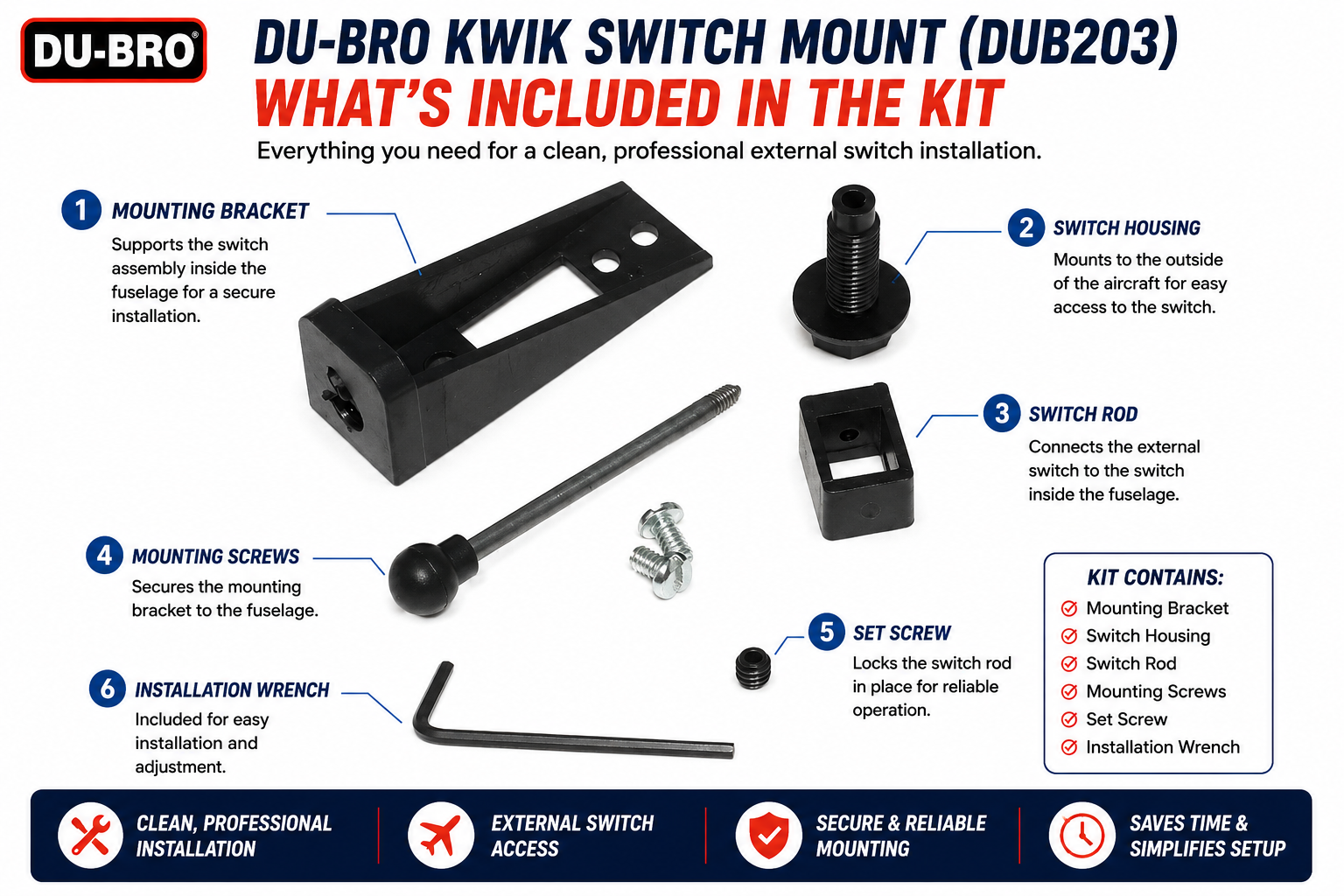

Package Includes
- Universal Kwik Switch mounting bracket
- Switch actuator rod
- Switch housing / mounting component
- Set screw
- Mounting screws
- Installation wrench

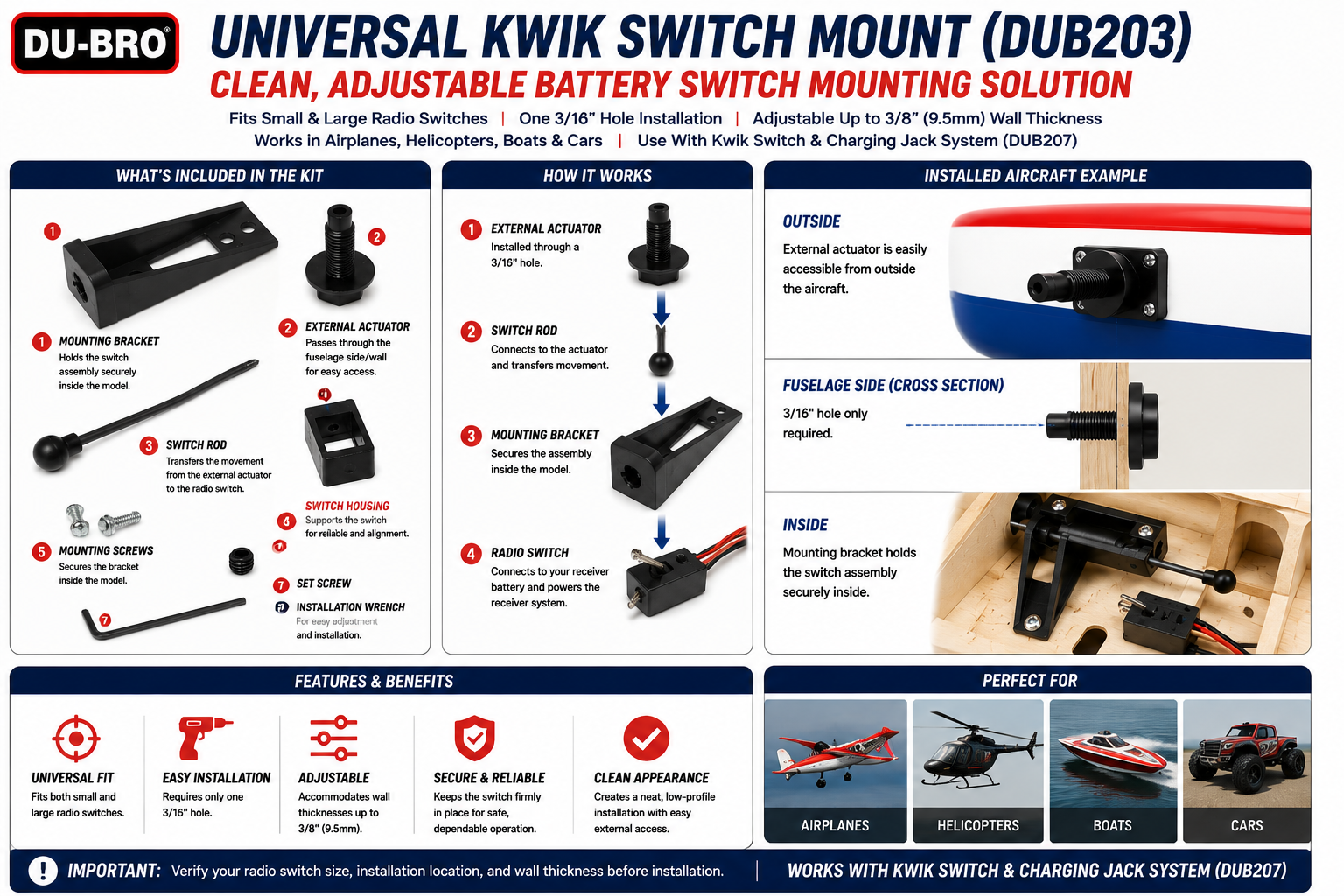

How It Works

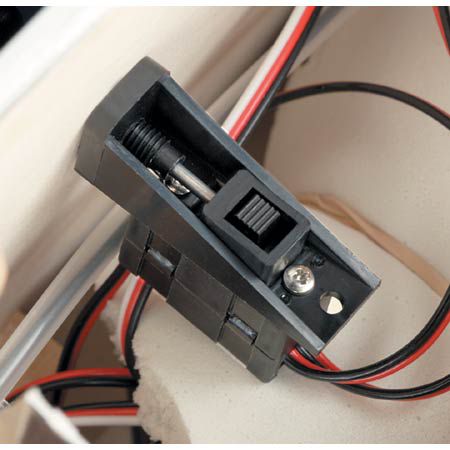

The Kwik Switch Mount holds the radio switch inside the model while allowing the switch to be operated from the outside through a small access hole. This creates a cleaner installation than leaving the switch loose inside the fuselage or cutting a large opening for direct switch access.
Common Applications
- Receiver battery switch installations
- RC airplane radio switch mounting
- Helicopter switch mounting
- Boat and car radio switch installations
- Custom switch installations where clean external access is desired
Why Use a Universal Switch Mount?
A dedicated switch mount helps secure the switch inside the model while keeping the outside installation neat and accessible. The Du-Bro Universal Kwik Switch Mount is especially useful when you want a clean switch installation without cutting a large opening in the aircraft or vehicle body.
Related Du-Bro Product
This mount can be used with the Du-Bro Kwik Switch & Charging Jack system for installations that require both receiver switch access and external charging access.
Note: Verify your radio switch size, installation location, and wall thickness before installation. This listing is for the Du-Bro Universal Kwik Switch Mount DUB203.
