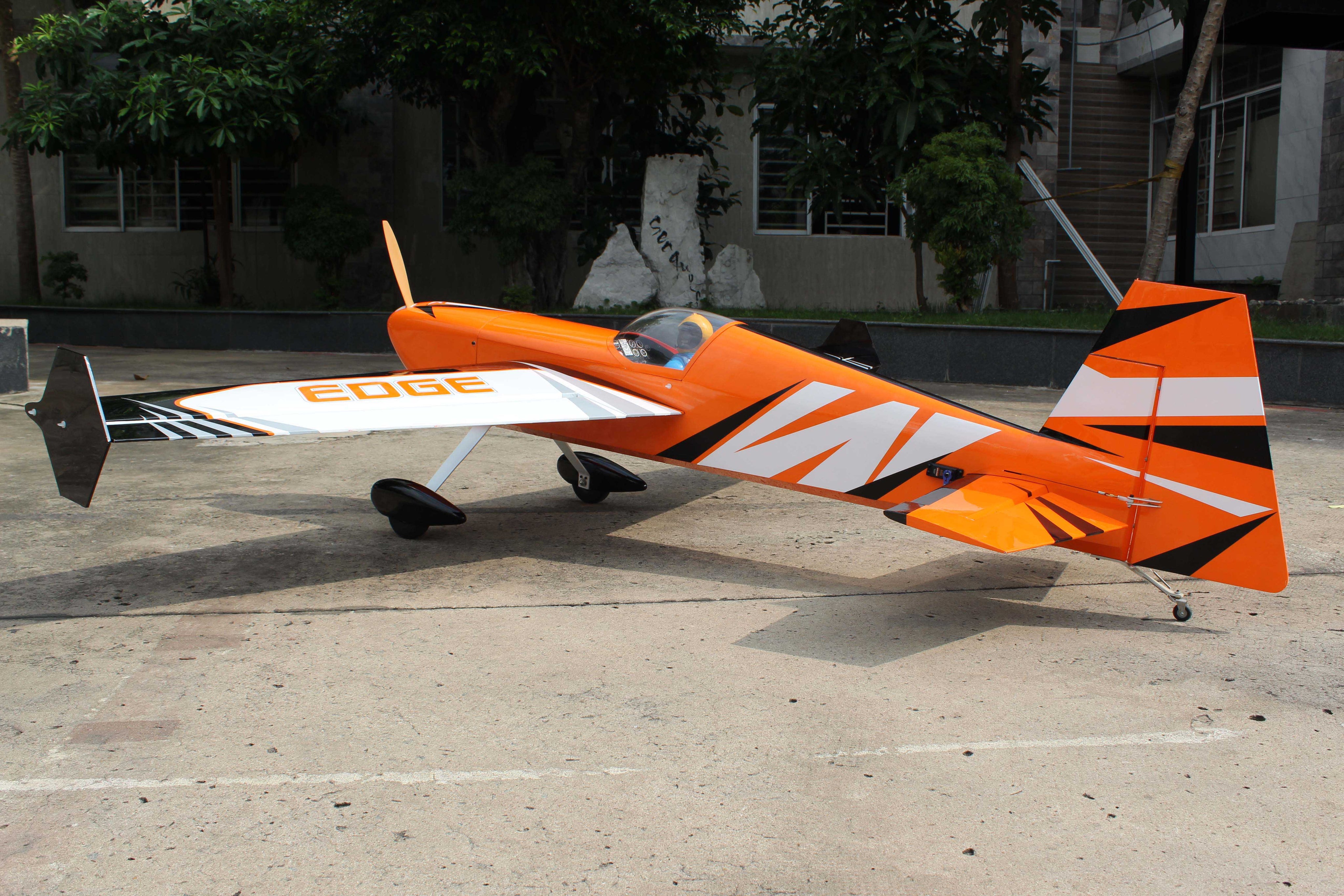

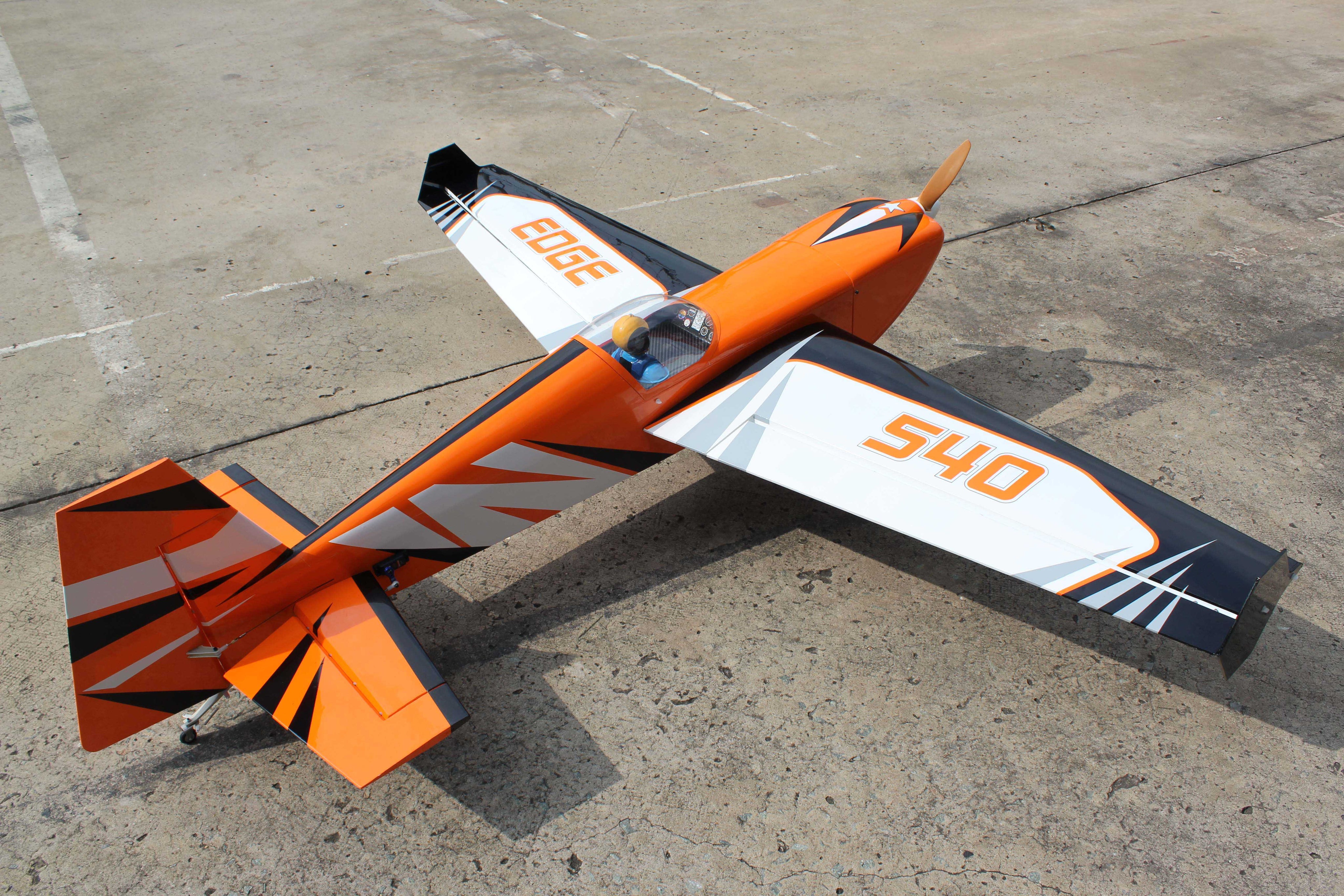

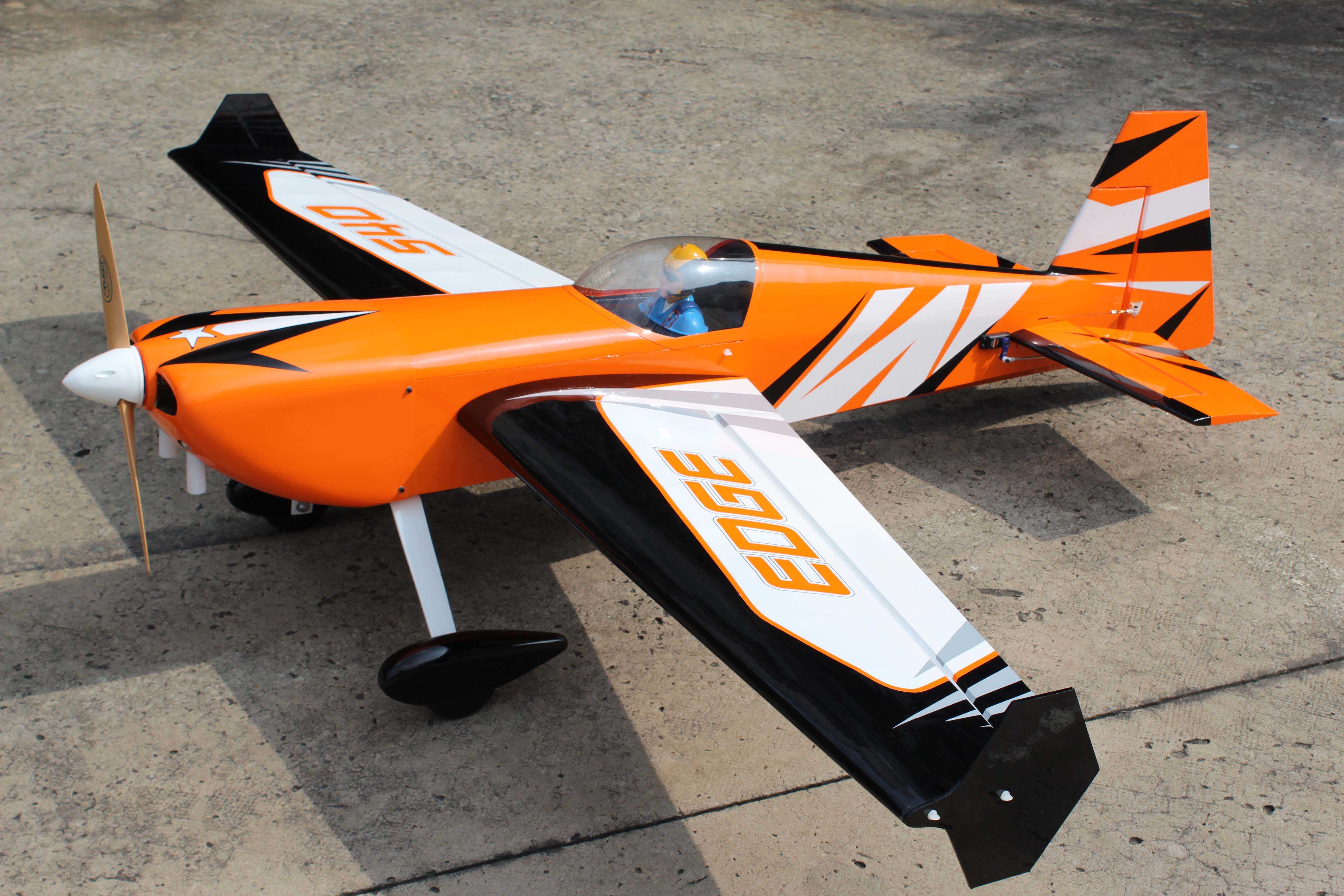

Edge 540 V3, Aerobatic Version, Seagull Model

Edge 540 V3, Aerobatic Version, Seagull Model

The EDGE 540 was designed with the intermediate/advanced sport flyer in mind. It is a semi scale airplane which is easy to fly and quick to assemble. The airframe is conventionally built using balsa, plywood to make it stronger than the average ARTF, yet the design allows the airplane to be kept light. You will find that most of the work has been done for you already. Flying the EDGE 540 is simply a joy.

Key Features:

• Balsa, plywood and carbon fiber constructions (4pcs of carbon tube 5x5x4 for fuselage and 4pcs of 5x5x4mm for wing set)

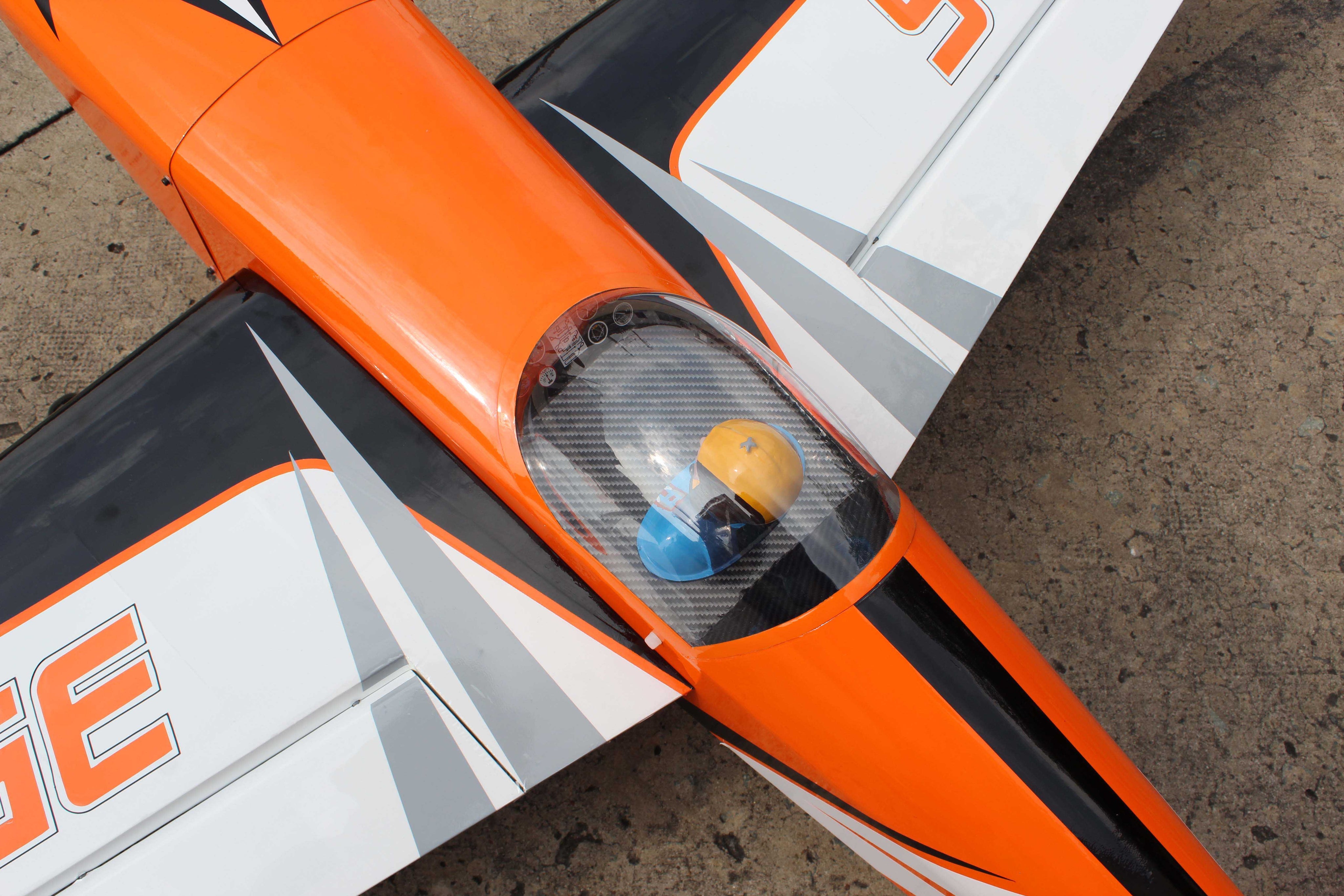

• Opening fuselage hatch for a large radio compartment makes it easy to install your radio and access other on-board equipment

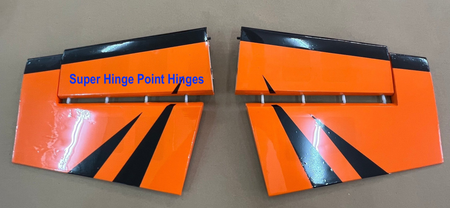

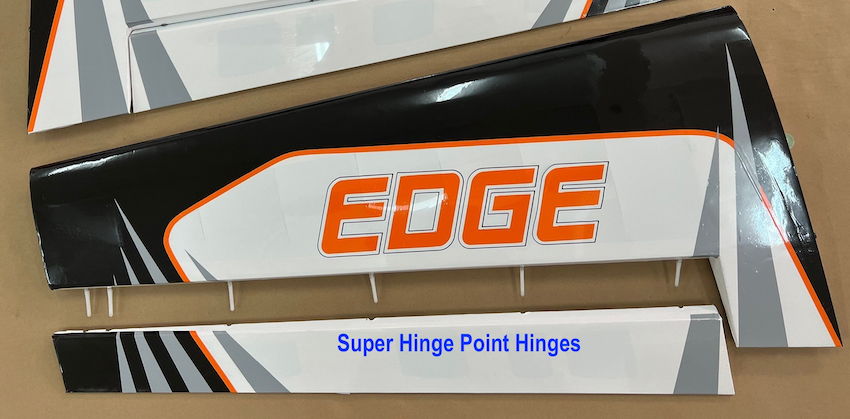

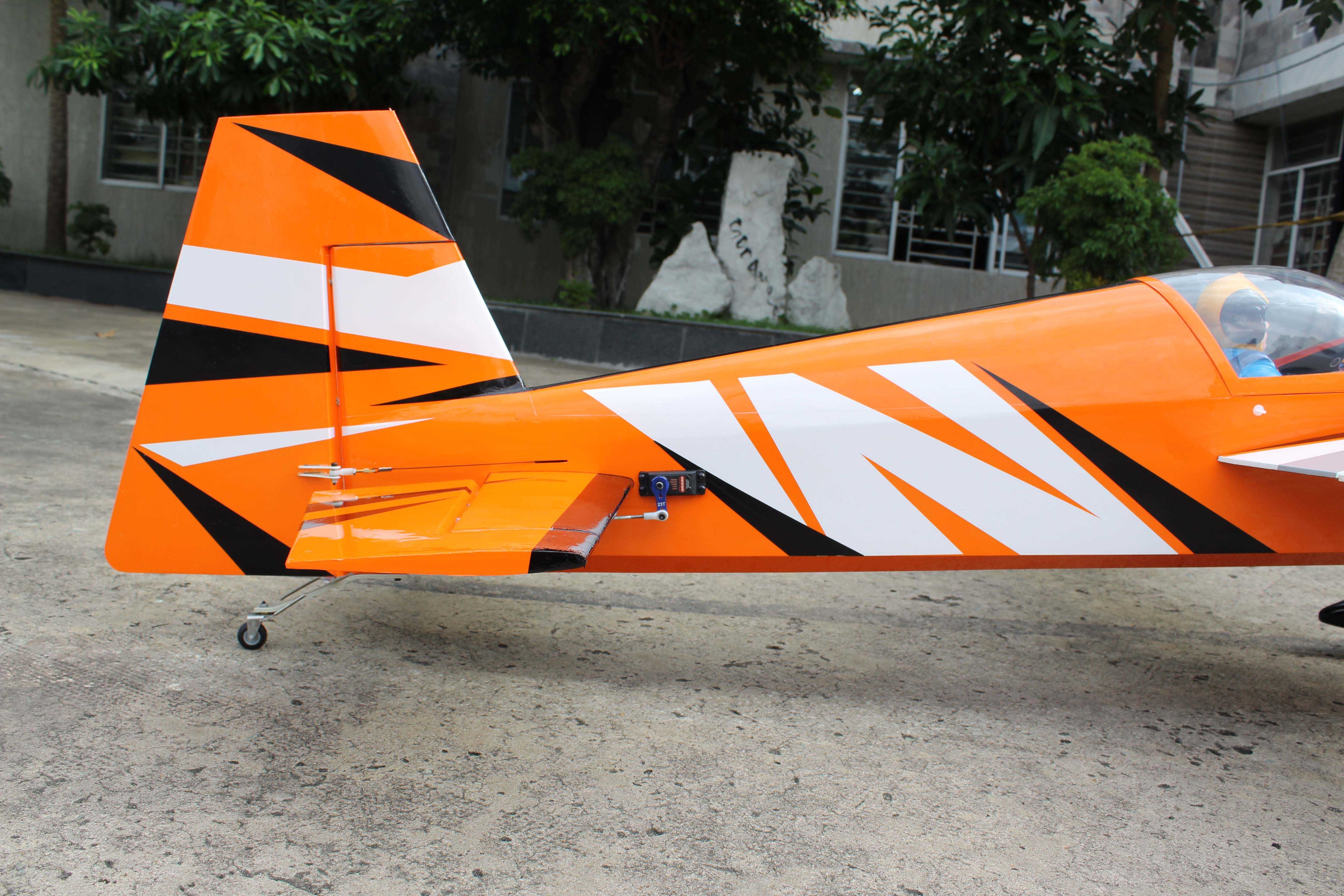

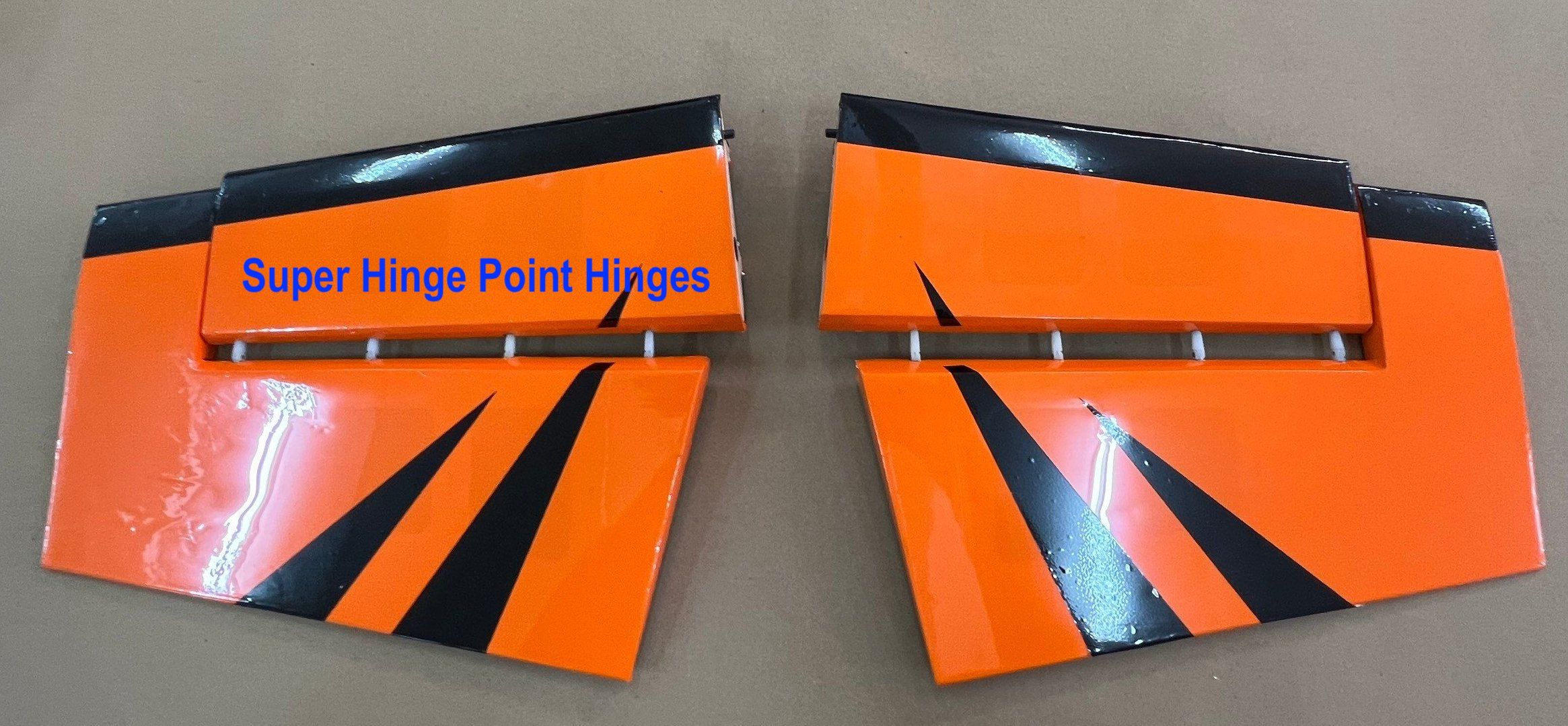

• Pre-installed super hinges point for wing set, elevator/rudder
• Removable wings and stabilizer
• Fiberglass tube inside wing (previous version had a paper tube)
• Fiberglass control horns

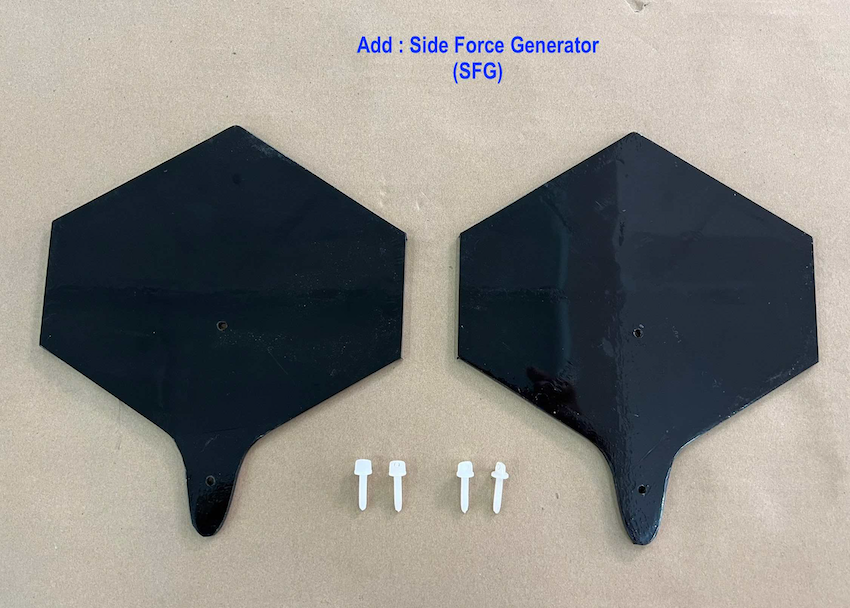

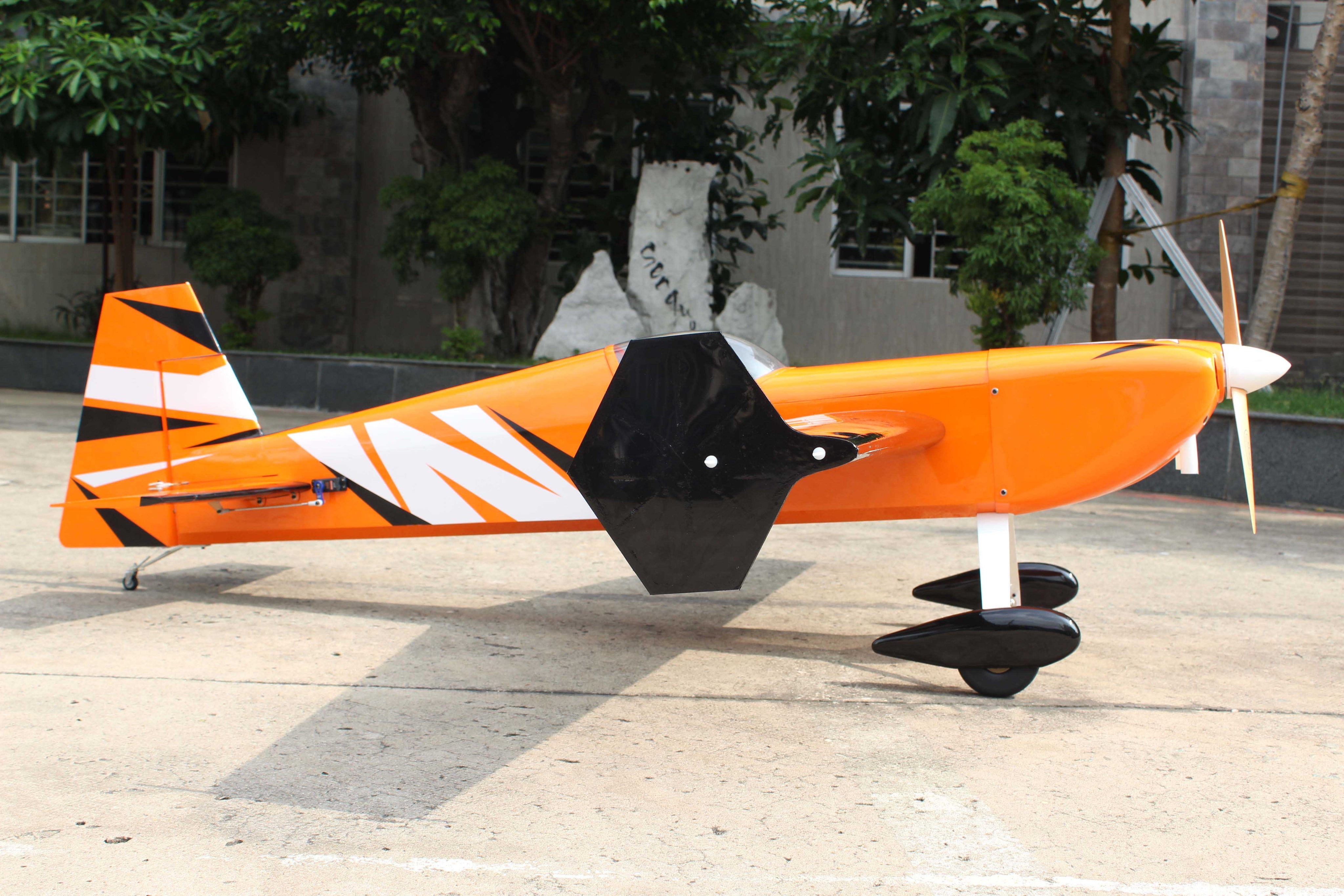

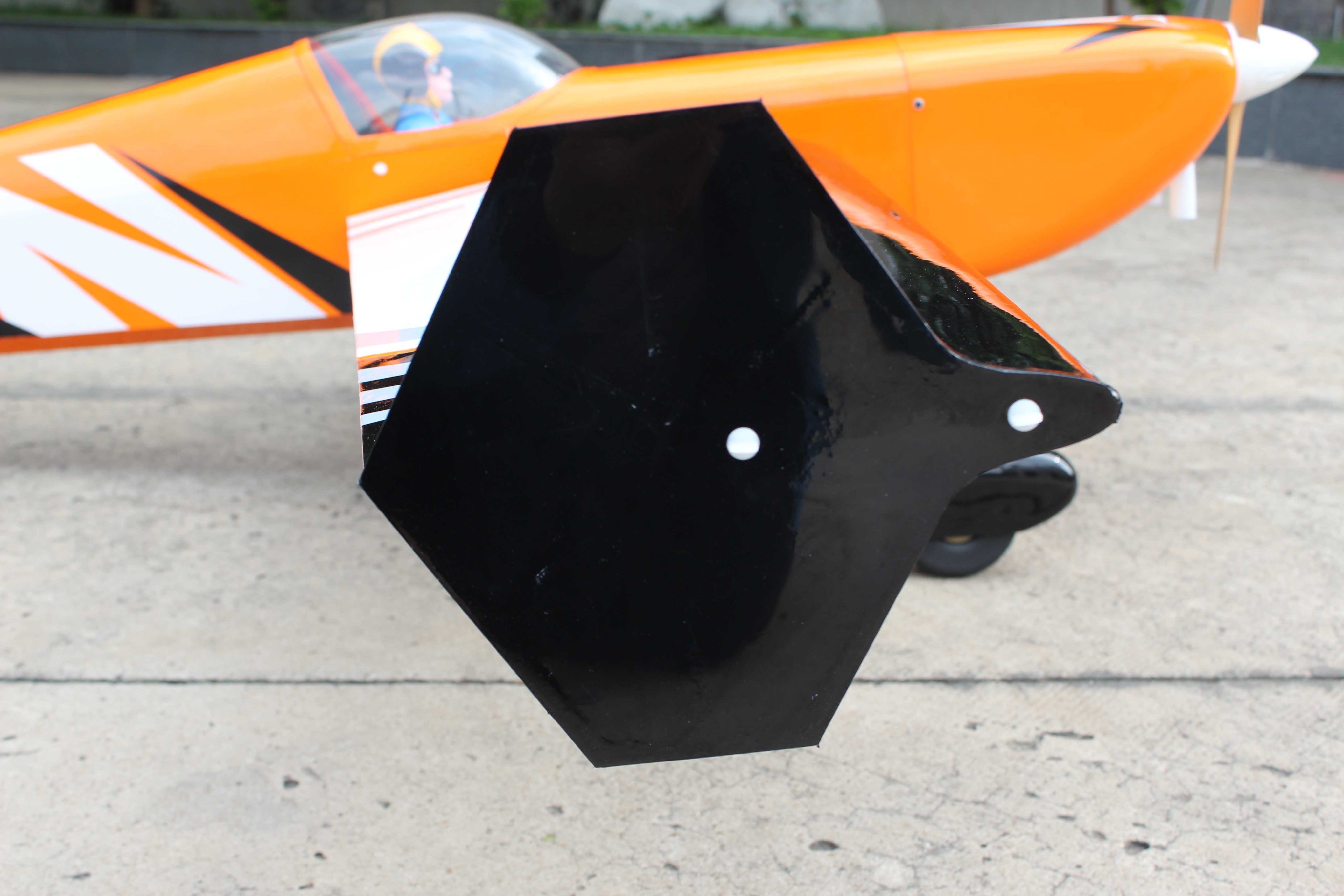

• Add side force generators
• Bigger aileron and elevator

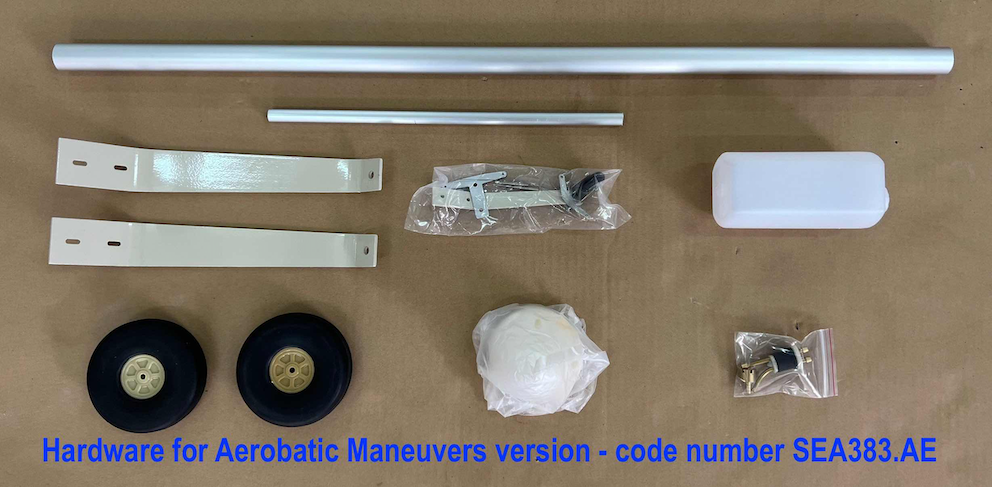

• Standard hardware for Aerobatic version

Specification:

• Wingspan - 77.5"
• Length - 71.0ins (179.0cm)
• Wing area - 1023 sq.ins (66 sq.dm)
• 35-40cc gasoline (Motor: 30-40cc or equivalent electric)
• Approx flying weight - 11.66lbs (5.3kg)
• Radio System required 6 channels with 6 digital servos - 6.5kg/cm.
• Flying skill level Intermediate/advanced.
