TopRC Model F4U Corsair ARF - 93" Giant Scale (Military Blue)

Out of stock
SKU: TopF4UBlue
(1)
$1,845.00

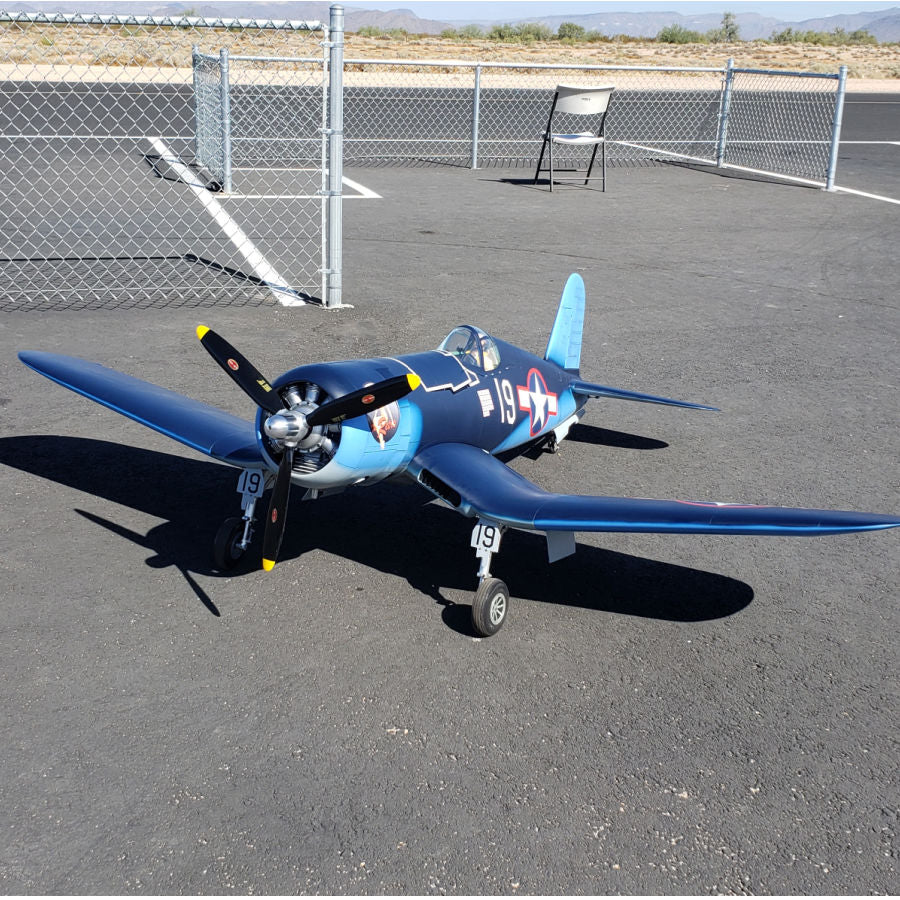

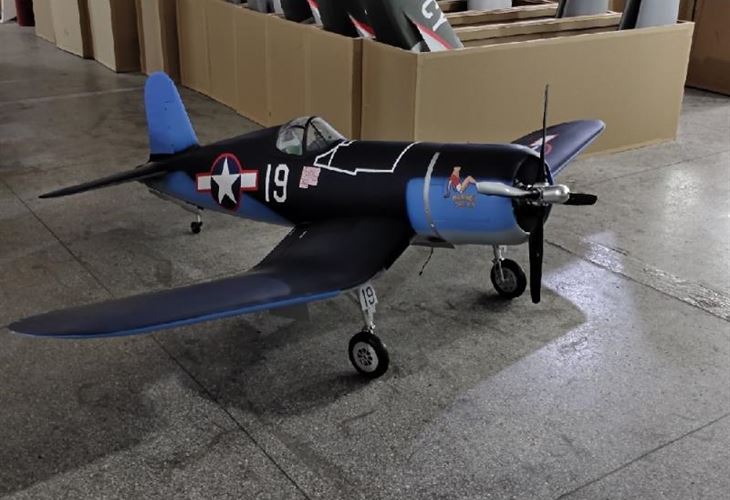

TopRC Model F4U Corsair ARF – 93" Giant Scale (Blue)

Command the skies with the legendary "Whistling Death." The TopRC Model F4U Corsair is a masterpiece of giant-scale engineering, featuring a massive 93-inch wingspan and an exceptionally accurate scale outline. This 60cc–100cc class warbird arrives 95% factory-assembled, providing a premium, high-performance airframe for the serious scale enthusiast.

🛡️ 2021+ Structural Reinforcements

Latest Version: Models produced from September 2021 onwards feature significant airframe upgrades. The center wing section is reinforced with carbon fiber sheets on both sides of the main spar and upgraded to high-strength hard plywood.

Gator-RC Tech Tip: The factory recommends ensuring the center wing spar is glued tightly to the center wing during final assembly for maximum rigidity.

Premium Scale Features

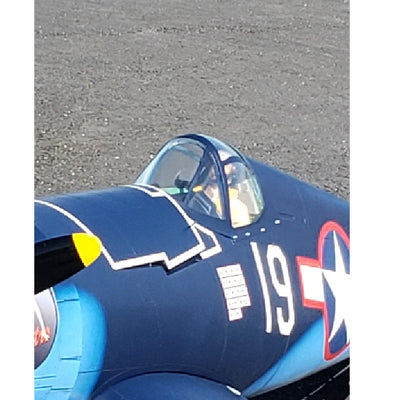

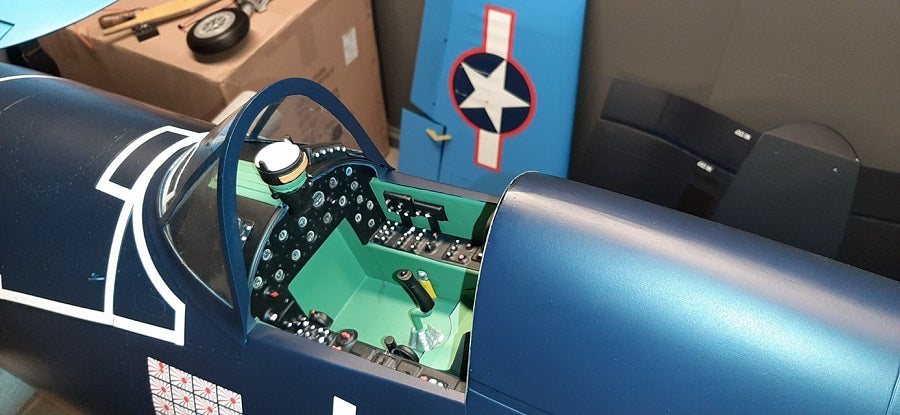

  • Authentic Detail: True scale outline with a full-depth, factory-painted cockpit interior.
  • Performance Flaps: Functional, scale-appearance flaps provide a wide flight envelope and stable, predictable landings.
  • Durable Construction: Composite materials designed to handle 60cc to 100cc gas engines.
  • Operational Gear Doors: Includes full working front and rear landing gear doors for a clean profile in flight.
  • Field Friendly: Detachable main wing and tailplane allow for easier transportation of this massive 93" warbird.
  • Convenient Access: A large removable fuselage hatch allows for effortless accessory adjustments and battery swaps.
View Technical Specifications
  • Wingspan: 93 in (2362 mm)
  • Length: 75 in (1907 mm)
  • Wing Area: 103.19 dm²
  • Estimated Flying Weight: 37 lbs (16.8 kg)
  • Engine Requirement: 60cc - 80cc - 100cc Gas
  • Center of Gravity (C.G): ~155mm from the leading edge at the wing root
🕹️ Servo Configuration (13 Total Servos Needed)

To fully equip this giant-scale Corsair, the following configuration is required:

  • 9 Full-Size Servos: Ailerons (2), Flaps (4), Elevators (2), Rudder (1).
    We highly recommend KingMax KM5325 (Brushless) or KM5514 (Coreless).
  • 4 Mini Servos: Gear Doors (2), Throttle (1), Choke (1).
    We highly recommend the KingMax CLS2875.
📦 What's in the Box?
  • 95% Factory-assembled Composite Airframe
  • Full-depth Painted Scale Cockpit
  • Complete High-Quality Hardware Package (Fiberglass Control Horns & Metal Pushrods)
  • Scale Spinner & Working Landing Gear Doors
  • Full Instruction Manual

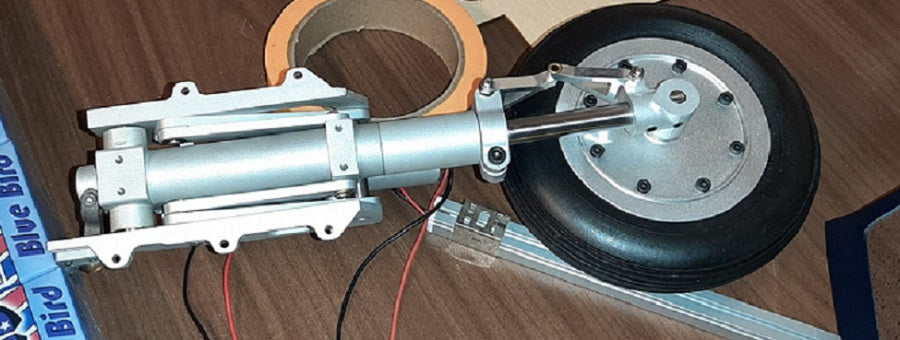

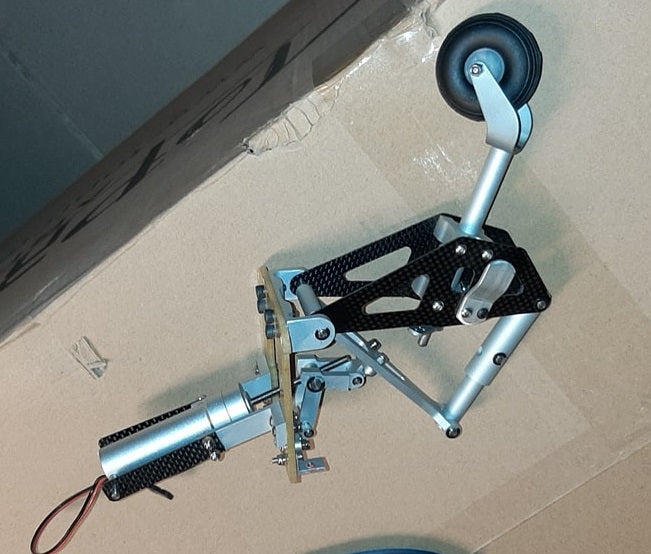

Note: Electric Retracts and Scale Main Wheels are available separately.

The Gator-RC Advantage

At Gator-RC, we are experts in TopRC Model airframes. We stock the specific electric retracts designed for this Corsair and carry a full line of spare parts to keep you flying. When you buy from us, you get the peace of mind that comes with US-based support and giant-scale expertise.
