Falcon 24x20 Carbon Fiber Contra Rotating Front F3A Propeller (C2CR2420F)
Couldn't load pickup availability

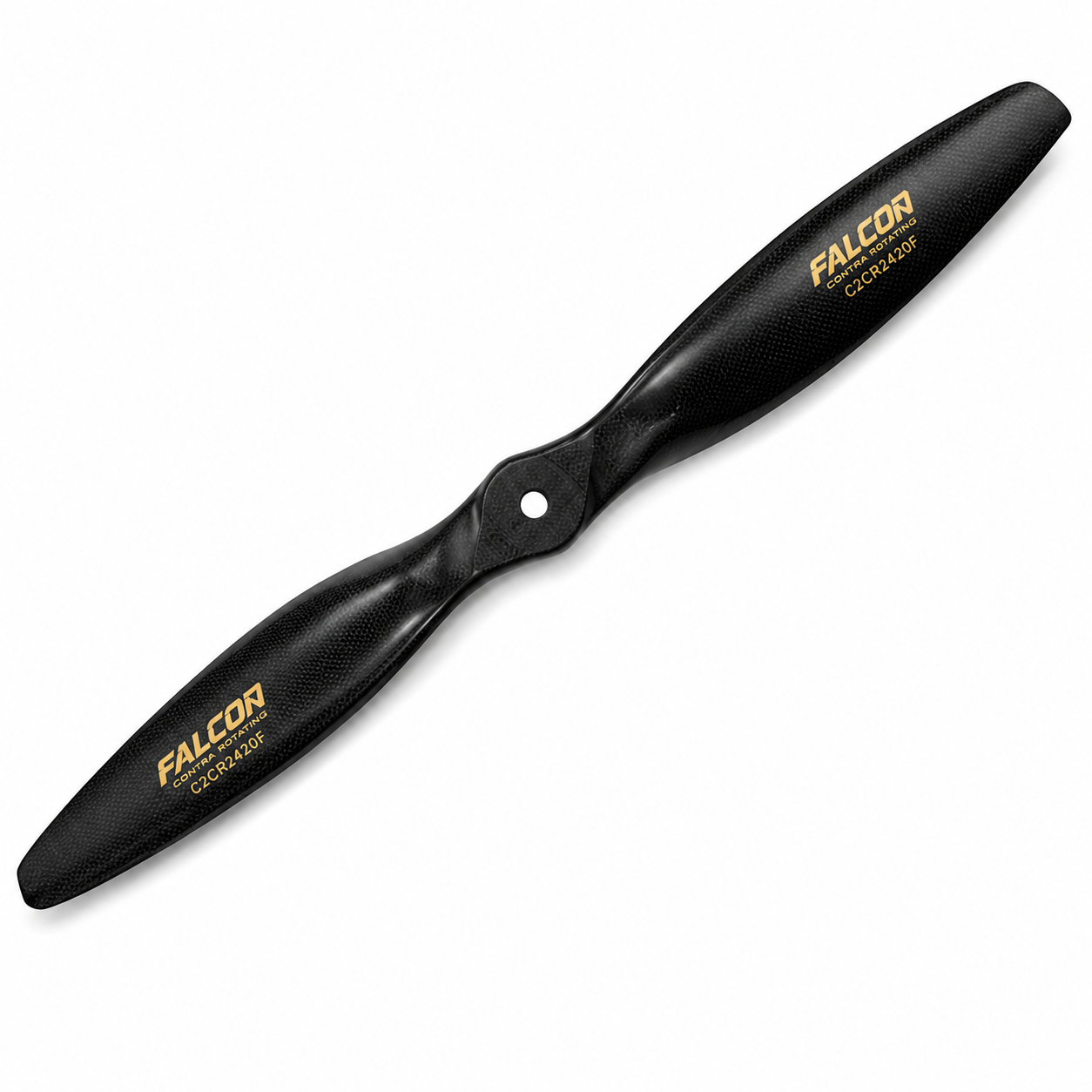

Falcon 24x20 Carbon Fiber Contra-Rotating Front F3A Propeller
The Falcon 24x20 Carbon Fiber Contra-Rotating Front Propeller is engineered for the front (tractor) position of high-performance F3A contra-rotating electric propulsion systems. Its premium carbon fiber construction delivers the stiffness, lightweight performance, and precise tracking demanded by competition pattern pilots.
Each Falcon propeller is handcrafted from premium graphite composite, individually inspected, and factory pre-balanced to provide smooth, consistent performance. Falcon's attention to detail results in outstanding efficiency, crisp throttle response, and dependable flight characteristics.
Important: This listing is for the front (tractor) propeller only, part number C2CR2420F. It is designed specifically for the front position of a compatible contra-rotating propulsion system. The matching rear propeller is sold separately.
Features
- Designed for the front (tractor) position of contra-rotating F3A power systems
- 24 x 20 inch propeller
- Premium hand-laid carbon fiber graphite construction
- Lightweight, rigid design for maximum efficiency
- Individually inspected before shipment
- Factory pre-balanced
- 8 mm center bore
- Competition-grade performance for precision aerobatics
Specifications
| Brand | Falcon |
| Part Number | C2CR2420F |
| Diameter | 24 in (610 mm) |
| Pitch | 20 in (508 mm) |
| Size | 24 x 20 |
| Position | Front (Tractor) |
| Center Bore | 8 mm (0.315 in) |
| Material | Carbon Fiber / Graphite Composite |
| Application | F3A Contra-Rotating Electric Aircraft |
| Quantity | 1 Front Propeller |
Compatibility
Designed for the front (tractor) position of compatible contra-rotating F3A propulsion systems utilizing an 8 mm propeller shaft. Always verify your motor, spinner, and propeller specifications before installation.

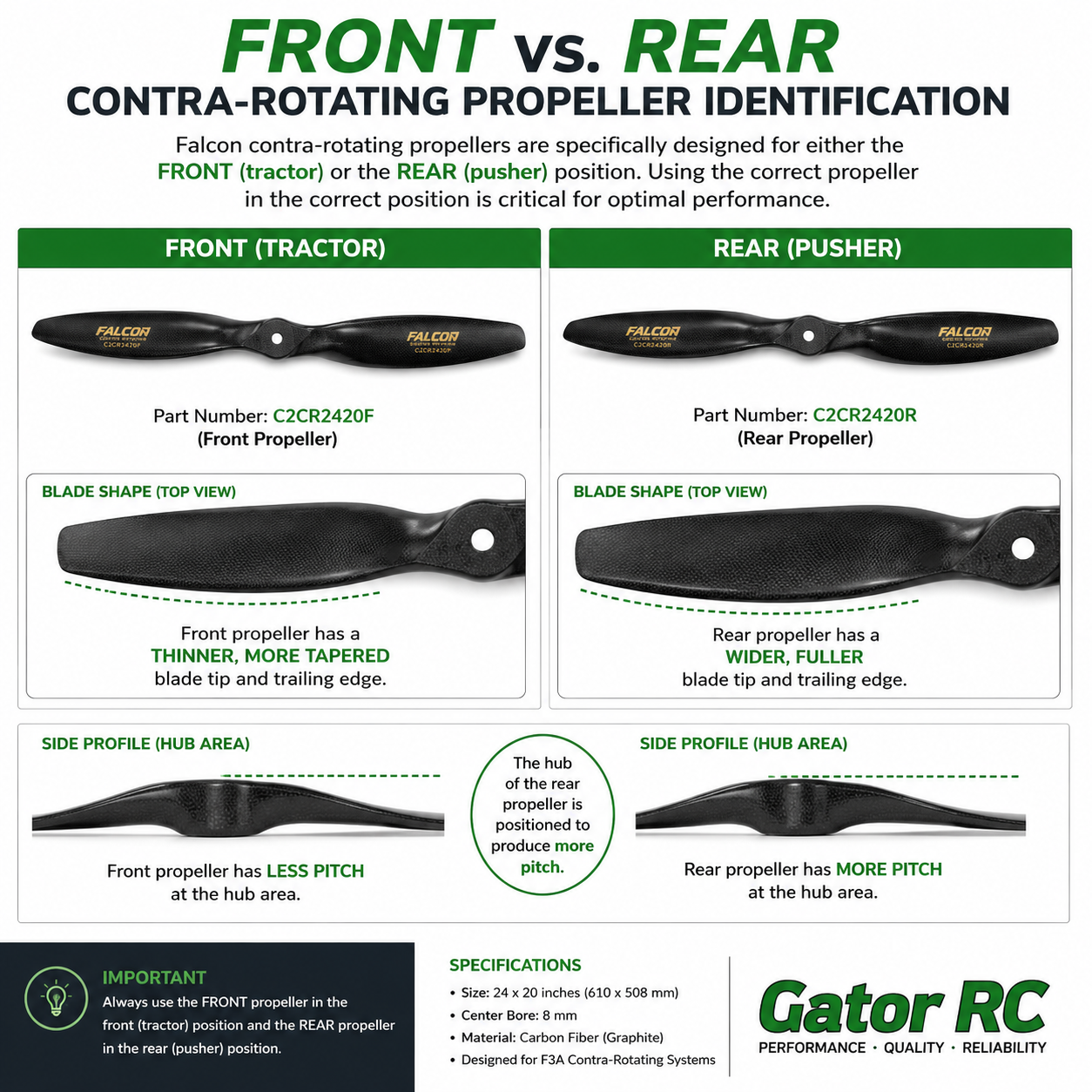

The front and rear propellers are not interchangeable. Proper installation of the correct front and rear propeller pair is essential for safe operation and maximum performance.
Installation & Safety
- Verify this is the correct front propeller for your propulsion system.
- Inspect the propeller before every flight.
- Perform a final balance check before installation.
- Use only the hardware recommended by your contra-drive manufacturer.
- Ensure proper clearance between both propellers, spinner, and fuselage.
- Never operate a damaged, cracked, or unbalanced propeller.
- Follow all aircraft and propulsion system manufacturer's safety recommendations.
Manufacturer Recommendation: Although Falcon propellers are individually inspected and factory pre-balanced, Falcon recommends performing a final balance check before flight after shipping and installation.
Package Includes
- 1 Falcon 24x20 Carbon Fiber Contra-Rotating Front Propeller (C2CR2420F)
Rear propeller, spinner, motor, mounting hardware, and contra-drive system are sold separately unless otherwise noted.
