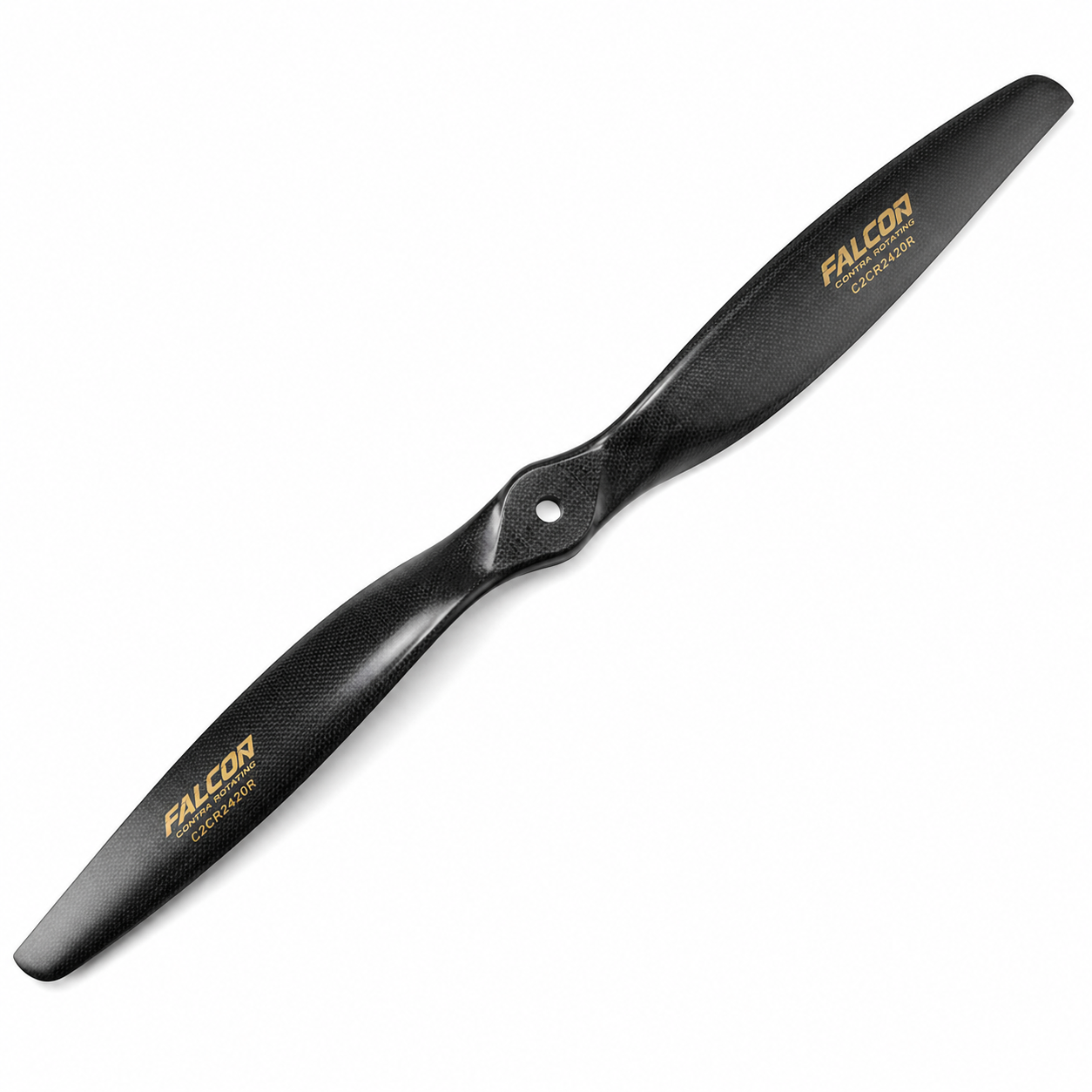

Falcon 24x20 Carbon Fiber Contra Rotating Rear F3A Propeller (C2CR2420R)
Couldn't load pickup availability
Falcon 24x20 Carbon Fiber Contra-Rotating Rear F3A Propeller
The Falcon 24x20 Carbon Fiber Contra-Rotating Rear Propeller is a competition-oriented propeller designed for the rear position of an F3A contra-rotating electric power system. Its lightweight, rigid carbon fiber construction provides the precision and consistency required for demanding pattern-aircraft applications.
Each Falcon propeller is handmade from premium graphite material, individually inspected, and factory pre-balanced. Careful attention is given from the hub to the blade tip to support smooth, efficient, and dependable performance.
Important: This is the rear propeller only, part number C2CR2420R. It is intended for the rear position of a compatible contra-rotating F3A propulsion system. The matching front propeller is sold separately.
Features
- Designed for the rear position of a contra-rotating F3A power system
- 24-inch diameter with 20-inch pitch
- Handmade from premium carbon fiber graphite material
- Rigid, lightweight construction for precision electric-aircraft performance
- Carefully crafted from the hub to the blade tips
- Individually inspected by the manufacturer
- Factory pre-balanced for convenient installation
- 8 mm center bore
Specifications
| Brand | Falcon |
| Manufacturer Part Number | C2CR2420R |
| Propeller Size | 24 x 20 in |
| Diameter | 24 in (610 mm) |
| Pitch | 20 in (508 mm) |
| Propeller Position | Rear |
| Center Bore | 8 mm (0.315 in) |
| Material | Carbon fiber / graphite composite |
| Application | F3A contra-rotating electric aircraft |
| Quantity | 1 rear propeller |
Compatibility
This propeller is designed for the rear position of a compatible contra-rotating F3A propulsion system using an 8 mm propeller mounting arrangement. Confirm the required propeller diameter, pitch, rotation position, bore size, motor specifications, controller specifications, and aircraft clearances before installation.
Do not use this rear propeller as a substitute for the corresponding front propeller. Contra-rotating systems require the correct front and rear propellers to be installed in their designated positions.
Installation and Safety
- Confirm that this is the correct rear propeller for your contra-rotating system.
- Inspect the propeller carefully before every installation and flight.
- Perform a final balance check before use, even though the propeller is factory pre-balanced.
- Verify that the propeller hub seats securely and evenly against the mounting surface.
- Use the mounting hardware and tightening procedure recommended by the drive-system manufacturer.
- Confirm adequate clearance between both propellers, the spinner, the fuselage, and surrounding components.
- Never operate a propeller that is cracked, chipped, damaged, improperly mounted, or out of balance.
- Keep people and loose objects clear of the propeller arc whenever the aircraft is powered.
Balance Notice: Falcon propellers are individually inspected and pre-balanced. However, the manufacturer recommends performing a final balance check before use because shipping and handling conditions cannot be controlled.
Package Includes
- 1 Falcon 24x20 carbon fiber contra-rotating rear propeller
Matching front propeller, motor, contra-drive system, spinner, propeller adapters, and mounting hardware are not included unless specifically stated elsewhere in the product listing.
