Falcon 85mm (3.35") Carbon Fiber 2-Blade Vented Electric Spinner
Falcon 85mm 3.35 inch vented carbon fiber spinner, black, 3-blade, bottom view
Falcon 85mm 3.35 inch vented carbon fiber spinner, black, 3-blade, front view
Falcon 85mm (3.35") Carbon Fiber 2-Blade Vented Electric Spinner
Falcon 85mm 3.35 inch vented carbon fiber spinner, black, 3-blade, bottom view
Falcon 85mm 3.35 inch vented carbon fiber spinner, black, 3-blade, front view
Falcon

Falcon 85mm (3.35") Carbon Fiber 2-Blade Vented Electric Spinner

Only 1 left
SKU: CGS85
(0)
$102.47

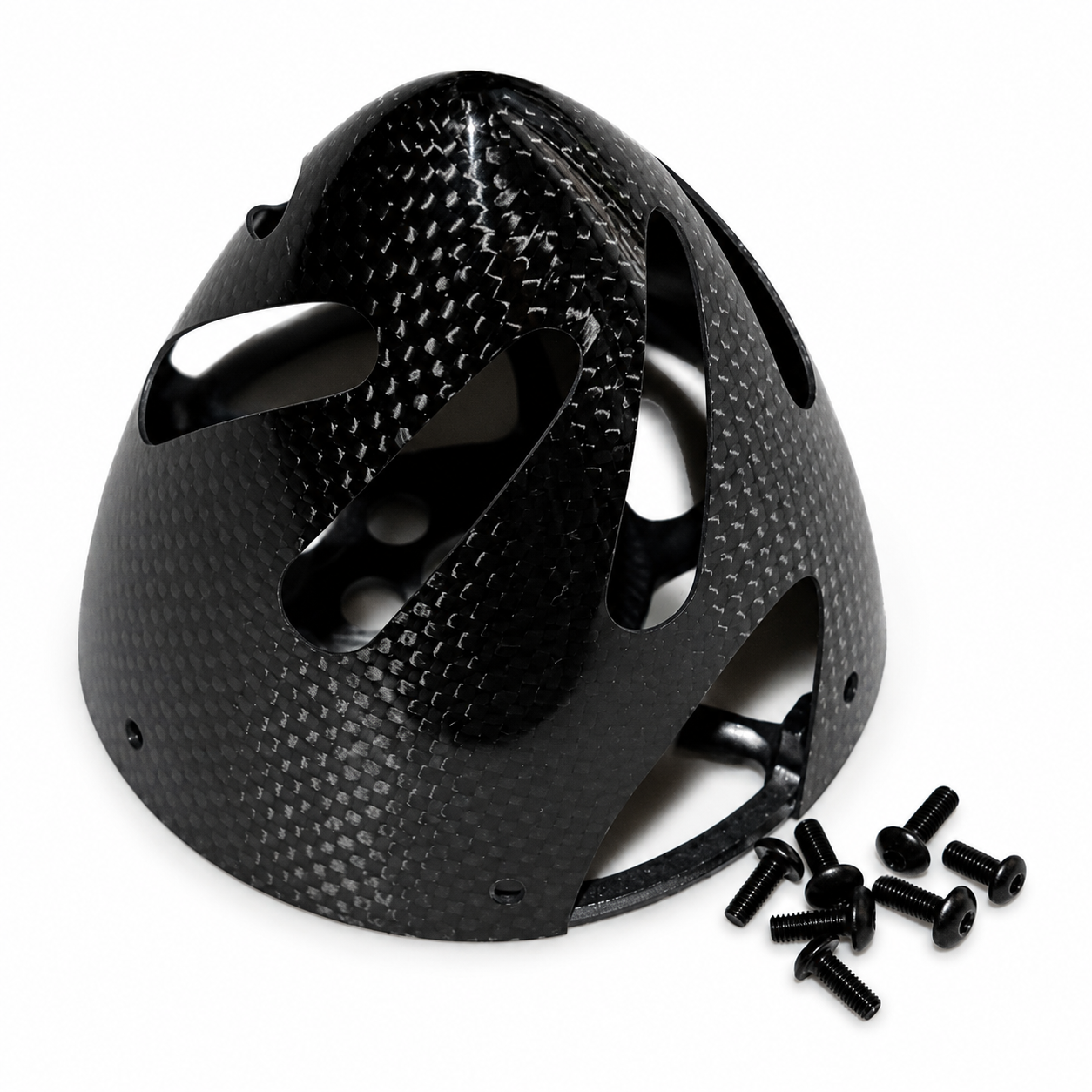

Falcon 3.35" (85mm) Carbon Fiber 2-Blade Vented Electric Spinner

The Falcon 3.35" (85mm) Carbon Fiber 2-Blade Vented Electric Spinner is designed for electric-powered RC airplanes that benefit from lightweight construction and increased cooling airflow.

The carbon fiber spinner cone features pre-cut openings for a 2-blade propeller and front cooling vents that help direct air into the aircraft. Its lightweight CNC-machined anodized aluminum backplate has airflow-supporting arms and is precision drilled to align with the spinner cone and retaining screws.

With its glossy carbon fiber finish, low rotating weight, and vented design, this spinner is an excellent choice for F3A, precision aerobatic, sport, and other high-performance electric RC airplanes.

Key Features

  • Designed specifically for electric-powered RC airplanes
  • Pre-cut for a 2-blade propeller
  • Front cooling vents help direct airflow into the aircraft
  • Lightweight carbon fiber spinner cone
  • CNC-machined, lightened anodized aluminum backplate
  • Backplate arms are shaped to help increase airflow
  • Spinner cone and backplate are precision drilled for the retaining screws
  • Glossy black carbon fiber finish

Specifications

  • Brand: Falcon
  • Manufacturer Part Number: CGS85
  • Spinner Diameter: 3.35" (85mm)
  • Overall Length: 2.87" (73mm), backplate to tip
  • Propeller Configuration: 2-blade
  • Application: Electric RC airplanes
  • Spinner Material: Carbon fiber
  • Backplate Material: Anodized aluminum
  • Weight with Backplate: 0.85 oz. (24g)
  • Included Shaft Insert: 0.315" (8mm)
  • Backplate Center Hole Without Insert: 0.394" (10mm)
  • Color: Gloss black carbon fiber

Package Includes

  • 1 carbon fiber spinner cone
  • 1 anodized aluminum backplate
  • 1 shaft-sizing insert
  • Spinner retaining screws

Important Fit Information

Confirm the aircraft’s required spinner diameter, motor shaft or propeller-adapter diameter, and propeller blade clearance before ordering. Although the blade openings are pre-cut, minor adjustment may be necessary depending on the propeller’s blade-root shape and width.

Modeler’s Tip

Check the balance of the complete propeller and spinner assembly before operation. Proper balance helps reduce vibration and unnecessary stress on the motor and bearings.
