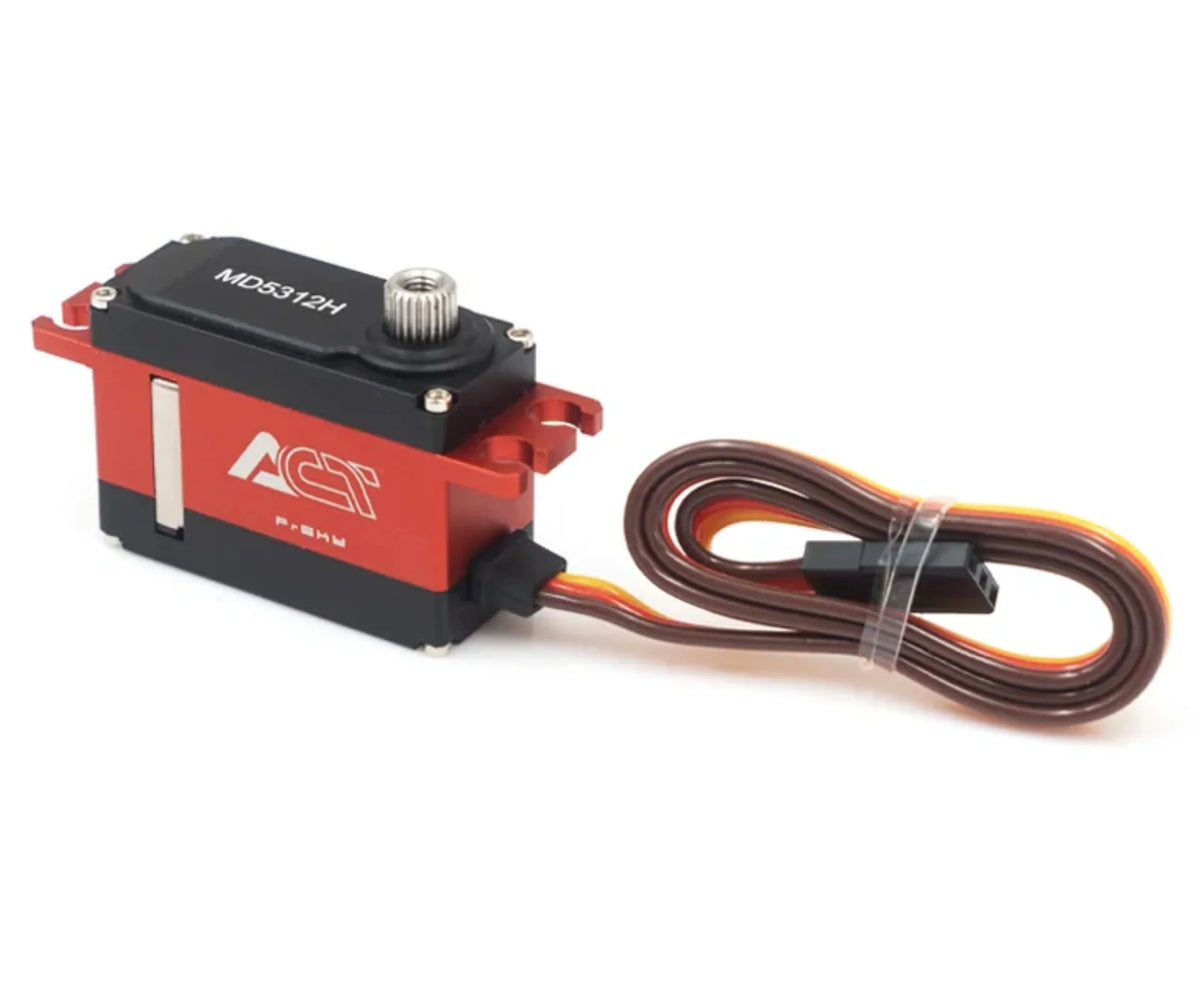

FrSky Xact MD5312H Mini Digital HV Coreless Servo
The FrSky Xact MD5312H is a compact, high-voltage digital servo delivering up to 423.6 oz-in (30.5 kg-cm) of torque with a 0.08 sec/60° transit time at 8.4V. Its combination of high torque, fast response, and a narrow 0.59-inch (15 mm) case makes it well suited to demanding RC aircraft installations with limited mounting space.
The MD5312H uses a responsive coreless motor, durable metal gears, dual precision ball bearings, and a potentiometer position sensor. Its fully CNC-machined aluminum case provides strength, protection, and improved heat dissipation.
🚀 Target Applications:
- RC airplanes, gliders, and helicopters with narrow or compact servo mounting configurations
- Control surface installations demanding high torque and fast response within a mini-size bay envelope
Key Features
- Mini-Size Profile: Features a narrow 15 mm case design that simplifies mounting inside tightly constrained structures.
- CNC-Machined Aluminum Case: Rugged, fully machined aluminum shell optimizes thermal dissipation while providing robust physical protection.
- Coreless Motor Design: Delivers fast transit speeds down to 0.08 sec/60° and excellent holding response over demanding flight paths.
- Durable Metal Gears: Heavy-duty metal gear train backed by dual precision ball bearings prevents deflection and slop under high mechanical loads.
- Standard PWM Operation: Operates on conventional PWM servo signals via a standard 1520μs / 50Hz refresh rate framework.
- Universal 25T Spline: Output shaft features a standard 6 mm diameter, 25-tooth (25T) spline matching popular aluminum servo arms.
📊 Performance Specifications Matrix
| Operating Voltage | Stall Torque | Transit Speed | Stall Current |
|---|---|---|---|
| 6.0V | 338.9 oz-in (24.4 kg-cm) | 0.11 sec/60° | 2.7A |
| 7.4V | 363.8 oz-in (26.2 kg-cm) | 0.09 sec/60° | 3.5A |
| 8.4V | 423.6 oz-in (30.5 kg-cm) | 0.08 sec/60° | 3.9A |
📋 Additional Specifications
| Brand | FrSky |
| Manufacturer Part Number | 03050660 |
| Servo Size / Type | Mini / Digital High Voltage |
| Operating Voltage Range | 4.8V – 8.4V DC |
| Motor / Gear Material | Coreless / Metal |
| Position Sensor | Potentiometer |
| Output Spline Geometry | 6 mm Diameter / 25-Tooth (25T) |
| Dimensions (L × W × H) | 1.40 × 0.59 × 1.00 in. (35.5 × 15 × 25.3 mm) |
| Refresh Rate Window | 1520μs / 50Hz |
| Product Weight | 1.45 oz. (41.15 g) |

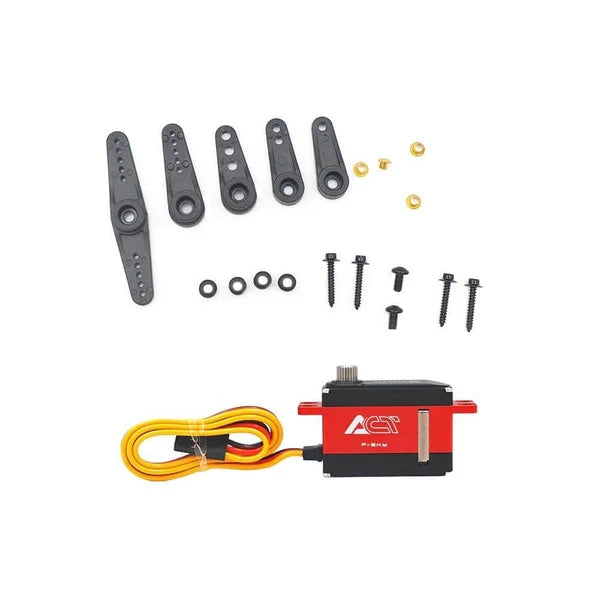

📦 Package Includes:
- 1 × FrSky Xact MD5312H Mini Digital HV Coreless Servo
💡 Modeler’s Guide
- Confirm that the servo size, mounting depth, and output torque are appropriate for your specific aircraft application.
- Set and verify your servo direction, center position, and travel limits before locking down pushrods to prevent binding.
- Secure your final linkages tightly with the aircraft manufacturer's recommended hardware mounting practices.
