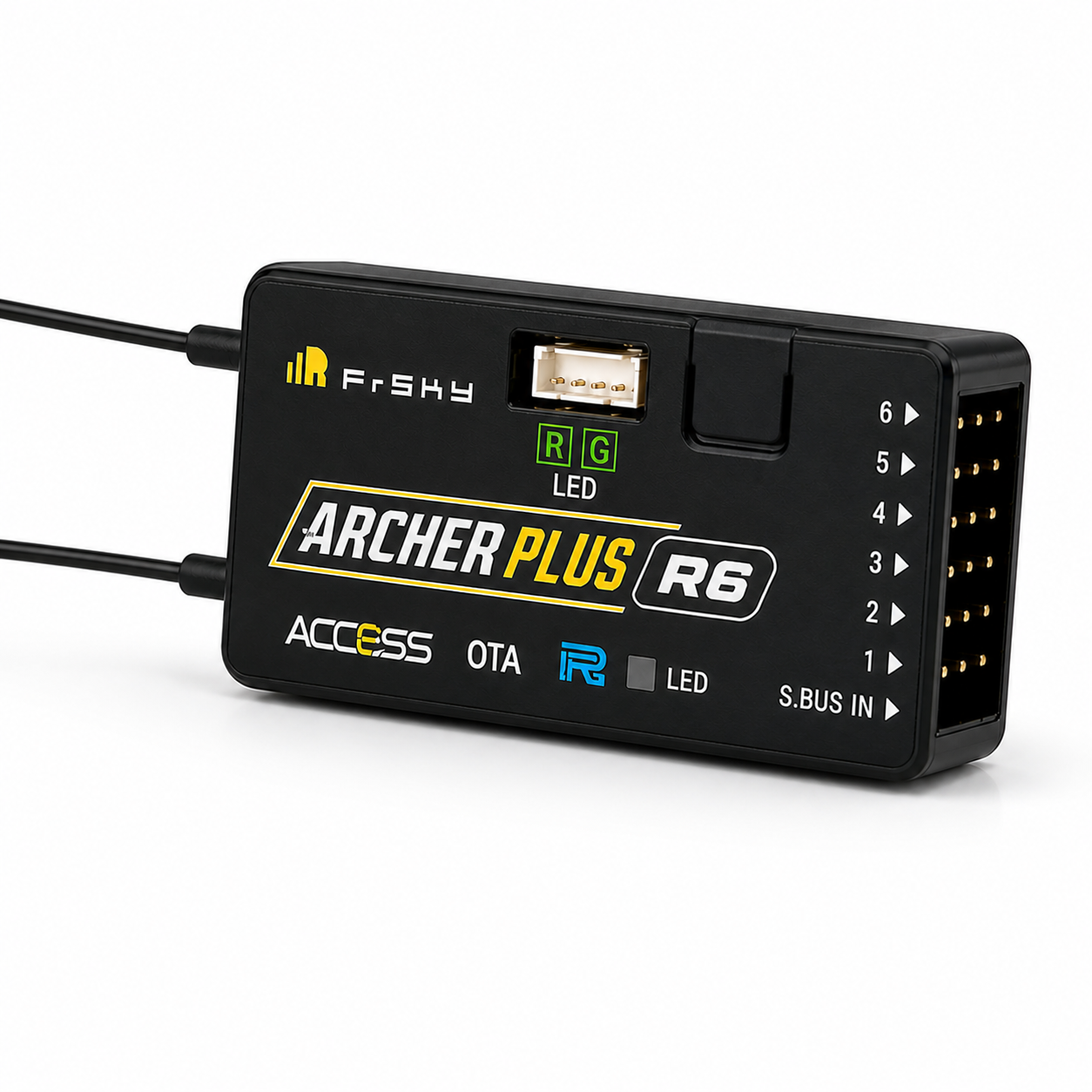

FrSky Archer Plus R6 Receiver – 6CH ACCESS / ACCST Telemetry

In stock
SKU: 03020115
(0)
$34.95

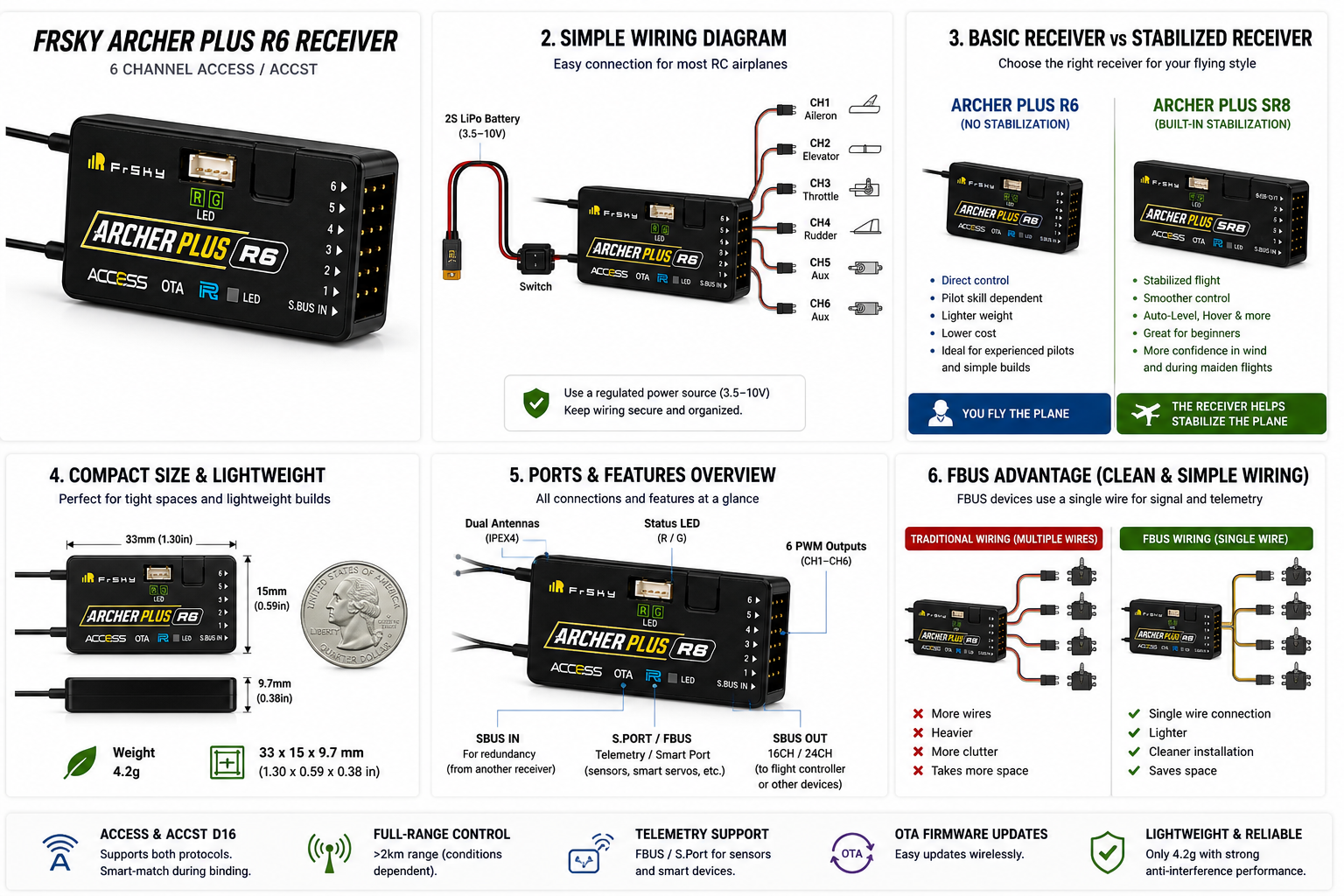

FrSky Archer Plus R6 Receiver – 6 Channel ACCESS / ACCST Telemetry Receiver

The FrSky Archer Plus R6 is a compact 6-channel receiver designed for reliable full-range control in RC aircraft. It supports both ACCESS and ACCST D16 modes, includes telemetry support, and offers SBUS In/Out plus FBUS compatibility for flexible setup options.

Key Features

  • 6 high-precision PWM channel outputs
  • ACCESS and ACCST D16 protocol support
  • Smart-matched protocol selection during binding
  • Enhanced anti-RF-interference performance
  • Full-range control with telemetry
  • SBUS Out supports 16CH / 24CH mode
  • SBUS In supports signal redundancy
  • FBUS / S.Port telemetry support
  • Basic black-box flight data recording
  • OTA firmware updates
  • External battery/device voltage detection
  • Dual detachable antennas with IPEX4 connectors

ACCESS & ACCST D16 Compatibility

The Archer Plus R6 supports both ACCESS and ACCST D16 modes, making it useful for pilots running compatible FrSky transmitters across either protocol. The receiver can smart-match the RF protocol during the binding process for easier setup.

Telemetry & FBUS Support

With FBUS and S.Port support, the Archer Plus R6 can connect to compatible telemetry devices such as sensors, smart servos, and expansion accessories. FBUS helps reduce wiring by allowing compatible devices to use a single line for control and telemetry.

Signal Redundancy Option

The R6 can be used as a primary receiver in a redundant receiver setup by using the SBUS In port with another compatible FrSky receiver that has SBUS Out. This gives advanced builders another option for improving receiver system reliability.

Specifications

  • SKU: 03020115

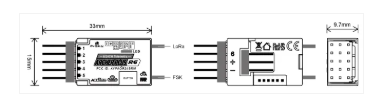

  • Dimensions: 33 × 15 × 9.7 mm
  • Weight: 4.2g
  • Channels: 6 PWM / 16 or 24 SBUS channels
  • Operating Voltage: 3.5–10V
  • Operating Current: <65mA @ 5V
  • Operating Range: >2km full range, conditions dependent
  • Voltage Measurement Range via AIN2: 0–35V, 1:10 divider
  • Antenna Connector: IPEX4
  • Compatibility: FrSky 2.4GHz ACCESS / ACCST D16 capable transmitters

What’s Included

  • FrSky Archer Plus R6 Receiver (×1)

Best Use Applications

  • Sport RC airplanes
  • Gliders and sailplanes
  • Small to mid-size electric aircraft
  • Lightweight builds needing full-range telemetry
  • ACCESS or ACCST D16 FrSky radio setups

Why This Receiver Stands Out

The Archer Plus R6 is a strong choice when you need a small, lightweight, full-range receiver with modern FrSky telemetry support. It is especially useful for gliders, sport aircraft, and builds where space and weight matter.

Modeler’s Tip

Use the Archer Plus R6 when you need a compact receiver with full-range telemetry but do not need built-in stabilization. For stabilized ACCESS setups, step up to the Archer Plus SR8.
