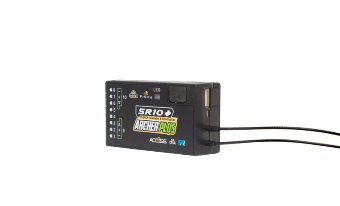

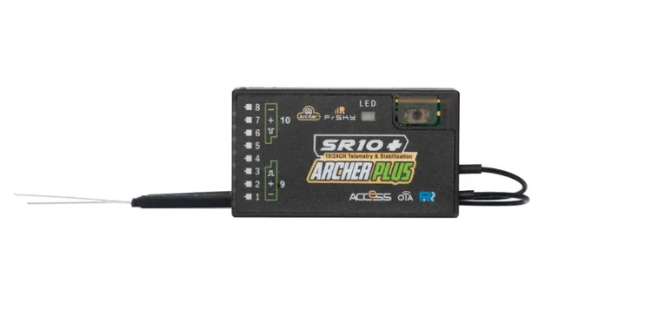

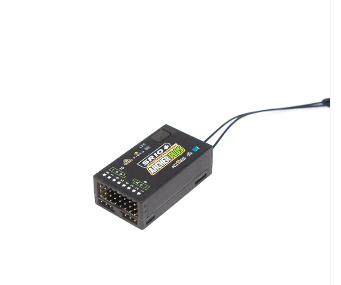

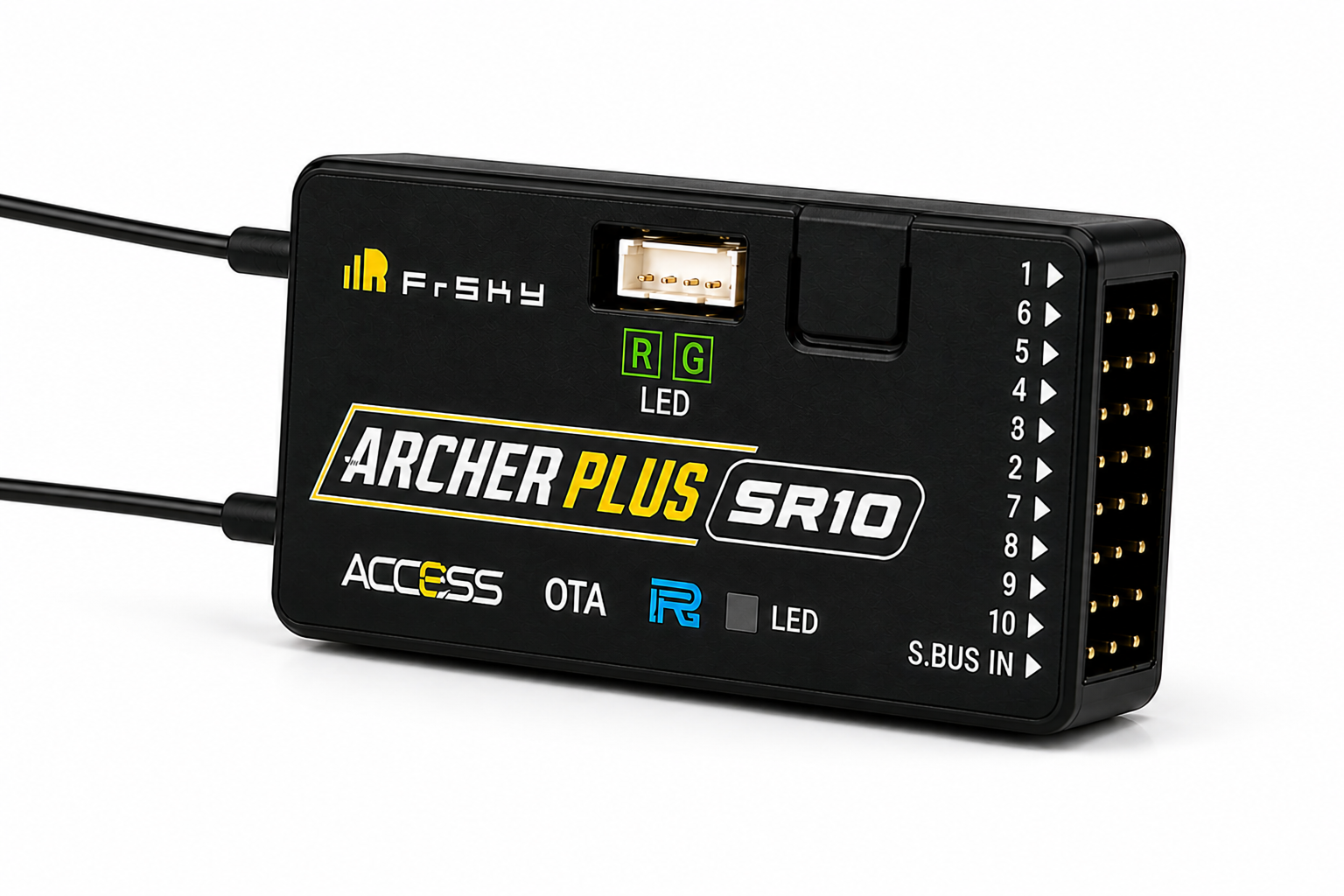

FrSky Archer Plus SR10+ Receiver – 10 Channel Stabilized ACCESS

FrSky Archer Plus SR10+ Stabilized Receiver – 10 Channel ACCESS Gyro Receiver

The FrSky Archer Plus SR10+ is a 10-channel stabilized receiver designed for pilots who want smooth flight performance, flexible setup options, and reliable full-range signal control. Featuring a built-in 3-axis gyro and accelerometer, it eliminates the need for an external stabilization system while keeping installation clean and simple.

Key Features

• Built-in 3-axis gyro and accelerometer stabilization
• ACCESS and ACCST D16 protocol support
• 10 configurable channel ports (PWM, SBUS, FBUS, S.Port)
• Smart protocol matching during binding
• Full-range control with telemetry support
• Dual detachable antennas for reliable reception
• OTA (Over-the-Air) firmware updates
• Black-box flight data recording
• External voltage detection support

Built-In Stabilization (No External Gyro Required)

The SR10+ features an advanced stabilization system with multiple flight modes designed to improve control and reduce pilot workload.

• Auto-Level mode for stable flight
• Stabilization mode for smoother handling
• Knife-edge and advanced flight support
• Adjustable gain and configuration via ETHOS or LUA scripts

Ideal for pilots who want more confidence in the air, especially for larger or more complex aircraft.

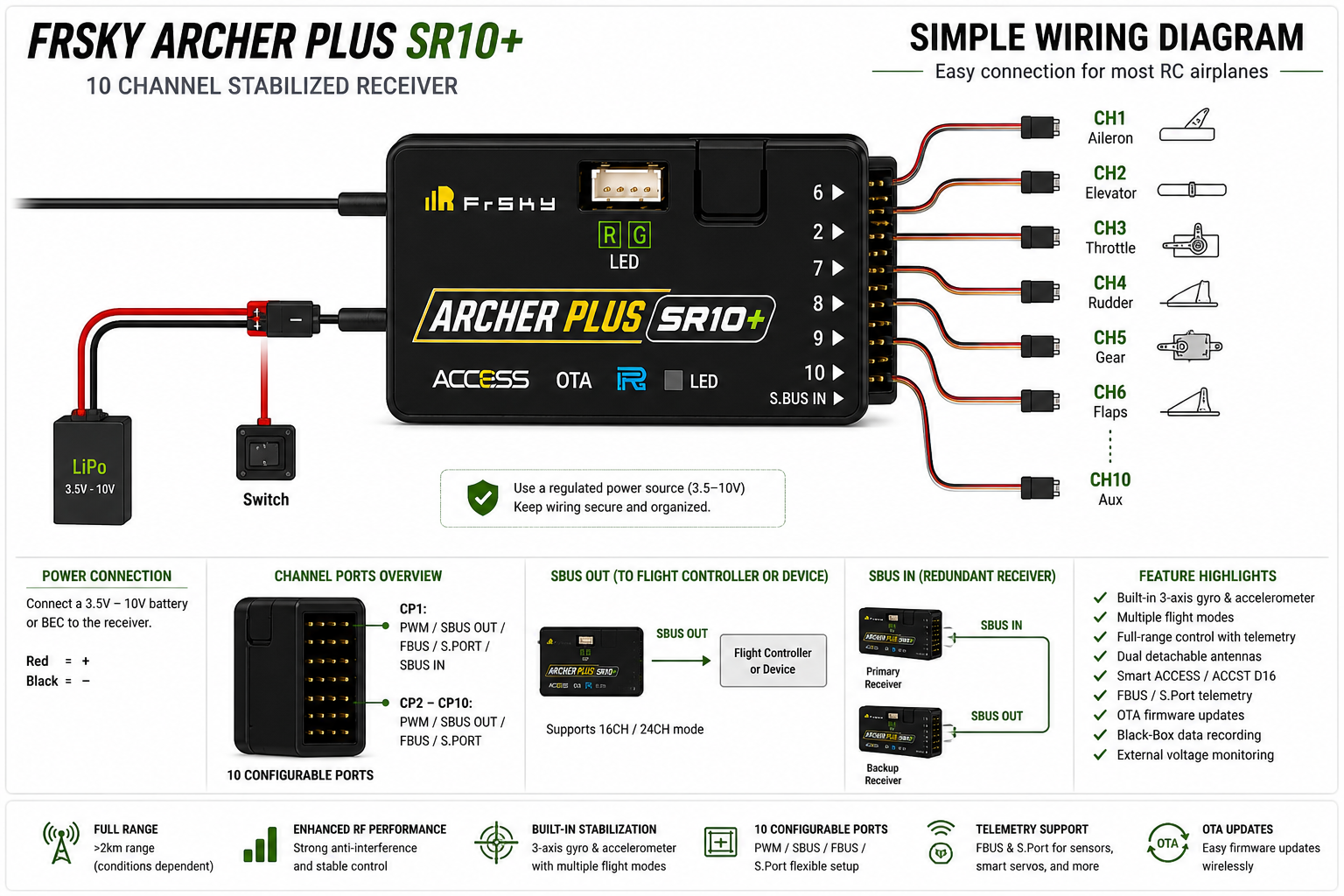

Flexible Channel Configuration

• CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In
• CP2–10: PWM / SBUS Out / FBUS / S.Port

Each port can be configured to match your build, allowing for clean installations and advanced system setups.

ACCESS & ACCST D16 Compatibility

The SR10+ supports both ACCESS and ACCST D16 modes, with automatic protocol matching during binding. This makes it compatible with a wide range of FrSky transmitters.

FBUS & Telemetry Integration

With FBUS support, control signals and telemetry can be combined into a single connection, reducing wiring complexity and improving installation efficiency.

• Supports sensors, smart servos, and telemetry devices
• S.Port compatibility for traditional telemetry setups

Signal Redundancy Option

The SR10+ can be used as a primary receiver in a redundant system by configuring a port as SBUS In and connecting to another compatible receiver.

Specifications

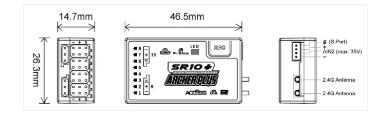

• Dimensions: 46.5 × 26.3 × 14.7 mm
• Weight: 13g
• Channels: 10 configurable ports
• Operating Voltage: 3.5–10V
• Operating Current: <100mA @ 5V
• Control Range: Full range (>2km, conditions dependent)
• Voltage Measurement (AIN2): 0–35V
• Compatibility: FrSky ACCESS / ACCST D16 transmitters

What’s Included

• FrSky Archer Plus SR10+ Stabilized Receiver (×1)

Best Use Applications

• Sport and scale RC airplanes
• Gas and electric aircraft
• Mid to large-size builds
• Pilots wanting stabilization without extra hardware

Why This Receiver Stands Out

The Archer Plus SR10+ offers the perfect balance between size, capability, and simplicity. It delivers stabilization, telemetry, and flexible configuration in one unit, making it ideal for more advanced builds without adding unnecessary complexity.

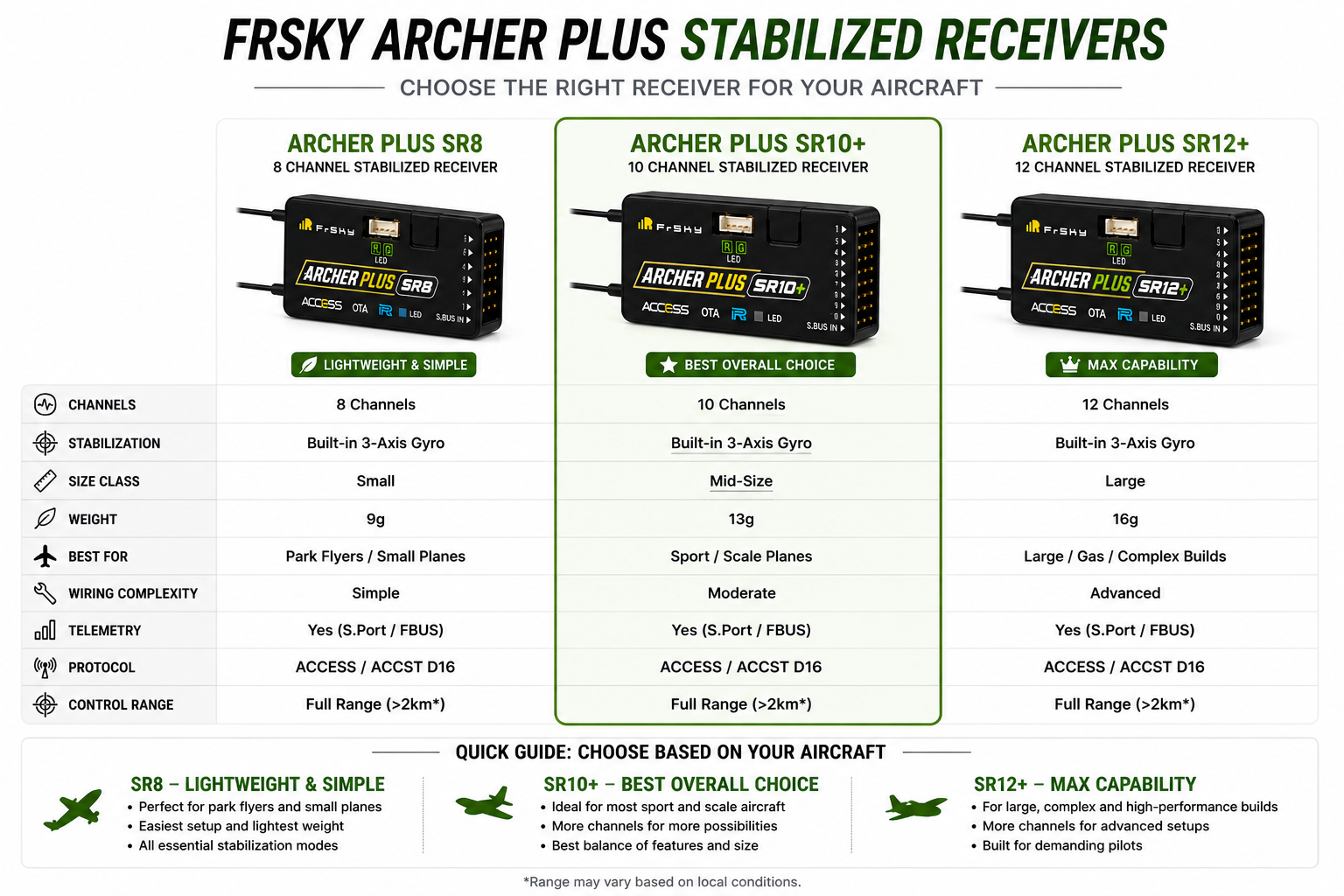

FrSky Archer Plus Stabilized Receiver Comparison

All Archer Plus SR receivers feature built-in 3-axis stabilization, telemetry support, and ACCESS / ACCST compatibility. The main difference is channel count, size, and intended aircraft type.

Quick Recommendation

• SR8: Best for smaller aircraft and simple builds
• SR10+: Best overall choice for most RC airplanes
• SR12+: Best for large or complex aircraft setups

All models include built-in stabilization and telemetry. Choose based on your aircraft size and the number of channels required.

Modeler’s Tip

Use stabilization during initial flights or windy conditions, then fine-tune gain settings for more natural control response as your setup improves.
