FrSky TANDEM X20PRO AW Aero Wing Edition Transmitter

FrSky TANDEM X20PRO AW Aero Wing Edition Transmitter

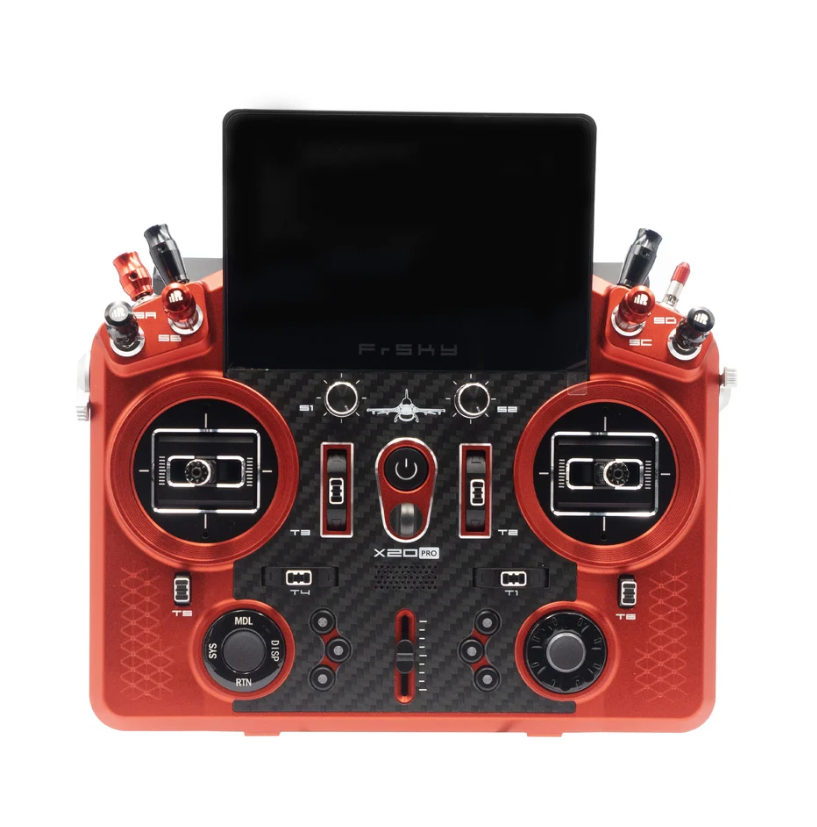

FrSky’s flagship Aero Wing transmitter combines premium CNC construction, flexible controls, dual-band RF performance, and the ETHOS operating system in a radio designed for demanding RC pilots.

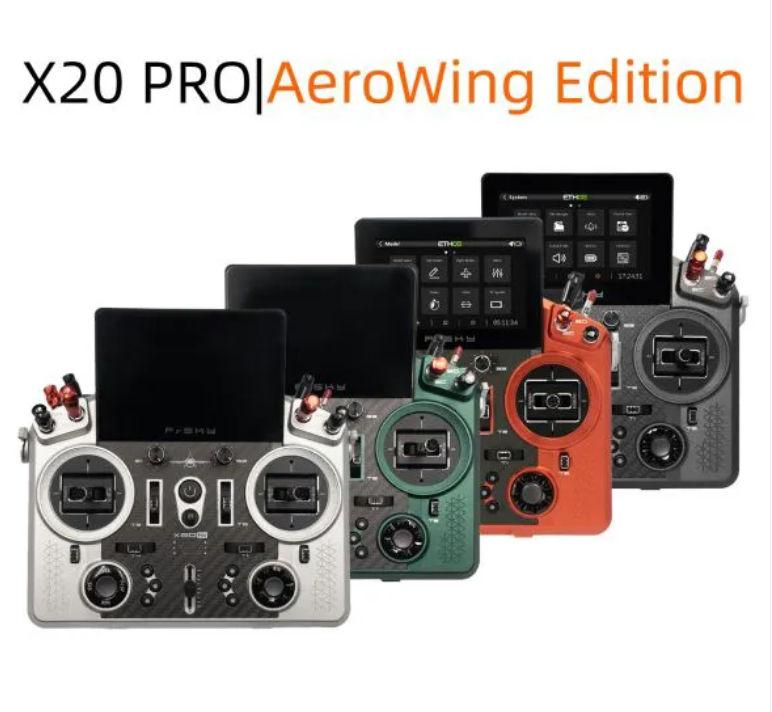

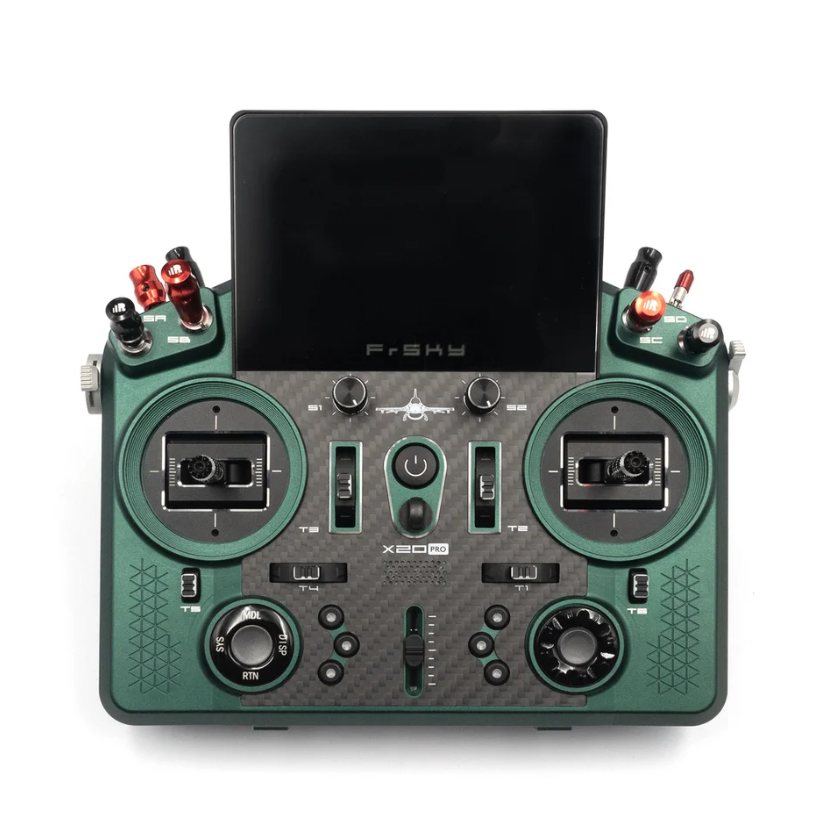

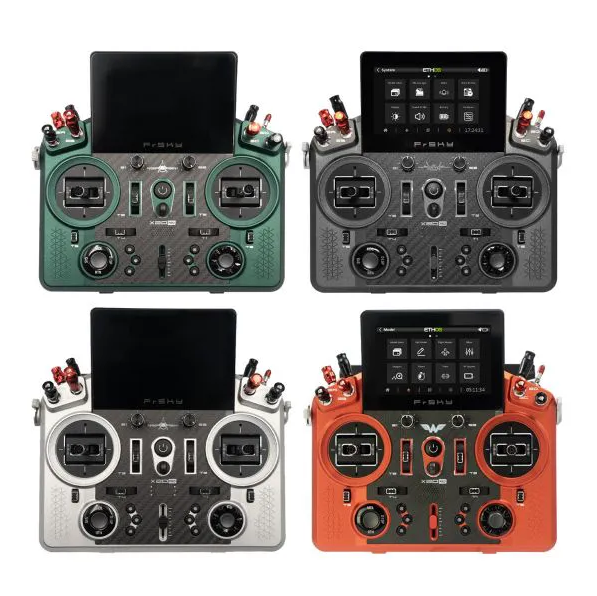

Available colors: Silver, Gray, Blackish Green, and Orange Red. Select your preferred color above.

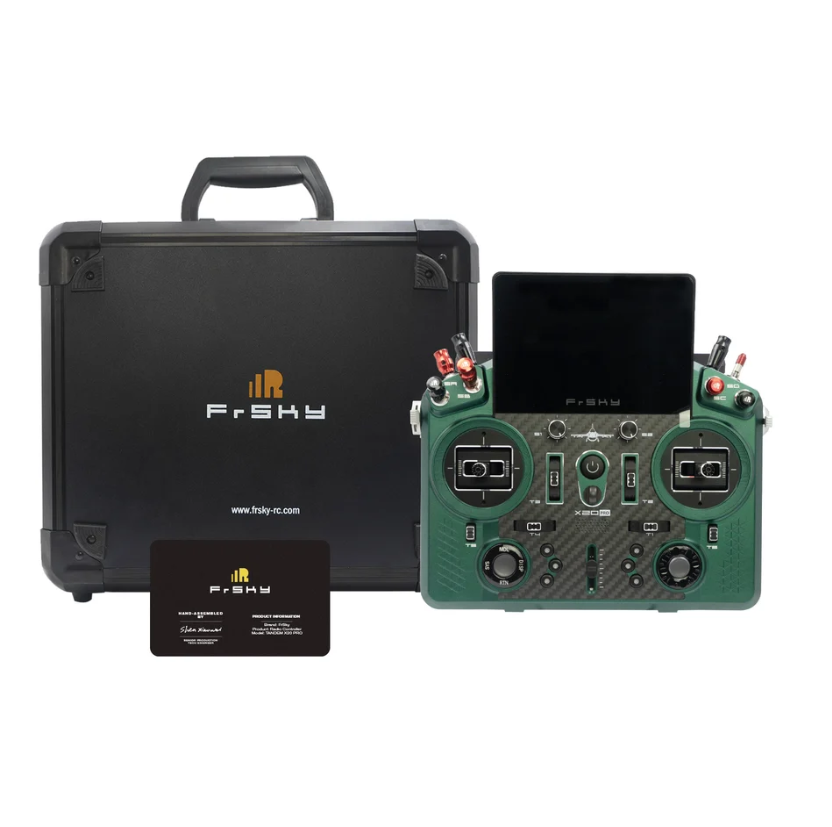

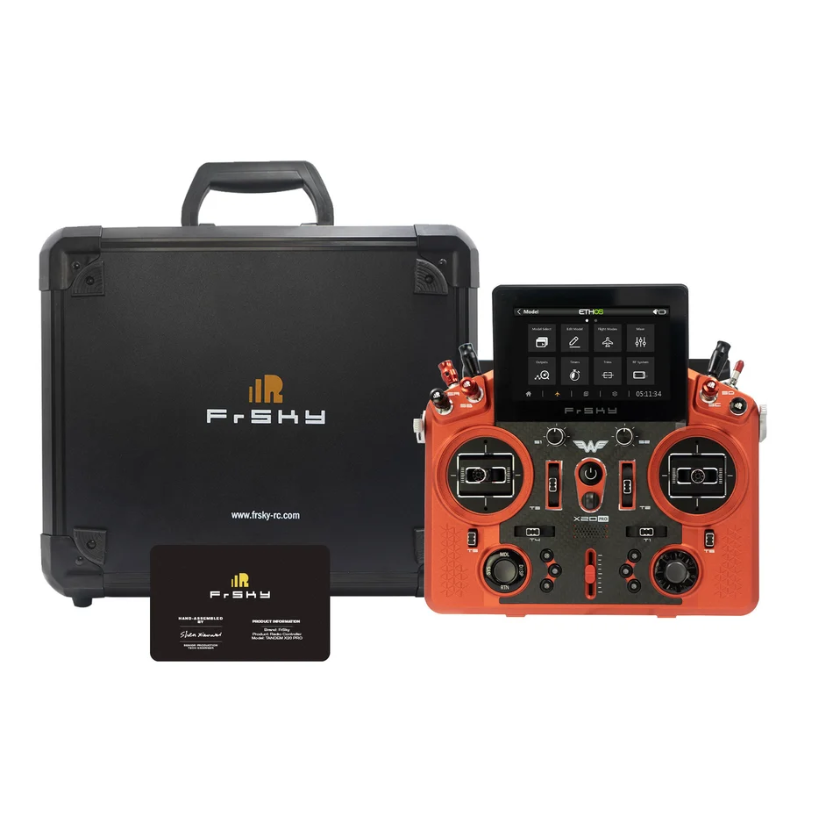

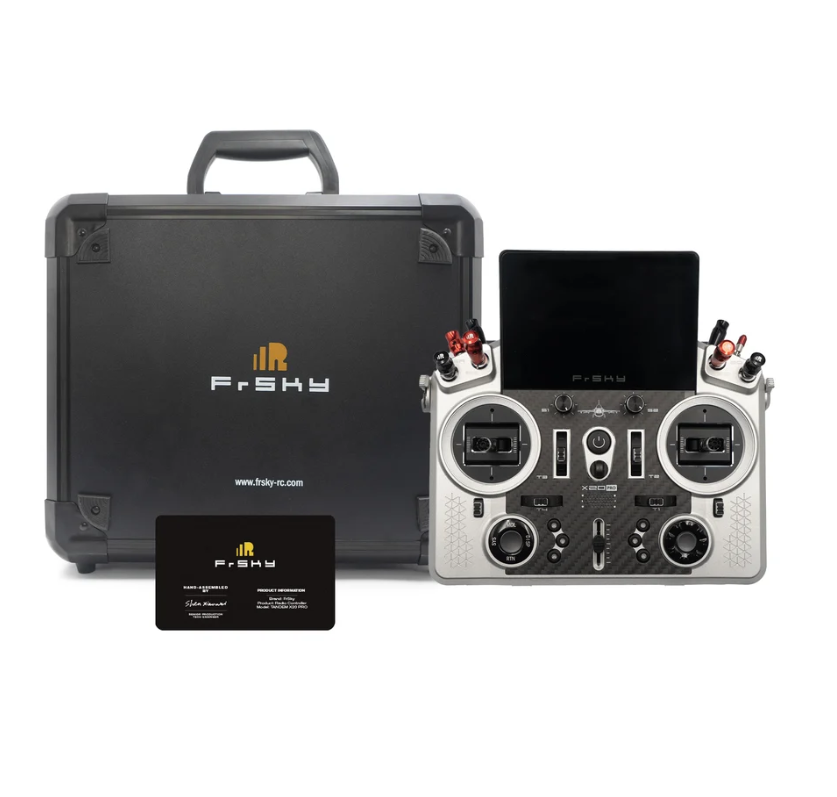

What’s Included

• FrSky TANDEM X20PRO AW transmitter in your selected color
• Metal carrying case
• Accessory pack
• Neck strap
• Matched paperweight etched with the same serial number as the radio

Key Features

• Built-in TD-ISRM Pro dual-band internal RF module
• 900 MHz/2.4 GHz dual-band TD mode
• Dual 2.4 GHz TW mode
• ACCESS 2.4 GHz, ACCESS R9, and ACCST D16 modes
• Low-latency, long-range control with telemetry

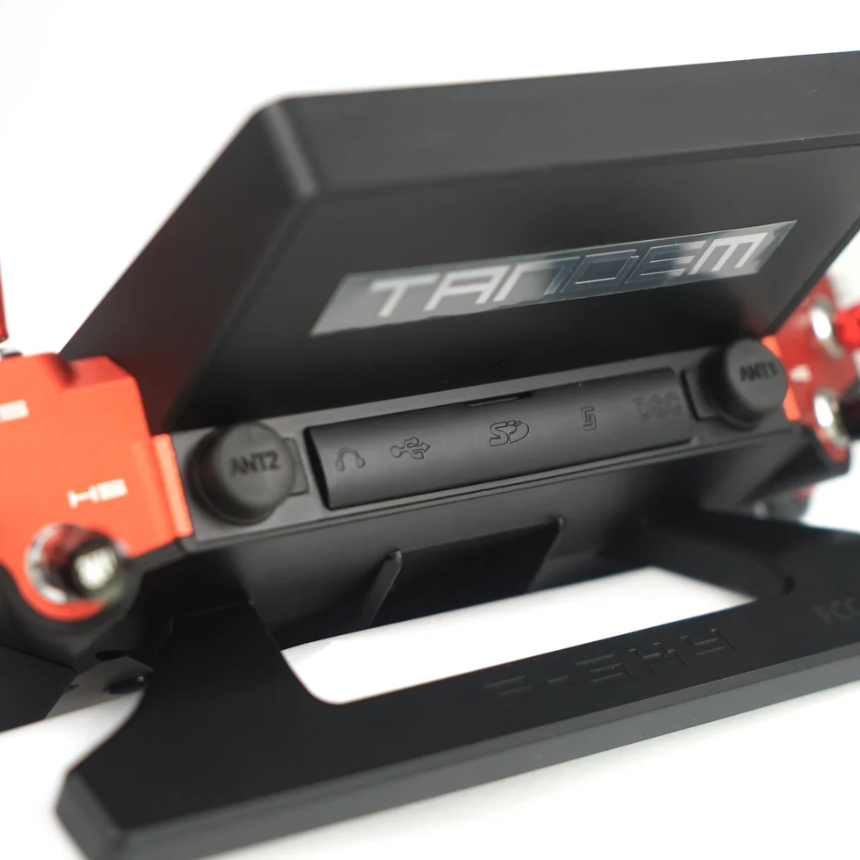

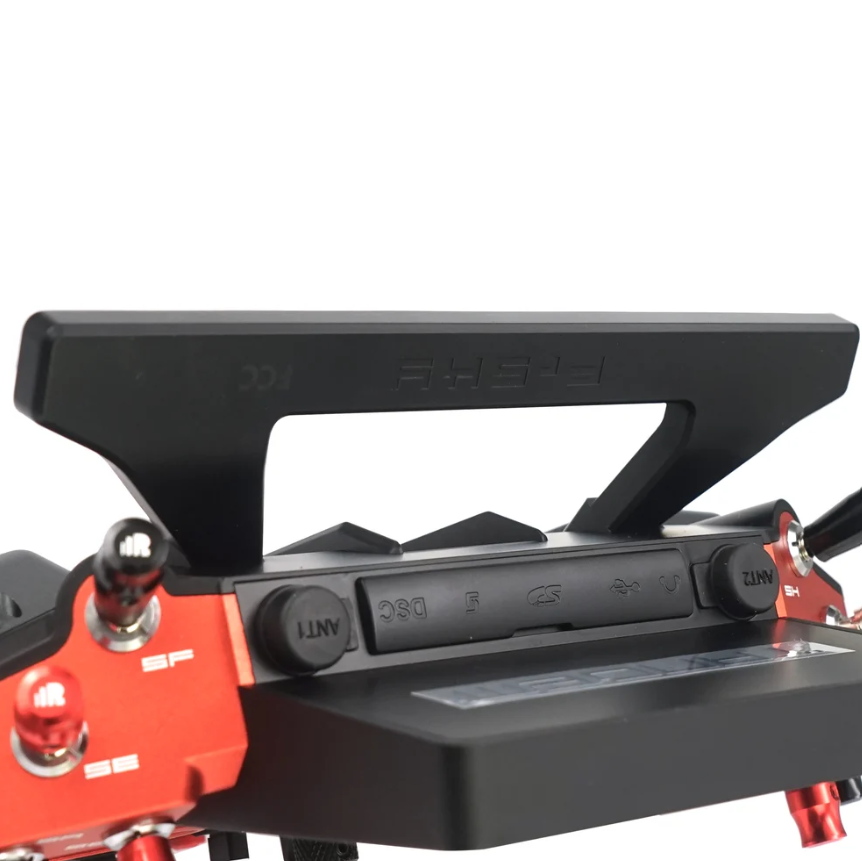

• External 900 MHz and 2.4 GHz antenna connectors for LoRa modes

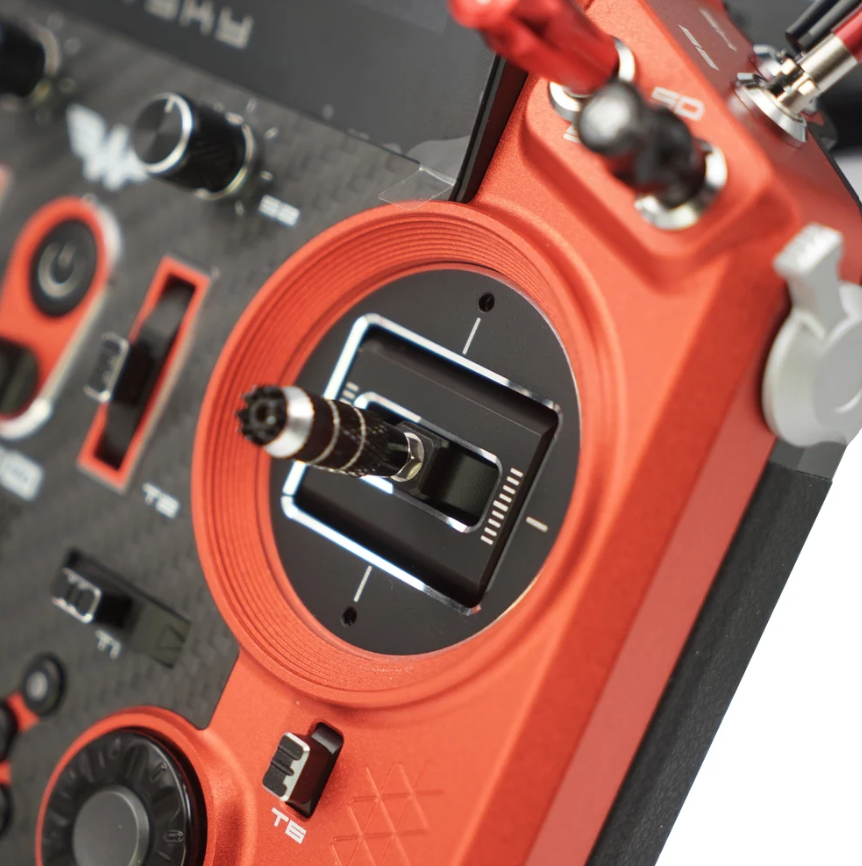

• CNC high-precision Hall-sensor MC20R gimbals with 10 ball bearings
• Independent left- and right-side haptic gimbal feedback
• Tool-adjustable gimbal travel from 45° to 60°
• 8° rotatable gimbal panels
• 800 × 480 outdoor high-brightness touchscreen

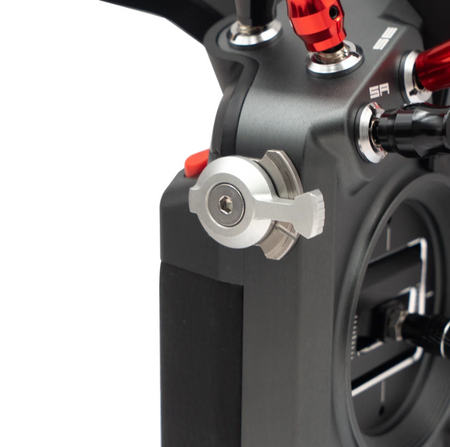

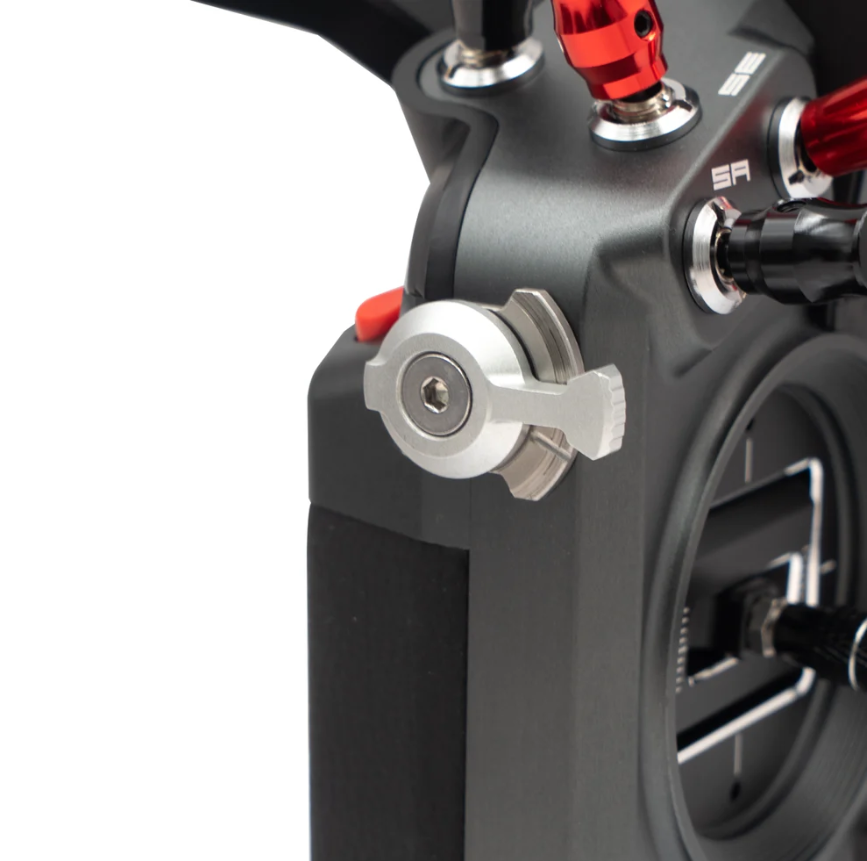

• Multi-position CNC flap slider on the left
• Angle-adjustable CNC extended slider on the right

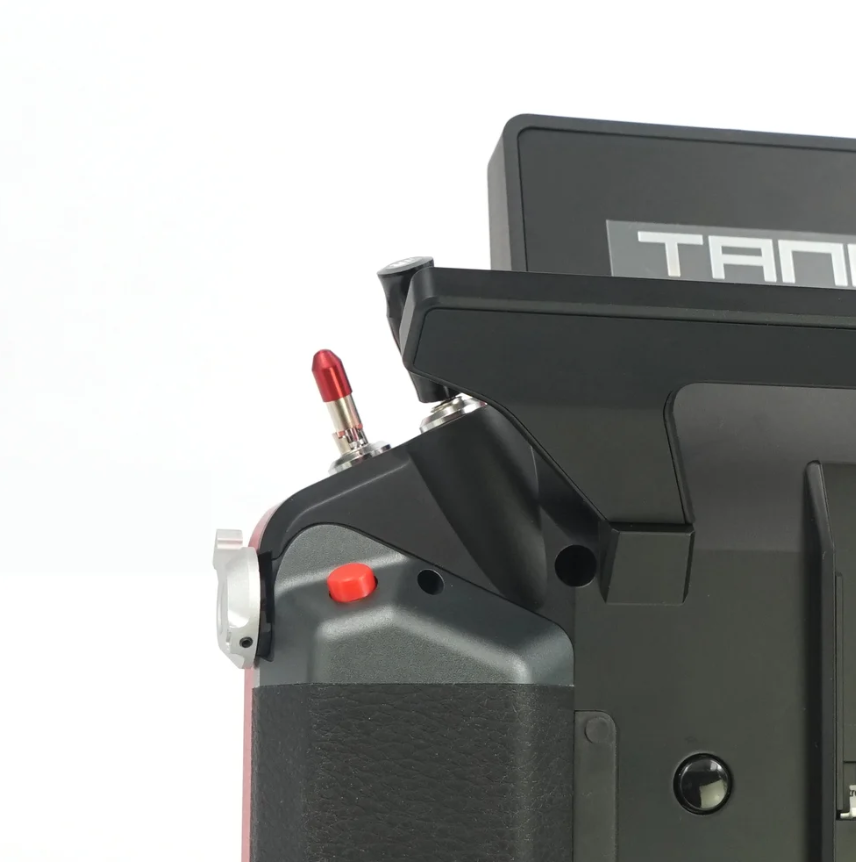

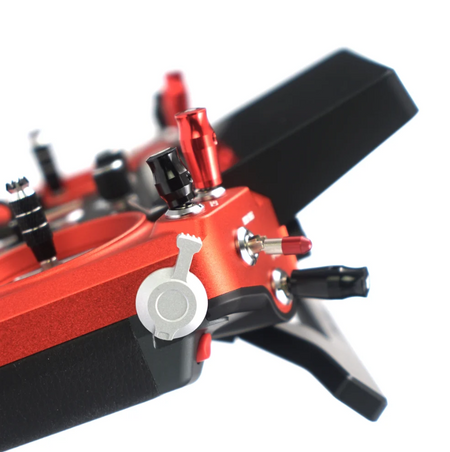

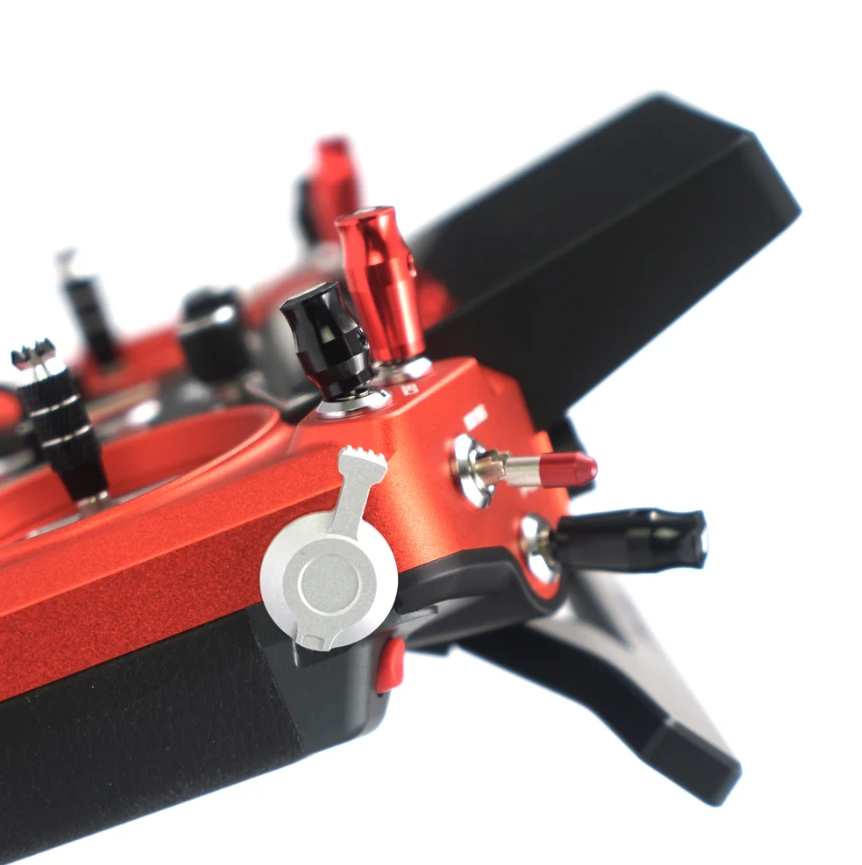

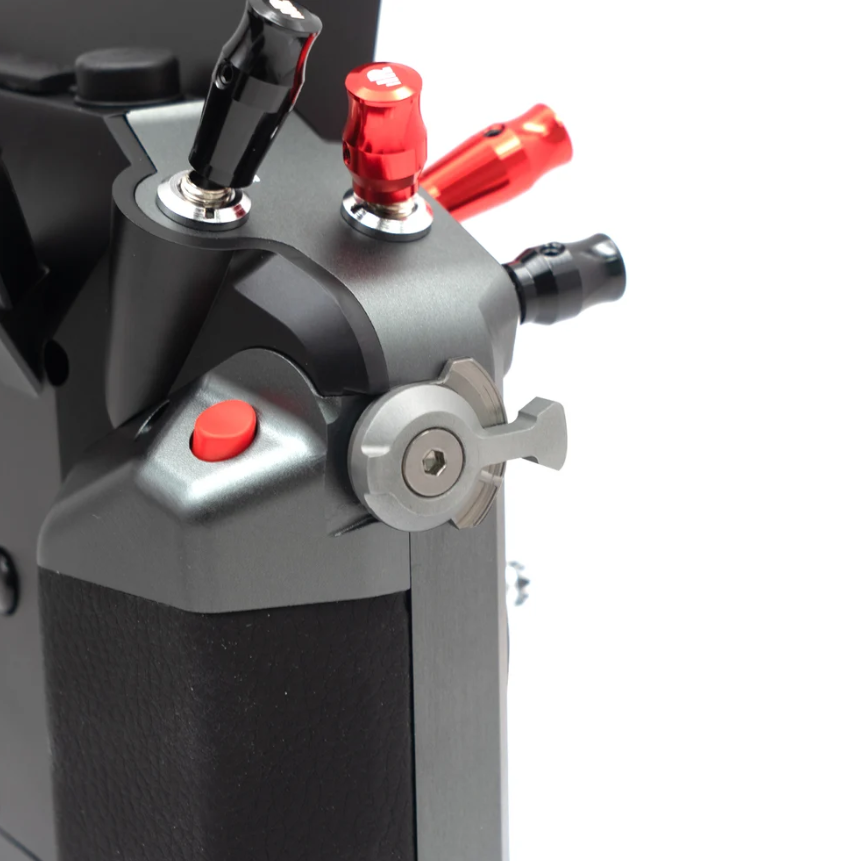

• Two self-locking shoulder buttons and one self-locking shoulder switch

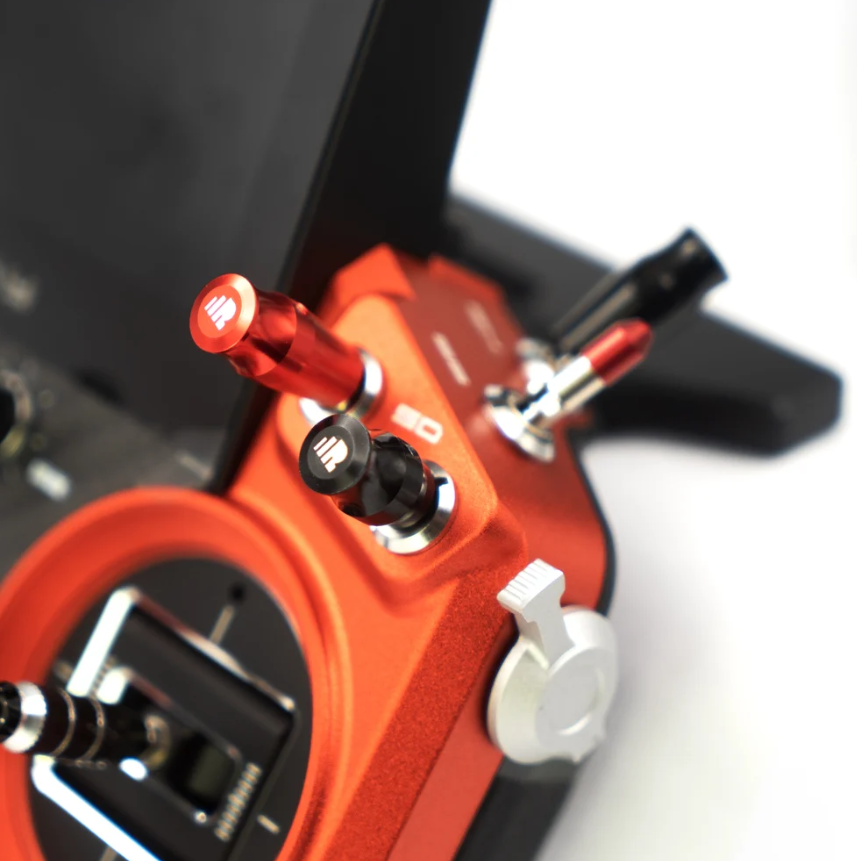

• CNC metal switch, knob, and trim caps
• Six front quick-mode custom buttons and two rear momentary buttons
• CNC-machined metal shell with carbon-fiber center panel
• 8GB built-in flash storage
• Text-to-speech and digital audio power amplifier
• Built-in six-axis gyroscope sensor
• High-speed PARA wireless training system
• Built-in wireless audio module
• Haptic vibration alerts and voice outputs

Technical Specifications

• Dimensions: 7.89 × 8.39 × 3.31 in. (200.5 × 213 × 84 mm)
• Weight: 2.20 lb. (999 g) without battery
• Operating system: ETHOS
• Internal RF module: TD-ISRM Pro
• Channels: Up to 24
• Built-in storage: 8GB
• Operating voltage: 6.5–8.4V with 2S lithium battery
• Operating temperature: 14°F–140°F (-10°C–60°C)
• Typical operating current: 600mA at 7.4V
• Charging current: Up to 1A ±200mA
• Charging: USB-C charging system for a 2S lithium-ion battery
• Display resolution: 800 × 480
• Receiver compatibility: ACCST D16, ACCESS, TD, and TW
• External module bay: Lite type
