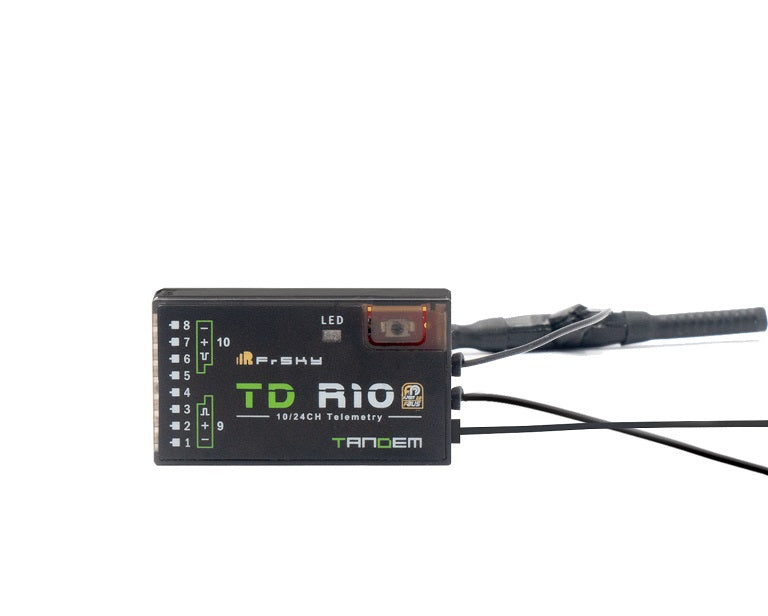

FrSky TD R10 Tandem Dual-Band 10-Channel RC Receiver

The FrSky TD R10 is a compact, high-performance RC receiver that operates simultaneously on both 2.4GHz and 900MHz frequencies. This gives pilots the fast response of 2.4GHz with the added long-range reliability and anti-interference performance of 900MHz in one lightweight receiver.

With 10 configurable channel ports, triple antenna coverage, built-in black box recording, voltage telemetry, FBUS support, OTA firmware updates, and a compact 16.6g design, the TD R10 is an excellent choice for pattern aircraft, aerobatic planes, sport models, gliders, and advanced fixed-wing setups where reliable signal and clean installation matter.

🚀 Target Applications:

  • Pattern aircraft, gliders, and lightweight performance sport planes
  • Advanced fixed-wing setups where installation space and weight matter
  • Pilots seeking Tandem dual-band security in a lighter footprint than the TD R18
⚠ Transmitter Compatibility Alert: The TD R10 requires a FrSky Tandem series transmitter or a TD protocol capable RF module. It is NOT compatible with ACCST-only or standard ACCESS-only radio systems. Always perform a comprehensive range check before your first flight.

Key Features

  • Simultaneous Dual-Band Control: Operates on 2.4GHz and 900MHz bands at the same time for ultimate signal security and anti-interference performance.
  • 10 Configurable Ports: Each individual pin port can be assigned to handle PWM, SBUS Out, FBUS, or Smart Port (S.Port) signaling.

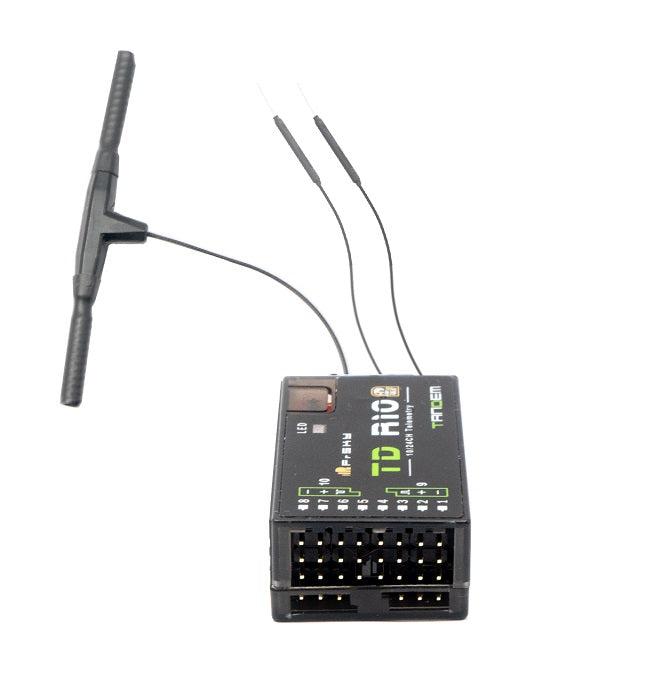

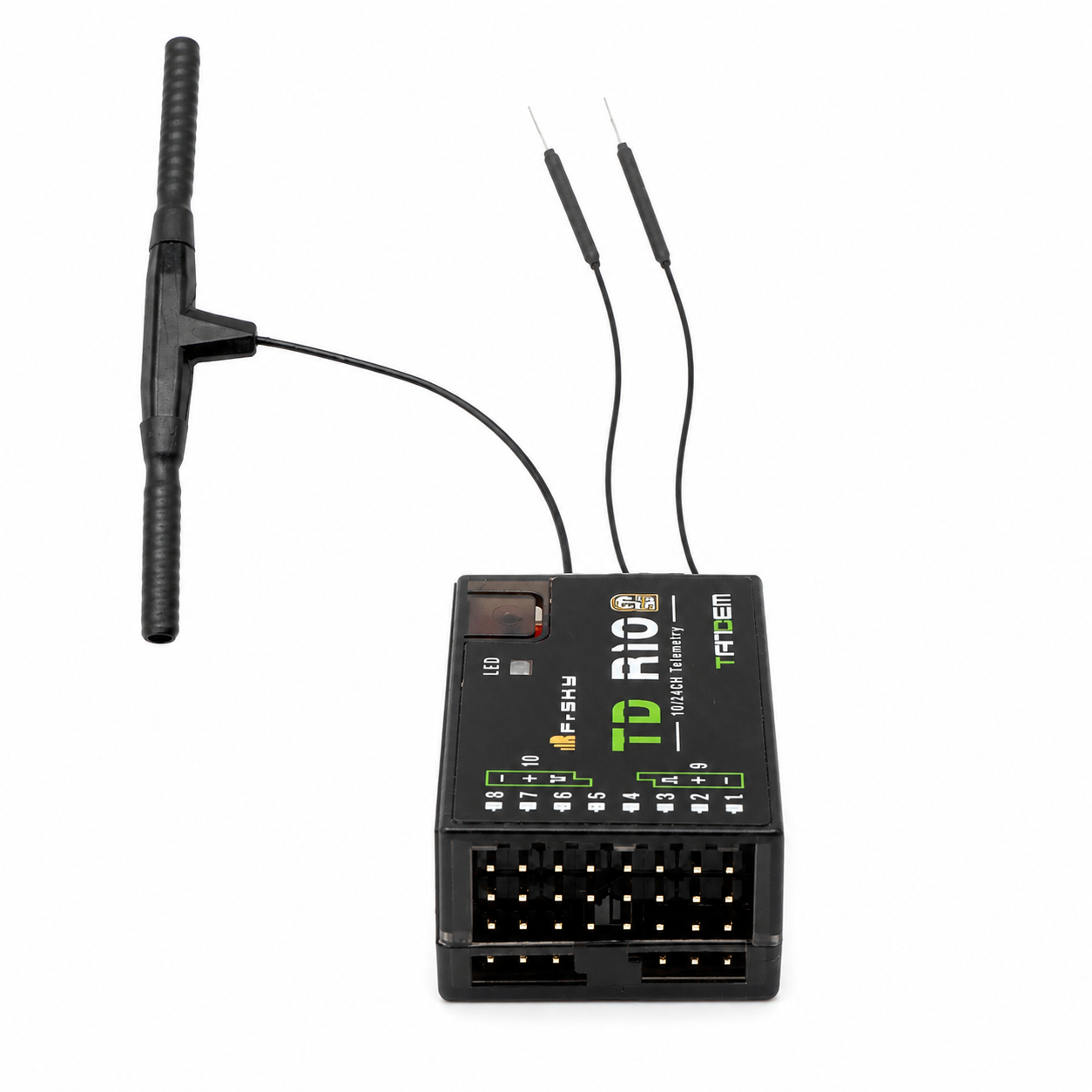

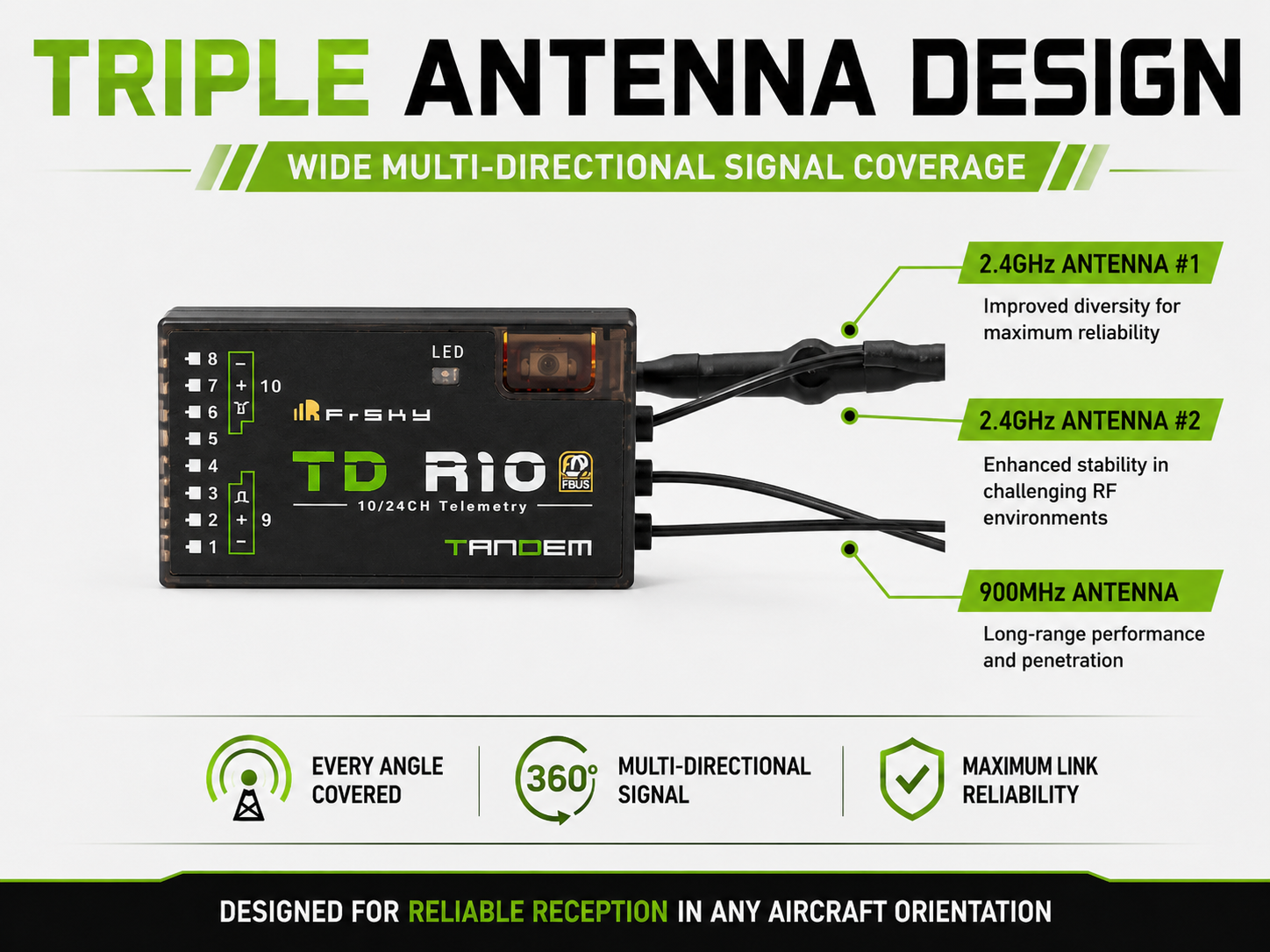

  • Triple Antenna Arrays: Two external 2.4GHz antennas and one external 900MHz antenna deliver wide, multi-directional RF coverage via IPEX1 connectors.
  • Dual Voltage Monitoring: Built-in receiver pack voltage sensor paired with an AIN2 analog input port for external battery tracking (0–35V via a 1:10 divider).
  • Integrated Black Box: Automatically logs critical power levels and signal-related data during unusual conditions for easy post-flight diagnostic review.
  • 4ms Race Mode Latency: Unlocks an optional, hyper-responsive 4ms low-latency protocol mode while completely retaining real-time telemetry output.
  • Over-The-Air Wireless Updates: Wirelessly updates the internal receiver firmware without needing to pull the unit out of tight airframe bays.

🎛 Channel Port Signal Mapping:

  • CP1 Port: Multi-functional rail supports PWM / SBUS Out / FBUS / S.Port, or **SBUS In** for receiver redundancy configurations.
  • CP2 through CP10 Ports: Independently assignable to run standard PWM, SBUS Out, FBUS, or S.Port smart sensor lines.
View Technical Specifications
Manufacturer / Model: FrSky TD R10
Receiver Classification: Tandem Dual-Band Long-Range Telemetry Receiver
Frequencies Supported: 2.4GHz and 900MHz Simultaneous Dual-Band
Physical Output Ports: 10 Configurable Pin Channels (10 / 24CH Capability)
Operating Voltage Range: 3.5V – 12V DC Input (Supports direct high-voltage paths)
Operating Current: ≤180mA @ 5V
Per-Port Load Limits: 3A Continuous / 5A Instantaneous Peak Current per port
Analog Voltage Port: 0–35V Range via AIN2 (Requires 1:10 battery voltage divider)
Antenna Architecture: 2x External 2.4GHz elements, 1x External 900MHz element (IPEX1 Connectors)
Protocols Supported: PWM, SBUS In/Out, FBUS, Smart Port (S.Port)
Firmware Architecture: OTA (Over-The-Air) Wireless Flash Capable

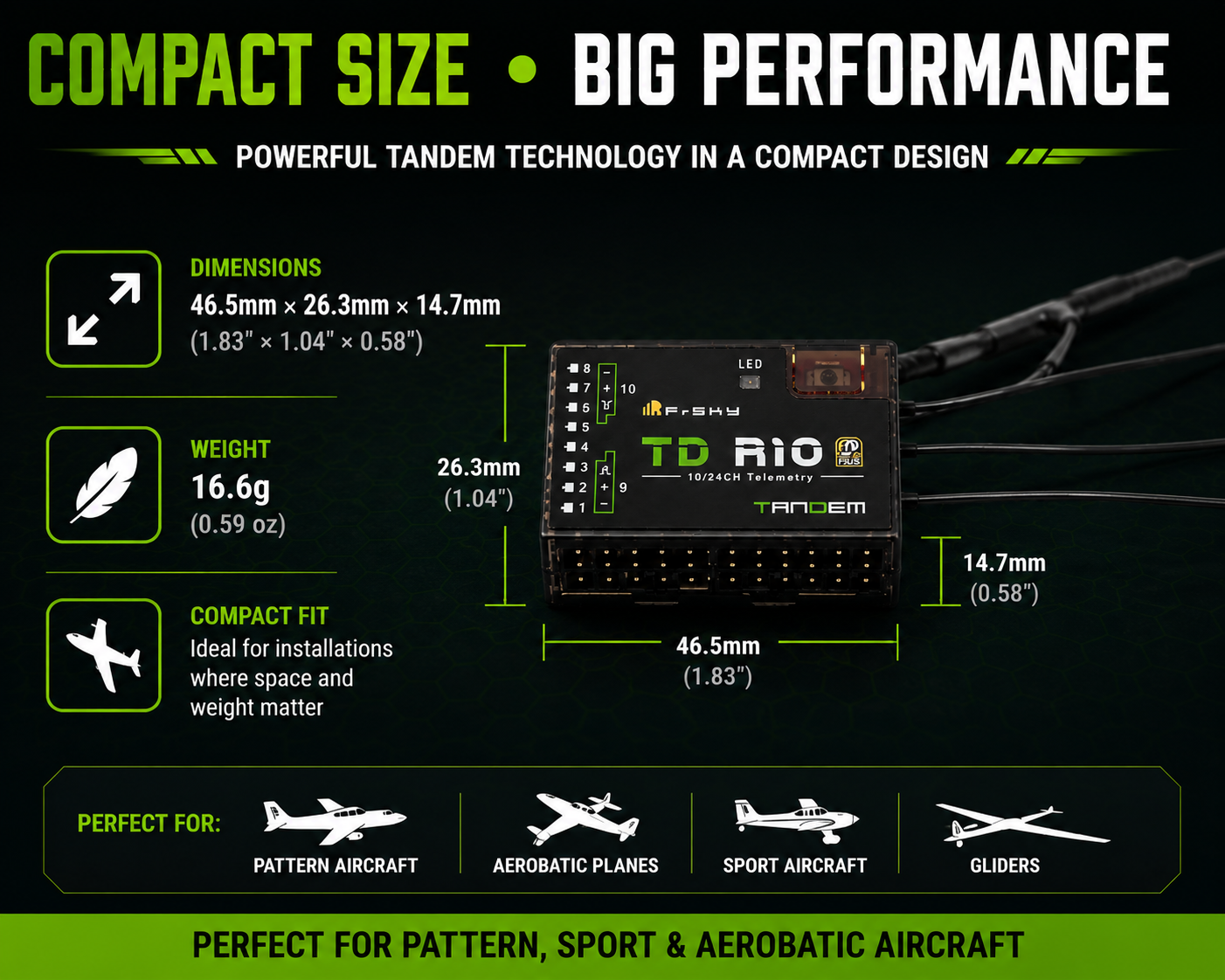

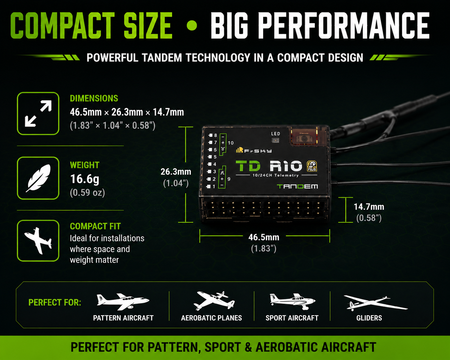

Receiver Dimensions: 1.83 x 1.04 x 0.58 in (46.5 x 26.3 x 14.7 mm)
Physical Weight: 16.6 g / 0.59 oz
🙋 Frequently Asked Questions (FAQ)

Does the TD R10 operate on both 2.4GHz and 900MHz at the same time?
Yes. The TD R10 is a Tandem dual-band receiver and operates on both frequencies simultaneously when paired with compatible FrSky Tandem equipment.

How many channel ports does the TD R10 have?
The TD R10 has 10 configurable physical ports. CP1 acts as a multi-bus supporting PWM, SBUS Out, FBUS, S.Port, and SBUS In. CP2 through CP10 support PWM, SBUS Out, FBUS, and S.Port configurations.

Does the TD R10 have gyro stabilization?
No. The TD R10 is the receiver-only version. If your model demands advanced 6-axis flight stabilization functions, you will want to select the TD SR10 version variant.

Does it support telemetry feedback?
Yes. The TD R10 natively supports onboard receiver voltage telemetry, AIN2 external flight pack monitoring, and all FBUS/S.Port smart telemetry sensors.

📦 Package Includes:

  • 1 x FrSky TD R10 Tandem Dual-Band 10-Channel Receiver
  • 2 x External 2.4GHz Coaxial Antennas
  • 1 x External 900MHz High-Gain Antenna

💡 Modeler’s Tips

Because the TD R10 utilizes a triple antenna array, route the two 2.4GHz active elements exactly 90 degrees relative to each other for structural orientation security, and orient the 900MHz element on a separate perpendicular vertical plane. Keep all three aerial elements as far away from carbon fiber structural frames, heavy power wiring, ESC modules, and gas engine ignition boxes as possible to establish a pristine, long-range RF environment.
