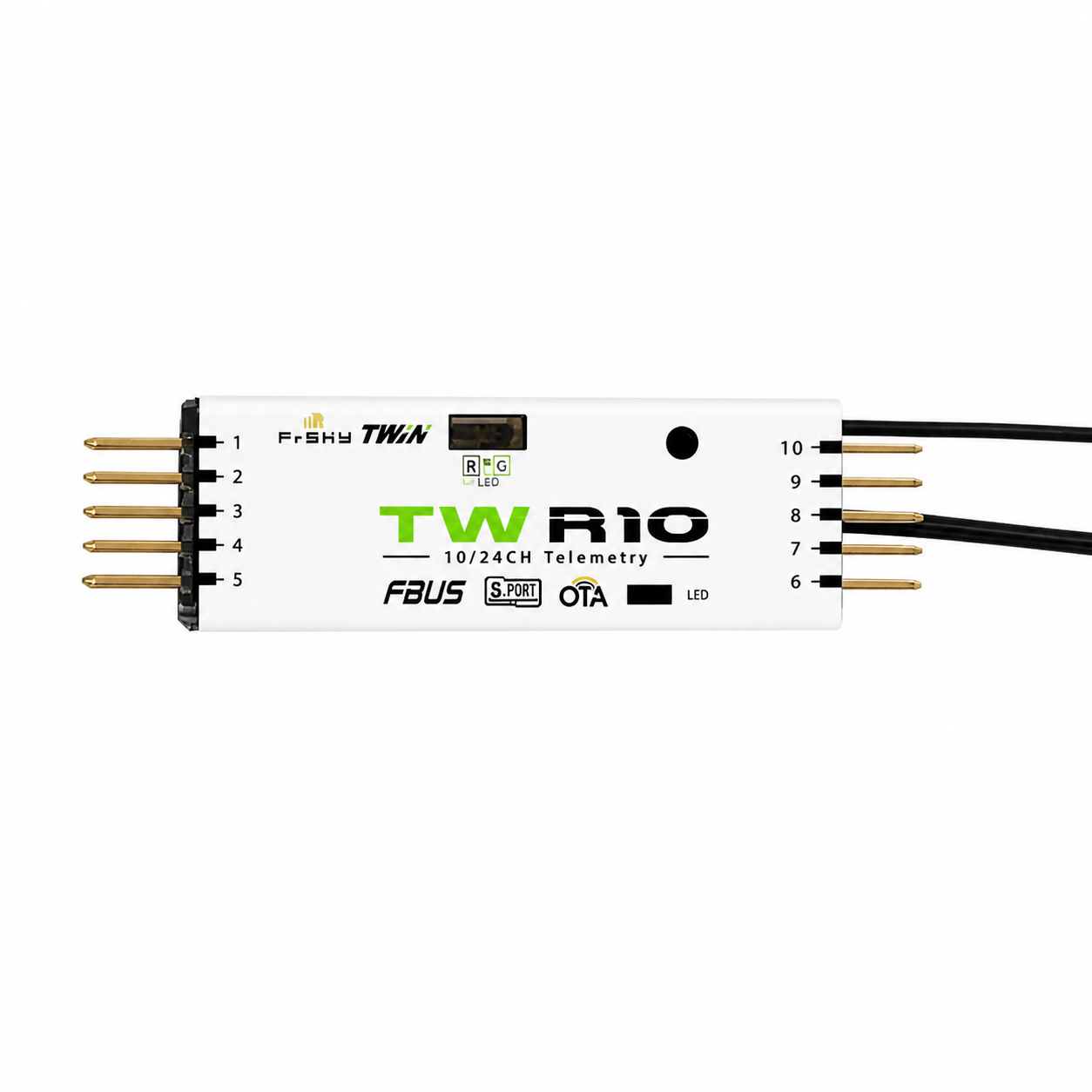

FrSky Twin TW R10 Receiver – Dual 2.4GHz Telemetry (10CH)
Couldn't load pickup availability
The FrSky Twin TW R10 is a compact 10-channel receiver built on FrSky’s advanced dual 2.4GHz TW protocol. Designed for pilots who want improved signal reliability without added complexity, it features active-active redundancy, configurable ports, and full telemetry support in a lightweight package.
Key Features
- Dual 2.4GHz TW protocol (true active-active redundancy)
- 10 configurable channel ports
- Each port supports PWM, SBUS, FBUS, or S.Port
- Triple 2.4GHz antennas for improved signal stability
- FBUS support for single-wire control + telemetry
- Compact and lightweight design (ideal for tighter builds)
- Long control range (based on RF power settings)
- OTA (Over-the-Air) firmware updates
- Basic black-box data logging
Dual 2.4GHz Active-Active Redundancy
The TW protocol operates two active RF signal paths simultaneously, unlike traditional receivers that switch to a backup signal. This provides more stable control, improved resistance to interference, and reduced risk of signal dropouts during flight.
Configurable Channel Ports
All 10 ports on the TW R10 can be configured to match your setup:
- CP1: PWM / SBUS OUT / FBUS / S.Port / SBUS IN
- CP2–10: PWM / SBUS OUT / FBUS / S.Port
With FBUS, both control signals and telemetry can run through a single wire. This simplifies wiring and reduces clutter, especially in smaller or mid-size aircraft.
Lightweight & Compact Advantage
Weighing only 9.4g, the TW R10 is ideal for applications where space and weight matter. It delivers the benefits of TW redundancy without the size or complexity of larger receivers like the R12 or SR12.
Specifications
- Frequency: Dual 2.4GHz
- Channels: 10 configurable ports
- Dimensions: 64.6 × 16.6 × 12.4 mm
- Weight: 9.4g
- Operating Voltage: 3.5 – 12V (2S recommended)
- Operating Current: ≤120mA @ 5V
- Voltage Measurement (AIN): 0–35V (1:10 divider)
- Antennas: Triple 2.4GHz (IPEX1 connectors)
- Compatibility: FrSky Twin radios & TW protocol RF modules
What’s Included
- FrSky Twin TW R10 Receiver (×1)
What You’ll Need
- FrSky Twin-compatible transmitter (TW protocol)
- Receiver battery or power system
- Servos and aircraft setup
Best Use Applications
- Sport and scale RC airplanes
- Mid-size aircraft builds
- Electric models where weight matters
- Pilots upgrading from standard receivers to TW reliability
Why This Receiver Stands Out
The TW R10 brings FrSky’s active-active redundancy into a compact and lightweight form. It’s an ideal upgrade from traditional receivers for pilots who want improved signal reliability without stepping up to larger dual-battery systems.
Which FrSky TW Receiver Should You Choose?
FrSky’s TW series receivers all use dual 2.4GHz active-active redundancy, but each model is designed for a different type of aircraft and setup.
| Model | Best For | Key Advantage | Power Setup |
|---|---|---|---|
| TW R10 | Sport planes, mid-size builds | Lightweight & simple TW upgrade | Single battery |
| TW R12 | Large aircraft, gas, jets | Dual battery redundancy | Dual XT30 inputs |
| TW SR12 | Scale, aerobatic, windy conditions | Built-in ADV stabilization | Dual XT30 inputs |
Quick Recommendation
- Choose TW R10: If you want a lightweight, simple upgrade from a standard receiver
- Choose TW R12: If you need maximum reliability with dual battery redundancy
- Choose TW SR12: If you want stabilization + redundancy in one system
All TW receivers use dual 2.4GHz active-active redundancy, meaning both signal paths are always working at the same time for improved control reliability.
Modeler’s Tip
If your model doesn’t require dual battery redundancy or stabilization, the TW R10 is the simplest way to gain the benefits of TW signal reliability in a lightweight setup.
