FrSky Twin TW SR8 Stabilized Receiver – Dual 2.4GHz Telemetry (8CH)

FrSky Twin TW SR8 Stabilized Receiver – Dual 2.4GHz Telemetry System (8CH)

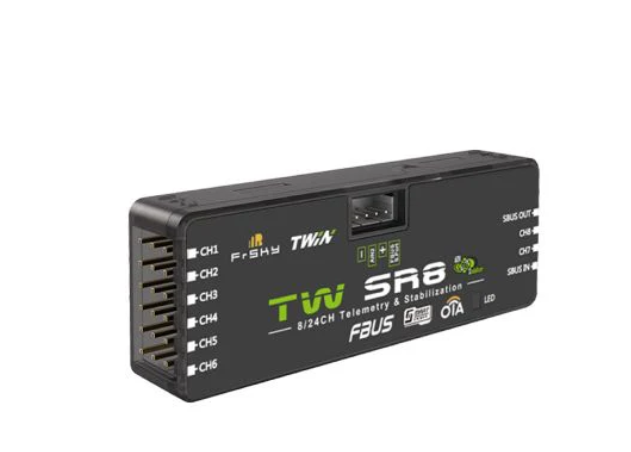

The FrSky Twin TW SR8 is a compact 8-channel receiver featuring dual 2.4GHz active-active redundancy and built-in ADV stabilization. It delivers smoother flight performance, simplified wiring, and reliable signal control in a lightweight package.

Key Features

• Dual 2.4GHz TW protocol (true active-active redundancy)
• Built-in ADV stabilization system
• 8 PWM channel outputs
• SBUS In & Out (16CH / 24CH support)
• FBUS support for single-wire control + telemetry
• Built-in telemetry sensors (altitude, vertical speed)
• Compact and lightweight design (9.8g)
• OTA firmware updates and black-box logging

ADV Stabilization System (Compact Flight Control)

The TW SR8 features FrSky’s ADV Stabilizer, an upgraded system beyond traditional gyro stabilization. It provides more flexibility, smoother control, and advanced tuning options without requiring a separate stabilization module.

• Supports Stabilization, Auto-Level, Hover, and Knife-Edge modes
• Additional stabilization channels vs traditional systems
• Full channel pin mapping for flexible setups
• Advanced tuning and programmable parameters
• Stabilization profile (file) sharing capability

This makes the SR8 ideal for smaller aircraft where weight matters but flight stability is still important.

Dual 2.4GHz Active-Active Redundancy

The TW protocol runs two RF signals simultaneously instead of switching between primary and backup. This improves signal stability, reduces interference issues, and provides more consistent control during flight.

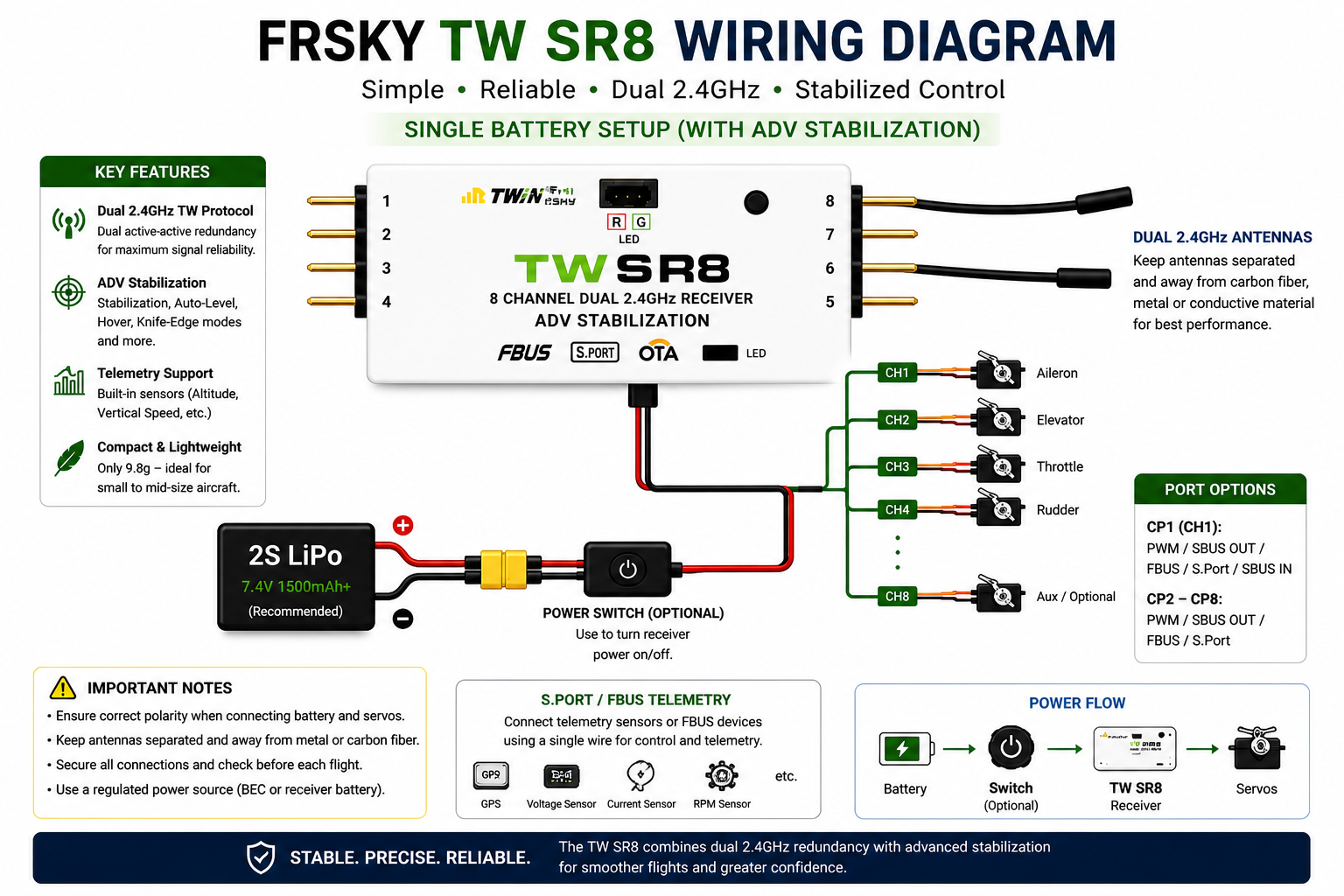

Simple & Clean Wiring (FBUS Advantage)

With FBUS, control signals and telemetry can run through a single wire, reducing wiring complexity and making installations cleaner—especially in smaller aircraft.

Built-In Telemetry Sensors

• Altitude monitoring
• Vertical speed (variometer)

This provides valuable real-time flight data without requiring additional external sensors.

Specifications

• Frequency: Dual 2.4GHz
• Channels: 8 PWM outputs

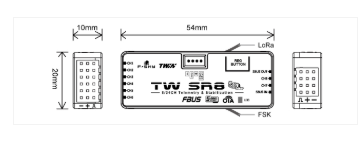

• Dimensions: 54 × 20 × 10 mm
• Weight: 9.8g
• Operating Voltage: 3.5 – 10V
• Operating Current: 80mA @ 5V
• Voltage Measurement (AIN2): 0–36V
• Antenna Connector: IPEX4
• Compatibility: FrSky Twin radios & TW protocol RF modules

What’s Included

• FrSky Twin TW SR8 Stabilized Receiver (×1)

Best Use Applications

• Sport RC airplanes
• Electric aircraft
• Park-size to mid-size builds
• Pilots wanting stabilization without extra components

Why This Receiver Stands Out

The TW SR8 combines stabilization, telemetry, and dual-band redundancy in a compact system. It eliminates the need for a separate gyro while keeping your setup lightweight and simple.

FrSky TW Receiver Comparison Chart

All FrSky TW receivers use dual 2.4GHz active-active redundancy, meaning both signal paths operate simultaneously for improved control reliability. The differences come down to size, power setup, and built-in features like stabilization.

Quick Recommendation

• TW R8: Lightweight entry into TW for small aircraft
• TW SR8: Same as R8, but adds stabilization
• TW R10: Versatile upgrade for mid-size models
• TW SR10: Mid-size models with added flight stabilization
• TW R12: Maximum reliability with dual battery redundancy
• TW SR12: Full system with stabilization + redundancy

All TW receivers operate dual active 2.4GHz signals simultaneously, giving you more stable control compared to traditional single-path receivers.

Modeler’s Tip

Use stabilization during maiden flights or windy conditions. Once dialed in, reduce gain or switch modes for more responsive control.
