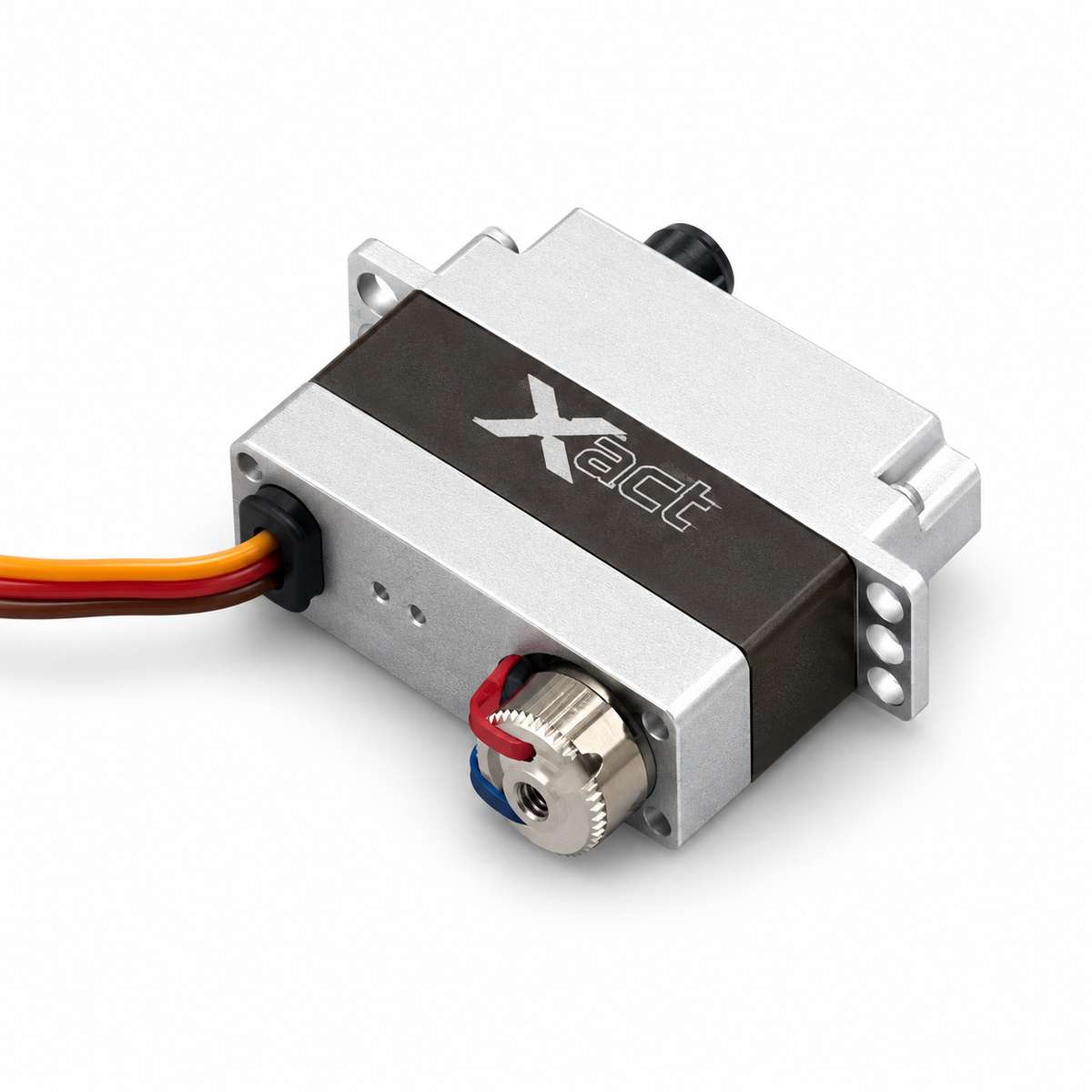

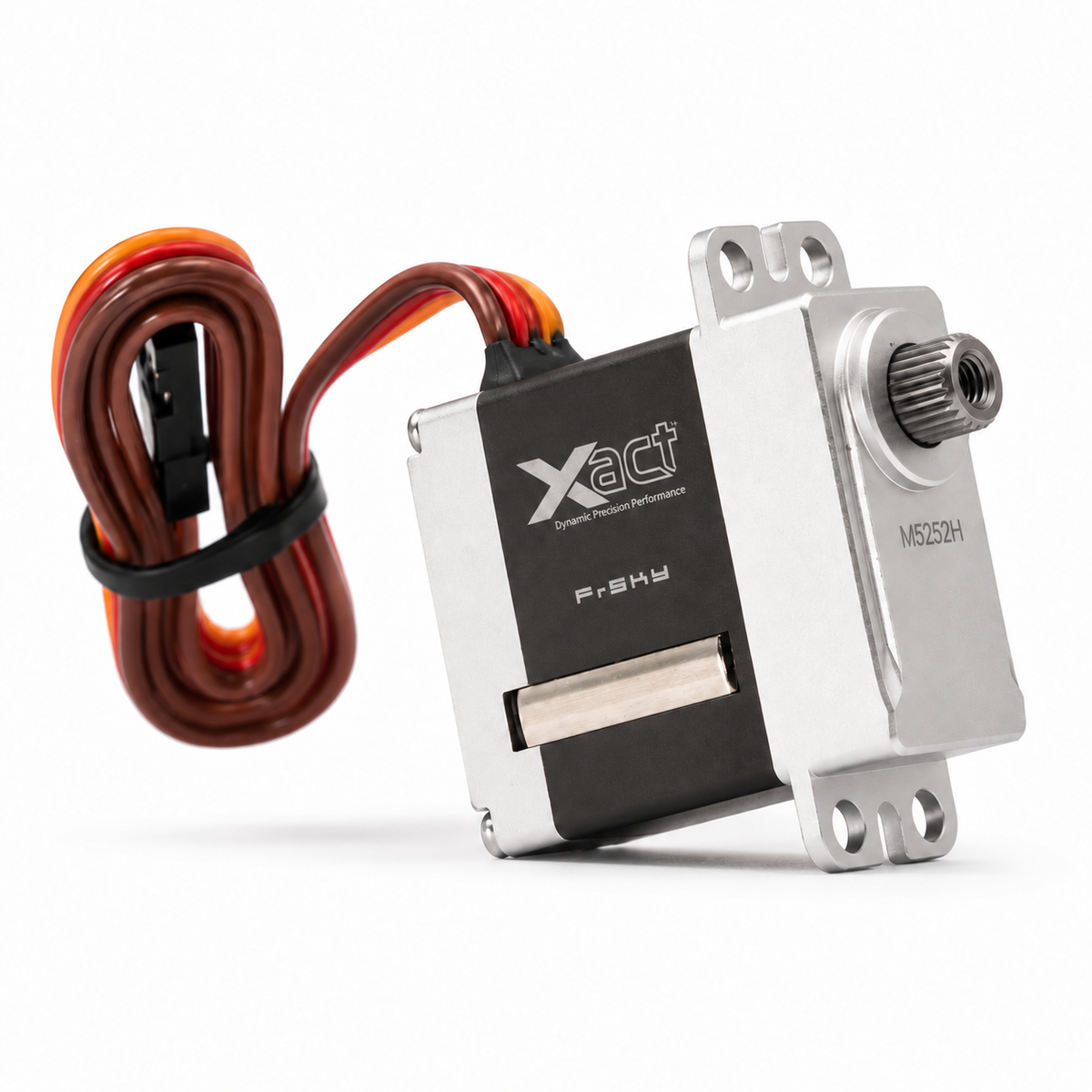

FrSky Xact M5252H Micro Digital HV Coreless Servo
The FrSky Xact M5252H is a compact, high-voltage digital servo that combines strong torque with fast response. At 8.4V, it delivers up to 177.8 oz-in (12.8 kg-cm) of torque with a quick 0.05 sec/60° transit time.
Designed for demanding RC aircraft installations, the M5252H features a responsive coreless motor, durable metal gears, dual precision ball bearings, and a Hall-effect position sensor. Its fully CNC-machined aluminum case provides added strength and heat dissipation while maintaining a compact micro-servo footprint.
The M5252H supports conventional PWM operation along with SBUS and F.Port 2.0/FBUS. When connected to compatible FrSky equipment, FBUS allows servo telemetry data such as current, voltage, and temperature to be returned to the transmitter. Servo travel and other supported settings can also be configured through compatible FrSky tools.
Key Features
- Micro-size high-voltage digital servo
- Up to 177.8 oz-in (12.8 kg-cm) torque at 8.4V
- Fast 0.05 sec/60° transit time at 8.4V
- Responsive coreless motor
- Durable metal gear train
- Fully CNC-machined aluminum case
- Dual precision ball bearings
- Hall-effect position sensor
- Supports F.Port 2.0/FBUS, SBUS, and PWM
- Telemetry support with compatible FrSky equipment
- Configurable 90°, 120°, or 180° servo travel
- Over-current and over-temperature monitoring and alarms
- Upgradeable firmware
Performance Specifications
| Operating Voltage | Stall Torque | Speed | Stall Current |
|---|---|---|---|
| 6.0V | 147.2 oz-in (10.6 kg-cm) | 0.08 sec/60° | 1.7A |
| 7.4V | 166.6 oz-in (12.0 kg-cm) | 0.06 sec/60° | 1.9A |
| 8.4V | 177.8 oz-in (12.8 kg-cm) | 0.05 sec/60° | 2.0A |
Additional Specifications
- Operating voltage: 4.8–8.4V
- Servo type: Digital, high voltage
- Motor type: Coreless
- Gear material: Metal
- Output spline: 5 mm, 25T
- Dimensions: 0.91 × 0.47 × 1.14 in. (23 × 12 × 29 mm)
- Weight: 0.81 oz. (23 g)
- Refresh rate: 1520μs/333Hz or 760μs/700Hz
- Protocols: F.Port 2.0/FBUS, SBUS, and PWM
- Manufacturer part number: 03050624
Package Includes
- One FrSky Xact M5252H Micro Digital HV Coreless Servo
Servo telemetry, programming, and bus-control features require compatible FrSky equipment. Confirm the selected operating mode and refresh rate before use.
