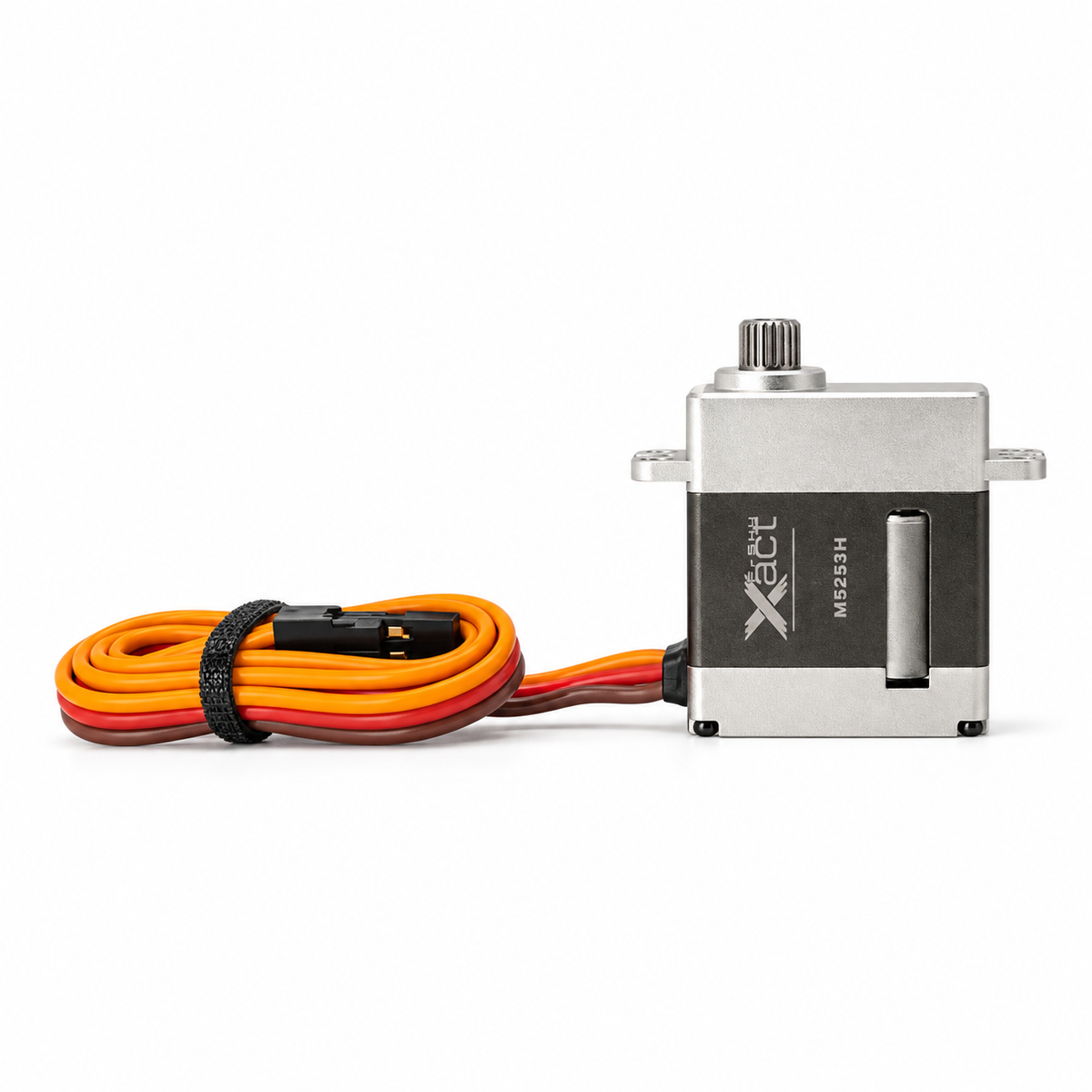

FrSky Xact M5253H Micro Digital HV Coreless Servo
The FrSky Xact M5253H is a compact, high-voltage digital servo delivering up to 141.5 oz-in of torque with a fast 0.07-second transit time at 8.4V. Its micro-size aluminum case makes it an excellent choice for RC aircraft installations where space and weight are limited but dependable torque and precise control are still required.
The M5253H combines a responsive coreless motor, metal gears, dual precision ball bearings, and a Hall-effect position sensor. It supports conventional PWM operation along with SBUS and F.Port 2.0/FBUS connectivity.
When connected to a compatible FrSky FBUS receiver or flight controller, the servo can return telemetry information such as current, voltage, and temperature. Servo travel and other supported settings can be configured through compatible FrSky tools.
Key Features
- Micro-size high-voltage digital servo
- Up to 141.5 oz-in (10.2 kg-cm) torque at 8.4V
- Fast 0.07 sec/60° transit time at 8.4V
- Coreless motor for responsive operation
- Durable metal gear train
- Fully CNC-machined aluminum case
- Dual precision ball bearings
- Hall-effect position sensor
- Supports F.Port 2.0/FBUS, SBUS, and PWM protocols
- Telemetry support with compatible FrSky equipment
- Configurable 90°, 120°, or 180° servo travel
- Over-current and over-temperature monitoring and alarms
- Upgradeable firmware
Performance Specifications
| Operating Voltage | Stall Torque | Speed | Stall Current |
|---|---|---|---|
| 6.0V | 101.3 oz-in (7.3 kg-cm) | 0.10 sec/60° | 1.7A |
| 7.4V | 124.9 oz-in (9.0 kg-cm) | 0.08 sec/60° | 1.9A |
| 8.4V | 141.5 oz-in (10.2 kg-cm) | 0.07 sec/60° | 2.0A |
Additional Specifications
- Operating voltage: 4.8–8.4V
- Motor type: Coreless
- Gear material: Metal
- Output spline: 5 mm, 25T
- Dimensions: 0.91 × 0.47 × 1.14 in. (23 × 12 × 29 mm)
- Weight: 0.81 oz. (23 g)
- Refresh rate: 1520μs/333Hz or 760μs/700Hz
- Protocols: F.Port 2.0/FBUS, SBUS, and PWM
- Manufacturer part number: 03050625
Package Includes
- One FrSky Xact M5253H Micro Digital HV Coreless Servo
Servo telemetry, programming, and bus-control features require compatible FrSky equipment. Confirm the selected operating mode and refresh rate before use.
