FrSky Xact SG5101H HV Digital Coreless Wing Servo (Vertical or Flat Lug) 19kg, 0.10 sec

In stock
SKU: 03050652Flat
(0)
$50.00
Mounting Style

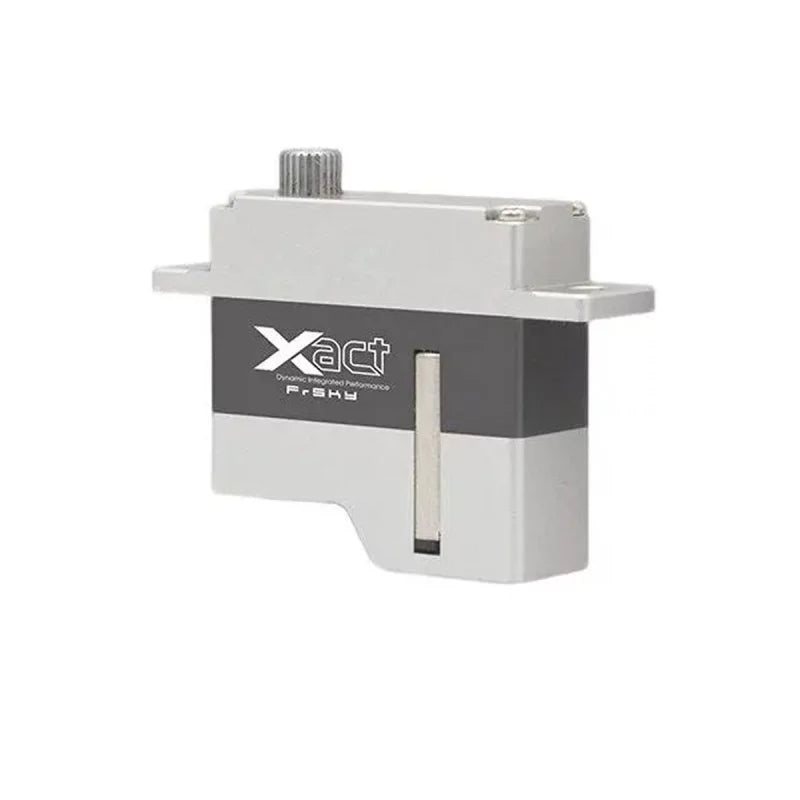

FrSky Xact SG5101H HV Digital Coreless Wing Servo

The FrSky Xact SG5101H is a thin-profile, high-voltage digital wing servo designed for installations where compact size, precise control, and dependable torque are required. Its slim 10 mm (0.39 in) case makes it well suited for ailerons, flaps, stabilizers, composite wings, sailplanes, jets, and other aircraft with limited mounting depth.

The SG5101H is available in two mounting configurations. Both versions use the same servo electronics and provide the same operating performance. Select the mounting style that matches your aircraft structure, servo tray, or installation system.

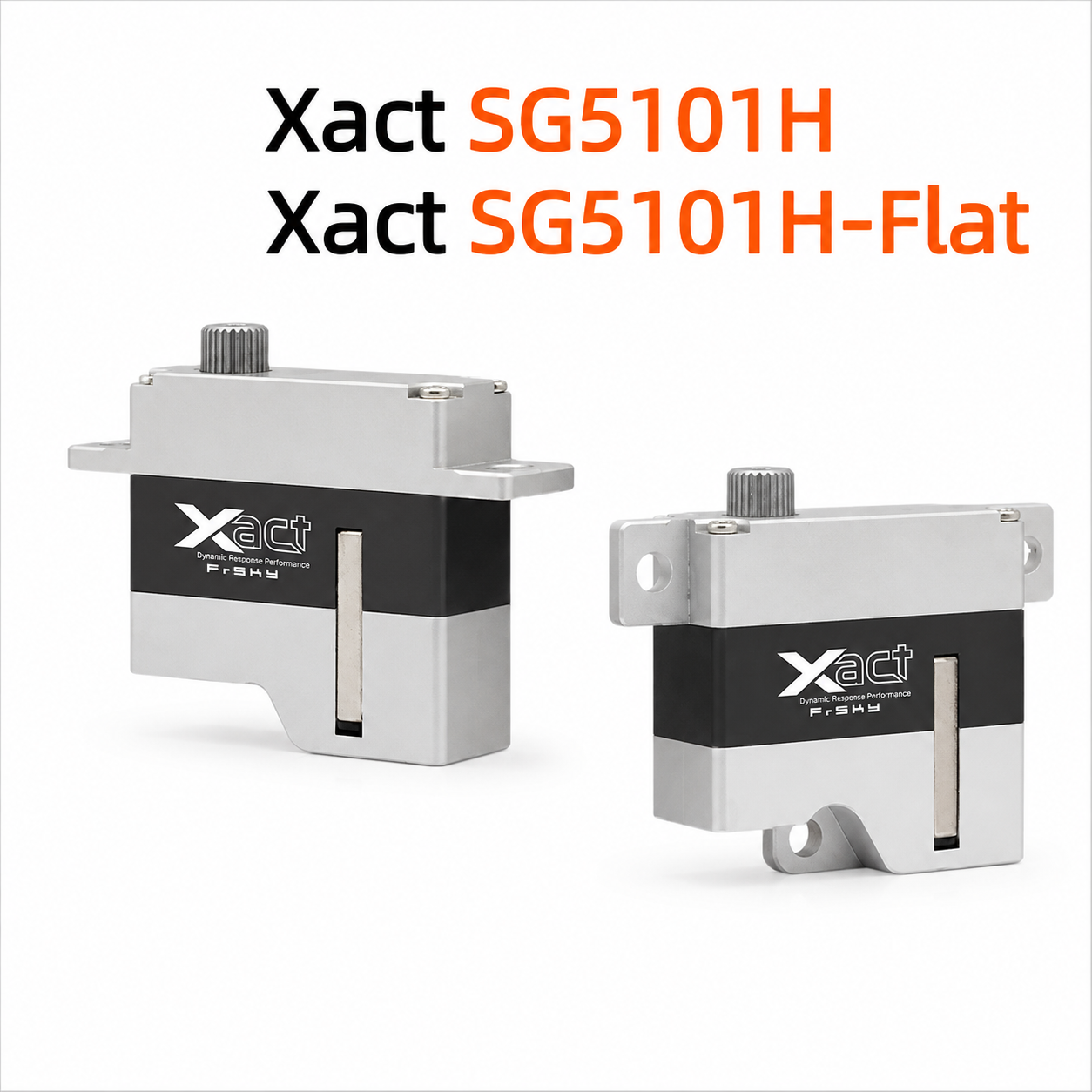

Available Mounting Styles

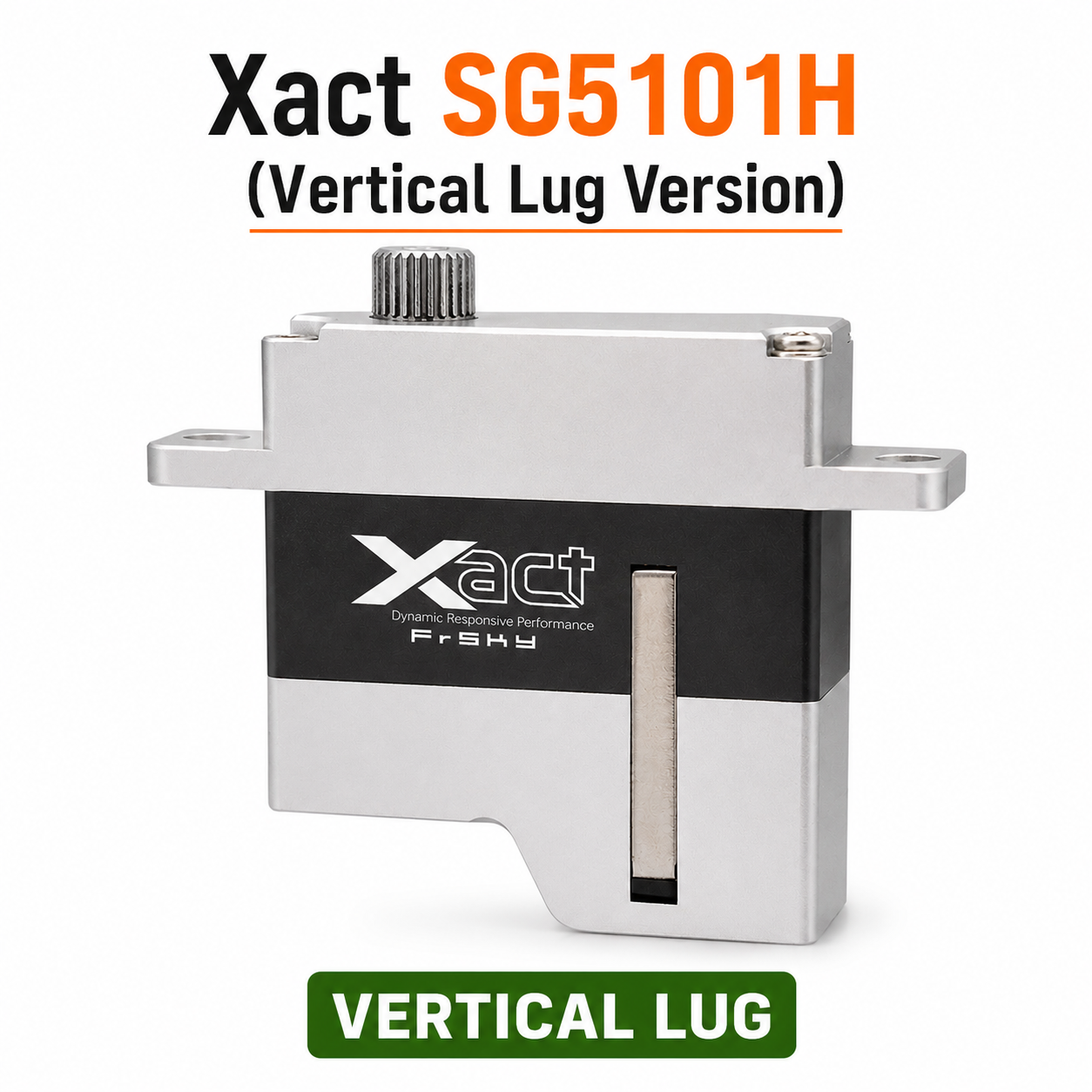

  • Vertical Lug – Features outward-extending upper mounting tabs. FrSky SKU: 03050652.

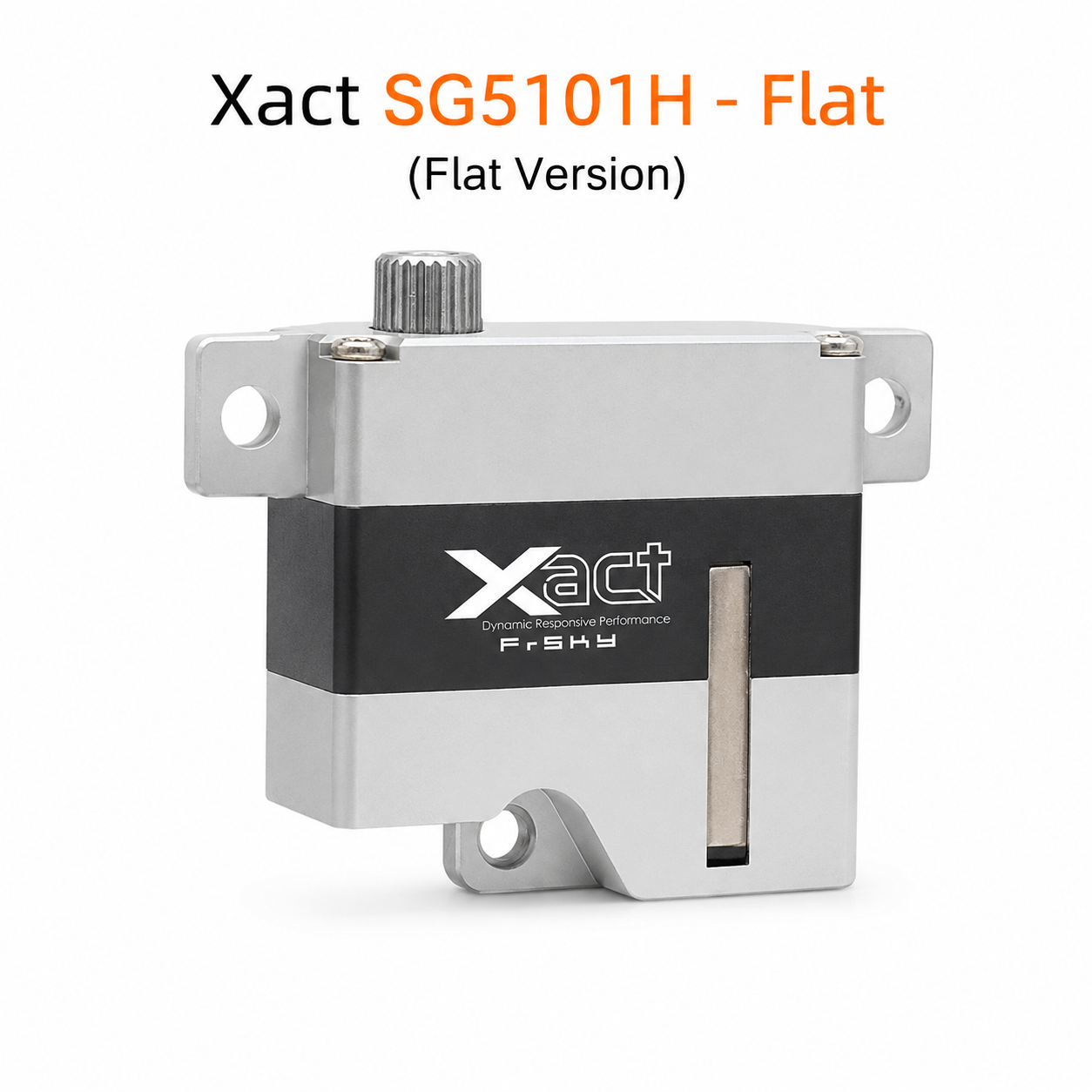

  • Flat Lug – Features mounting points positioned along the sides and lower portion of the servo case. FrSky SKU: 03050653.

Performance specifications are identical. Only the mounting configuration differs.

Target Applications

  • High-performance composite sailplanes, gliders, and thin-wing installations
  • Turbine jets, EDF models, scale warbirds, and precision aerobatic airplanes
  • Ailerons, flaps, stabilizers, and other control surfaces with limited mounting depth
  • Installations using the appropriate optional FrSky Xact 5101 IDS components
Sizing & Spline Note: The SG5101H measures 30 × 10 × 28 mm (1.18 × 0.39 × 1.10 in) and uses a 5 mm diameter, 25-tooth output spline. The Vertical Lug and Flat Lug configurations may not be interchangeable without modifying the mounting structure. Check your aircraft layout, servo tray, or IDS components before ordering.

Key Features

  • Thin-Profile Aluminum Case: The fully CNC-machined aluminum housing provides rigidity, durability, and improved heat dissipation in confined wing bays.
  • Non-Contact Position Sensor: Uses a magnetic Hall-effect sensor that avoids potentiometer contact wear and supports precise, consistent positioning.
  • Coreless Motor Performance: Provides fast response, smooth operation, and dependable control while driving the precision metal gear train.
  • Metal Gear Train: Designed to withstand demanding control-surface loads in high-performance aircraft.
  • Multi-Protocol Support: Supports FBUS, SBUS, and conventional PWM control for compatibility with a wide range of radio installations.
  • FBUS Telemetry: Can report servo voltage, current, temperature, and operating status when used with compatible FrSky equipment.
  • Onboard Status Monitoring: Supports over-current and over-temperature monitoring and alarms with compatible FrSky systems.
  • Configurable Travel: Servo travel can be set to 90°, 120°, or 180° through supported FrSky configuration tools.
  • High-Voltage Operation: Operates from 4.8V to 8.4V for use with properly configured high-voltage receiver power systems.

FBUS Telemetry Feedback

When connected through a compatible FBUS telemetry system, the SG5101H can report operating information back to a compatible FrSky transmitter.

  • Servo operating voltage
  • Servo current draw
  • Internal temperature
  • Servo operating status

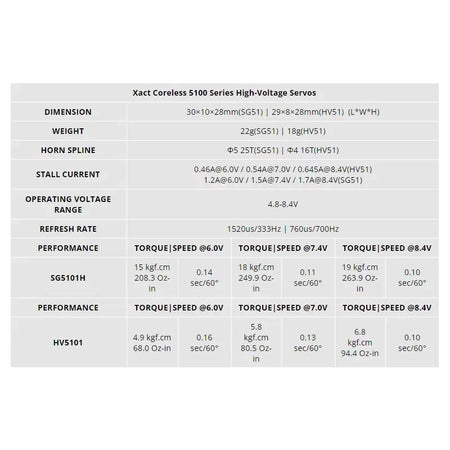

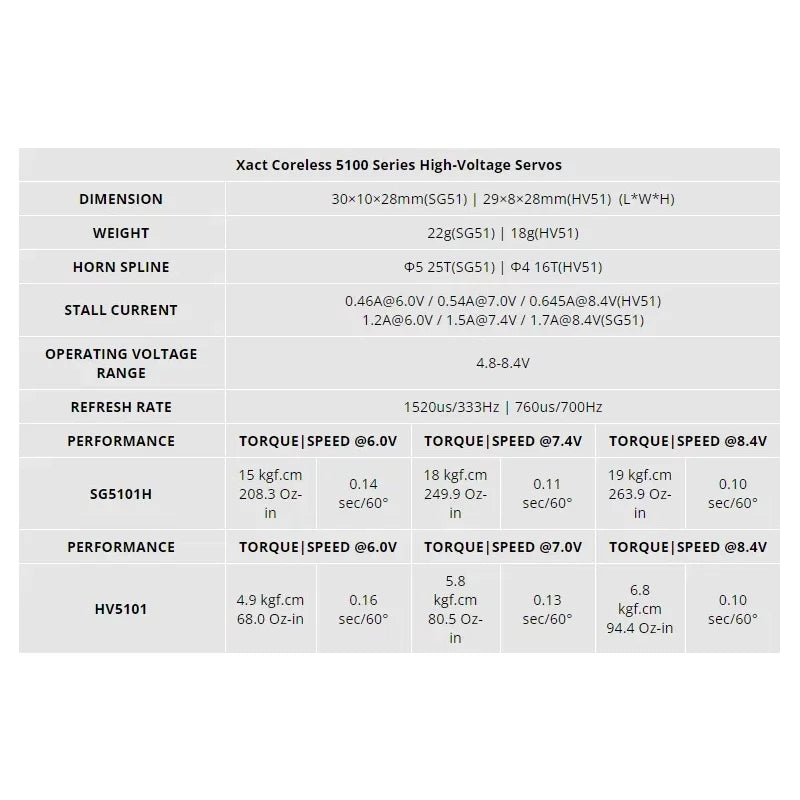

View Technical Specifications
Brand / Series: FrSky / Xact SG5100 Series
Model: SG5101H
Servo Type: Digital high-voltage coreless wing servo
Mounting Options: Vertical Lug or Flat Lug
Dimensions: 30 × 10 × 28 mm (1.18 × 0.39 × 1.10 in)
Weight: 22 g (0.78 oz)
Maximum Torque: 19 kg·cm (264 oz-in) at 8.4V
Transit Speed: 0.10 sec/60° at 8.4V
Operating Voltage: 4.8–8.4V DC; suitable for 2S LiPo systems that do not exceed 8.4V
Motor Type: Coreless
Gear Material: Metal
Case Material: CNC-machined aluminum
Position Sensor: Non-contact Hall-effect sensor
Bearings: Dual ball bearings
Output Spline: 5 mm diameter, 25-tooth (25T)
Supported Protocols: FBUS, SBUS, and PWM
Maximum Refresh Rate: 333 Hz
Configurable Travel: 90°, 120°, or 180°
Mounting Style and SKU Reference
Mounting Style FrSky Model SKU
Vertical Lug SG5101H Vertical Lug 03050652
Flat Lug SG5101H Flat Lug 03050653

Package Includes

  • 1 × FrSky Xact SG5101H HV Digital Coreless Wing Servo in the selected mounting configuration

Servo arms, IDS components, receiver equipment, and other installation accessories are sold separately unless specifically stated otherwise.

Installation Guide

  • Verify the correct Vertical Lug or Flat Lug mounting style before installation.
  • Confirm that the servo tray, wing structure, or IDS components match the selected version.
  • Set servo direction, center position, and travel before connecting the linkage.
  • Adjust endpoints to prevent linkage binding or control-surface over-travel.
  • Use a receiver power system capable of supplying the required operating current.
  • Do not exceed the maximum operating voltage of 8.4V.
  • Secure all mounting and linkage hardware according to the aircraft manufacturer’s recommendations.

Servo torque and speed may vary according to operating voltage, load, linkage geometry, and installation conditions.
