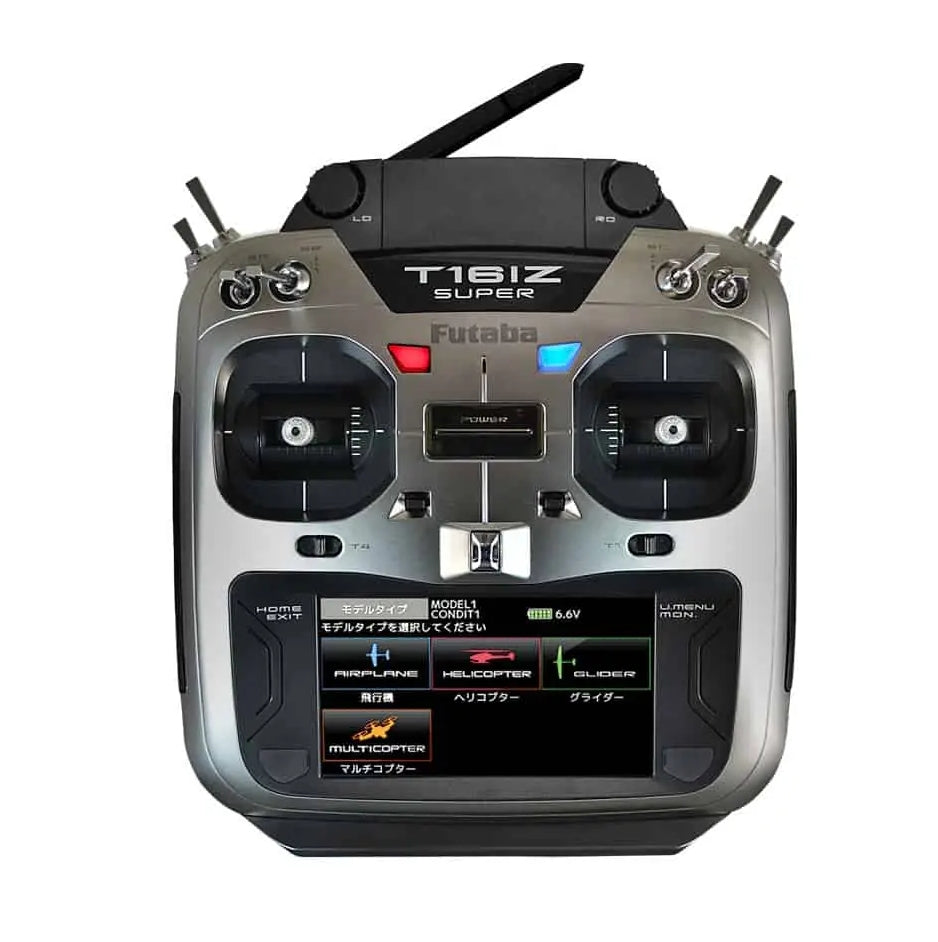

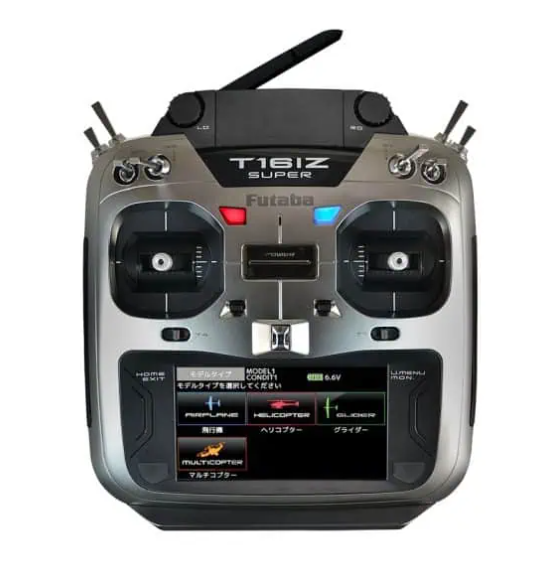

Futaba 16IZS 2.4GHz 18-Channel FASSTest Air Transmitter System

The Futaba 16IZS combines extensive aircraft programming, multiple Futaba 2.4GHz protocols, telemetry capability, and an intuitive color touchscreen in a professional 18-channel radio system. This transmitter-only package is ideal for pilots who already own compatible Futaba receivers or want to select the receiver best suited to their aircraft.

With support for airplanes, helicopters, gliders, and multicopters, the 16IZS can handle everything from sport models and scale aircraft to complex turbine jets and competition helicopters. Its logical programming interface provides quick access to mixes, flight conditions, telemetry information, servo adjustments, and model-specific functions.

Package Notice: This is the transmitter-only airplane version of the Futaba 16IZS. A receiver is not included and must be purchased separately. Always confirm that the selected receiver supports one of the transmitter's available Futaba protocols.

Recommended Applications

  • Sport, scale, aerobatic, and giant-scale airplanes
  • Turbine-powered jets and complex multi-servo aircraft
  • Electric and powered gliders
  • Flybarless and conventional helicopters
  • Multicopters and other advanced air models

Key Features

  • 18-Channel Control: Provides 16 proportional channels plus two switched channels for sophisticated aircraft and helicopter installations.
  • 4.3-Inch Color Touchscreen: The bright color display and touchscreen interface make model programming, telemetry review, and menu navigation easier.
  • Multiple Futaba Protocols: Supports compatible Futaba FASSTest, FASST, T-FHSS Air, and S-FHSS receivers, depending on the selected operating mode.
  • FASSTest Telemetry: Displays compatible receiver and sensor information such as receiver voltage, external battery voltage, temperature, RPM, altitude, and additional flight data.
  • Versatile Model Programming: Includes dedicated programming for airplanes, helicopters, gliders, and multicopters.
  • Advanced Flight Conditions: Allows multiple control configurations, trims, rates, curves, and mixes to be assigned for different phases of flight.
  • S.BUS Servo Programming: Compatible Futaba programmable servos can be configured through the transmitter using the appropriate connection setup.
  • Model Memory Expansion: Internal model storage can be supplemented with a compatible SD memory card.
  • Voice and Vibration Alerts: Provides audible, spoken, and vibration notifications for timers, telemetry values, warnings, and other assigned functions.
  • Rechargeable Transmitter Battery: Supplied with a rechargeable lithium-polymer transmitter battery for convenient field use.
  • Trainer and Simulator Support: Provides connectivity for compatible training and flight-simulator configurations.
  • User-Updateable Software: Futaba firmware updates can add improvements and compatible features as they become available.
Technical Specifications
Product Type: Computerized Air Transmitter System
Channel Capacity: 18 channels: 16 proportional plus 2 switched
Operating Band: 2.4GHz
Compatible Protocol Families: FASSTest, FASST, T-FHSS Air, and S-FHSS
Supported Model Types: Airplane, helicopter, glider, and multicopter
Display: 4.3-inch backlit color touchscreen
Telemetry: Supported with compatible FASSTest or T-FHSS Air receivers and sensors
Memory Expansion: SD memory card support
Receiver Included: No

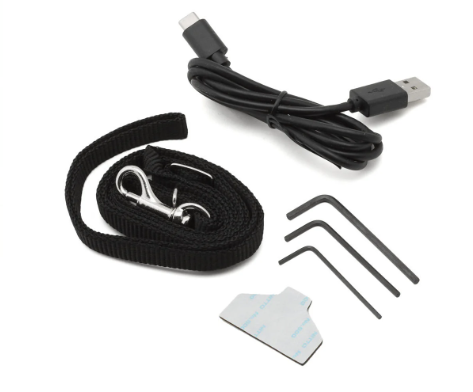

Package Includes

  • 1 × Futaba T16IZS 18-channel transmitter
  • 1 × Rechargeable transmitter battery
  • Transmitter charging accessories supplied by Futaba
  • Neck strap
  • Adjustment tools and documentation supplied with the factory package

Receiver Selection Information

  • Choose a FASSTest receiver when full telemetry and current Futaba air-system functionality are desired.
  • The number of usable receiver ports may differ from the transmitter's total channel capacity.
  • S.BUS and S.BUS2 installations can provide additional channel distribution with compatible equipment.
  • Receivers, telemetry sensors, servos, SD card, and aircraft accessories are sold separately.
